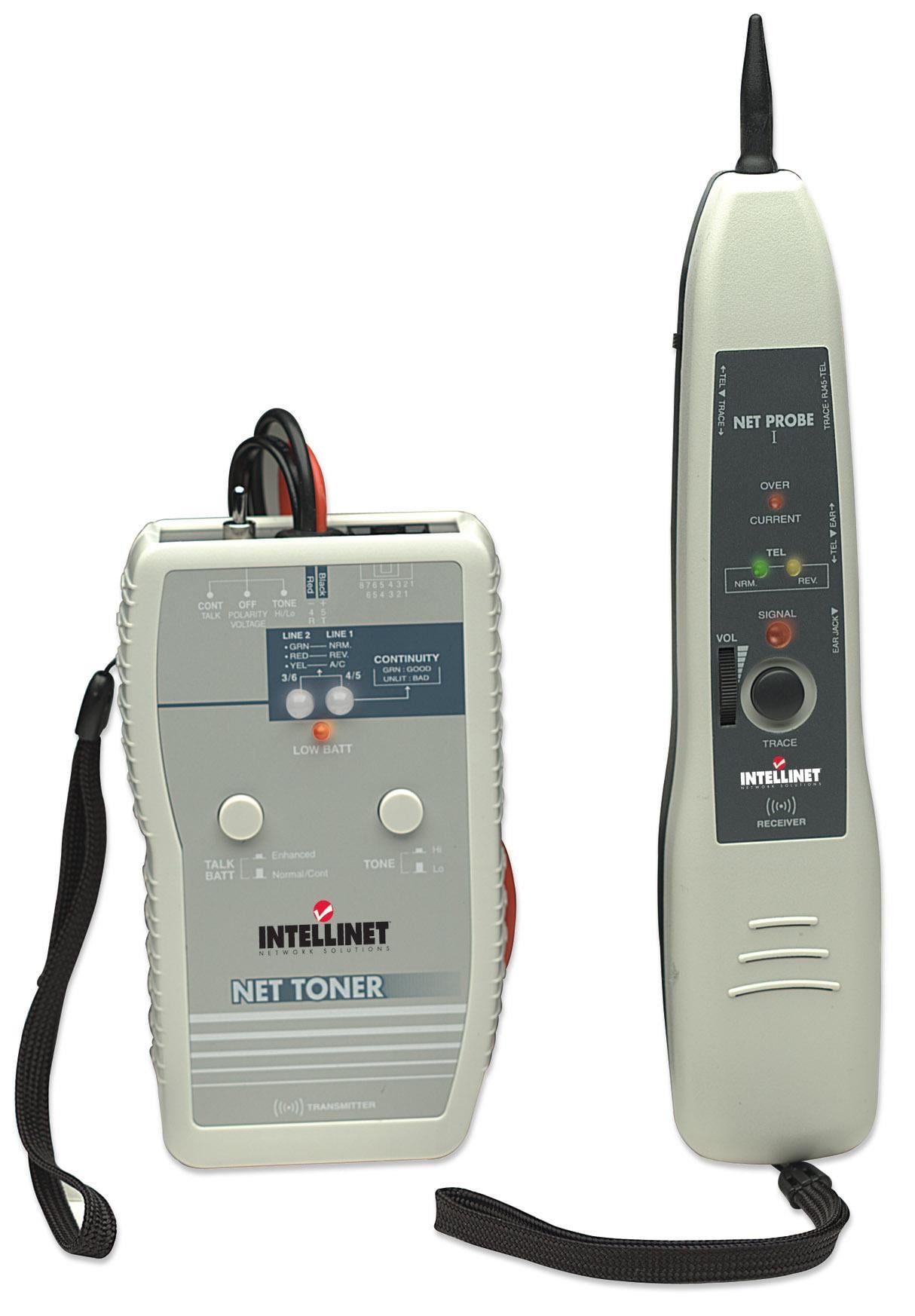

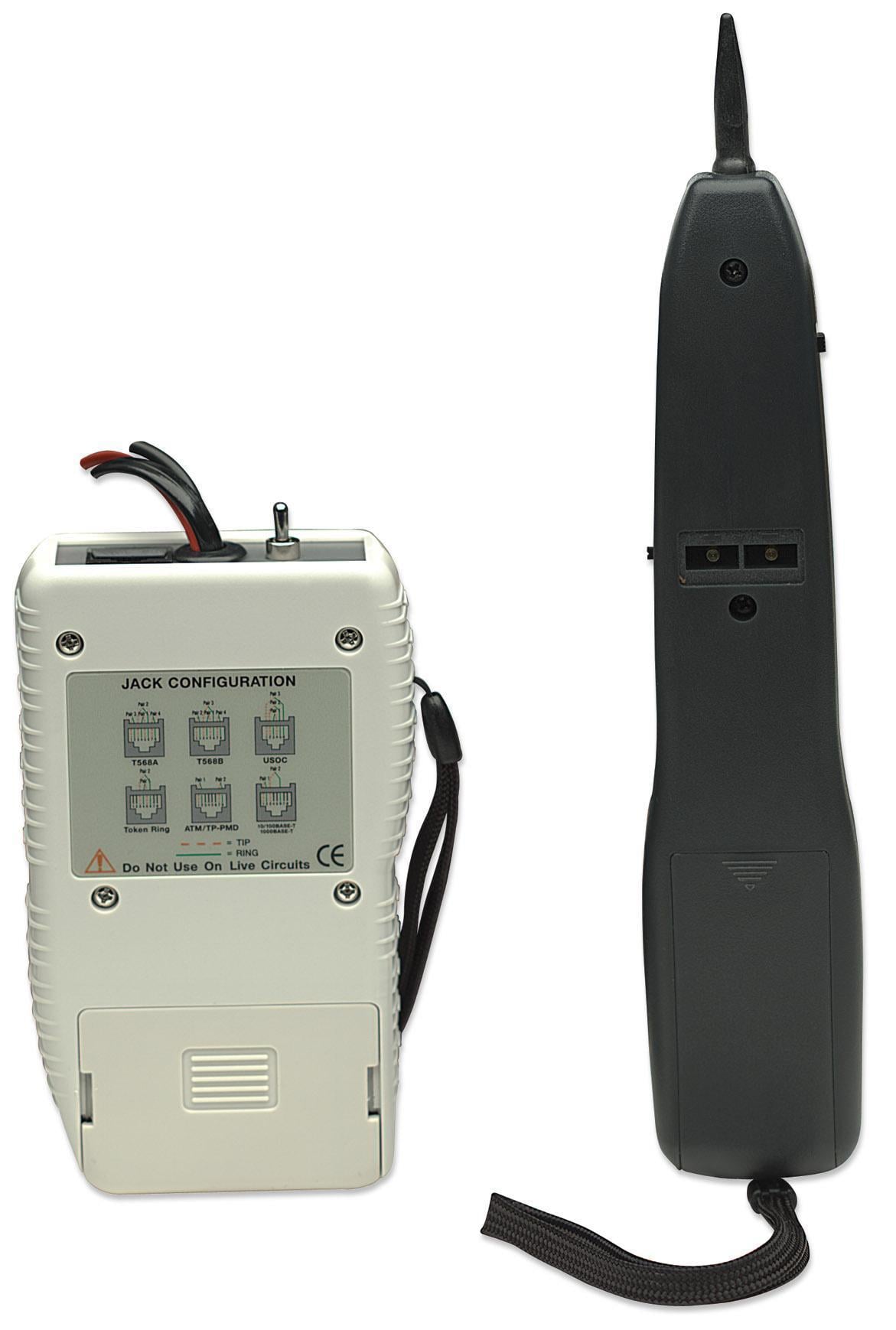

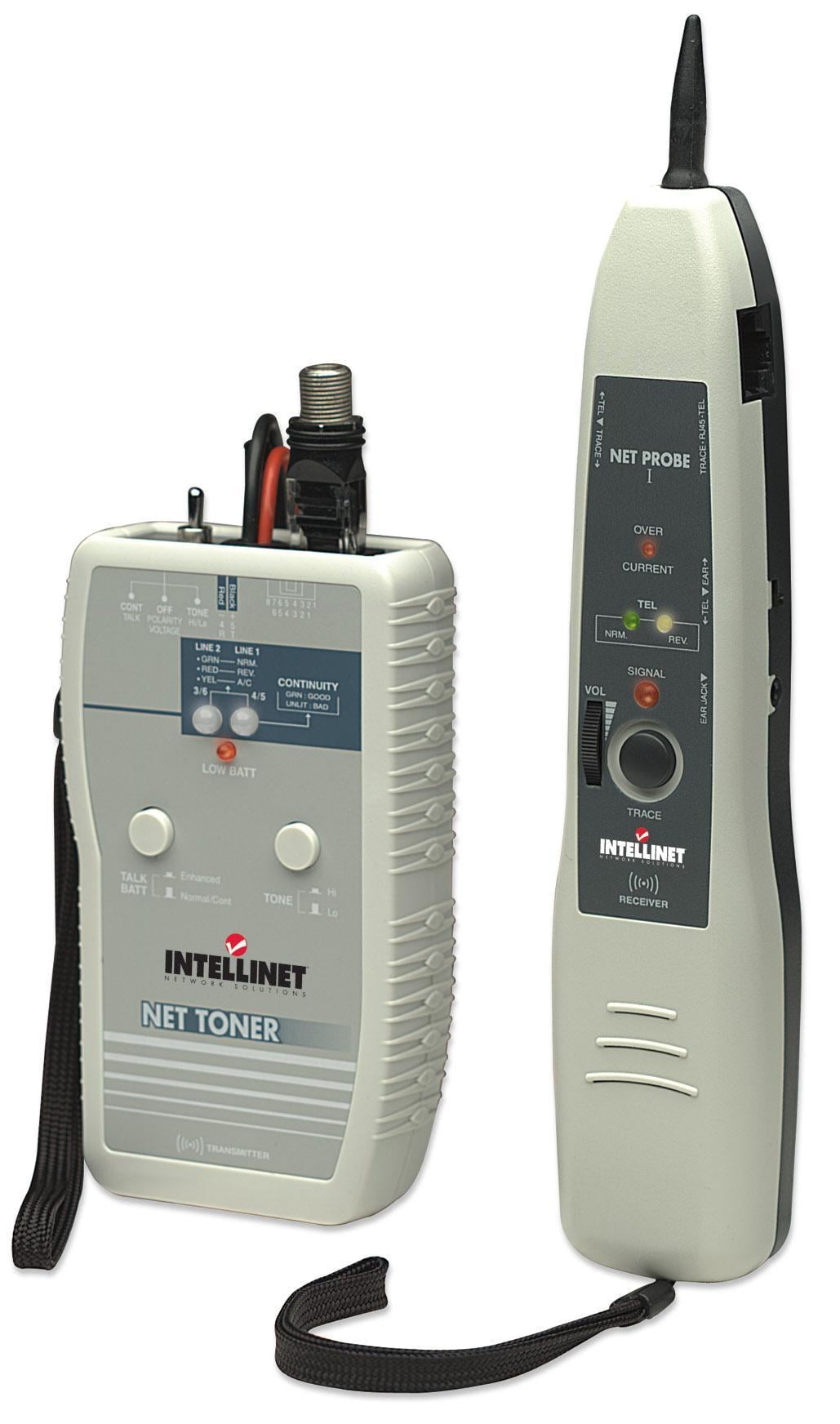

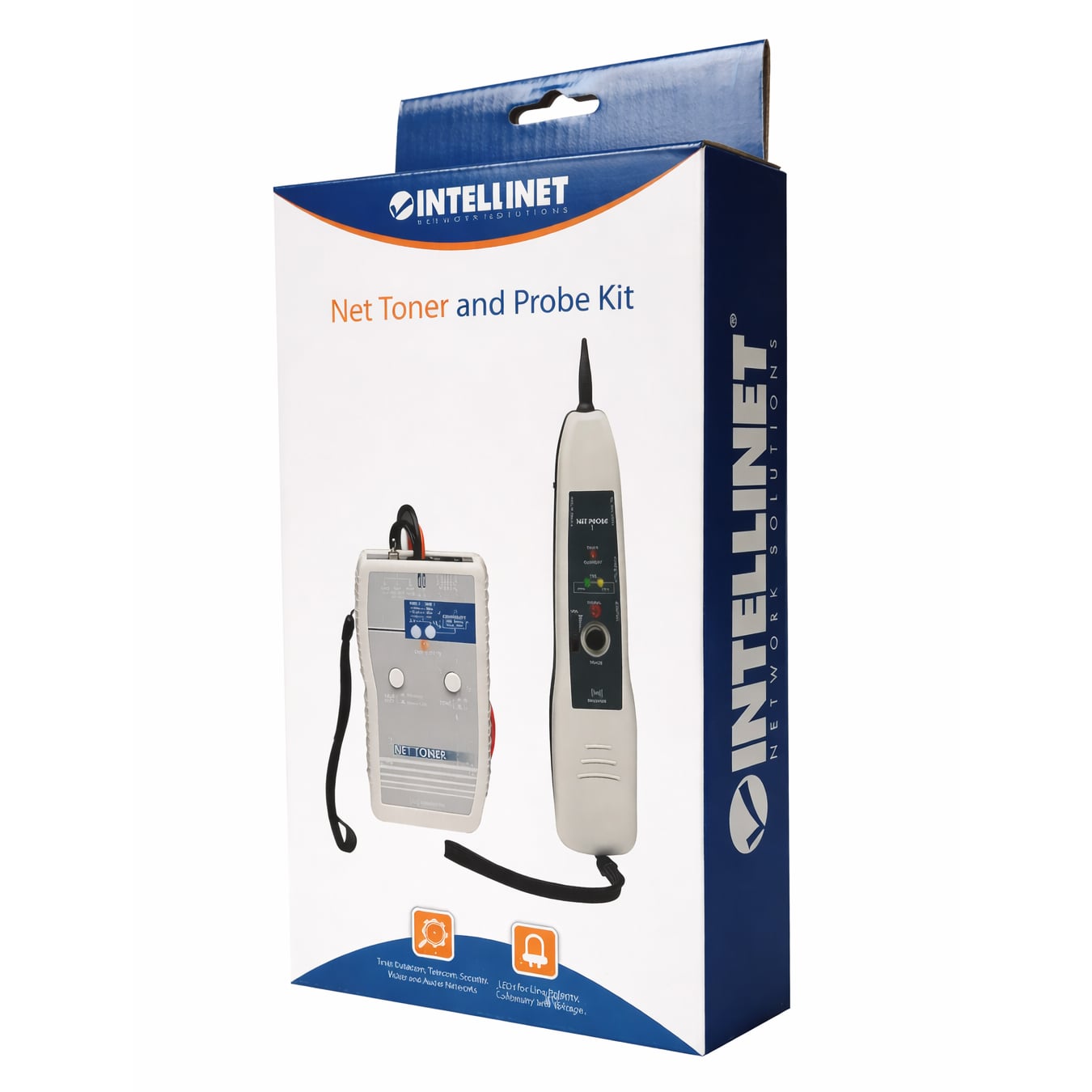

Cable Tracer with Tone Generator - Intellinet I-CT PROBE

€157.69
Tax included €129.30 excl. VAT

Cable probe with tone generator to trace wires in tangles or groups. Frequency 500-781 Hz and 446-657 Hz. Includes alligator clips and RJ45, RJ12 connectors.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Tests data communications, telecommunications, audio and video networks

  • Two-position switch for single or multi-tone signal

  • LED for polarity, continuity, and voltage

  • Advanced talk battery mode provides current for voice conversations on inactive pairs

  • Test cables and modular cables for various checks on single cable or modular connectors

  • Replaceable plastic tip to prevent accidental short circuits

  • Traces or identifies wires or cables in a tangle or inside a group

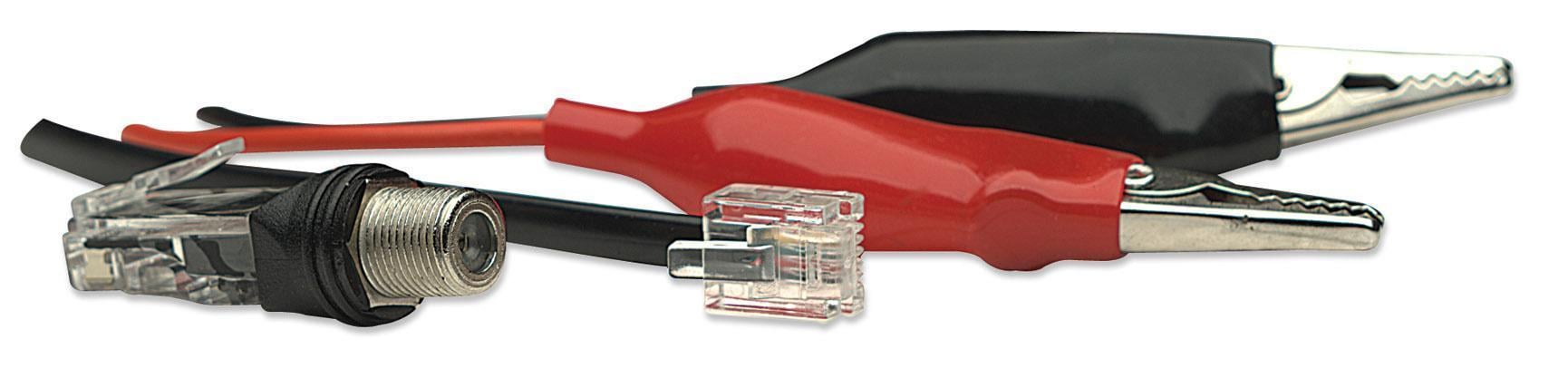

  • Alligator clips, RJ45, RJ12 connectors, optional F type

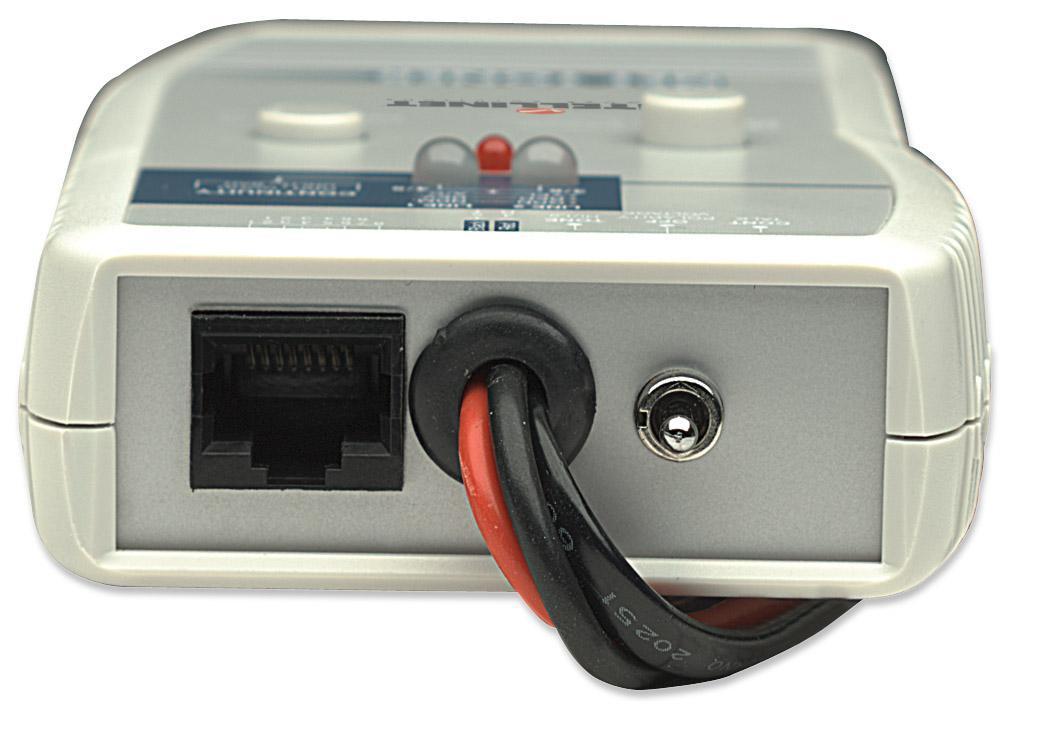

Generator

  • Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz

  • Talk battery: 9V up to 600 ohms circuit

  • Voltage protection: 50 VDC or 24 VAC

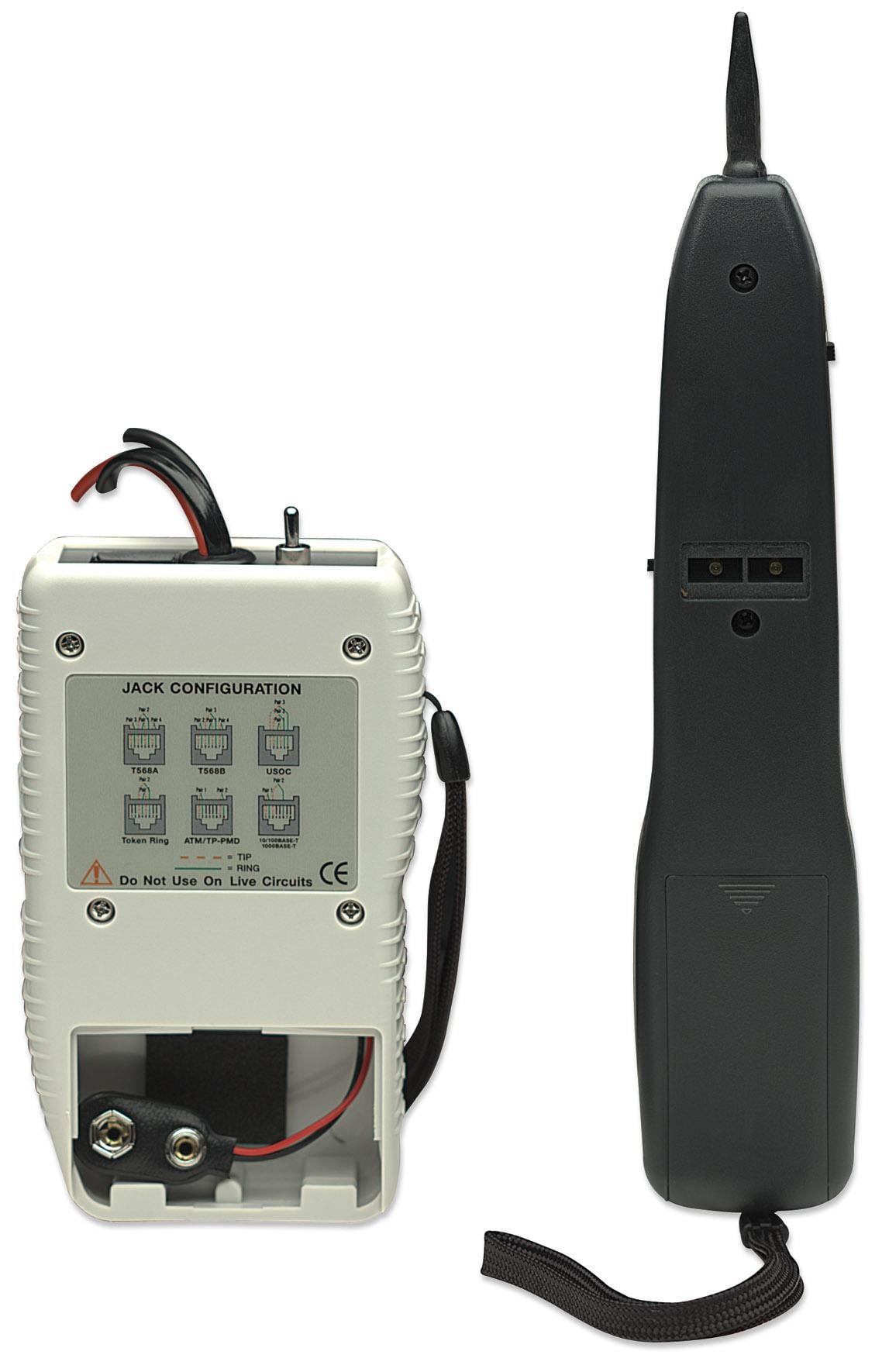

  • Battery: 9V DC standard or alkaline

  • CE approval: EN 55022 Class B for ITE and EN 55024

  • Dimensions: 125 x 68 x 26 mm

  • Weight: 120g

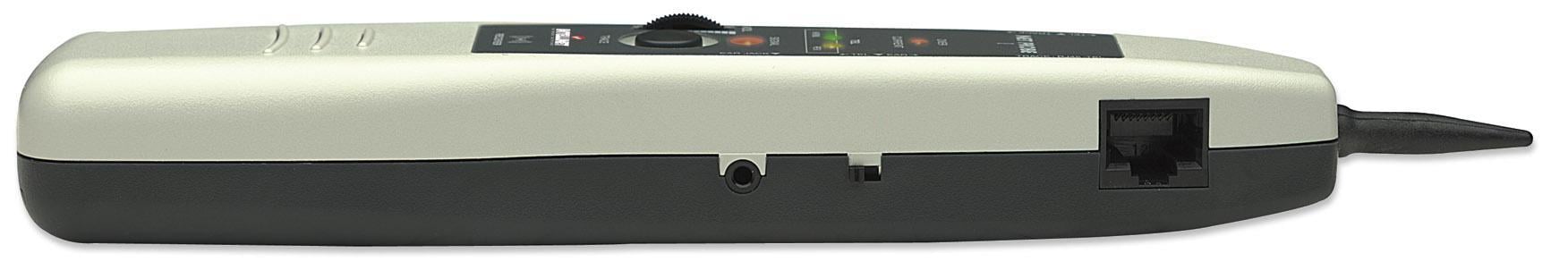

Probe

  • Gain: 30 db

  • Tip resistance: 30 ohms (plastic tip)

  • Battery: 9V DC standard or alkaline

  • CE approval: EN 55022 Class B for ITE and EN 55024

  • Dimensions: 210 x 40 x 28 mm

  • Weight: 140g



Environmental information

  • Operating temperature: 0 – 40°C

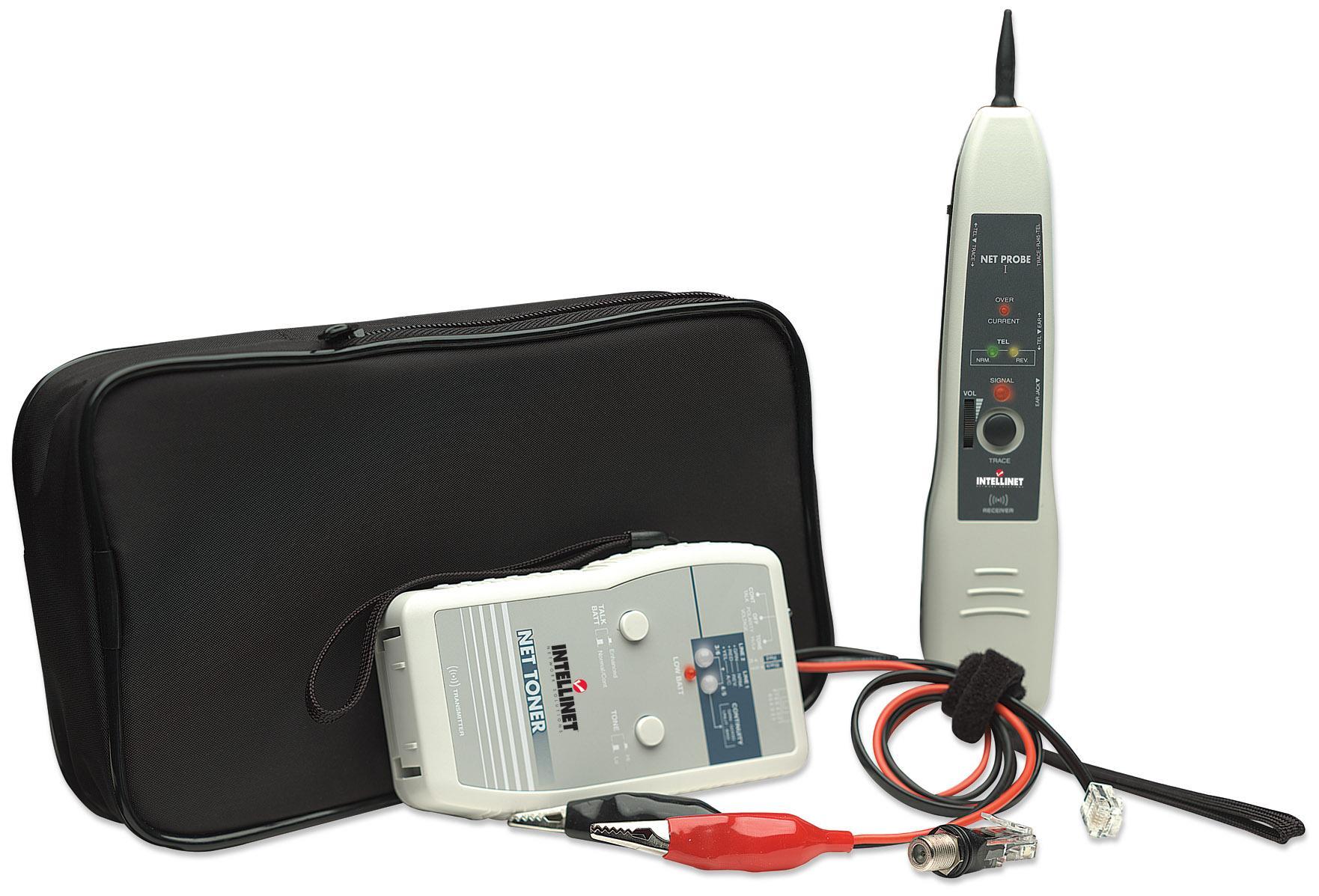

Package contents

  • Probe

  • Generator with alligator clips and RJ-12 connector

  • F-type female connector to RJ-45 adapter

  • Case

  • Instruction manual

  • Brand
  • Reference
    I-CT PROBE
  • In stock
    1 Item
  • EAN13
    0766623515566
