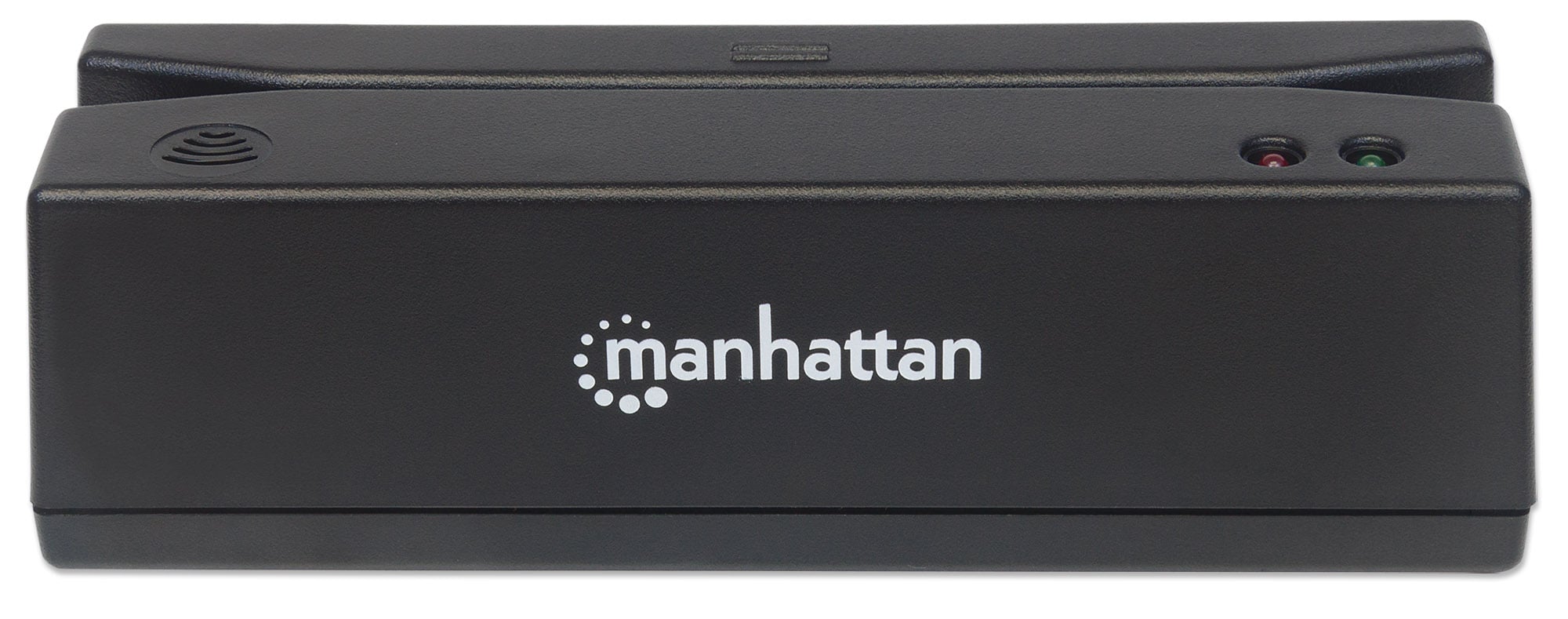

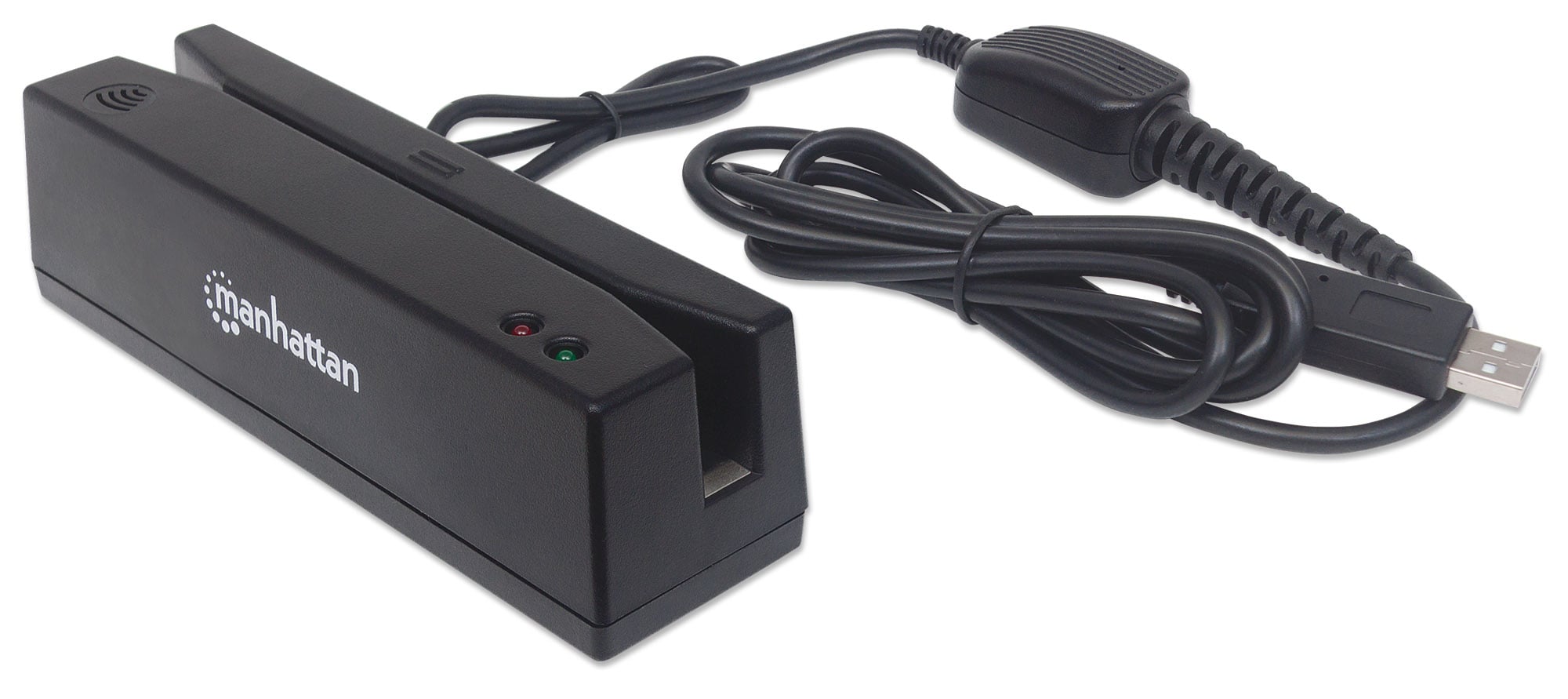

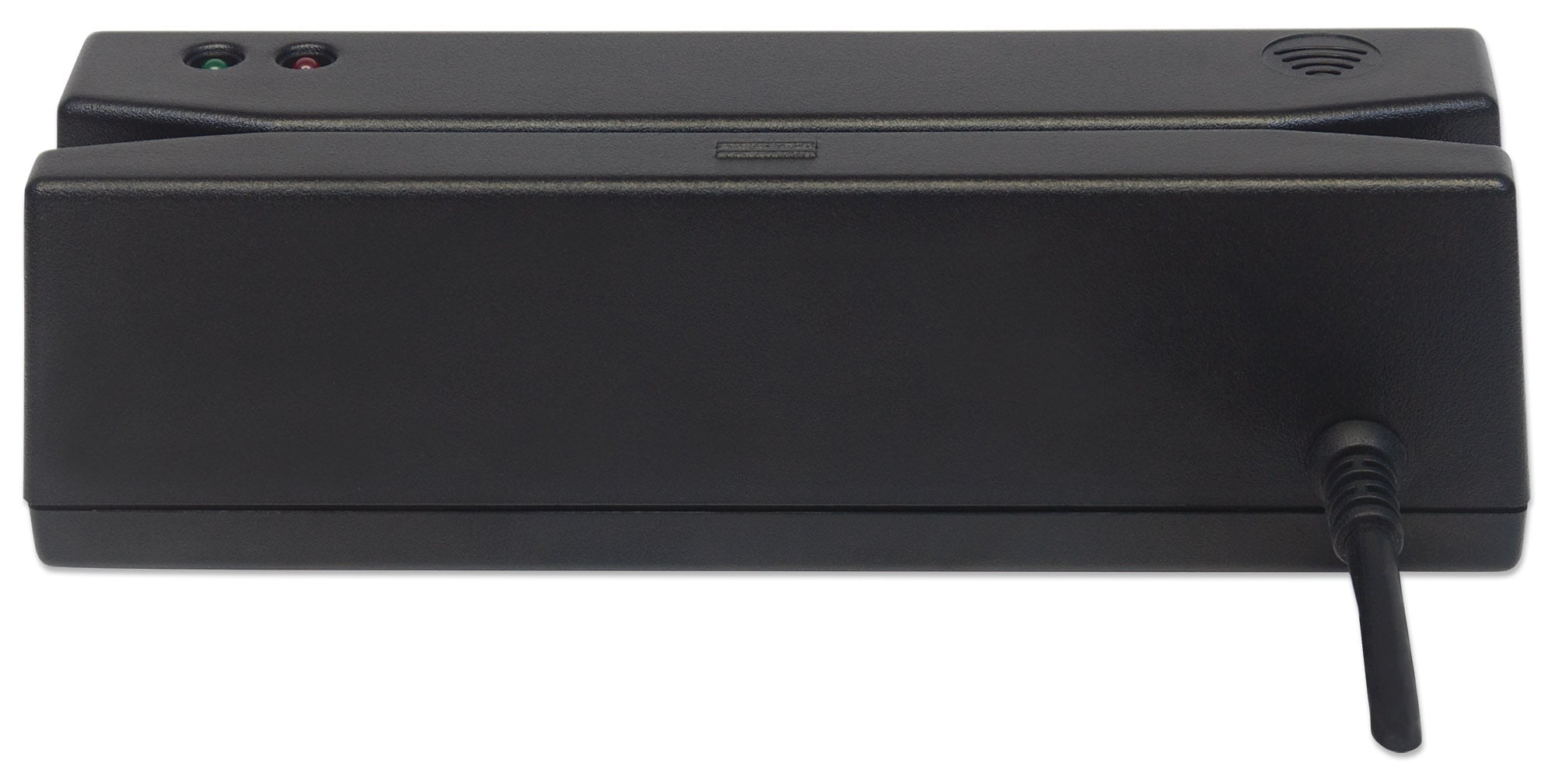

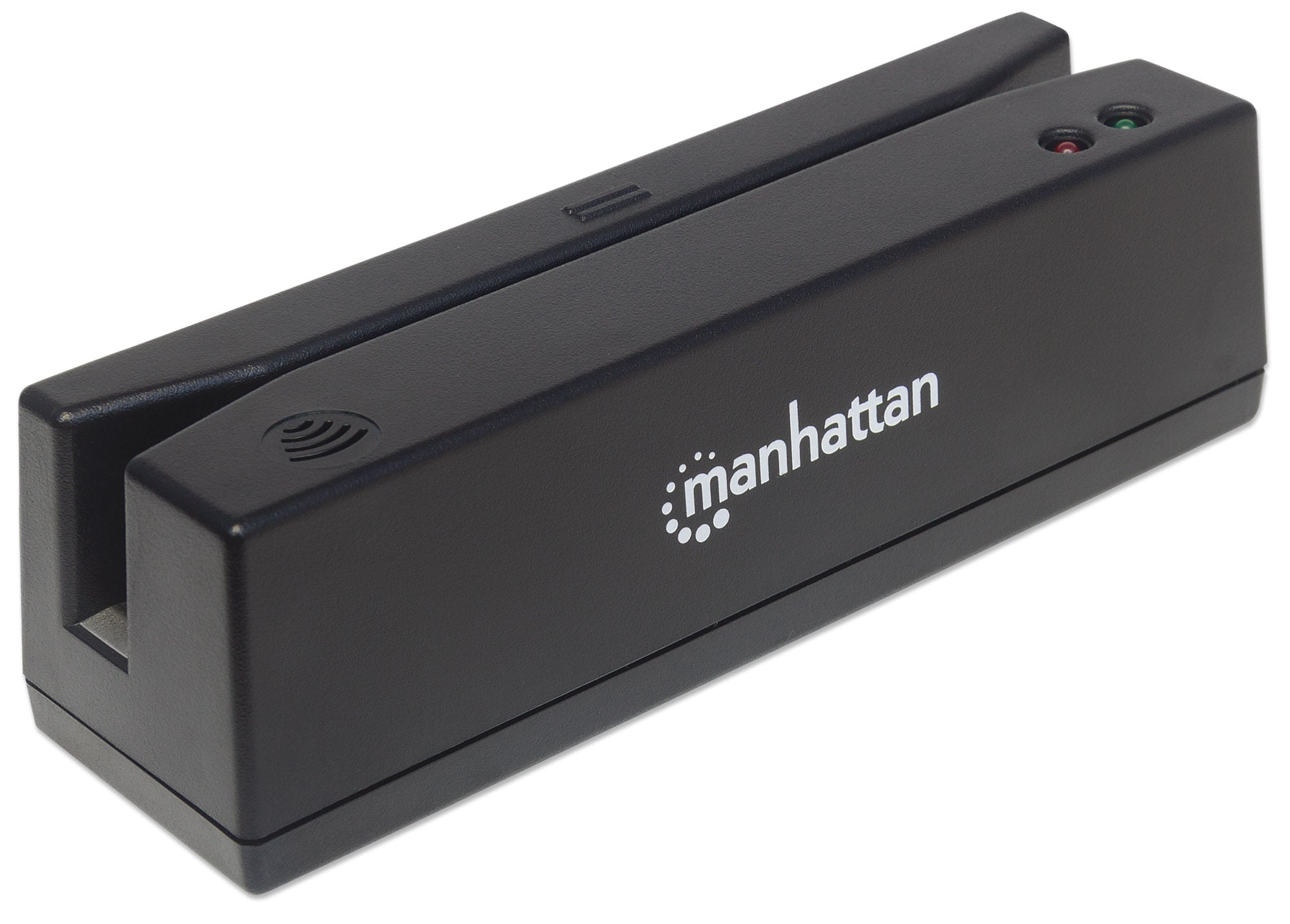

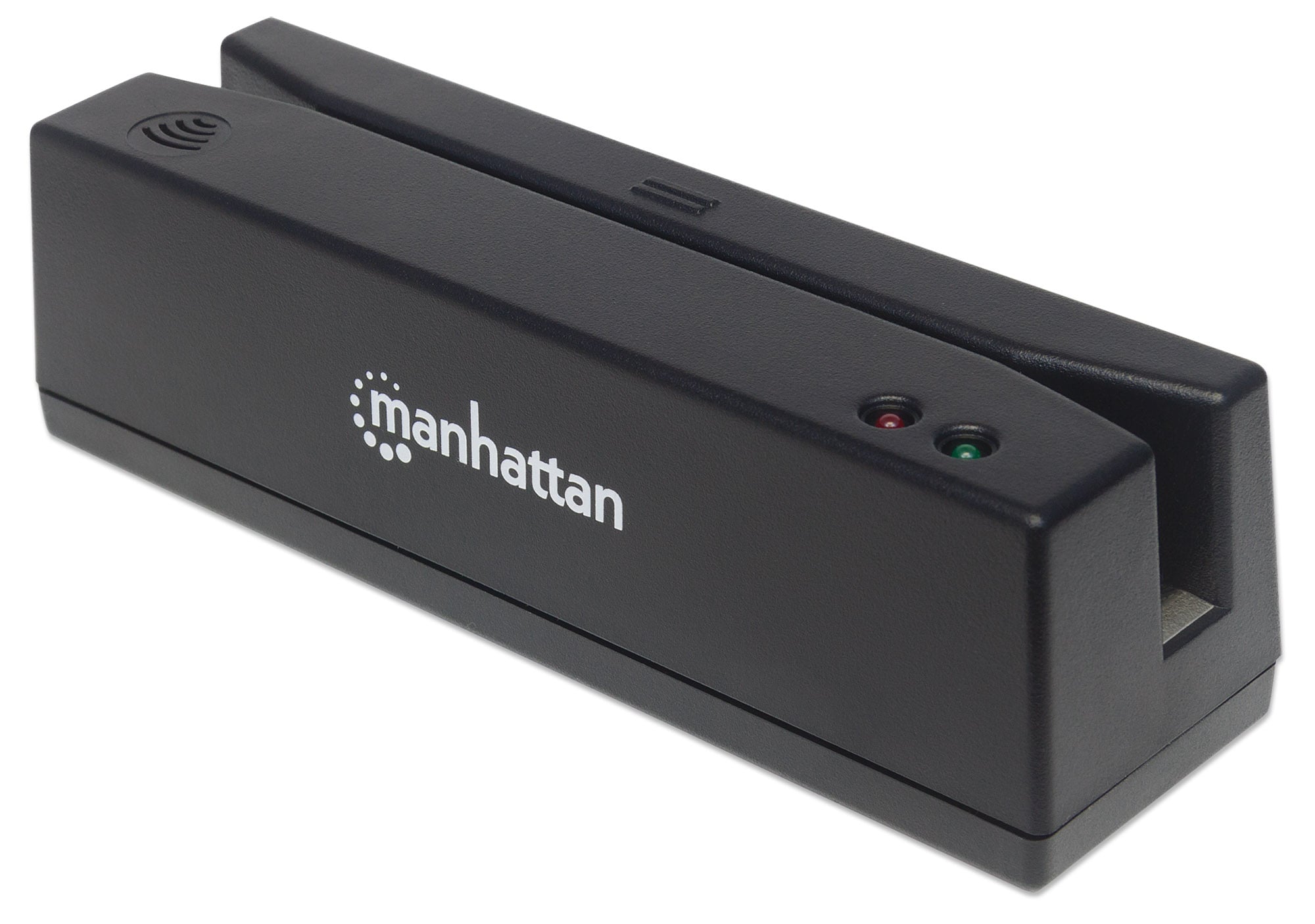

Magnetic stripe card reader track 1, 2 and 3 USB interface - Manhattan I-BADGE 123-USB/ET

€93.38
Tax included €76.50 excl. VAT

Magnetic stripe card reader with USB interface. Reads low and high coercivity magnetic stripes, bi-directional. Supports tracks 1, 2 and 3, JIS II. Dimensions 150x43x43 mm, weight 145 g.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Makes data entry faster, reduces errors and improves efficiency - ideal for transactions, access control and authentication

  • Keyboard Wedge Decoder displays data as if typed directly from the keyboard



Standards and certifications:

  • FCC

  • CE

  • USB

  • ISO 7810-7813

  • JISII



General information

  • Reads: both low and high coercivity magnetic stripes

  • Reading direction: bi-directional

  • Read confirmation: audible beep and LED

  • Scan rate: 100 – 1000 mm (3.9 – 39 in.) per second

  • Interface: USB

  • Supported interfaces: USB, PS/2, RS232, TTL (cables must be changed to support different interfaces)



Track information:

  • Single track (track 1,2 or 3)

  • Dual track (tracks 1 and 2, 2 and 3)

  • Triple track (tracks 1, 2 and 3)

  • JIS II



Physical information

  • Dimensions: 150 x 43 x 43 mm

  • Weight: 145 g

  • Cable length: 150 cm

  • Operating temperature: 0 - 50°C

  • Storage temperature: -20 - 70°C

  • Relative humidity: 20 - 95% (non-condensing)

  • Housing: ABS and PC



Electrical information:

  • Voltage: DC +5 V +/- 5%

  • Power consumption: 130 mA



Package contents

  • Magnetic stripe reader

  • USB-A connection cable, 1.5 m

  • CD with software (optional for configuration)

  • Brand
  • Reference
    I-BADGE 123-USB/ET
  • In stock
    47 Items
  • EAN13
    0766623460255
