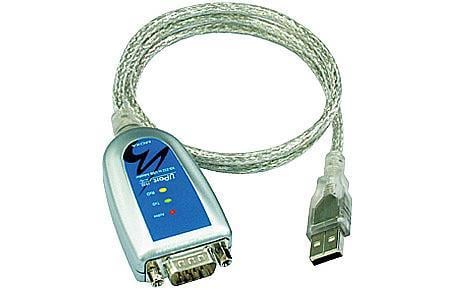

RS- 422 / 485 serial USB converter - Moxa ICC IO-NP 1130

The UPort® 1130 USB-serial converters are the perfect accessory for laptops that do not have a serial port. UPort® 1130 you will convert from USB to RS- 422 / 485 , compatible with new legacy serial devices

Characteristics:

• Compatible with USB 2.0
• 12 Mbps USB data rate
• 921.6 Kbps baudrate maximum for super fast data transmission
• Drivers provided for Windows, WinCE and Linux

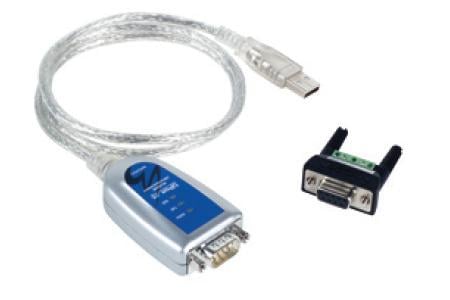

• Mini DB 9 female terminal adapter for easy wiring
• LED to indicate USB and TxD / activityà RxD
• 15 KV ESD protection for all serial ports
• USB interface: USB 1.0 / 1.1, USB 2.0 compatible
• Type A male USB connector
• male DB 9 connector;

· Velocità 12 Mbps (Full-Speed USB)

• Serial Interface
• Number of doors 1
• Serial standards: RS- 422 / 485
• Serial Line Protections

· Embedded ESD 15 KV Protection

Performance:

• Baudrate 50 bps a 921.6 Kbps
• Serial communication parameters
• Data bits 5 , 6 , 7 , 8
• Stop Bit 1 , 1.5 , 2
• Parità None, even, odd, Space, Mark
• Flow control RTS / CTS, XON / XOFF FIFO 64 byte

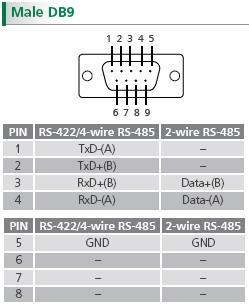

• Serial signals: RS- 422 TxD + (B), TxD-(A), RxD + (B), RxD-(A), GND RS- 485 - 4 W TxD + (B), TxD-(A), RxD + (B), RxD-(A), GND RS- 485 - 2 W data + (B), Data-(A), GND RS- 485 data Directorate ADDC ® (Automatic Direction Data Control)

Driver support:
·  Windows Operating Systems, Linux 2.4, Linux 2.6 x 86 /x 64
Note: Please refer to the Moxa website for the latest driver support information.

Physical characteristics:

• Housing ABS + PC
• Product weight only: 65 g (0,14 lb)
• Packaging: 200 g (0,44 lb)
• Dimensions 38,4 x 60 x 20 mm (1,51 x 2,36 x 0,79 in)

Environmental limits:
· Operation temperature from 0 to 55 ° C (32 to 131 ° F)
· Storage temperature from - 20 to 70 ° C (from - 4 to 158 ° F)
· Environment Humidità relative 5 to 95 % (without condensation)

Standards and Certifications:
· EMC CE, FCC EMI EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Section B Class B EMS EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000 -4-11
· Certificate: RoHS, CRoHS, WEEE

Electrical requirements:
· Consumo UPort 1130 : 60 mA @ 5 VDC
· MTBF (average time between faults) 1,949 time , 025 hours

Package size:

• 422 / 485 Serial USB Converter
• Morsettiera
