LCD Monitor 17'' Touch Screen for Rack 19' 8 Black Unit - Techly Professional I-CASE MONI-TOU

•

• Monitor 17 LCD touch screen for rack installations 19

• Ideal for server stations installed inside racks 19

• Combined with KVM master switch INTELLINET

• Display area: 337,92 mm (O) x 270,3 mm (V)

• Color display: 16.7 millions of colors

• Number of pixels: 1280 x 1024

• Pixel layout: RGB vertical stripes

• Dimensions Pixels: 0,264 mm (O) x 0,264 mm (V)

• Modelità display: Normally black

• Voltage and current input: DC 12 V 3,5 A

• Contrast ratio: 1000:1

• Response time: 5 msec

• White luminance: 250 cd/m2

• Horizontal view angle: left < 85°, right < 85°

• Vertical view angle: height < 80°, width < 80°

• Measurements: 479 mm (L) x 354,9 mm (A) x 49,5 mm (P)


Environmental features

•

• Operating temperature: 0-40 °C

• Storage temperature: - 20 - 65 °C


Main board

•

• Input signal: VGA (15 pin D-sub), HDMI

• Support voltage: DC12V

• Consumption: 42 W


LED panel features

•

• Touch screen technology resists 5 wires

• USB Interface

• Compliance with the RoHS Directive

• High contrast ratio, high diaphragm structure, fast response time

• High-speed response à

• WXGA resolution (1280 x 1024 pixel)

• Low energy consumption

• Integral LED backlighting system

• Modelità DE

• LVDS (Low Voltage Differential Signaling) interface (2 pixel / clock)

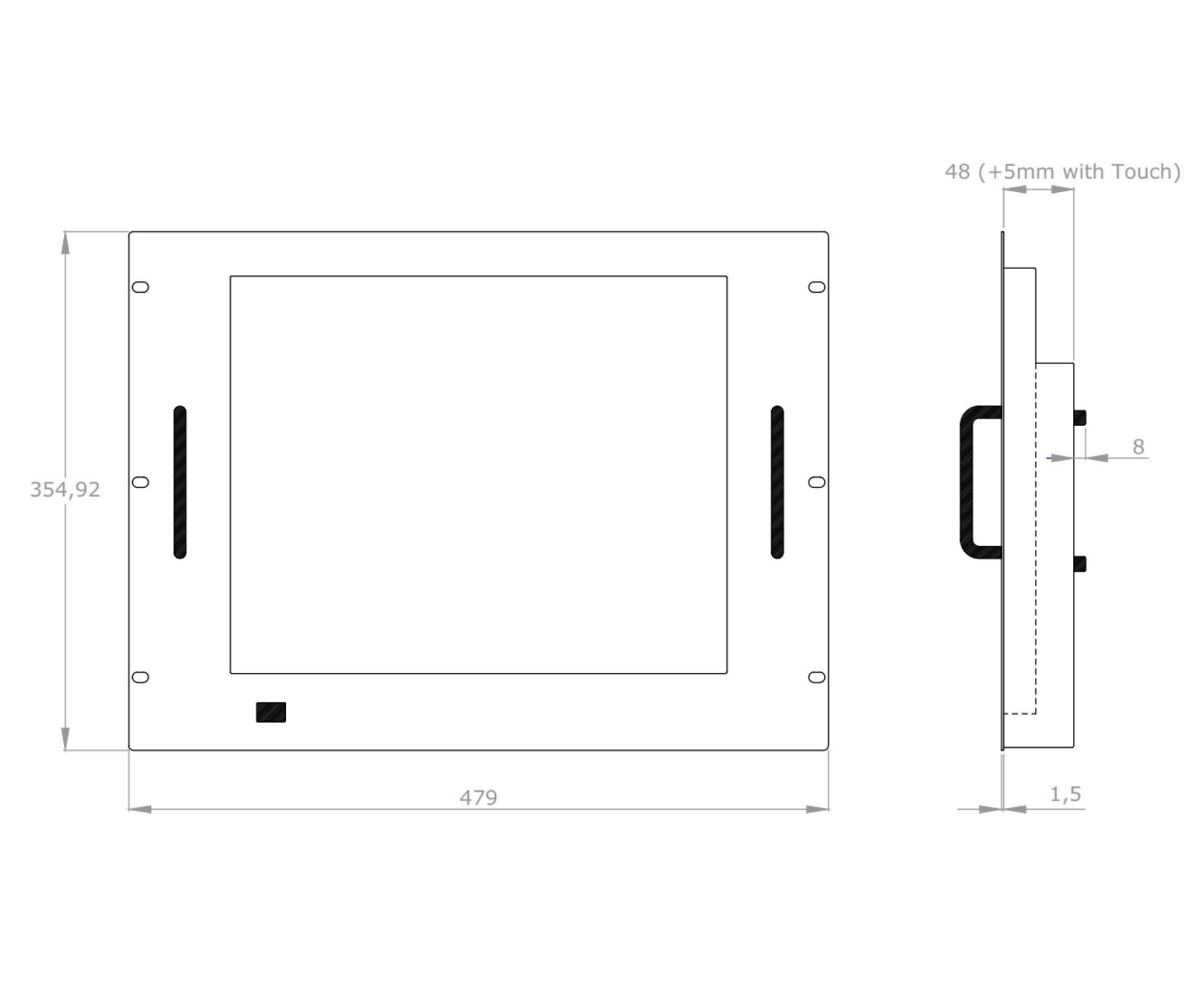

Dimensions

•

• Width: 479 mm

• Height: 354,92 mm

• Depthà: 48 mm


Package contents

•

• Monitor a rack 19 8U

• SVGA cable 1,8 m

• Power cable 1,8 m

• 12 V 3.5 A power supply
