NetRack cabinet 19" 800x1000 42U black to assemble - Intellinet I-CASE FP-4218BKX

This line of Intellinet floor-standing rack cabinets represents an absolute novelty as the cabinet is supplied in a mounting kit and can be easily and quickly assembled directly at the installation site; following a few simple steps, a single operator can assemble the cabinet in just 10 minutes without the use of special tools. This is an optimal solution to reduce both transport and logistics costs as the cabinet takes up 50% less space. It is ideal when it is impossible or particularly difficult to easily reach the installation site with the assembled cabinet. At the same time, the distinctive features of the Intellinet cabinet range remain unchanged, such as robustness and solidity, versatile and modern design, various heights and depths to thus meet different installation requirements.



Specifications

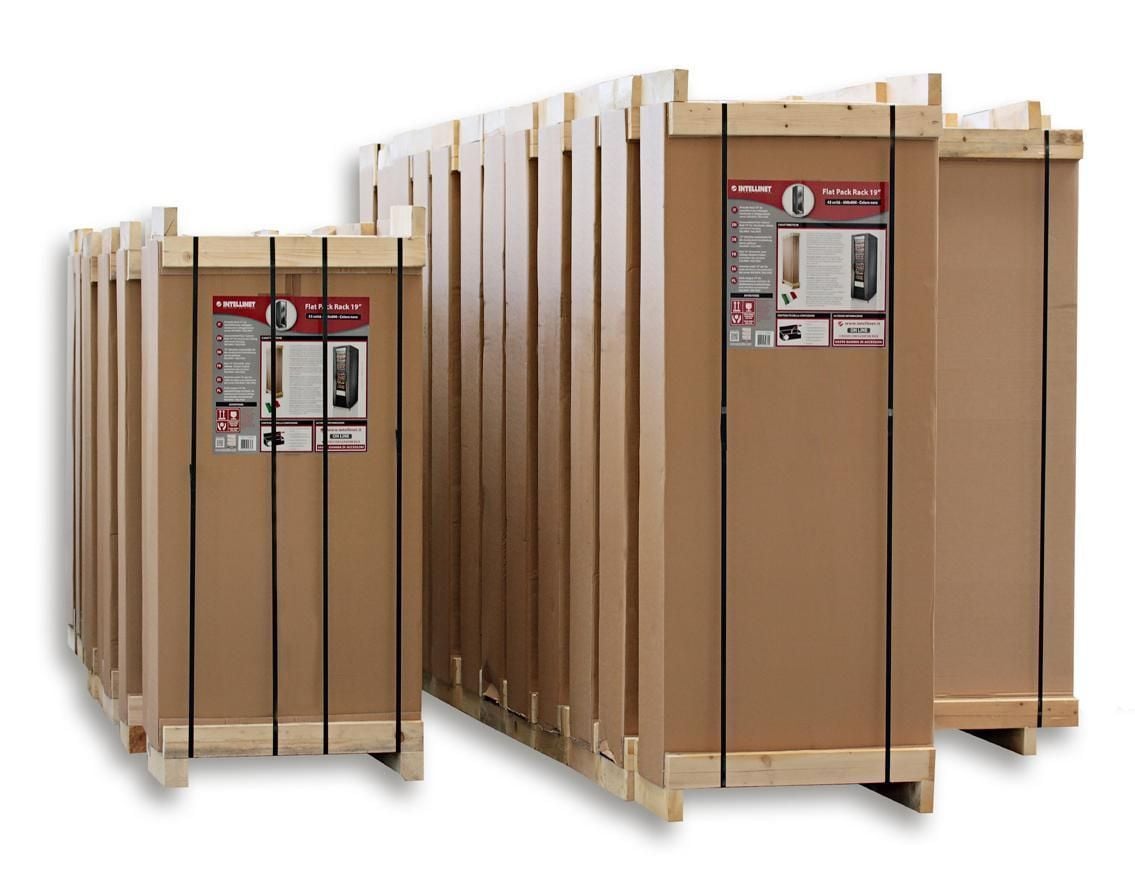

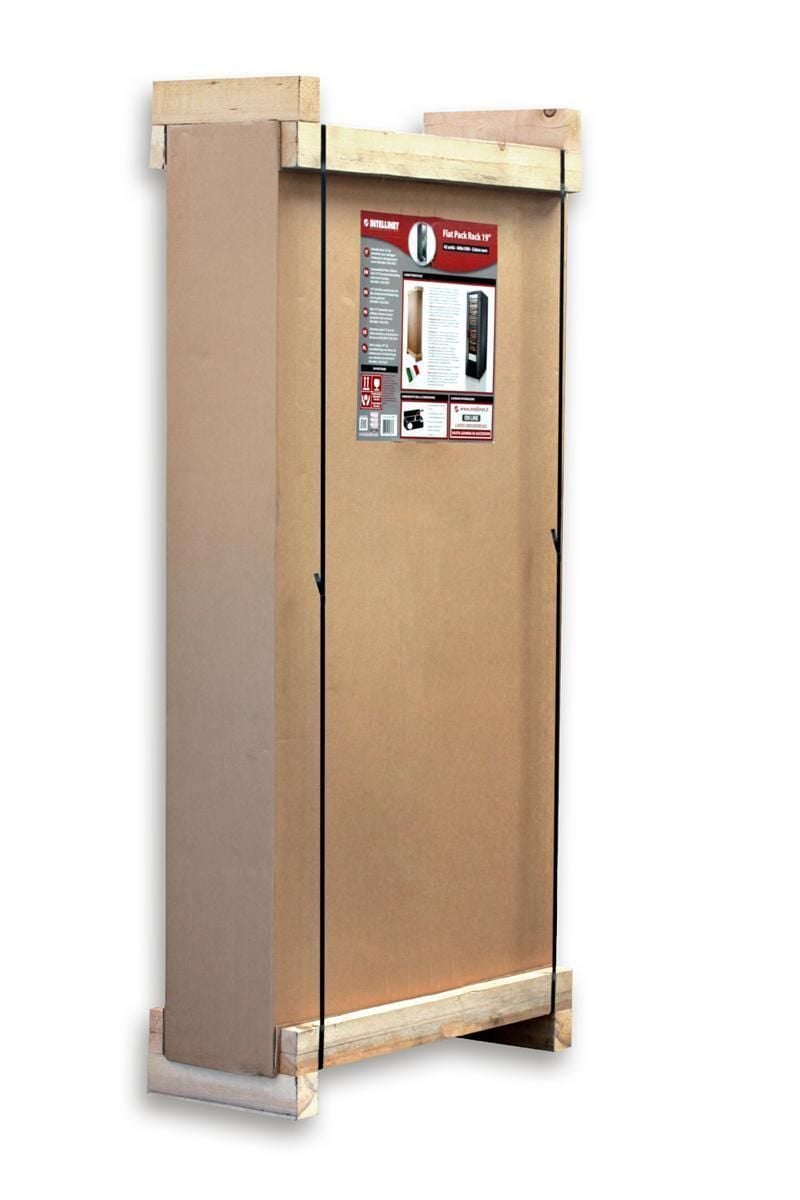

• Supplied completely disassembled to facilitate transport and reduce logistics and shipping costs


• Robust and durable structure consisting of a frame with special 2 mm pre-welded steel profiles, guarantees a static load capacity of 750 kg (200 kg on wheels)


• Front door in tempered glass, reversible, equipped with handle with key lock and opening angle of 180°


• Rear and side panels, blind and removable, with key lock


• Roof and base structure consisting of 3-way angle brackets and corner joints of 4 mm thickness to ensure maximum stability


• Roof plate prepared for ventilation unit


• The base of the cabinet is completely open to ensure a wide entry for cable routing (optional closing bottom, check accessories list)


• Equipped with two pairs of sturdy 19” uprights (one pair at the front and one at the back) with unit markings for precise and quick installations


• Special guides for the movement of the uprights


• Complete with 4 leveling feet


• External dimensions HxWxD: 1966 X 800 X 1000 mm (actual depth 996 mm)


• Units: 42 U


• Color: Black RAL9005



Certifications

• CE certification according to EN 62208


• Conformity to IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; EN60529; EN12150-1


• Conformity to UNI EN ISO 9001:2008
