DisplayPort 1.2 Converter to VGA 15 cm - Techly IOC DSP-V- 001

€14.65
Tax included €12.00 excl. VAT

Signal converter from DisplayPort 1.2 to VGA, VESA DP 1.2 compliant and compatible with 1.1 a. Supports resolutions up to WQXGA (1920 x 1200 @ 60 Hz) and configurable speed 2.7 Gbps or 1.62 Gbps.



Return policy



Delivery policy



Direct contact for info



Secure Payment

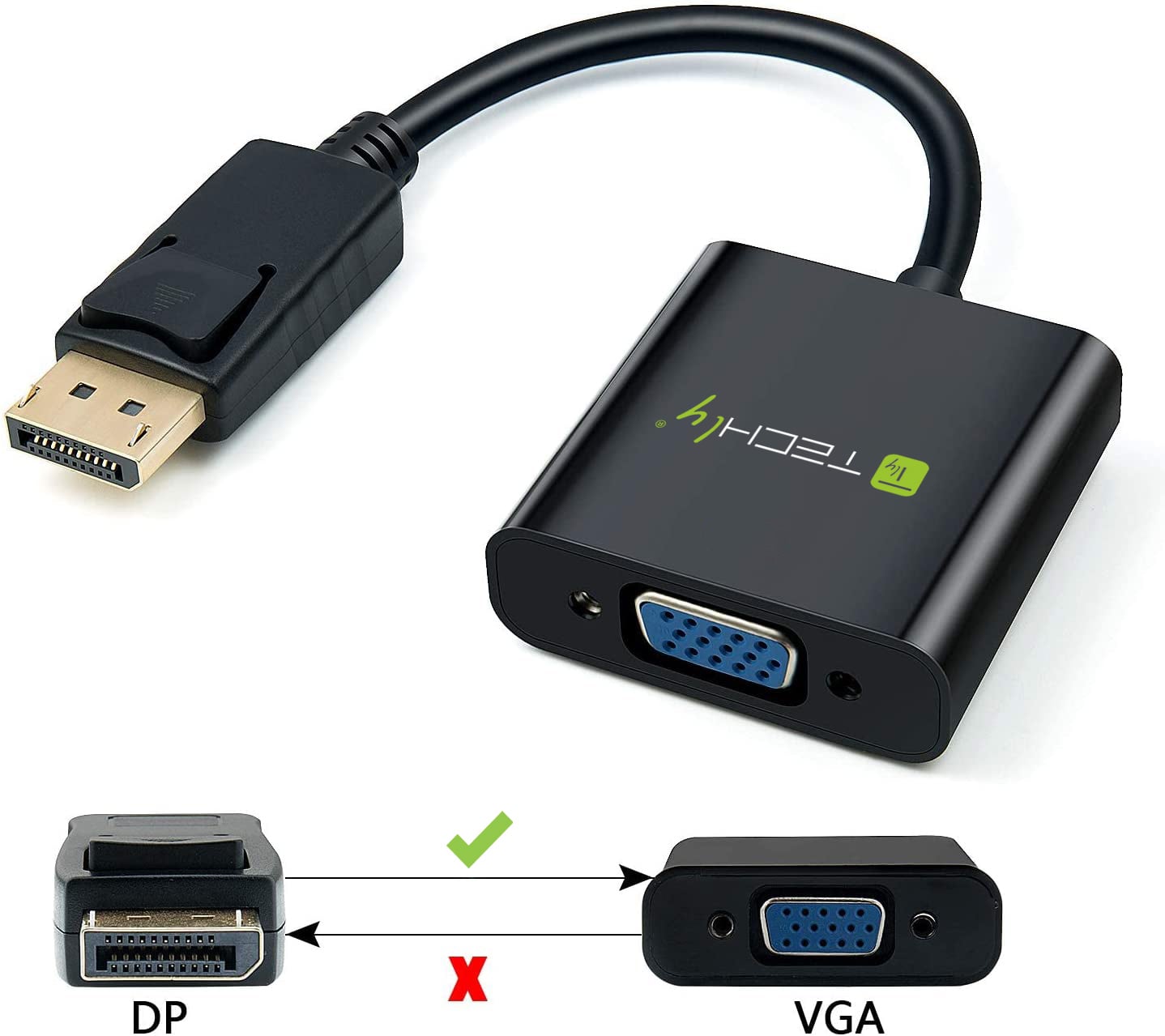

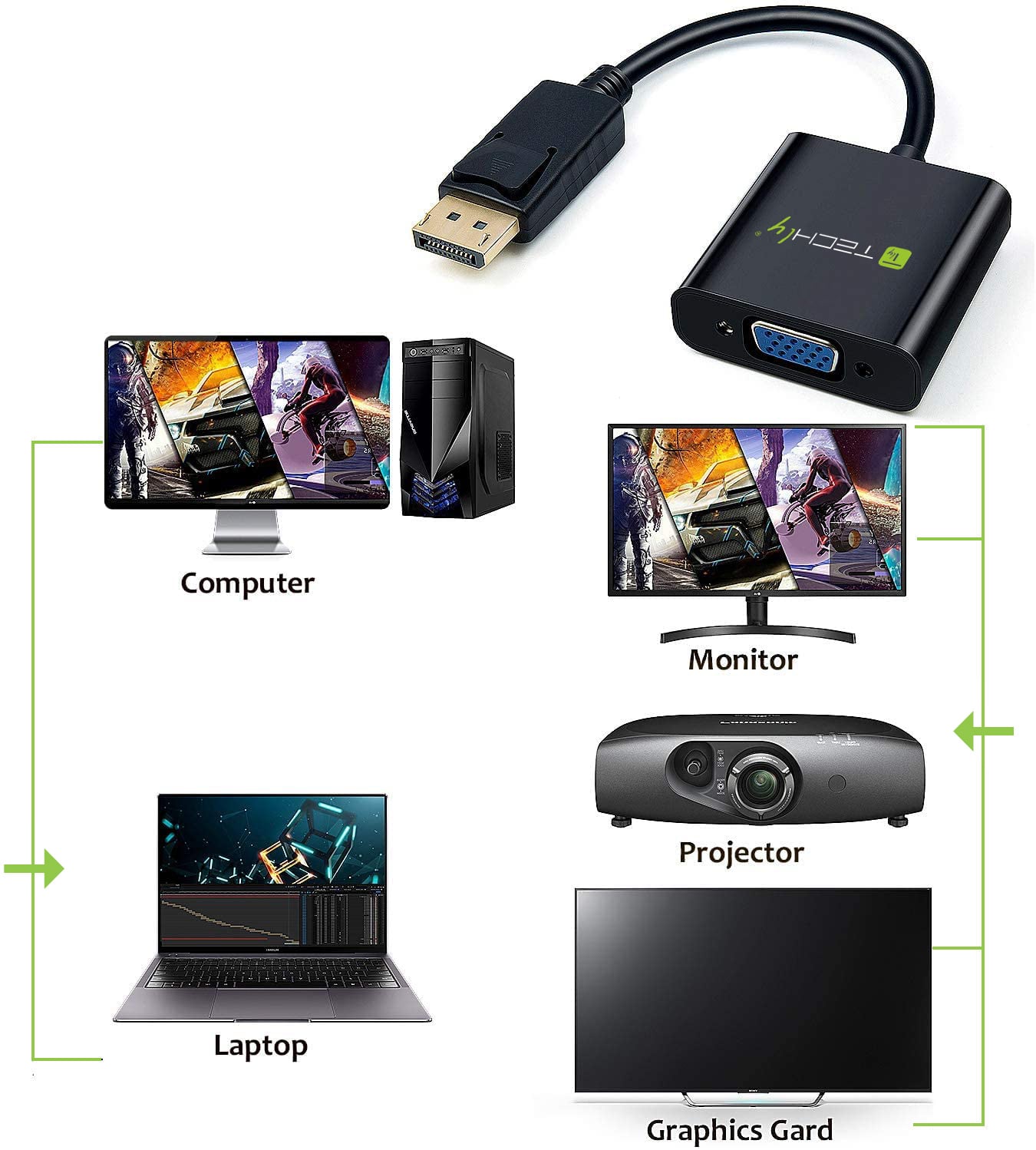

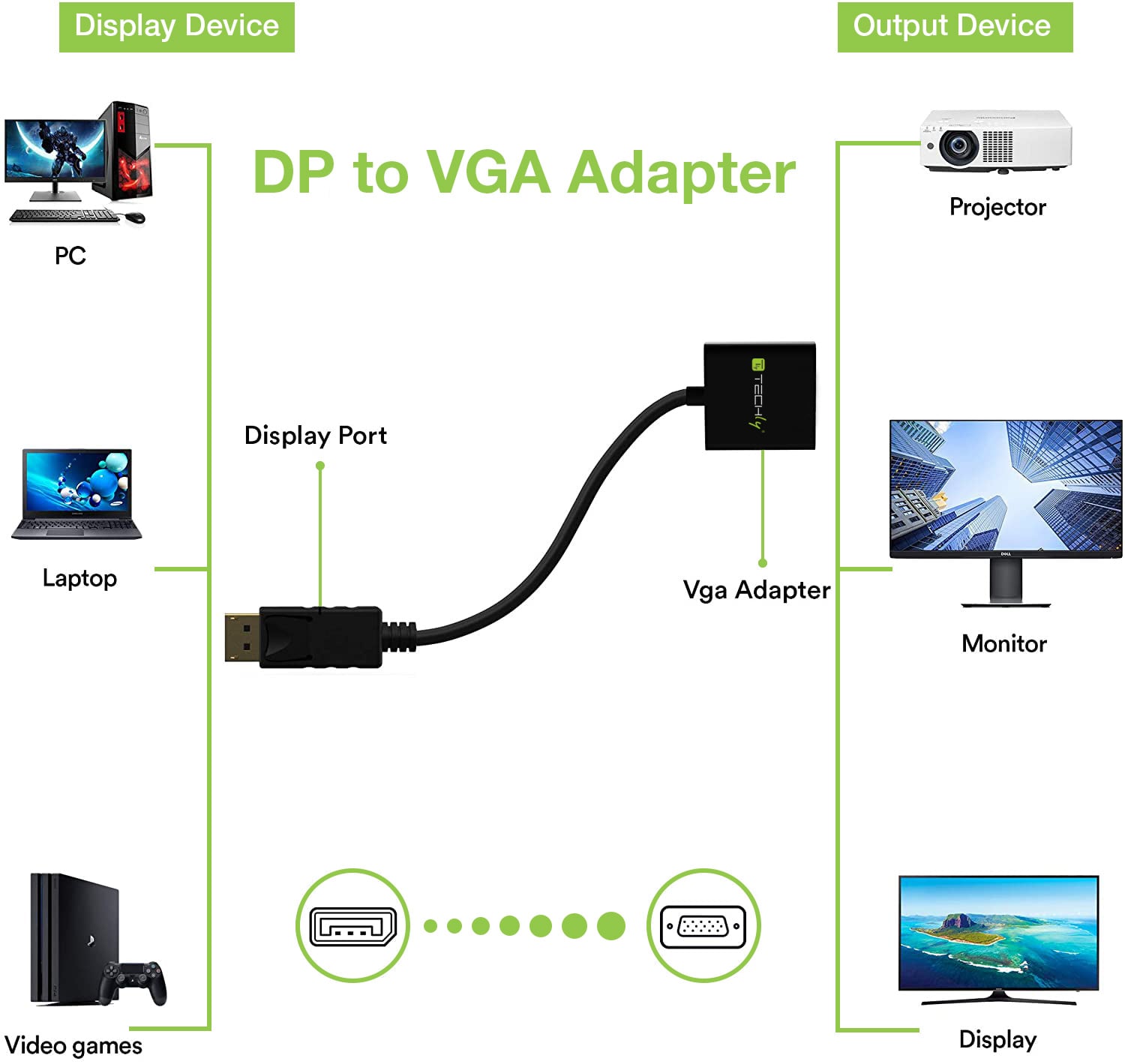

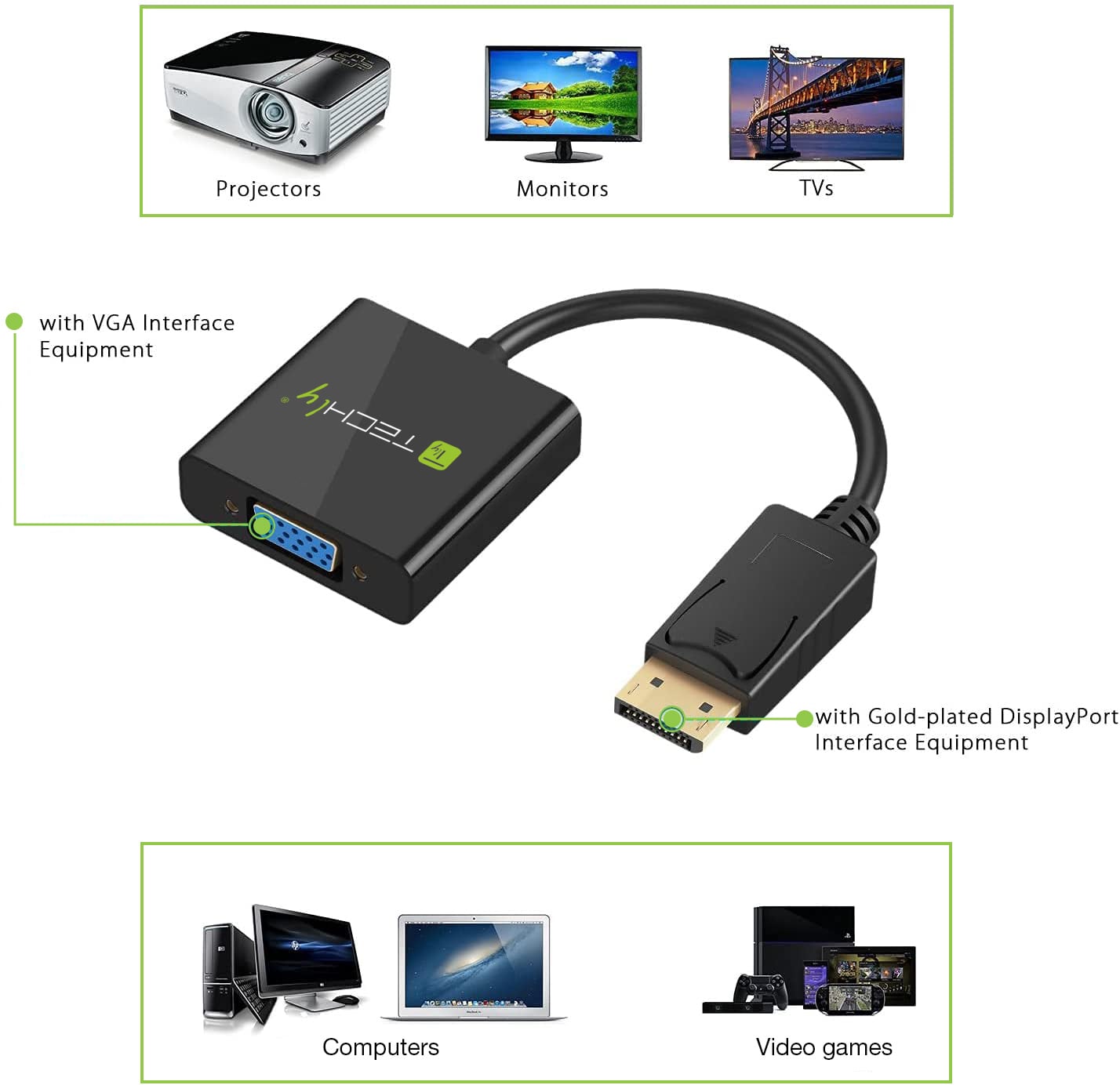

  • Signal converter from DisplayPort 1.2 to VGA allows you to interface the new generation of PCs and notebooks based on DisplayPort with conventional VGA monitors, such as CRT, LCD and projectors

  • More and more ù PC notebooks and desktops are moving from a traditional analogue interface to DisplayPort, this converter facilitates the transaction by offering a connectivityà seamless solution; between new PCs and notebooks with DisplayPort connection and VGA monitors and projectors installed



Specifications

  • VESA DisplayPort 1.2 standard and compatible with previous version 1.1 a

  • Compatible with VESA and DP v 1.3 Standard

  • 2 high-speed differential input lanes with configurable speed: 2.7 Gbps or 1.62 Gbps.

  • Supports Down Spread Spectrum (SSC).

  • Supports pixel rate resolution up to 180 MHz

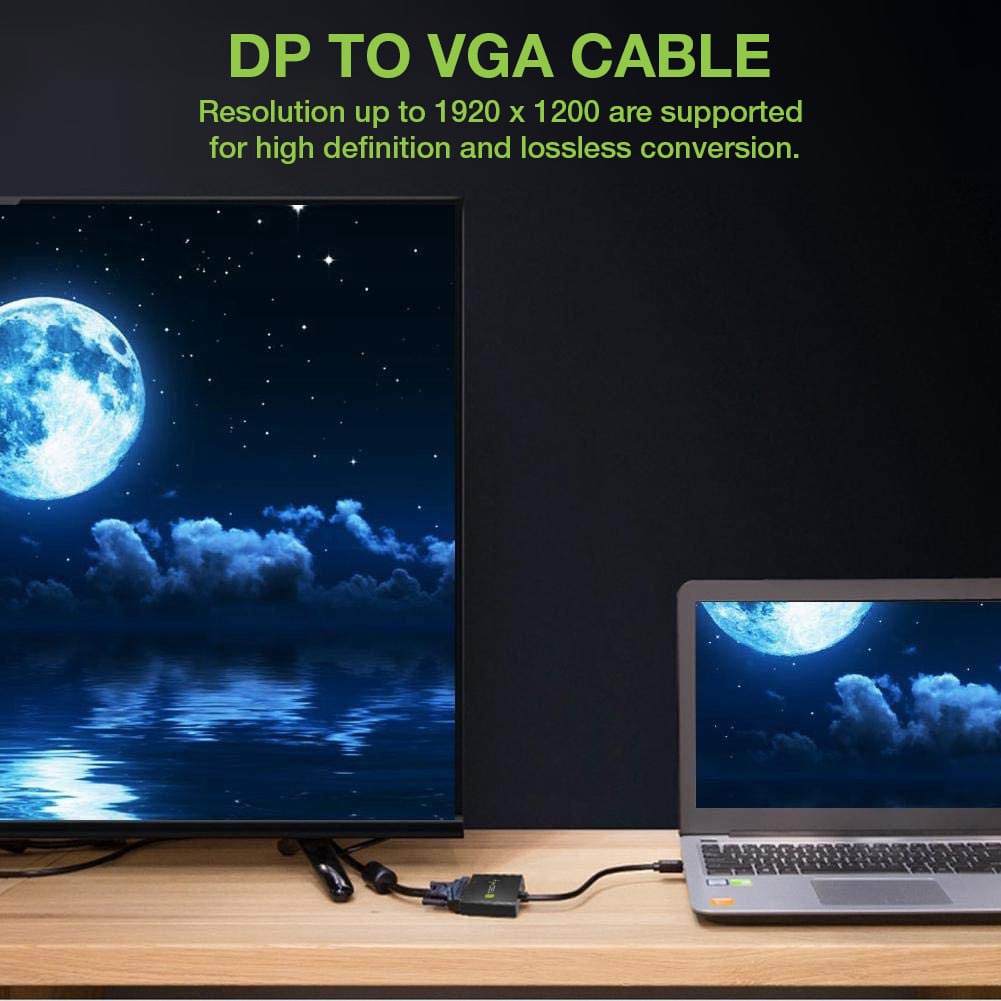

  • Supports resolutions up to WQXGA (1920 x 1200 @ 60 HZ,reduced blanking, 24 bpp)

  • VESA VSIS V 1 R 2 VGA compliant output clock jitter specification

  • Modelità low consumption stand-by with automatic monitor connection and disconnect detection

  • Speed control; DDC for use with longer VGA cables

  • EDID passing from PC source to display

  • De-spreading for EMI reduction

  • Low power operation - active 485 mW, 12 mW in modeà standby

  • Maximum Single Link Range. 1920 x 1200 , 1080 p

  • Vertical frequency range: 50 / 60 Hz

  • Supported video format: VGA max to 1920 x 1200

  • Video bandwidth: 180 MHz

  • Connector housing: LCP

  • Connector terminal: copper alloy + gold plated

  • Connector shell: steel + nickel/gold plated

  • Color: black



Note: With some video cards, the image may not appear when your PC enters Windows from DOS at the time of restart

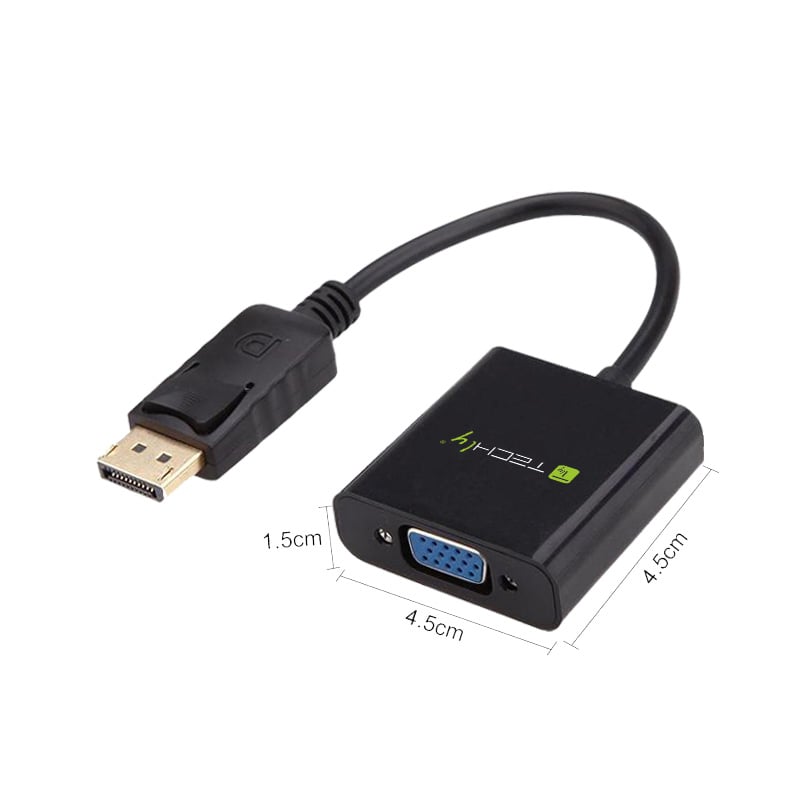

Package size:

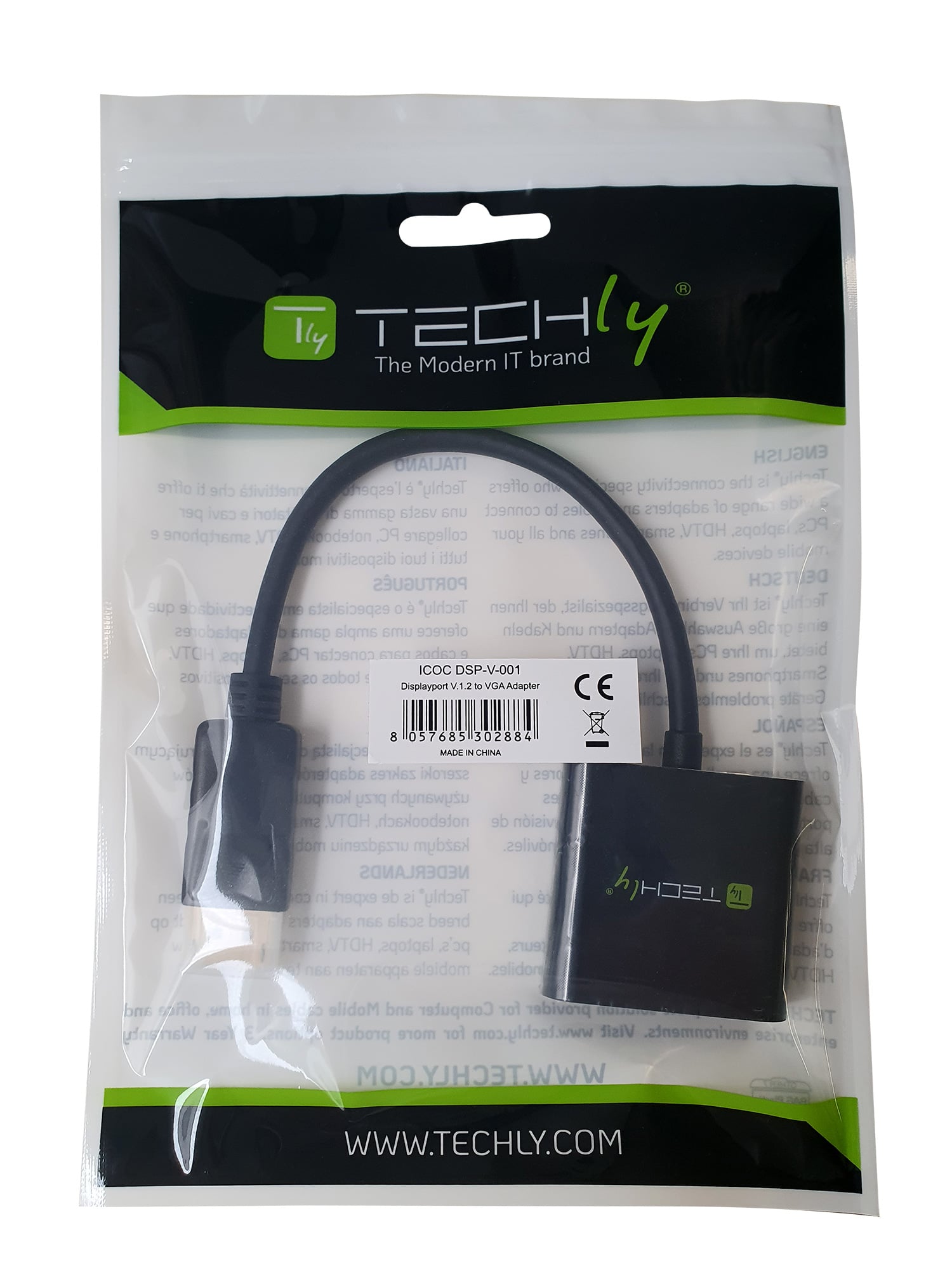

  • Cable Converter from DisplayPort V. 1.2 to VGA

  • Brand
  • Reference
    ICOC DSP-V-001
  • In stock
    962 Items
  • EAN13
    8057685302884
