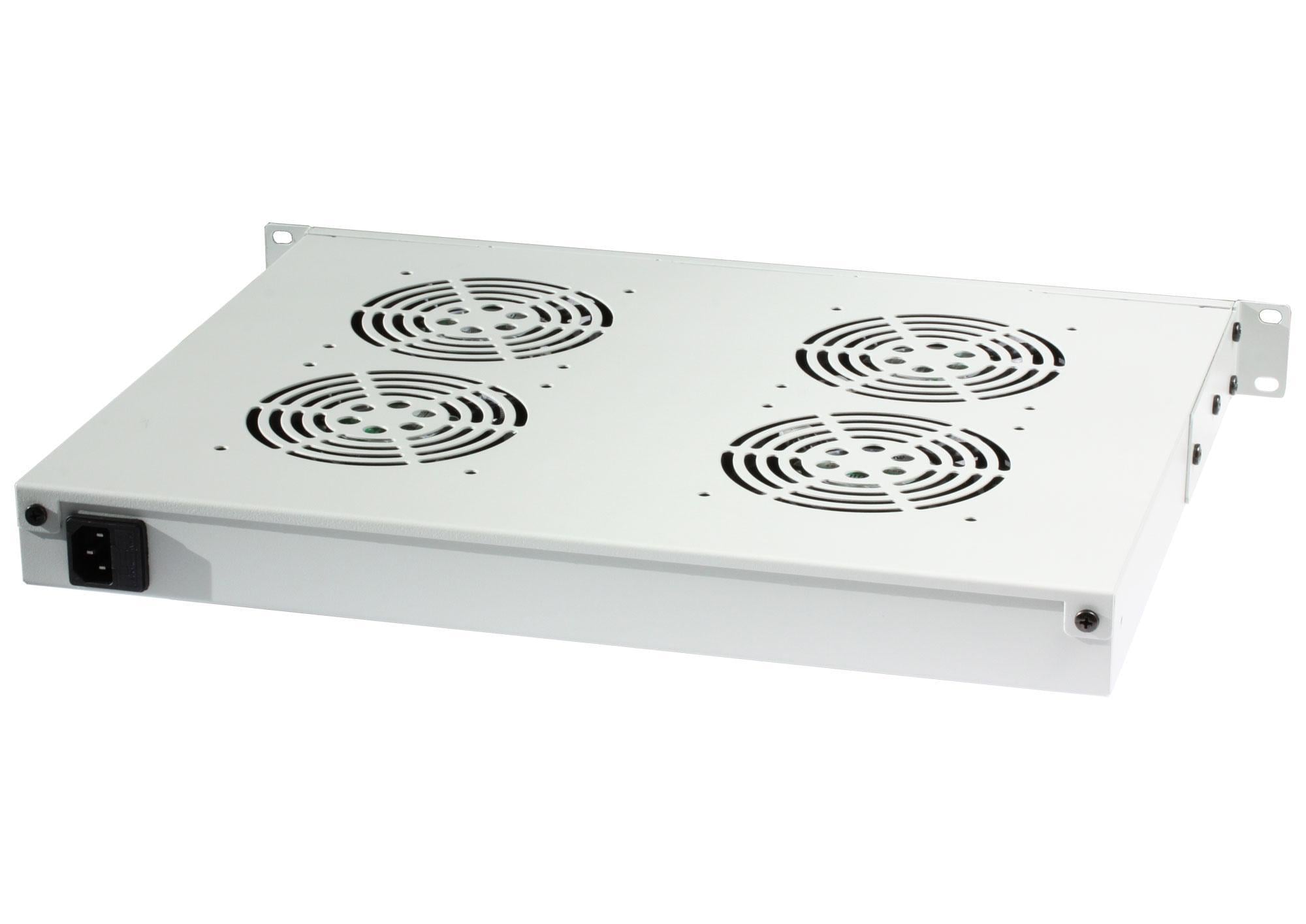

Ventilation unit with 4 fans for 19” rack 1 unit. Includes LED thermostat.
Technical parameters of the ventilation system- Speed: 2700/3100 RPM
- Airflow: 95-115 CFM
- Noise level: 44-49 dbA per fan
- Power supply: 220-240V - 50/60Hz, 0,25A
- Fan consumption: 23/25W
- Power cable: 1.8m
Thermostat descriptionUniversal controller with single temperature sensor, with cooling and alarm functions in case of temperature limit exceedance. Adjustable ventilation system delay and alarm adjustment for temperature limit exceedance.
Technical parameters of the thermostat- Power supply: 22OVAC+1O%/-15%, 50/6OHz
- Power consumption: ≤ 3W
- Measurement temperature range: 0~50°C
- Control temperature range: -10°C ~30°C
- Resolution: 1°C
- Accuracy: 0°C~50°C, +/-1°C, +/-2°C
- Refrigeration capacity output contact: 10A/277VAC, can drive single-phase compressor ≤1/2HP
- Sensor error delay time: 1min
- Sensor: NTC
- Protection level: lP65
Environmental characteristics- Operating temperature: 0°C~60°C
- Storage temperature: -30°C~75°C
- Operating humidity: 20~85% (without condensation)
Dimensions- Width: 483 mm
- Depth: 350 mm
- Height: 44 mm
CertificationsPackage contents- 4-fan unit I-CASE FAN-TC4G
