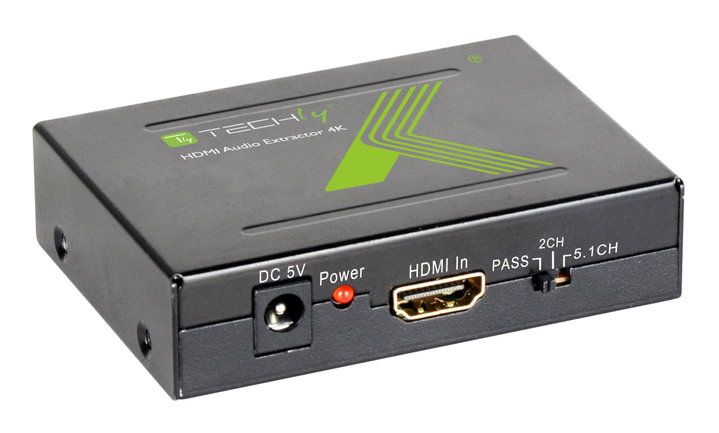

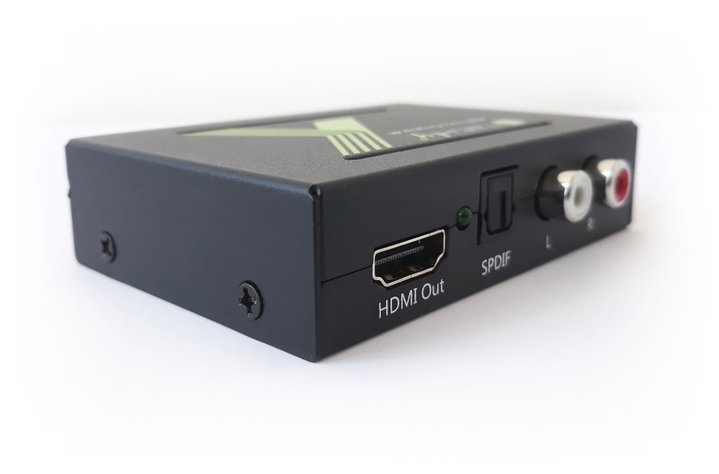

IDATA HDMI-EA allows you to extract the audio signal from the HDMI source and convert it to analog audio SPDIF + RCA R/L.

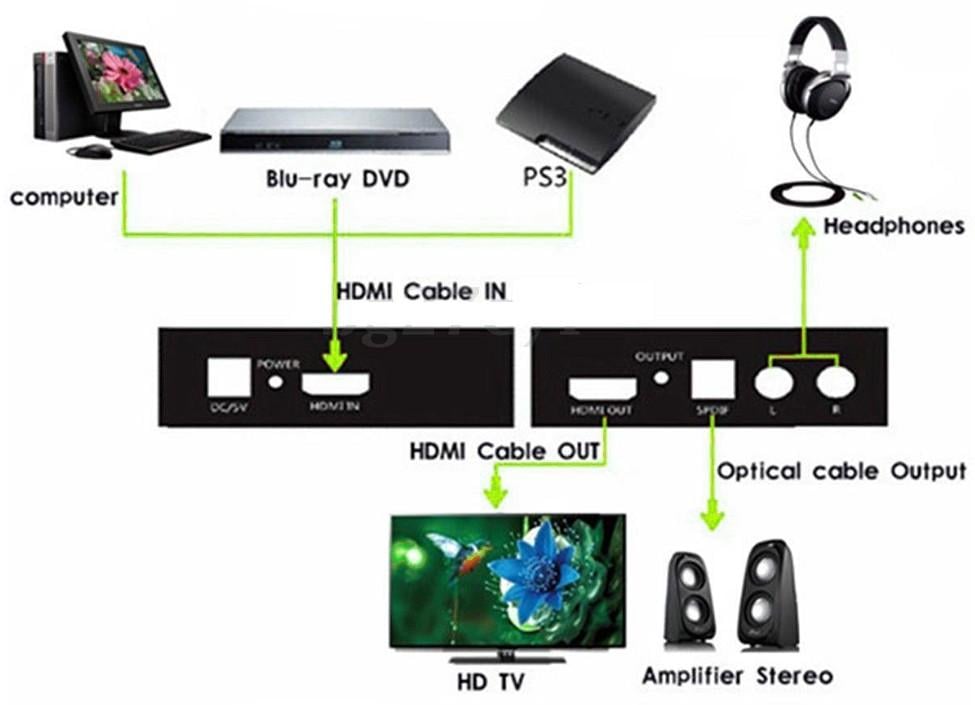

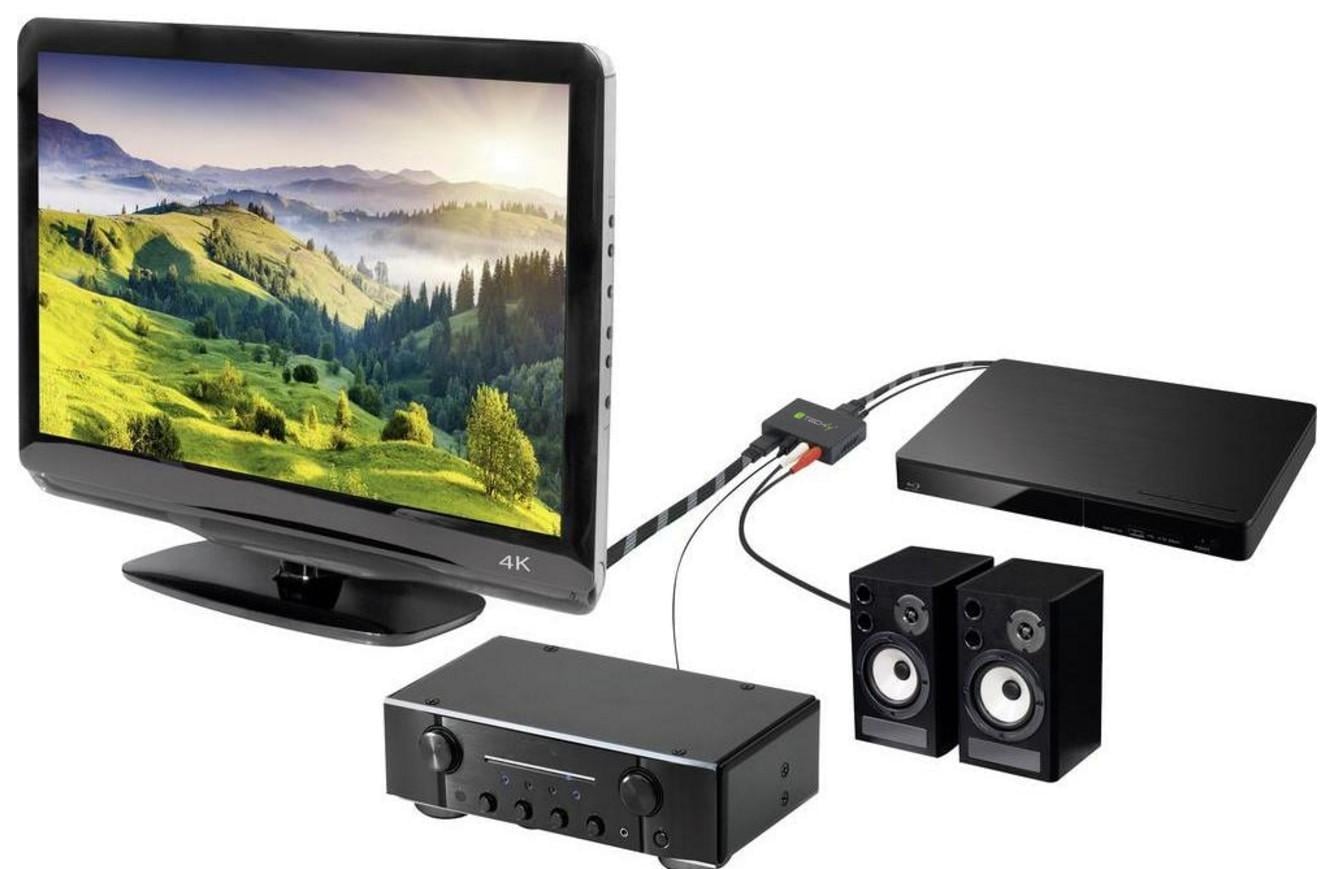

It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signal to external speakers.
Modelità audio- ADV: The HDMI signal (audio + video) is simply connected in loop-through via the device, no split between audio and video is made
- 2.0 CH: the HDMI signal is converted to Toslink and RCA (stereo, R/L)
- 5.1 CH: Toslink 5.1 conversion (Dolby Digital 5.1)
Features- Separates the audio signal from the HDMI and provides it separately
- Converting HDMI audio to Toslink and RCA audio (R/L)
- HDMI video signal is loop-through connected to device output
- Supports resolutions up to 4 Kx 2 K@ 60 Hz
- With LED activity indicator;
- Quick Installation
- 5 V 1 A power supply included
Technical specifications- Video bandwidth: 18 Gbps
- HDMI resolution: up to 4 Kx 2 K@ 50 / 60 Hz (YUV 4 : 4 : 4 ), 4 Kx 2 K@ 30 Hz, 1080 p@ 120 Hz and 1080 P 3 D@ 60 Hz
- Supported color space: RGB, YCbCr 4 : 4 : 4 , YCbCr 4 : 2 : 2
- Depthà color: 10 -bit, 12 -bit

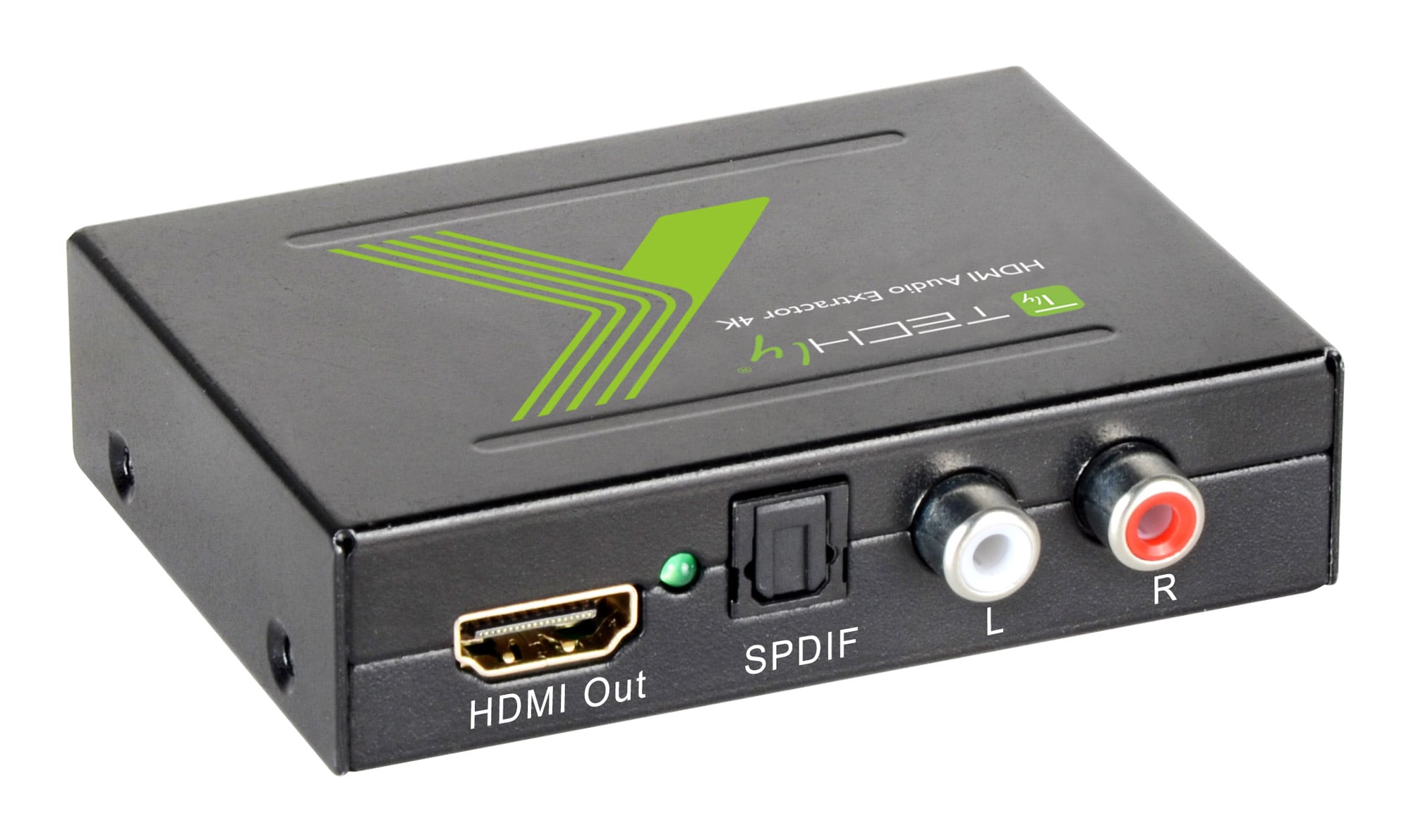

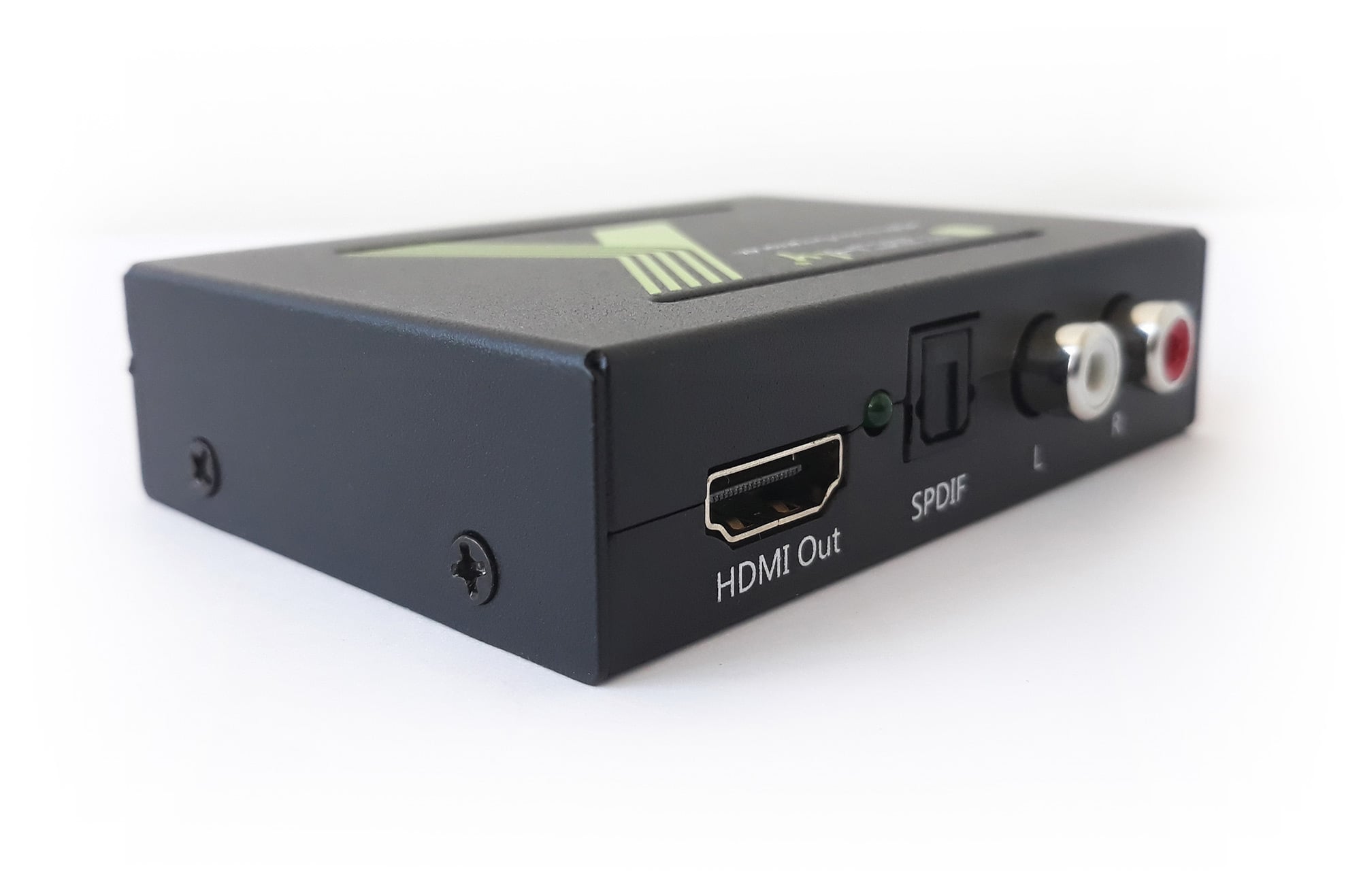

- Audio outputs: L/R+SPDIF
- HDMI audio formats (pass-through): LPCM 2 / 5.1 / 7.1 CH, Dolby Digital 2 - 5.1 CH, DTS 2 - 5.1 CH, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
- Digital audio formats: LPCM 2 CH, Dolby Digital 2 - 5.1 CH and DTS 2 - 5.1 CH
- Audio formats L/R: Analog Stereo 2 CH
Power supply- Entry: 100 V- 240 VAC (50 / 60 Hz)
- Output: DC 5 V/ 2 A
Environmental features- Operating temperature: - 15 / + 55 °C
- Humidità operating: 5 / 90 % without condensation
Dimensions- Width: 64 mm
- Depth: 77 mm
- Height: 23 mm
- Weight: 135 g

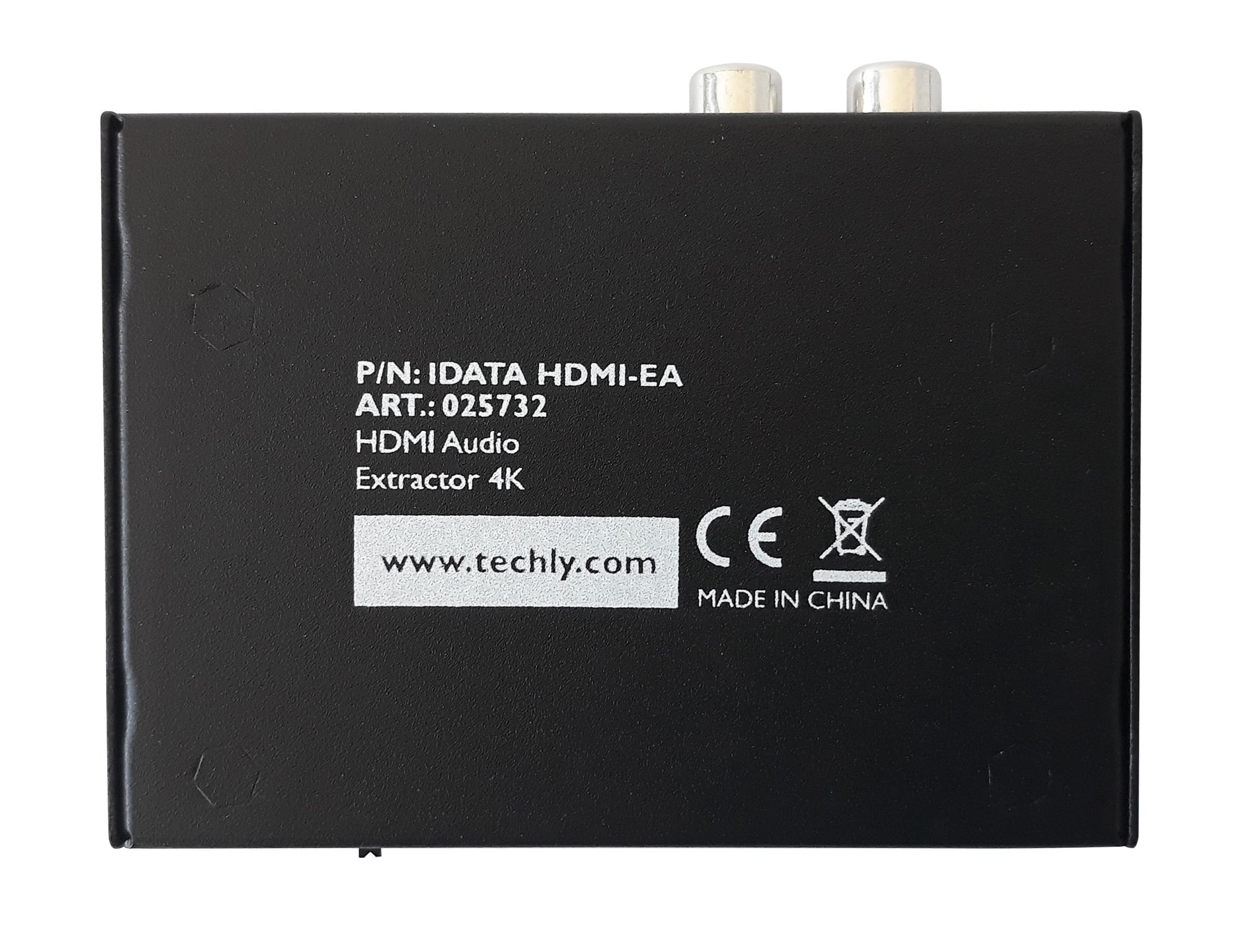

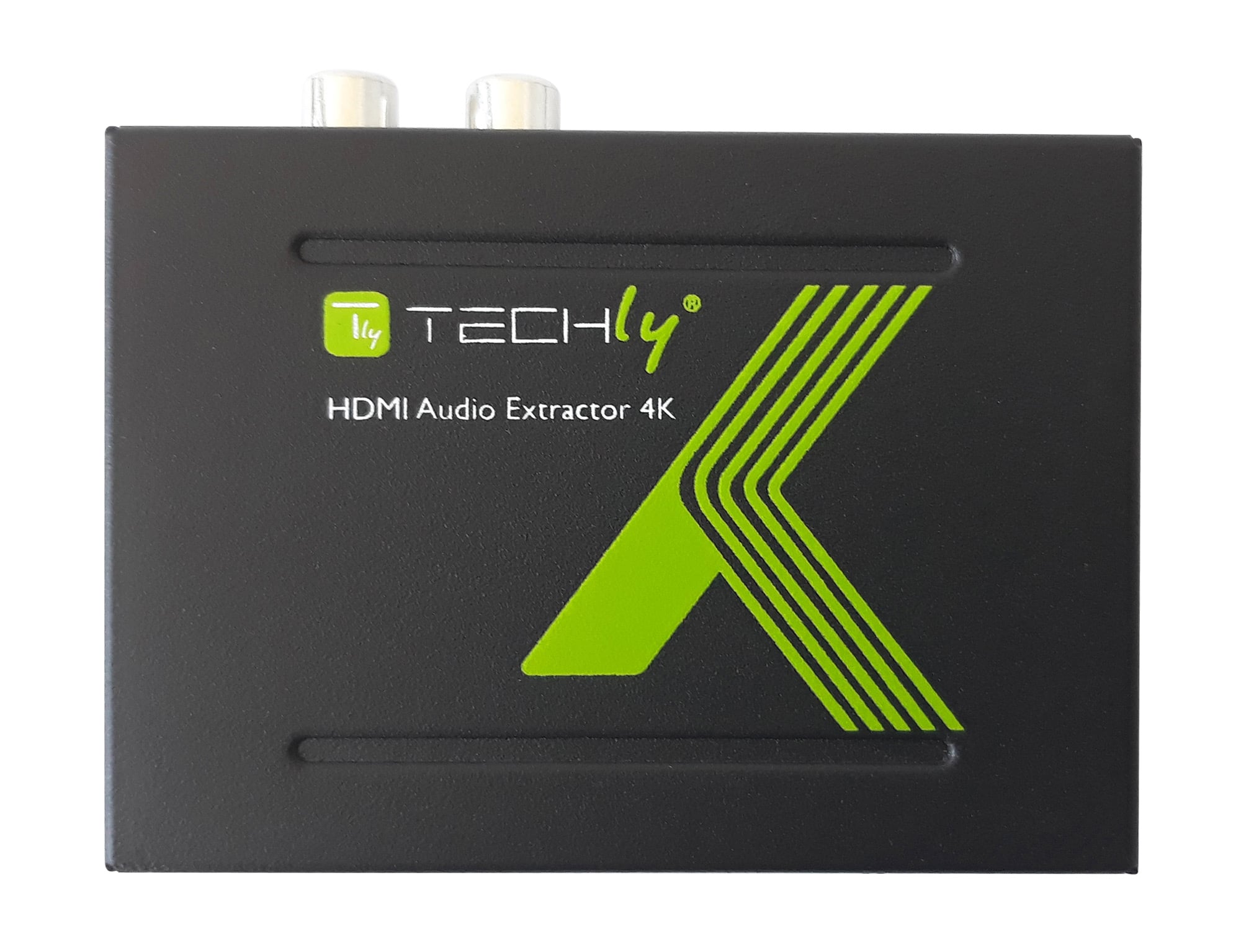

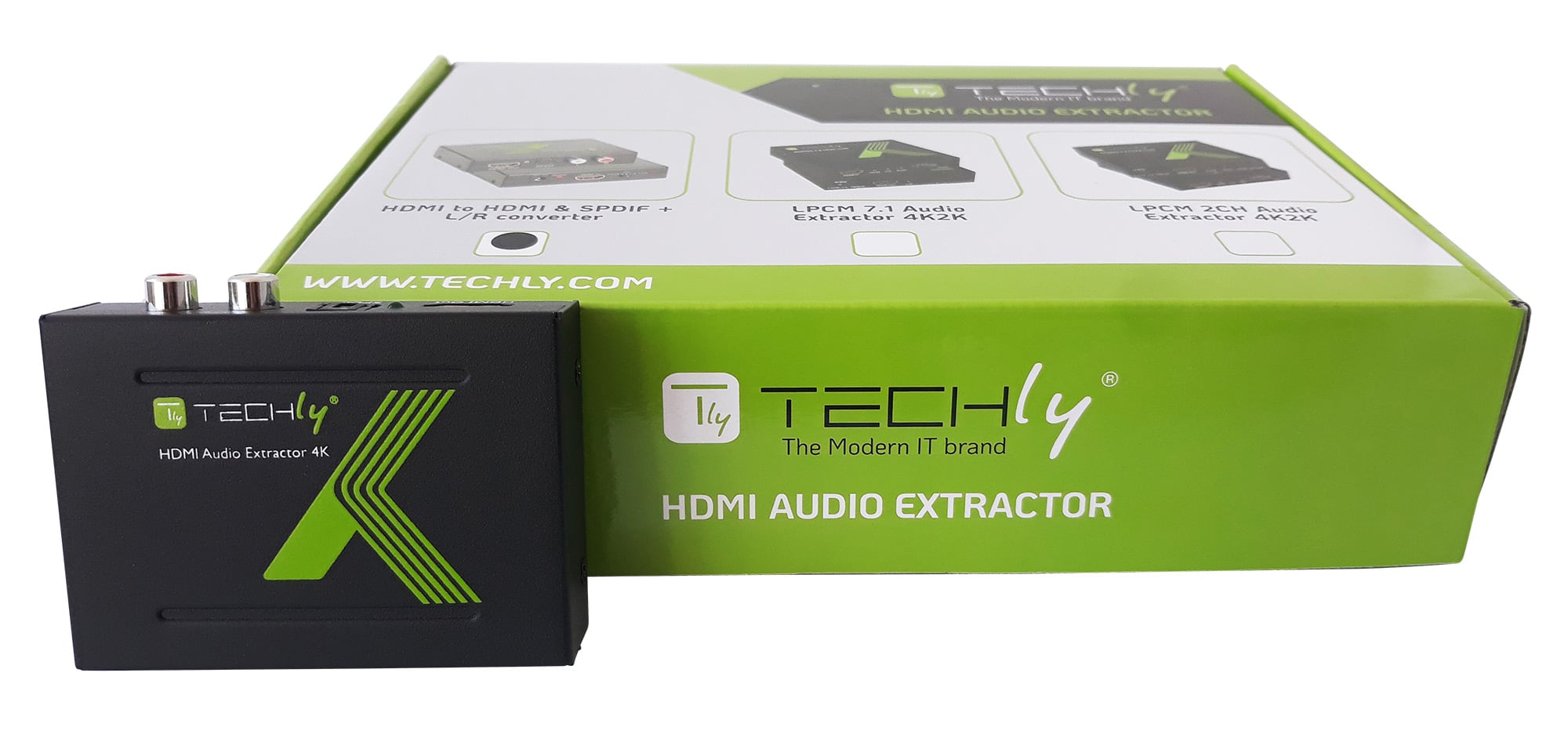

CertificationsPackage contents- Audio extractor IDATA HDMI-EA 4 K
- 5 V 2 A power supply
- Information sheet
