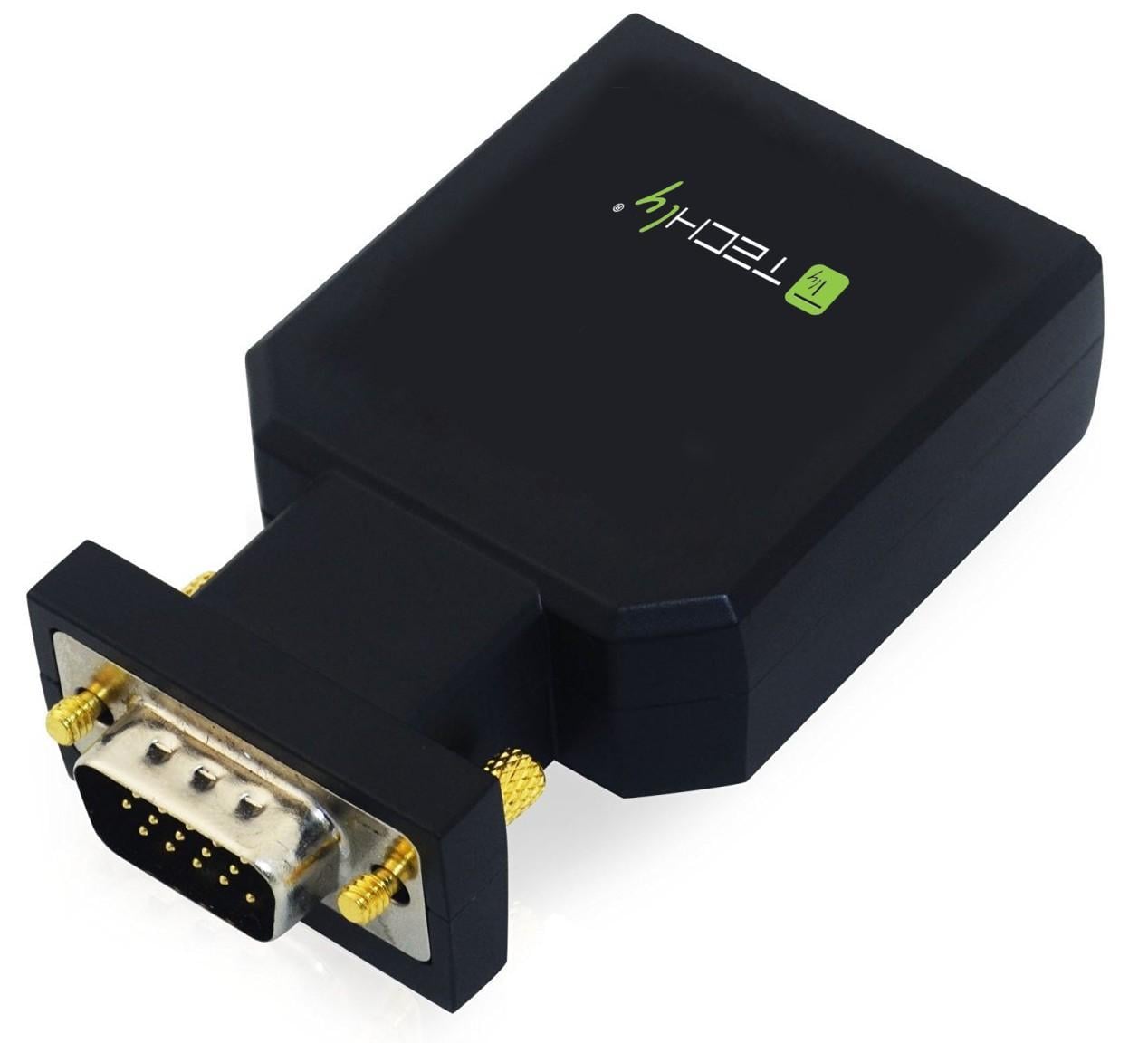

Mini VGA+Audio Converter to HDMI - Techly IDATA VGA-HDMINI

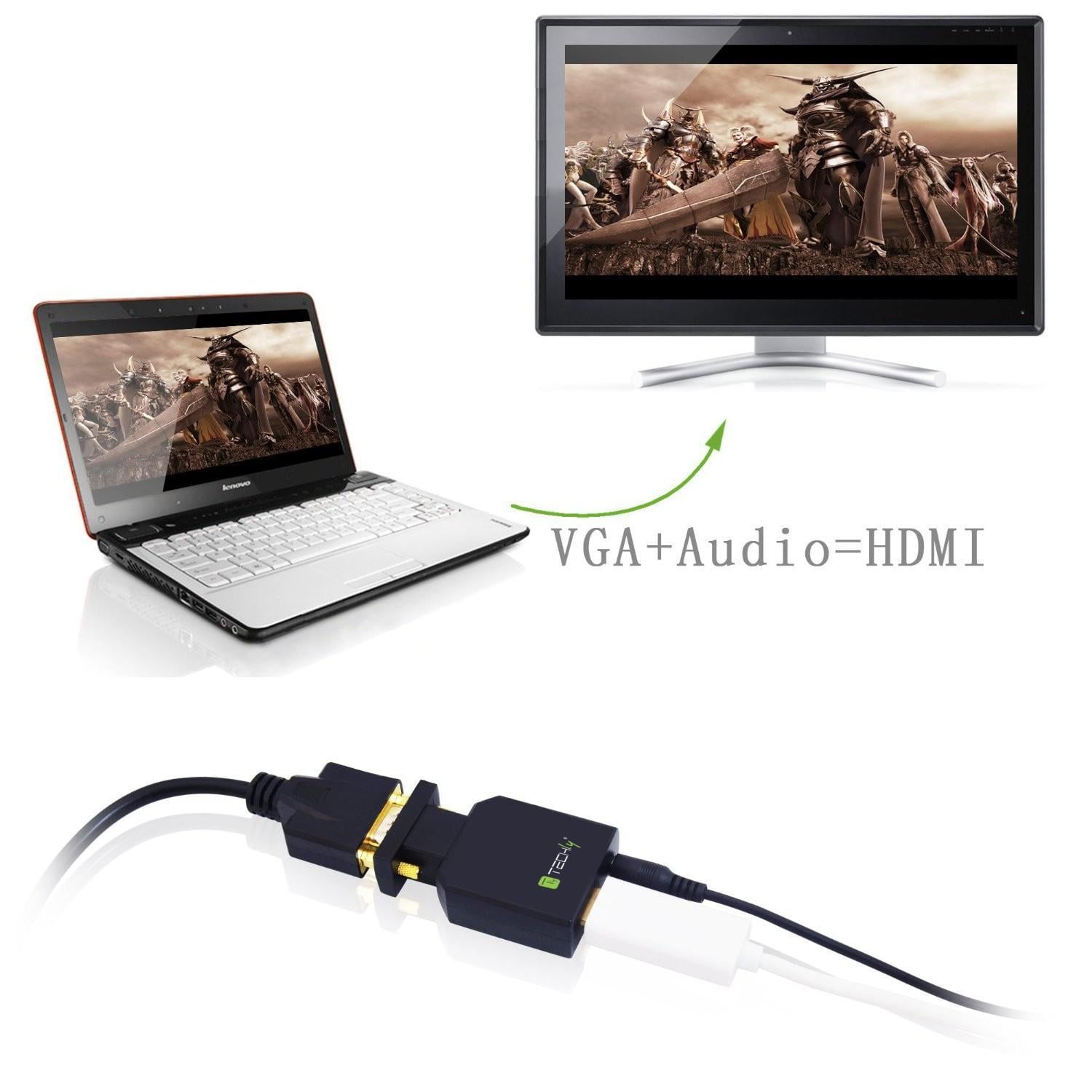

IDATA VGA-HDMINI allows you to connect a laptop/PC with VGA output directly to an HD TV, LCD or video projector with HDMI digital input.

Simply insert the adapter into the VGA port of the computer and connect an HDMI cable to the output, connecting it to the other end of the television. It also supports and converts the audio signal through the audio jack input from 3,5 mm, which allows you to connect headphones, speakers or a HiFi system.

It is powered via the VGA input and therefore does not require any external power supply/transformer. However, in the è package including a Micro USB charging cable through which the converter can be powered also by the PC network.



Features

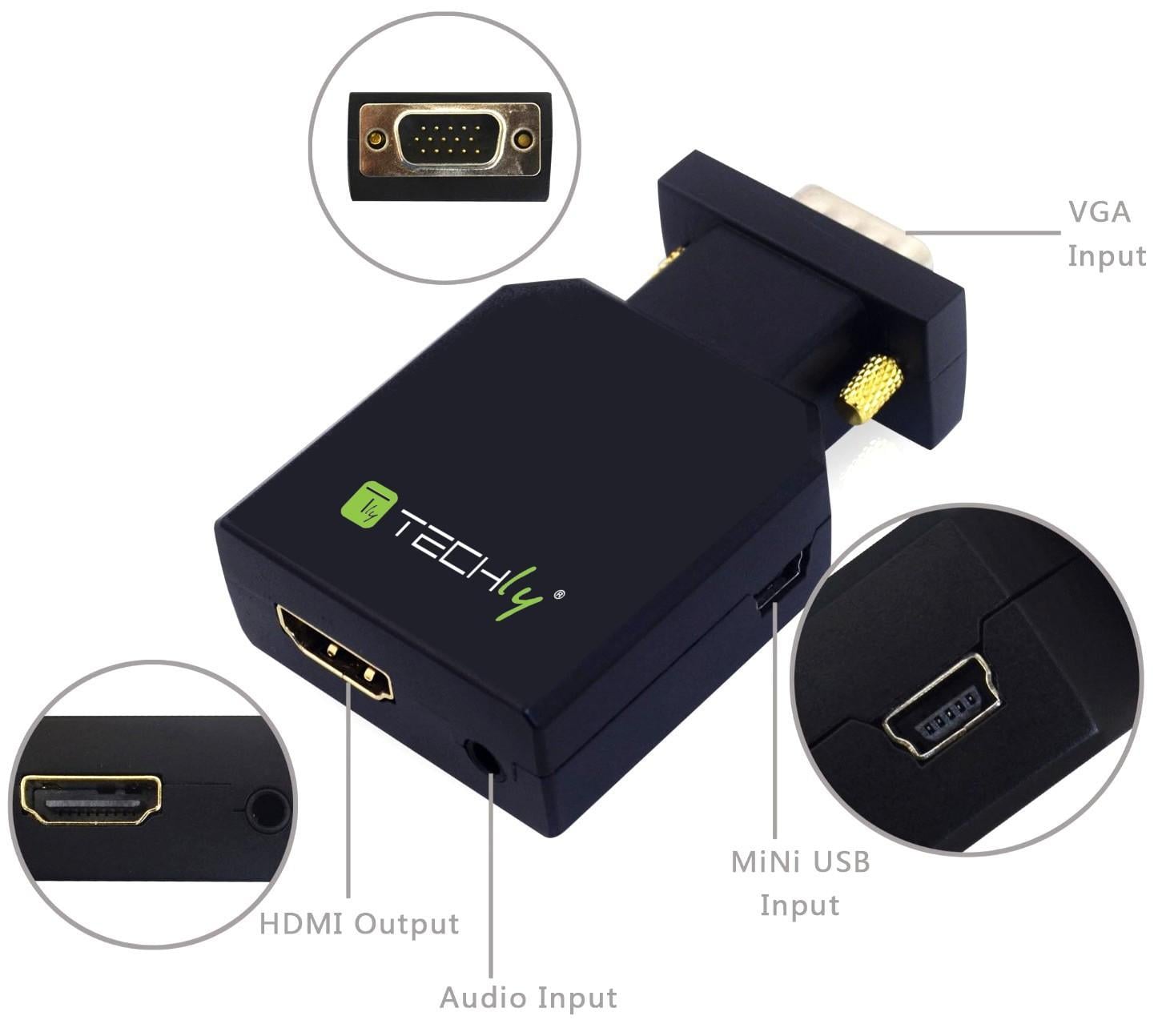

• VGA and audio to HDMI converter

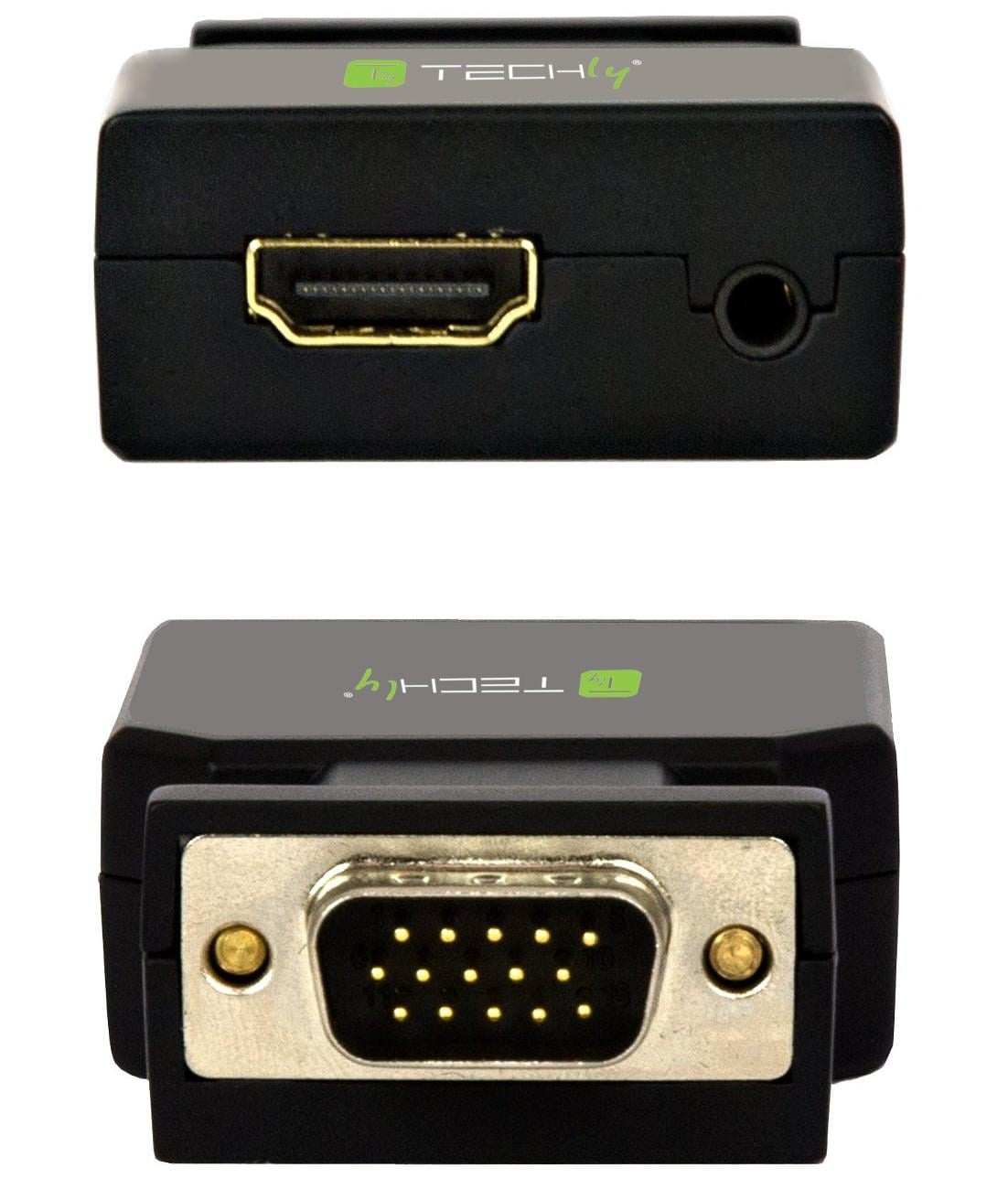

• Inputs: 1 x male VGA; 1 x female Audio 3.5


• Output: 1 x female HDMI

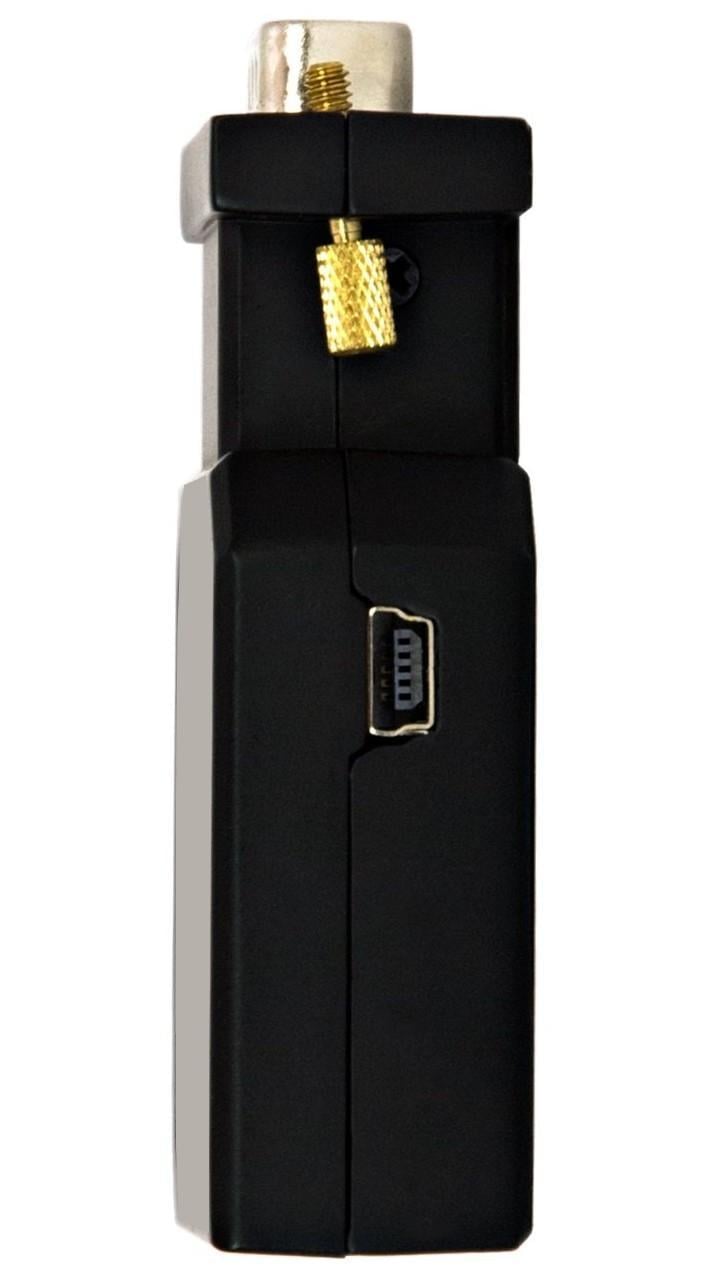

• With Micro USB charging port


• Golden connectors


• Easy and quick plug and play installation


• Detect and adapt the required resolution


• HDMI output: HDMI 1.3


• Input signal: RGB: 0.7 Vp-p 75 ohm


• Power consumption: 0.5 W maximum


• With LED power indicator



Supported Solutions

640 × 480 @ 60 / 72 / 75 / 85 Hz, 720 x 400 @ 70 Hz,

800 × 600 @ 60 / 72 / 75 / 85 Hz, 1024 x 768 @ 60 / 70 / 75 / 85 Hz,

1152 × 864 @ 75 Hz, 1280 x 720 @ 60 Hz,

1280 × 768 @ 60 / 75 / 85 Hz, 1280 x 800 @ 60 / 75 / 85 Hz,

1280 × 960 @ 60 Hz, 1280 x 1024 @ 60 / 75 Hz,

1360 × 768 @ 60 Hz, 1400 x 1050 @ 60 Hz,

1440 × 900 @ 60 Hz, 1600 x 1200 @ 60 Hz,

1680 × 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz,

1920 × 1200 _RB@ 60 Hz, 1920 x 1200 @ 60 Hz



Environmental features

• Operating temperature: 0 - 70 °C


• Humidità operating: 10 % - 85 % of relative humidity (without condensation)


• Storage temperature: - 10 - 80 °C


• Storage humidità 5 % - 90 % relative humidity (without condensation)



Dimensions

• Length: 72 mm


• Width: 41 mm


• Height: 18 mm



Certifications

• CE


• FCC



Package contents

• 1 x VGA+Audio Converter to HDMI


• 1 x Micro USB cable


• 1 x VGA cable


• 1 x Audio cable


• 1x User manual
