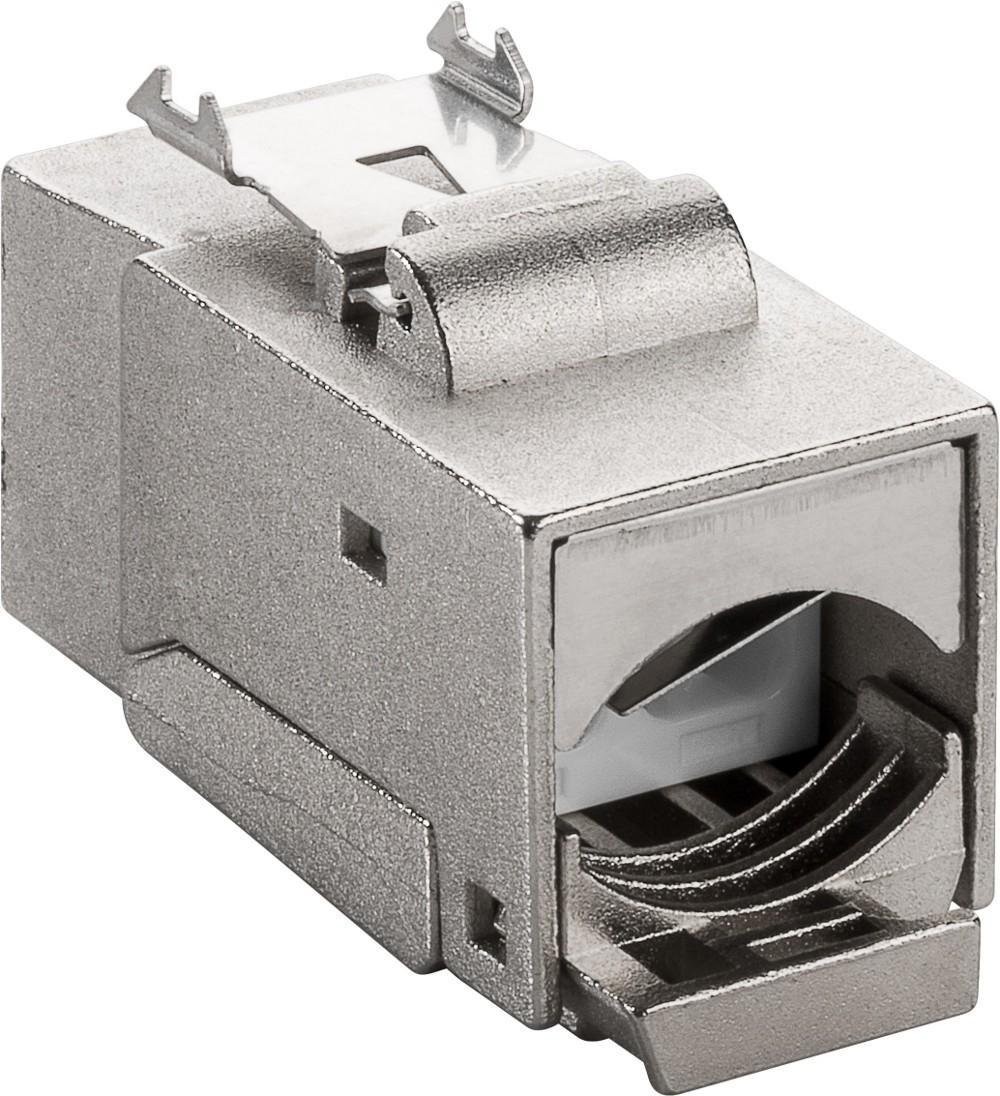

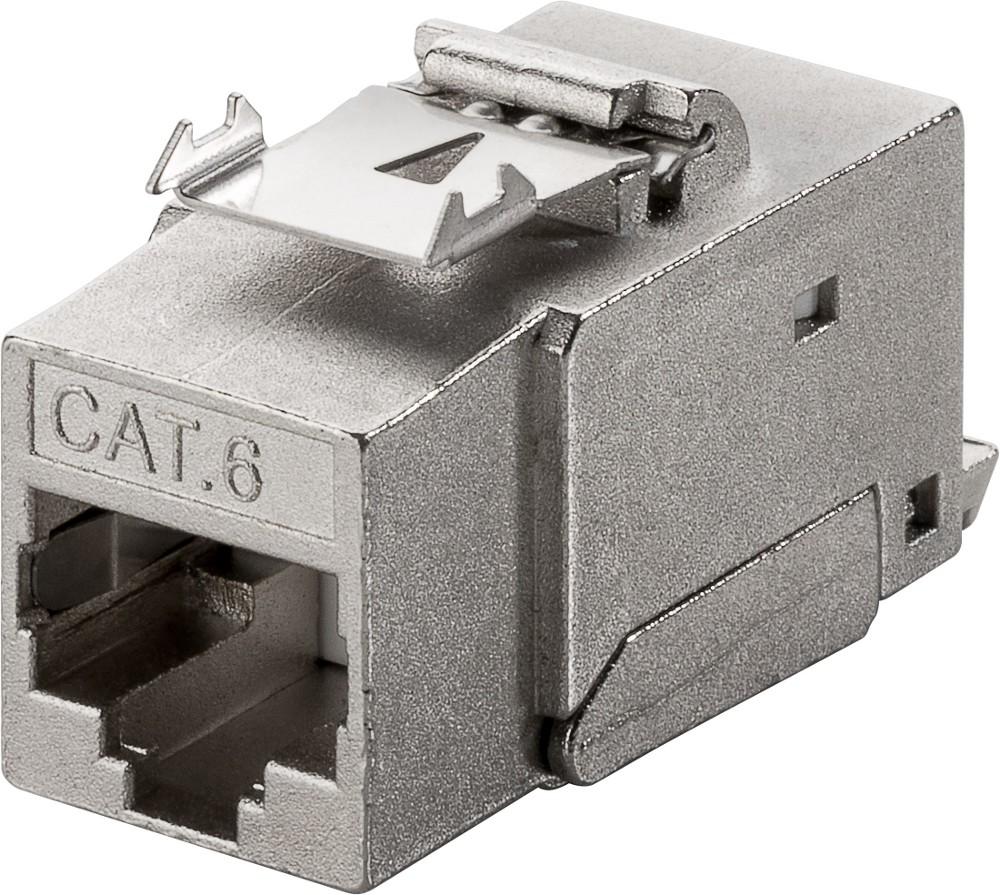

Fruit Keystone RJ 45 Cat 6 STP Shielded 250 MHz SNAP-IN - Goobay IWP-MD C 6 /STP-SN

The Keystone system knows no limits in terms of installation. Take advantage of the modular connection system for standardized connectors and door sockets with 14,9 × 17,0 mm pitch. The Snap-in system allows a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, jack jacks RJ 45 (CAT 5 , CAT 6 , CAT 6 A), loudspeaker connectors (RCA sockets, screw connectors and clamp connectors) as well as vacuum sockets; USB jack sockets, optical fiber and HDMI™. Keystone modules can be applied and interchanged universally.



Features

• RJ 45 jack socket with sturdy zinc alloy housing for perfect transmission of electrical signals

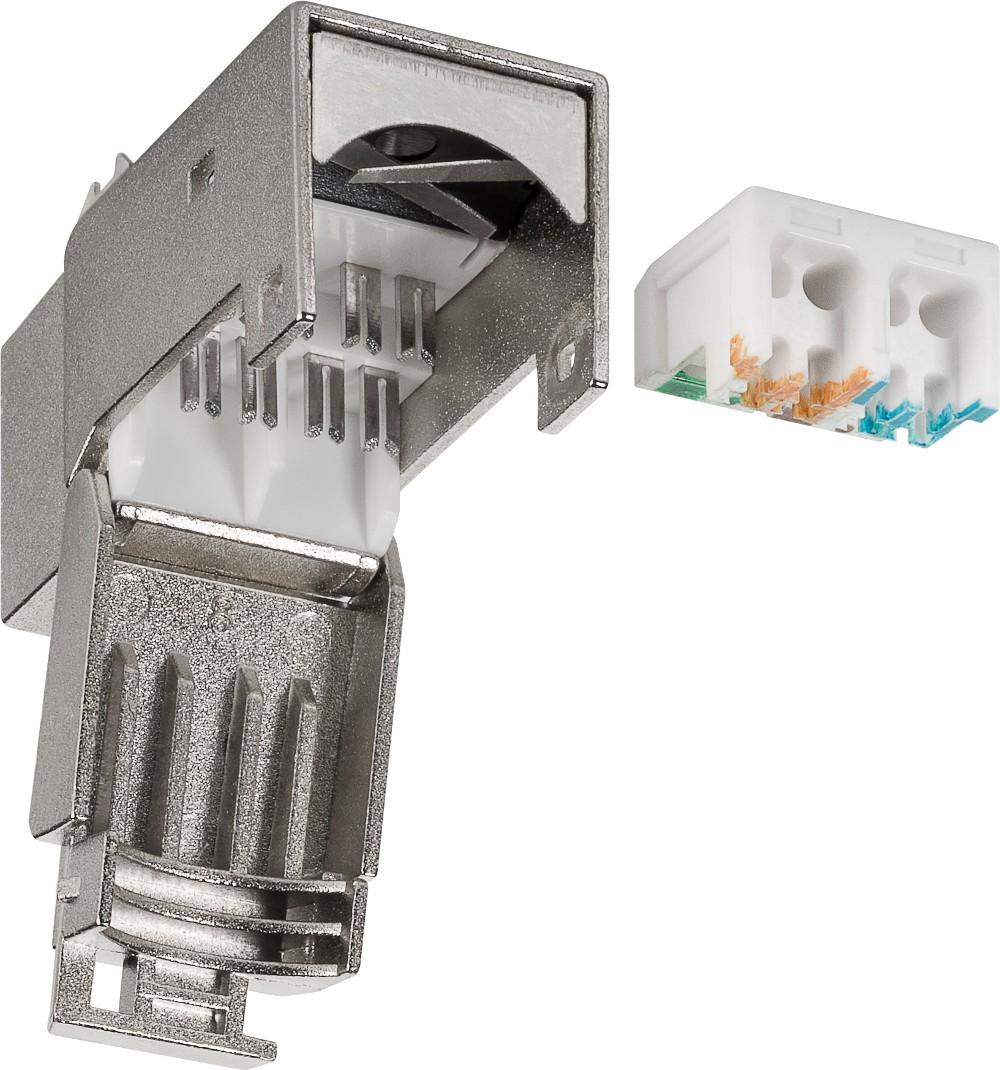

• CAT 6 jack socket with cable press via clamp


• Suitable for Power over Ethernet (PoE+) according to IEEE 802.3 at


• RJ 45 jack socket for installation in keystone patch panels, Ethernet wall sockets and storage cases


• Commonly used in network installations and for the assembly of permanently installed network cables


• The Ethernet connector is not è suitable for braided cables


• RJ 45 connections are color coded TIA 568 B



Technical specifications

• Applications: 10 Gigabit Ethernet


• Cat. 6 , transfer speed à up to 250 MHz


• Suitable for Power over Ethernet (PoE) according to IEEE 802.3 af


• Connector: LSA, zinc alloy housing


• Cable-stop with clamp


• Can be mounted in Keystone panels up to 24 doors or wall sockets


• Mounting module: 17,0 mm


• AWG 22 - 26


• For cable diameter from 5,00 to 9,00 mm


• Pinout TIA- 568 A/B TIA- 568 B


• PoE and PoE+ according to IEEE 802.3 af/at



Dimensions

• Length: 39.4 mm


• Front height: 16.0 mm


• Back height: 19.8 mm


• Front width: 14.5 mm


• Back width: 17.0 mm
