Wall cabinet 19" 8 units black - Techly Professional I-CASE FL-08-BK

Wall cabinet 19" 8 units black - Techly Professional I-CASE FL-08-BK

Name: Wall cabinet 19" 8 units black - Techly Professional I-CASE FL-08-BK
Brand: TECHLY PROFESSIONAL
SKU: I-CASE FL-08-BK
Price: 122.93 EUR
Availability: InStock

€122.93

Tax included

Wall cabinet 19" with 8 units (5+3), pre-assembled. Height 150 mm, ideal for tight spaces. 3U vertical for devices with max depth 360 mm and 5U horizontal for max depth 80 mm. Cover with acrylic glass window and key lock. Color black RAL9005. Dimensions: 537 x 146 x 475 mm.

Return policy

Delivery policy

Direct contact for info

Secure Payment

Wall cabinet 19 5+3 units, wall-mountable, completely pre-assembled
Compact design with overall height of only 150 mm, ideal for installations in tight spaces
The cabinet allows installation of up to 8 total units, of which 3 vertically and 5 horizontally for patch panels, power outlets or other shallow devices
Cover with acrylic glass window equipped with key lock and locking mechanism
Bottom prepared for cable entry thanks to pre-cut profiles
Laterally has holes for additional ventilation with grille panel at 80%

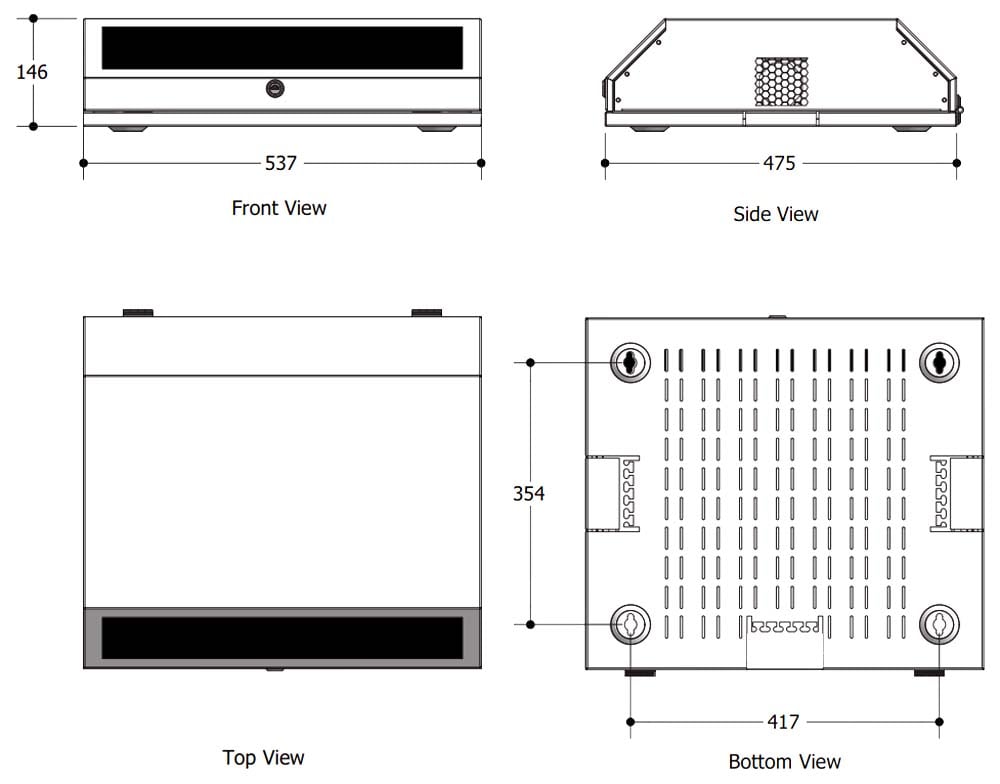

Dimensions: 537 x 146 x 475 mm (W x H x D)
Color Black RAL9005

Specifications

Housing in steel sheet of 1.2 mm for wall mounting with total height of only 150 mm

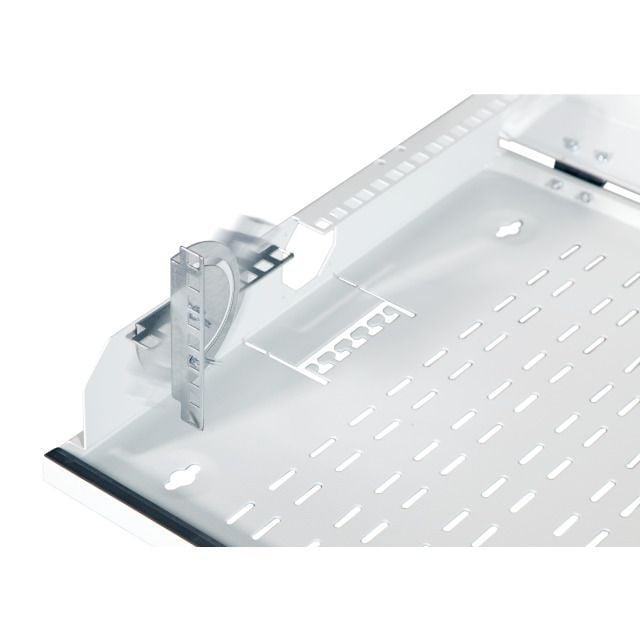

Available 3 vertical units on rotatable front bracket of 180°, allows installation of 19 devices with a maximum depth of 360 mm;
Additional 5U horizontal for mounting components of 19 with maximum allowed depth of 80 mm
The special cabinet structure offers up to 6 possible configurations for effective use of internal space

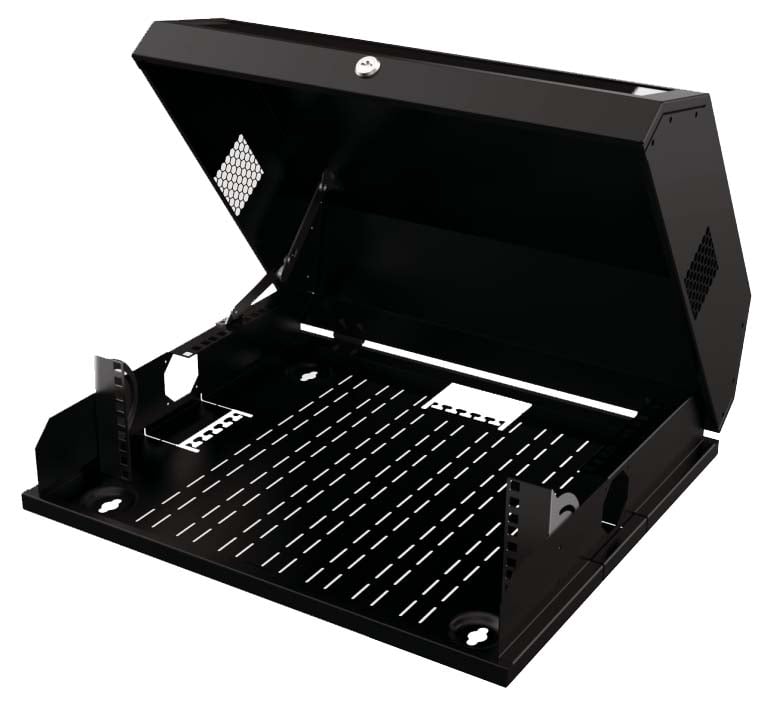

Top cover with acrylic glass window and key lock; equipped with sturdy hinge and locking mechanism for safe opening
Provided laterally with holes and grille panel at 80% for additional ventilation
Bottom provided with 2 pre-cut profiles 70x100 mm (sides) and 1 of 50x100 mm for cable entry (rear)
Load capacity up to 30 kg
Protection degree: IP 20
Color: RAL9005 Black
