Redundant mechanism for UPS 3 - 4 KVA Rack 19 ' 1 U - Techly Professional IUPS-SRA 16 -A 3

Automatic redundant structure for UPS
redundant structure of two ups with single power supply 19 - 1 U - For ups 3 - 4 KVA - 1 power cable 16 A - 4 output cables 10 / 16 A - 1 connector IEC 16 A male
Maximum current input 16 A.
Double load supply with automatic redundancy.
In the event of a UPS failure, the priority power supply (UPS master) automatically passes to secondary power supply (UPS slave).

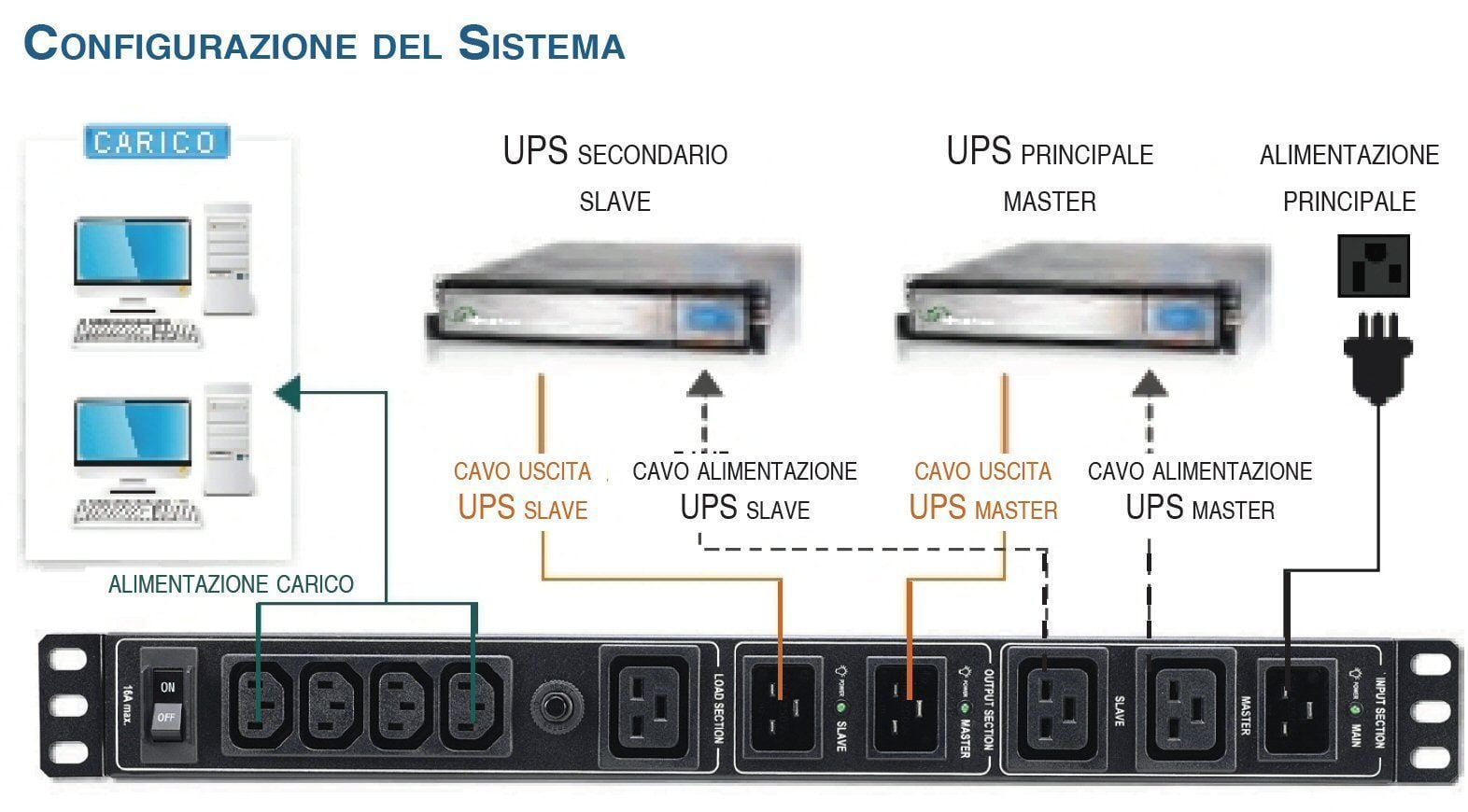

Possibility to connect a single UPS (master) and a secondary direct network (slave) to ensure the continuity of power supply to connected equipment.
Versatile installation that adapts to the various working environments (installation 19 or wall mounted).

Note of compatibility;:
UPS
Only compatible with pure sinusoidal wave UPS.

Do not use with UPS Line Interactive pseudo sinusoidal.

Technical data: IEC - 16 A

•

• Input:

• Input voltage 208 / 220 / 230 / 240 VAC

• acceptable input voltage 100 - 280 VAC

• Input frequency 40 - 70 Hz

• Current nominal input 16 A

• Exit

• Output voltage 208 / 220 / 230 / 240 VAC

• Maximum current output 16 A

• Switching time

• Master UPS --> Slave UPS 10 ms. max.

• Slave UPS -->Master UPS 4 ms. max.

• Connections:

• Connections network 1 x IEC-C 20 (16 A male)

• Input connections UPS 2 x IEC-C 19 (16 A female)

• Connections output UPS 2 x IEC-C 20 (16 A male)

• Load connections 4 x IEC-C 13 (10 A female) and 1 x IEC-C 19 (16 A female)

• Indicators:

• LED presence main power supply Green light

• LED presence output UPS master Green light

• LED presence output UPS slave Orange light

• Physical characteristics

• Dimensions (H x L x P) / Weight: 44 mm x 448 x 10 cm

• Operating temperature 0 - 40 ° C

• Humidità relative 0 - 90 % (uncondensed)

• Accessories Included:

• 1 x power cable 16 A, 4 x output cable 16 A, 1 x connector IEC- 16 A male


Package includes

•

• Redundant mechanism for 3 ups - 4 KVA Rack 19

• 1 x power cable 16 A,

• 4 x output cable 16 A,

• 1 x connector IEC- 16 A male
