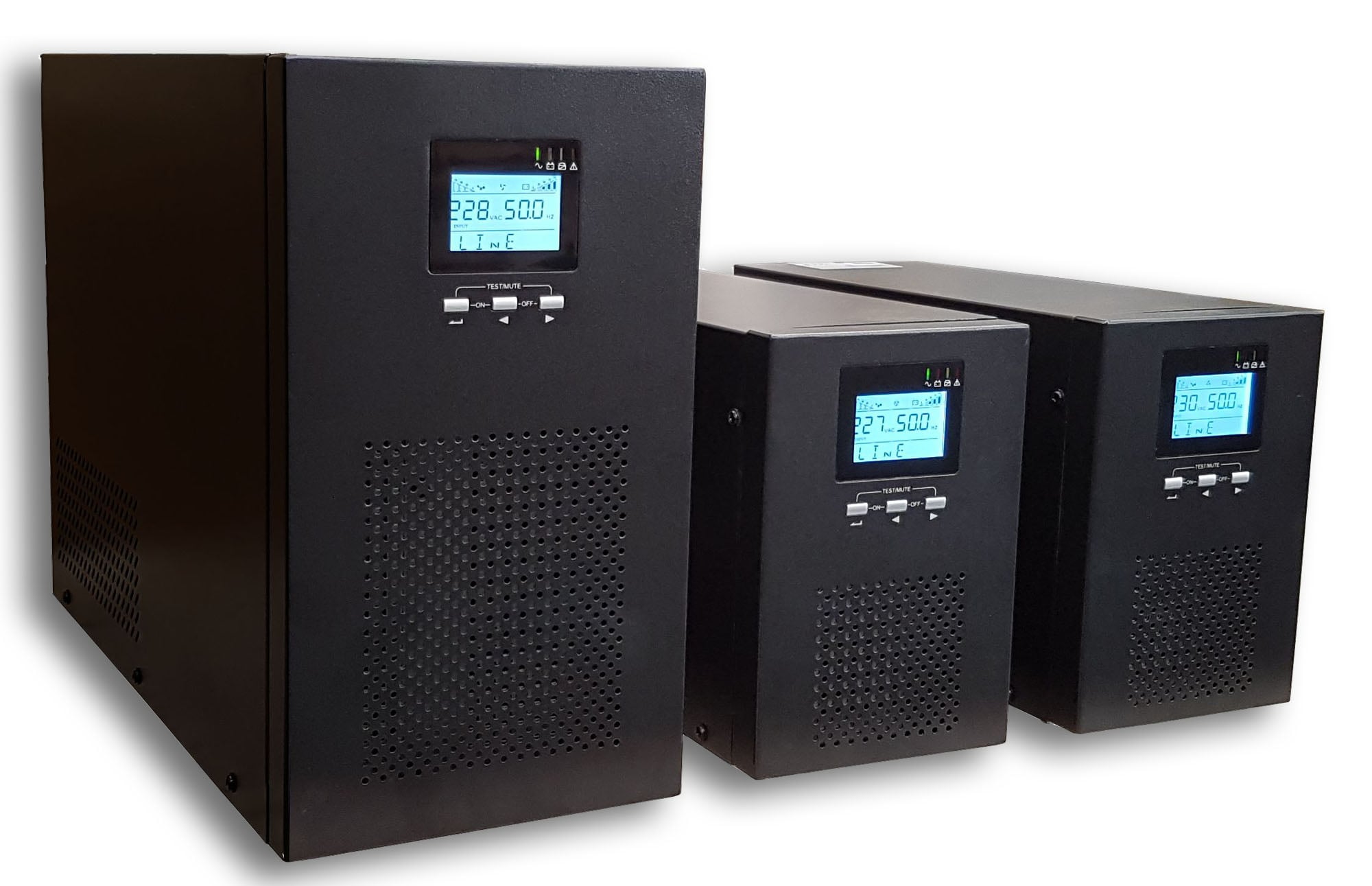

continuità compact, silent, ideal alternative for applications that do not require Online technology. Suitable for powering computer equipment or to protect instruments, LED lamps, electric gates, telephone sets, security systems and video surveillance. Suitable for domestic users and pellet stoves.
Features- Continuity group à with rated power 2000 VA - 1600 W Line Interactive with AVR
- 100 waveform % sinusoidal
- Equipped with LED and LCD display with information for voltage/frequency input, voltage/percentage battery level, voltage/frequency output, W/VA load measurements, temperature
- Equipped with 3 batteries 9 Ah, guarantee an autonomy of about 5 minutes
Specifications- Rated input voltage: 175 - 290 Vac (network operation), 0 - 300 Vac (by pass operation)
- Frequency: 50 / 60 Hz self-detecting
- VA/W power: 2000 VA/ 1600 W
- Rated output voltage: 199 - 254 Vac (network operation), 0 - 300 Vac (by pass operation), 230 Vac (battery operation)
- Waveform: pure sinusoidal
- Switching time: ≤ 8 ms
- Digital control DSP
- AVR voltage stabilizer
- Wide Range Input function - wide tolerance on input voltage without battery intervention
- Automatic frequency recognition in input and frequency selection output
- Auto Switching function: automatic ignition in the presence of electric current
- Auto Restart function: automatic reset to network return
- Cold Start function: battery ignition possible
- Current battery charge setup and end-of-down voltage setup; end voltage set-down batteries
- Battery charging even with off UPS
- Energy saving function and off-load
- Protection against overload, short circuit, under voltage/battery overload

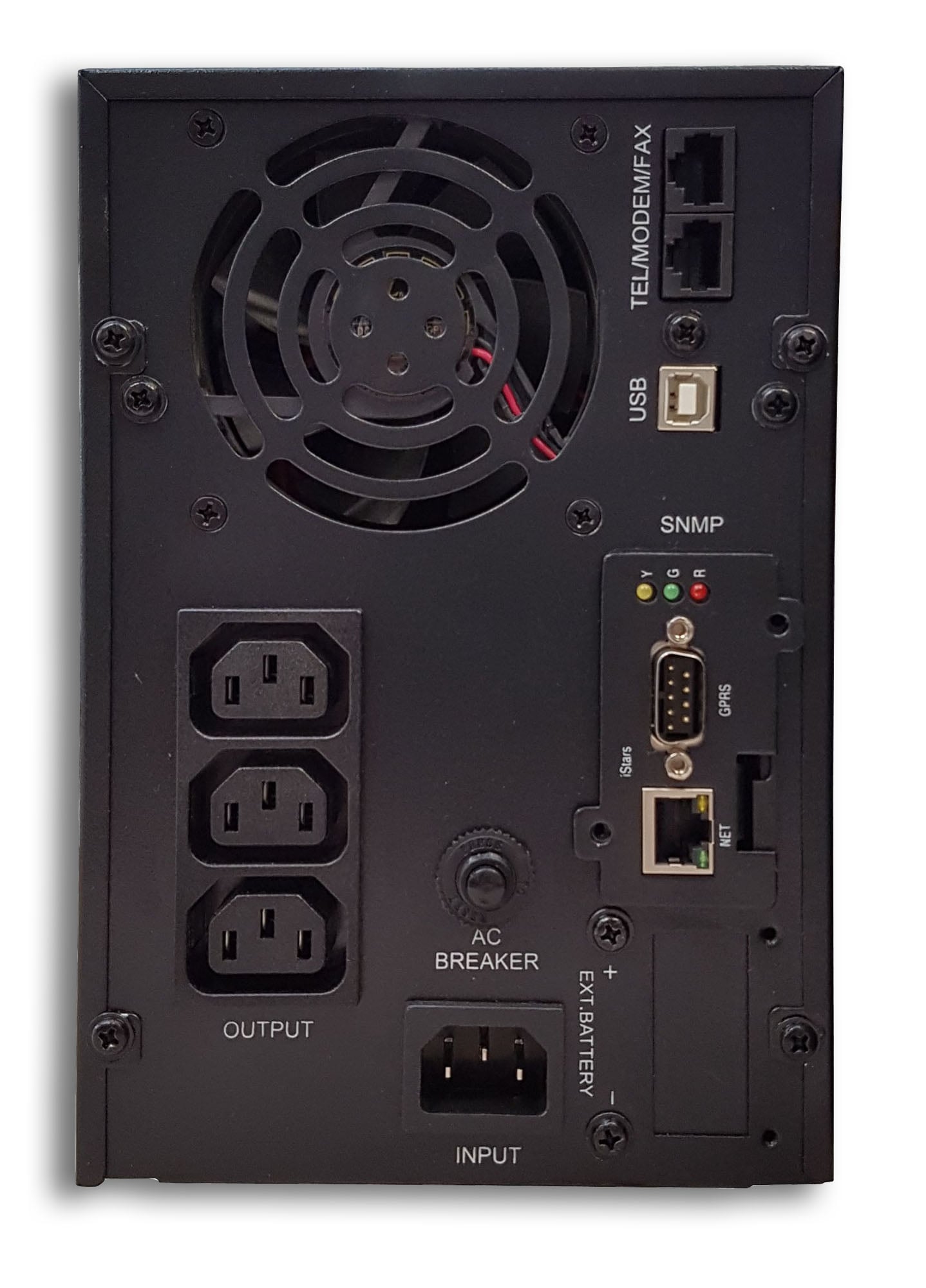

Links- Input plug: 1 x IEC 320 C 14 10 A
- Output socket: 3 x IEC 320 C 13 10 A
- Equipped with LED and LCD display for voltage/input frequency, voltage/percentage battery level, voltage/output frequency, W/VA load measurements, temperature
- Telephone network protection via RJ 45 connector
- USB port and slots for SNMP or AS 400 cards (optional)
Physical characteristics- Dimensions: 215 x 145 x 420 mm
- Operating temperature: 0 - 40 °C
- Humidità relative: 10 - 90 % RH without condensation
- Color: black
Package size:- Continuity group; 2000 VA
- 1 input cable 10 A
- 1 output cable 10 A
- 1 USB cable and software
