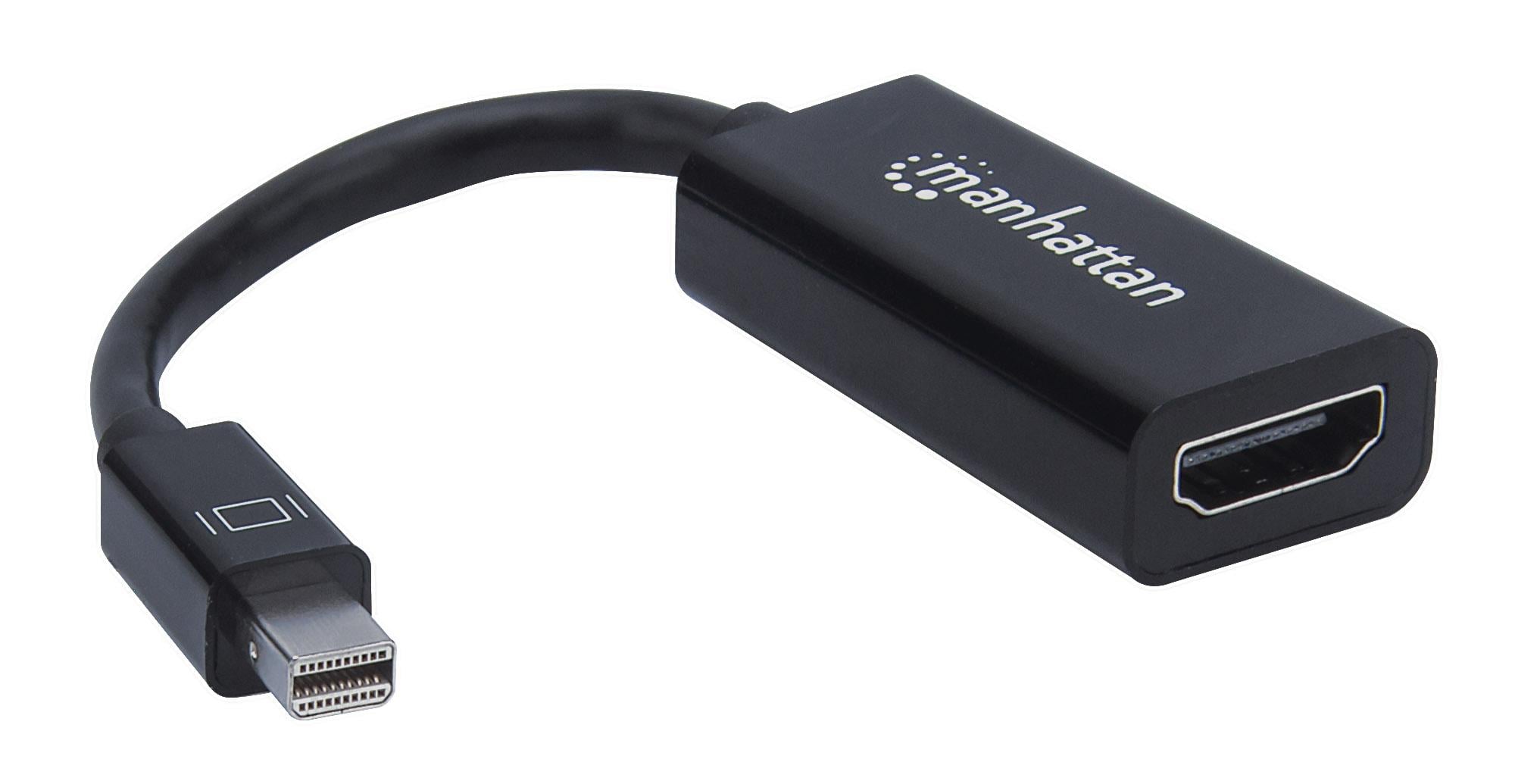

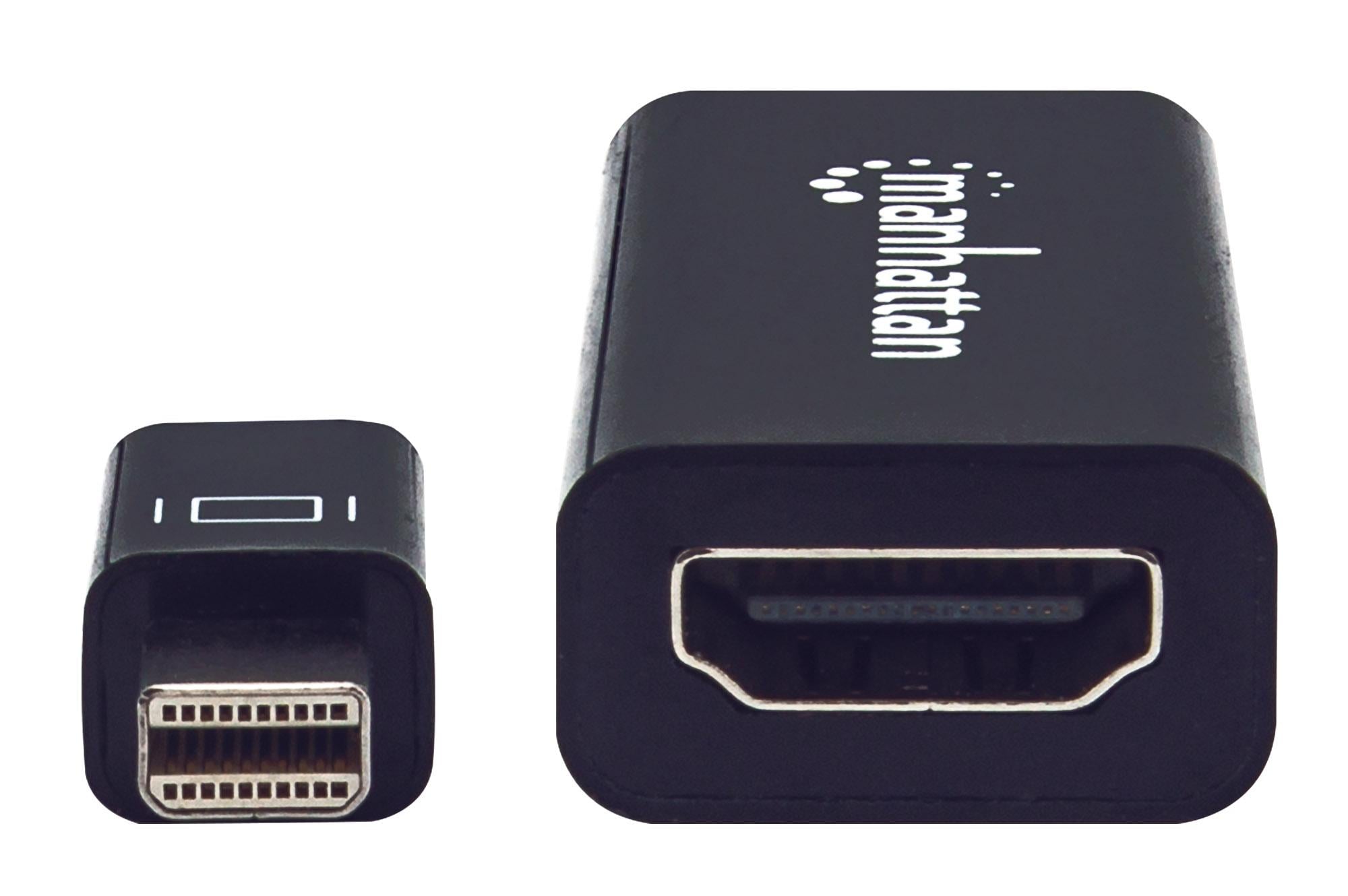

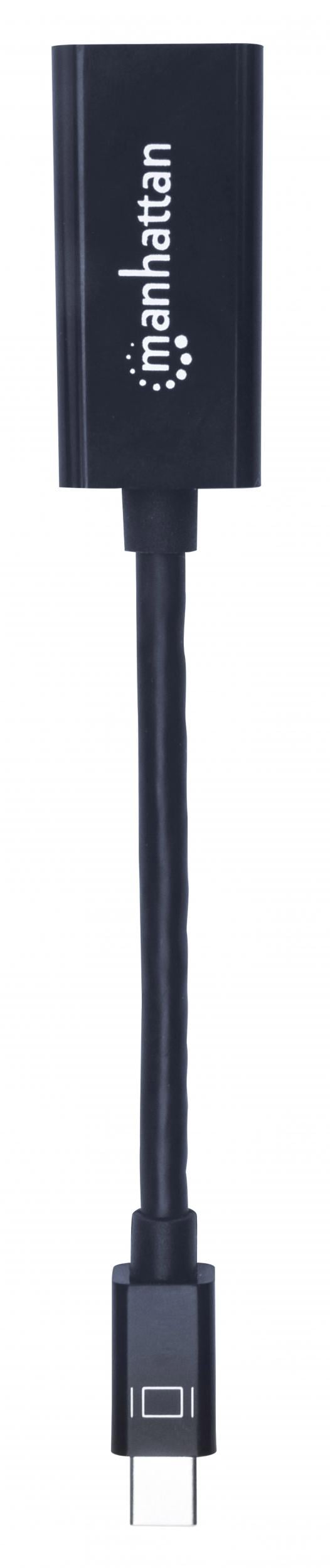

Mini DisplayPort to HDMI Passive Adapter Black - Manhattan IADAP MDP-HDMIF12M

€10.20
Tax included €8.40 excl. VAT

Passive Mini DisplayPort 20 pin male to HDMI 19 pin female adapter. Requires DP++ (dual-mode) graphics card. Supports resolution 1920x1200 (1080p), bandwidth 10.8 Gbps, Deep Color. Shielded.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Connects a Mini DisplayPort source to an HDMI display cable

  • Supports Deep Color, applications with 10.8 Gbps bandwidth and HD resolutions at 1080p (1920 x 1200p)

  • Delivers di alta qualità digital video and audio signal - ideal for use with a new Mini DisplayPort source

  • Requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD monitor, projector, and other devices

  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference

  • Injection-molded PVC connector covers



General information

  • Supports 8-bit and 10-bit Deep Color

  • Bandwidth 10.8 Gbps

  • Maximum single-link resolution: 1920 x 1200, 1080p

  • Supports auxiliary channel: 1 Mbps

  • Supports one line, one direction, supports four-line connection

  • Passive



Connections

  • A Mini DisplayPort 20-pin male connector

  • One HDMI 19-pin female connector

  • Nickel plated

  • PVC connector cover

  • Shielded



Cable:

  • AWG 30 connectors

  • Shielding: aluminum and Mylar

  • Dielectric strength: 300 VDC

  • Insulation resistance: 5 MΩ

  • Contact resistance: 10 Ohms

  • Thermoplastic housing



Physical information

  • Dimensions: 17 x 2.2 x 1.4 cm

  • Weight: 14 g



Environmental features

  • Operating temperature: 0 - 40°C

  • Storage temperature: -20 - 60°C

  • Humidity (non-condensing): 0 - 96%



System requirements

  • Windows XP/Vista/7/8/8.1/10, Linux or Mac 9.x/10.x or higher

  • DP++ (dual-mode) graphics/video card



Standards and certifications

  • UL 20276

  • DisplayPort v1.2

  • HDMI 1.3



Package contents

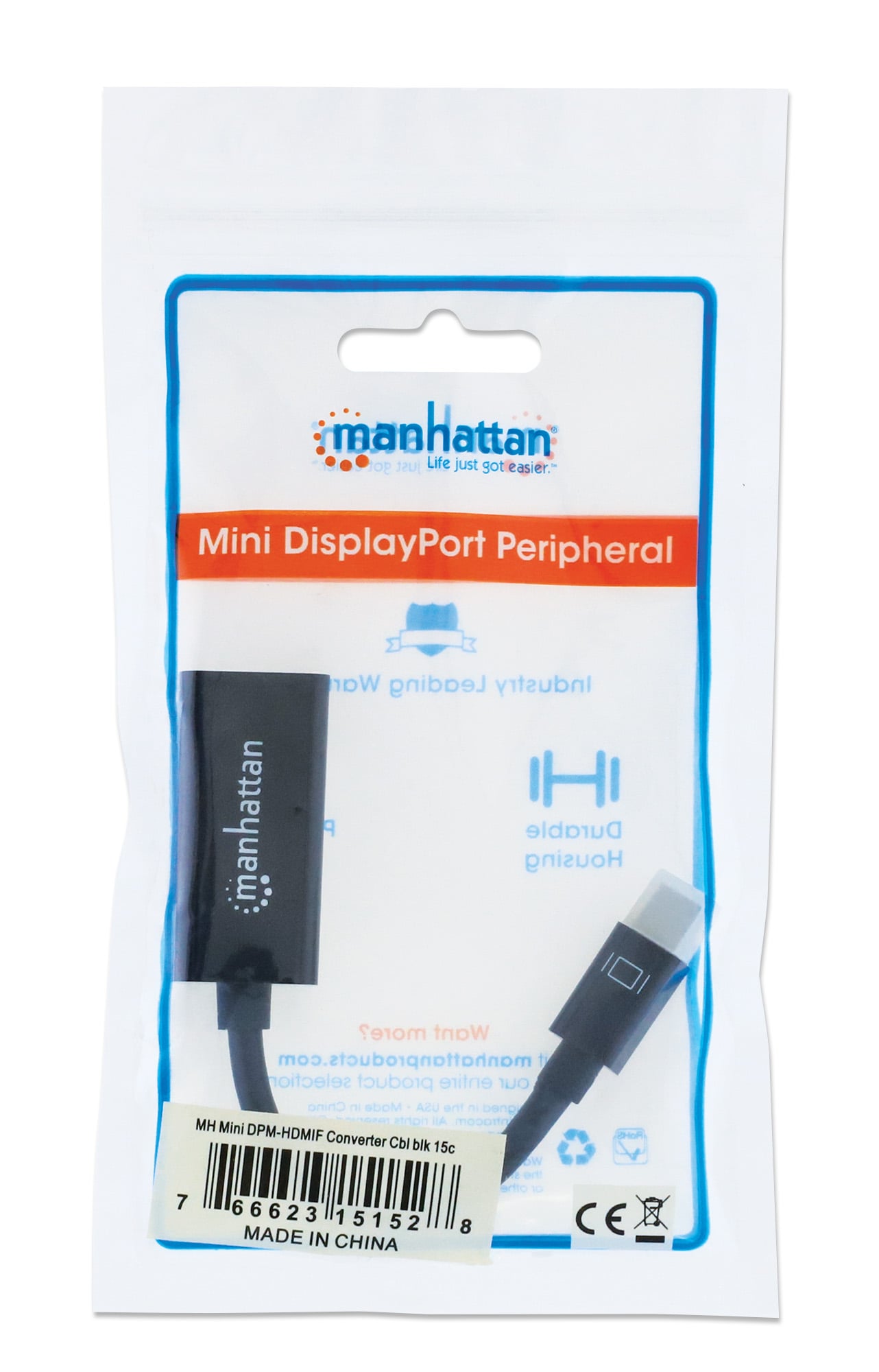

  • Mini DisplayPort to HDMI Passive Adapter

  • Brand
  • Reference
    IADAP MDP-HDMIF12M
  • In stock
    305 Items
  • EAN13
    0766623151528
