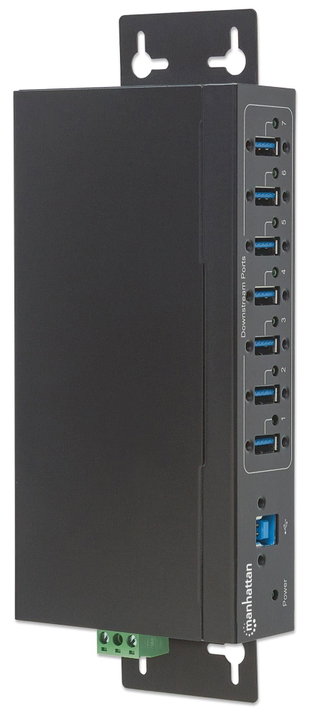

Industrial Hub USB 3.2 7 Doors - Manhattan IDATA USB 3 -SER- 7 MH

€134.61
Tax included €110.30 excl. VAT

SuperSpeed USB 3.2 Hub with 7 type A and 1 type B door. Transfer speed up to 5 Gbps. Robust metal housing, screw connections. Wall-mounted, DIN or counter rail. Power supply via AC, bus or terminal (power supply not included).



Return policy



Delivery policy



Direct contact for info



Secure Payment

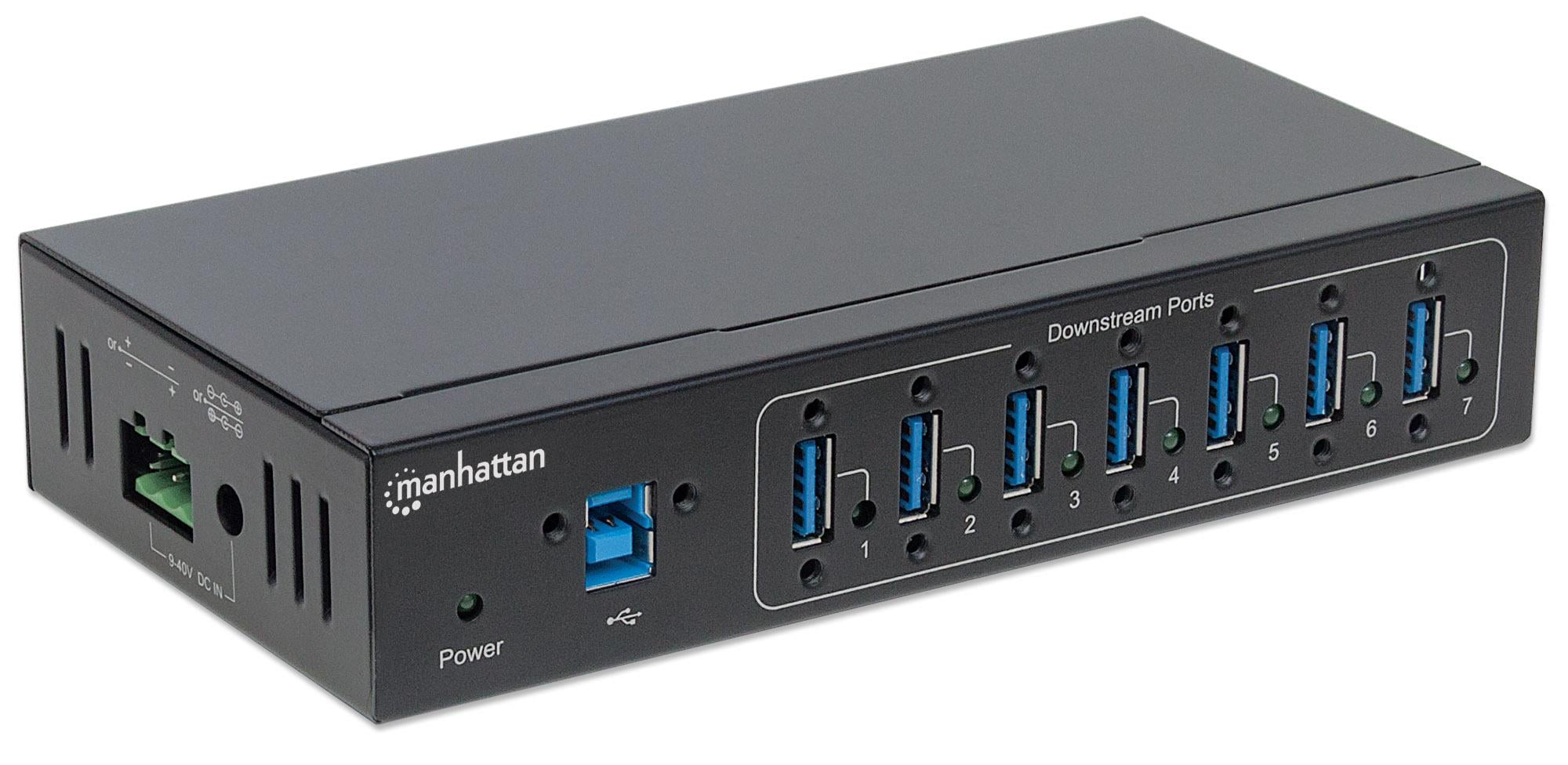

  • Provides seven 3.2 SuperSpeed USB ports for additional peripherals
  • Supports data transfer speeds à up to 5 Gbps
  • Robust metal housing and USB connections with screw closure offer greater safety in high traffic areas and industrial environments
  • Rubber feet included, removable wall supports and DIN guide holder provide multiple installation possibilities
  • Different power options, via AC, bus and terminal with overcurrent protection and ESD from 20 kV; does not support simultaneous use of terminal block and AC power supply
  • Supports specific 1.2 battery charging (BC 1.2)
  • Standard USB 3.2 (Già USB 3.0), 2.0 , 1.1 , 1.0
  • LED indicator for power supply and door activation
  • Plug and Play
  • Requires additional industrial power supply (not included)


Standards and certifications:

  • USB 3.2 (Già USB 3.0), 2.0 , 1.1 , 1.0
  • FCC
  • CE
  • RoHS
  • REACH
  • UKCA


Doors

  • Velocità transfer: 12 Mbps / 480 Mbps / 5 Gbps

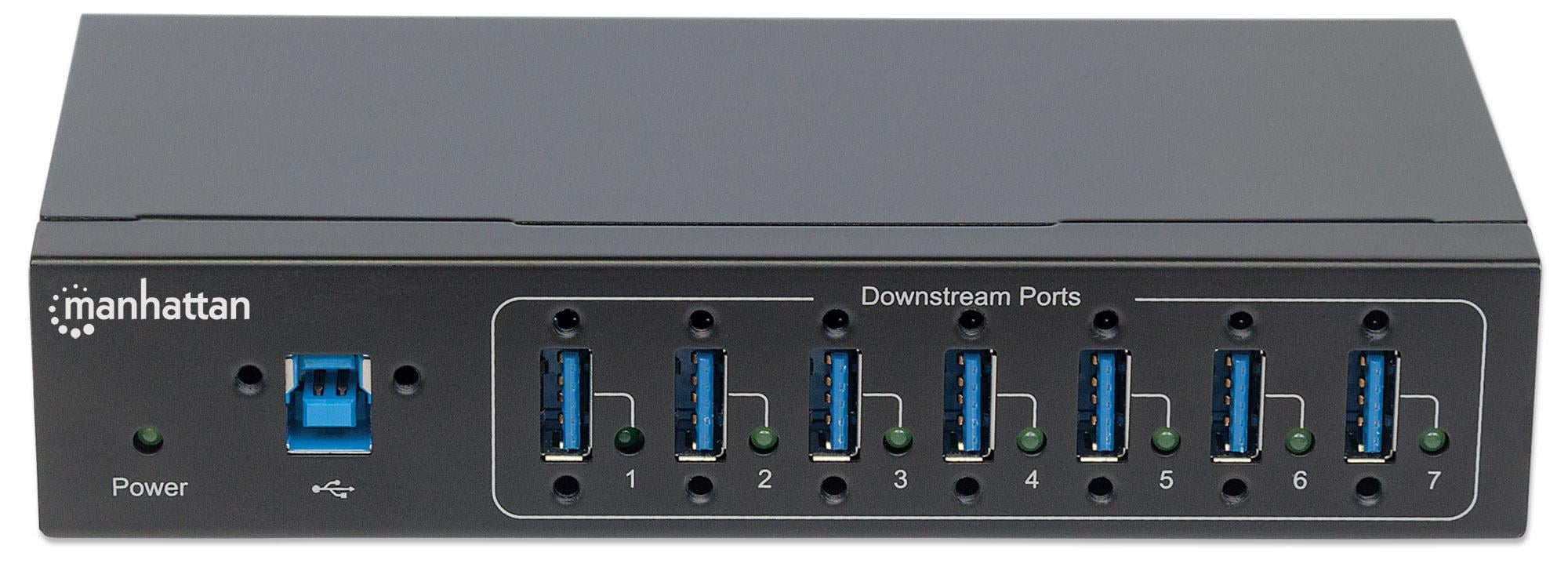

  • Seven 3.2 type A USB ports
  • A 3.2 type B USB port

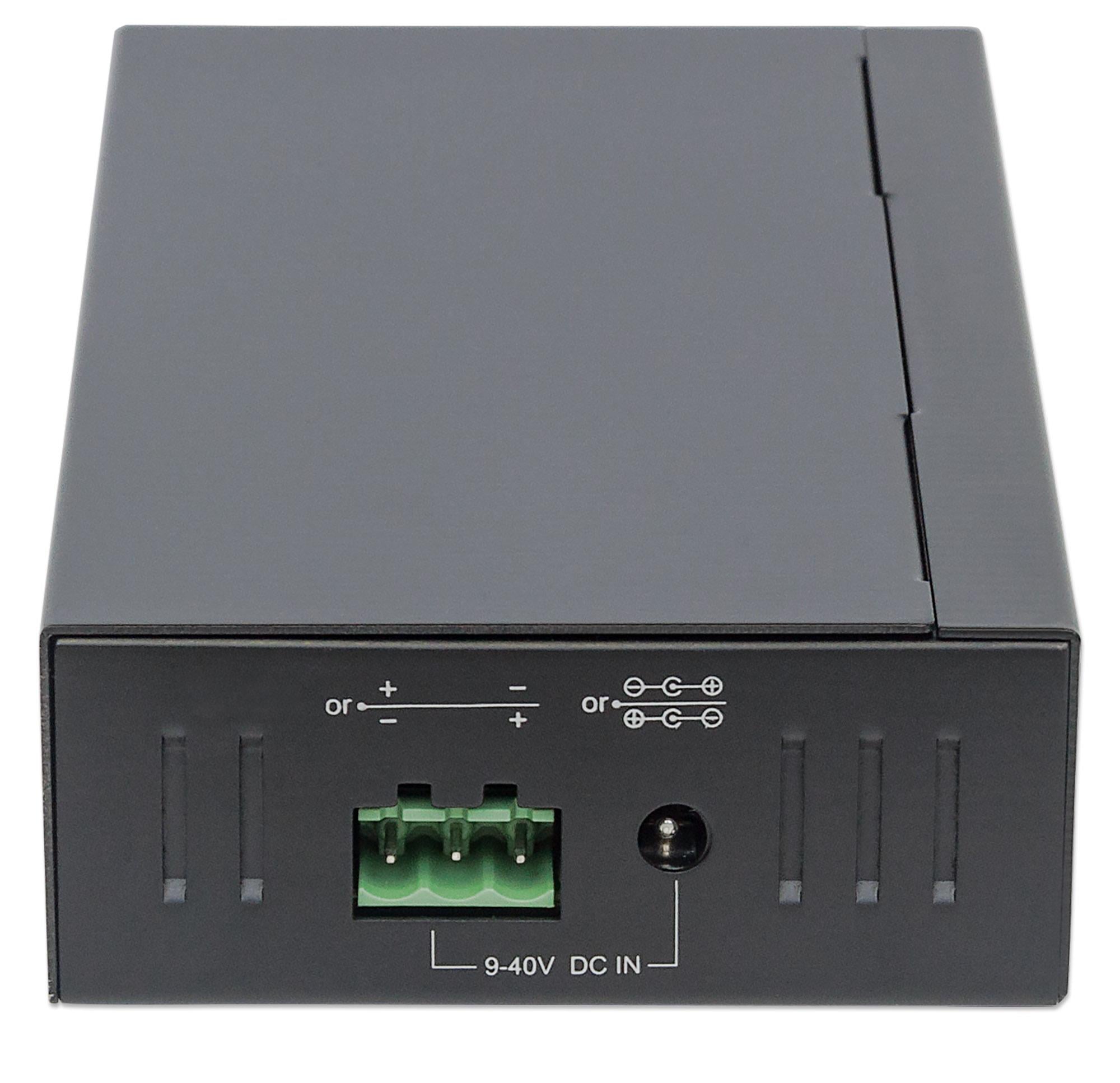

  • VDC port 9 - 40 polarità reverse

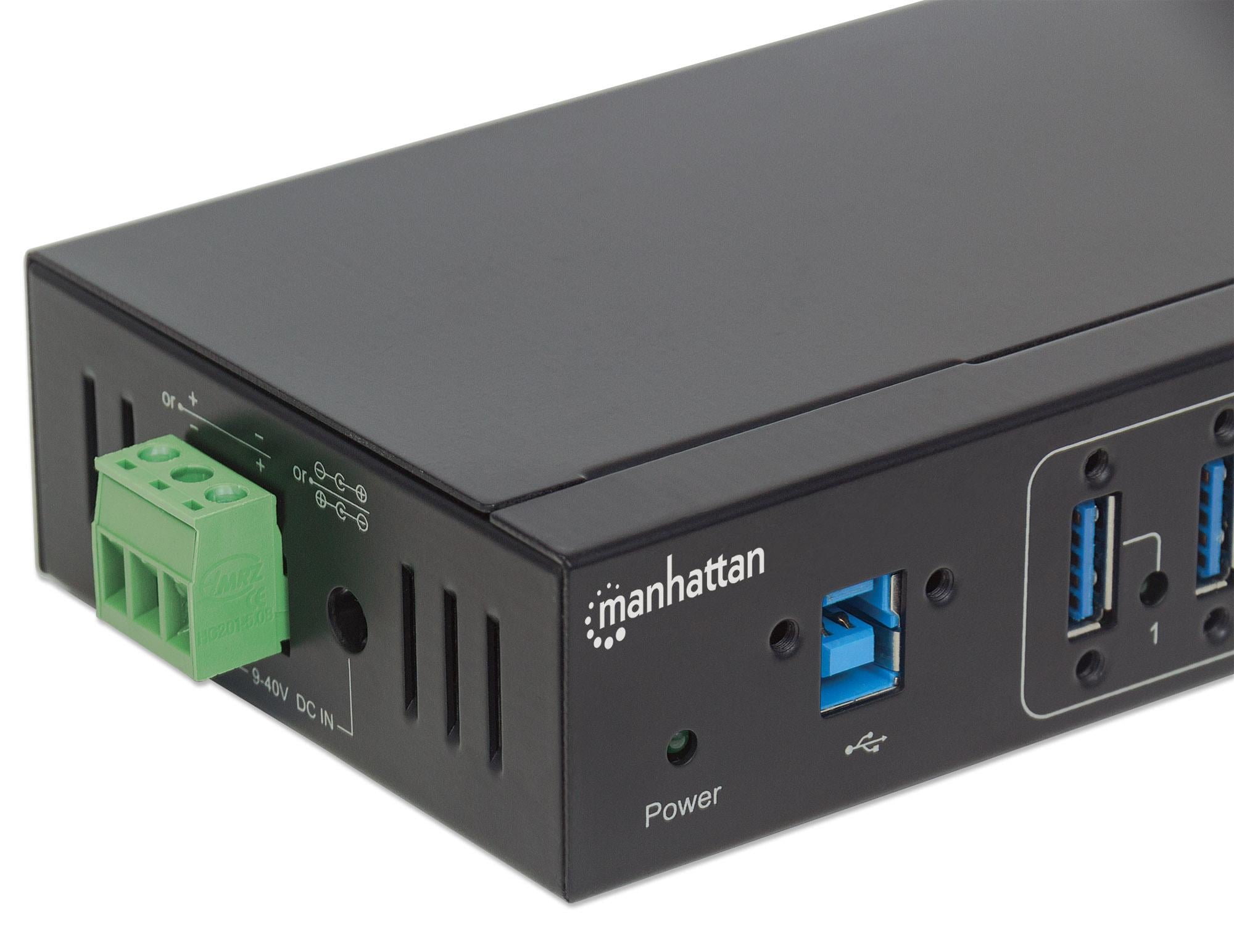

  • 9 VDC port - 40 polarità reverse, terminal block 3 pin


Physical information

  • Dimensions: 175 x 110 x 65 mm
  • Weight: 0.347 kg
  • Type A Type B USB 3.2 cable: 1 m; screw connector
  • Housing: metal

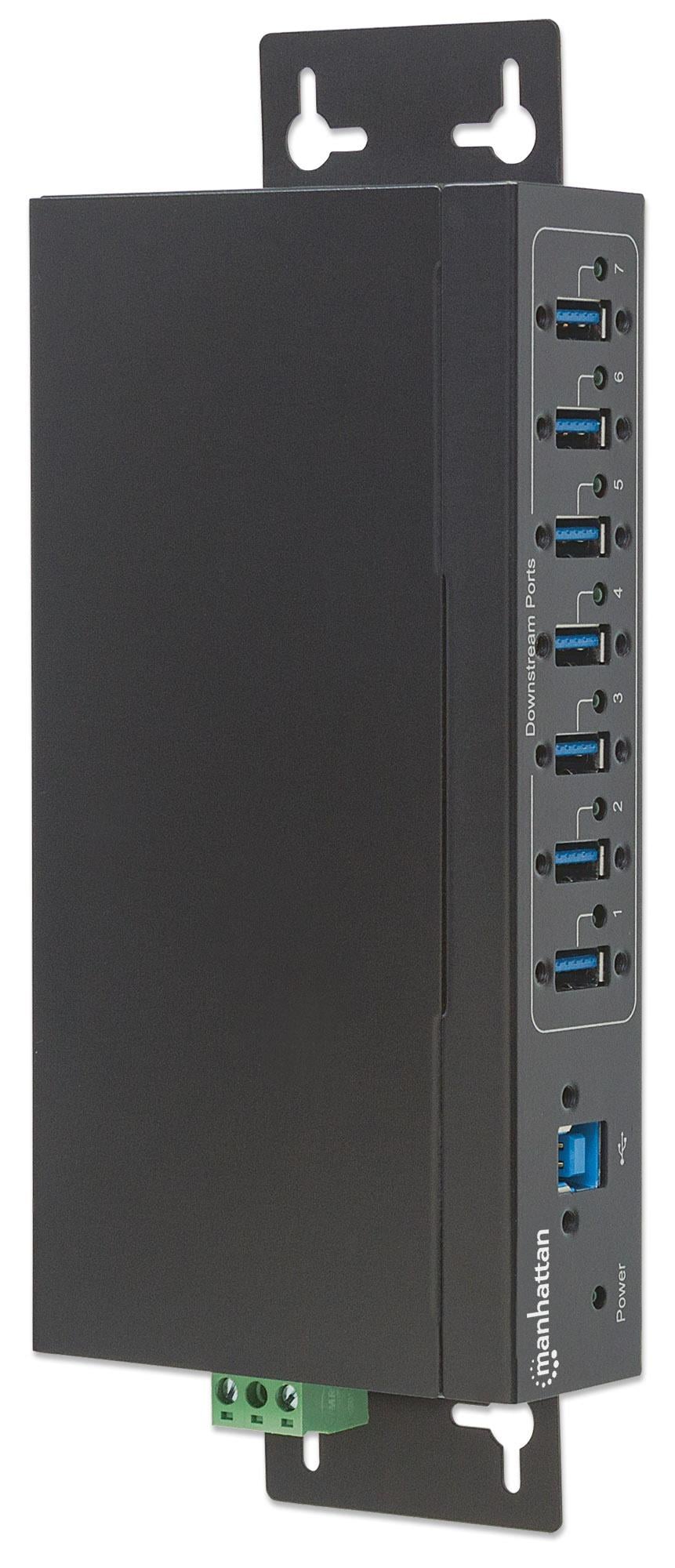

  • Metal brackets for removable wall installation

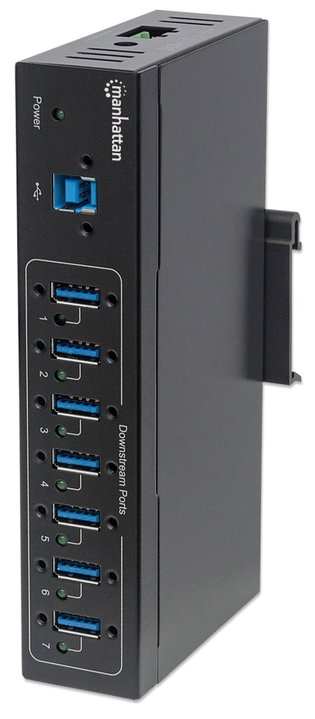

  • Removable DIN bar installation brackets
  • LED power indicator: green


System requirements

  • Does not simultaneously support use with terminal block and A/C power supply
  • PC or Mac equipped with USB
  • Windows XP / Vista / 7 / 8.1 / 10 / 11 or Mac OS 9 or higher
  • USB port available
  • 32 W power supply (recommended; è can also use a higher power supply)


Operational environment

  • Operating temperature: 0 - 40 °C
  • Storage temperature: - 20 - 60 °C
  • Humidità (without condensation): 0 – 96 %


Package contents

  • Industrial Hub USB 3.2 7 Doors
  • USB cable
  • A bracket for fixing on DIN rail
  • Two brackets for wall mounting
  • 3 pin terminal block
  • User manual

  • Brand
  • Reference
    IDATA USB3-SER-7MH
  • In stock
    7 Items
  • EAN13
    0766623164405
