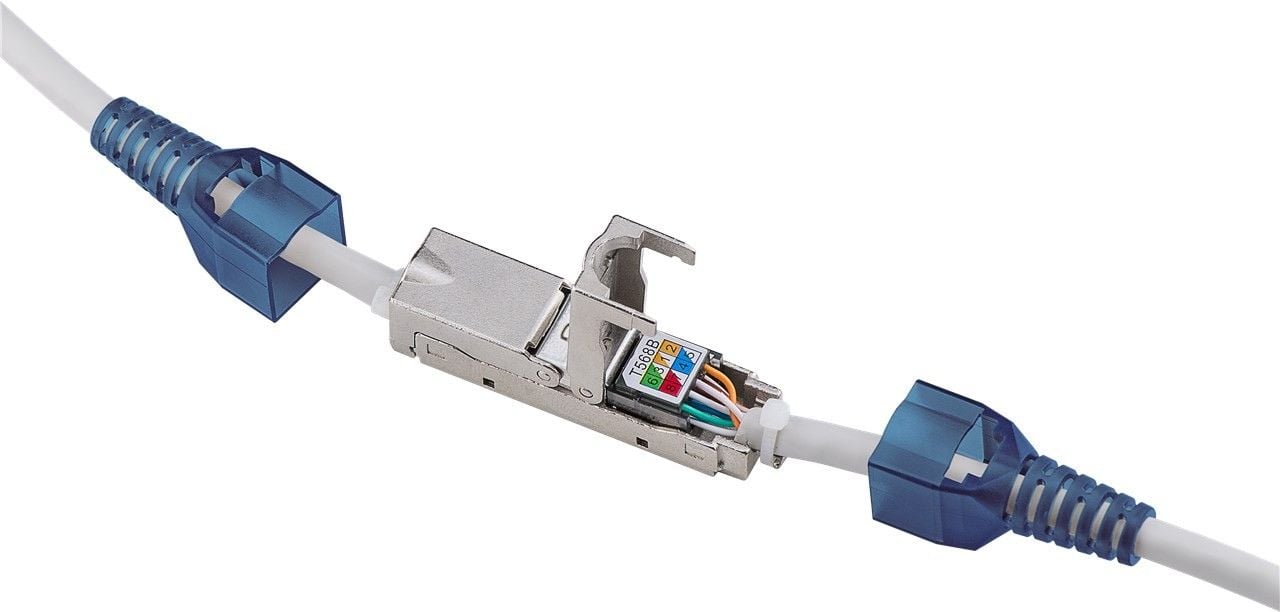

This è cable coupler designed for eight-wire connection, extension, repair of data cables / LAN Cat 6 or 6 A, allowing you to eliminate the need to use voluminous connection boxes. It is incredibly easy to assemble - it does not require special tools - and can ò be easily inserted into the channels thanks to its small size (18 x 26 x 39 mm). Fully shielded die-cast zinc body with cover-connectors on both sides.
Features- Screen connection and cable holder integrated into the housing
- Easy and fast mounting, does not require any special tool
- Allows connection of data cables from AWG 24 / 1 to 22 / 1 (hard cable)
- Rigid copper wire with diameter from 0,5 to 0,64 mm
- Flexible copper wire with diameter from 0,61 to 0,76 mm
- Suitable for cables with a total diameter between 5,0 and 9,7 mm
Specifications- Connection 1 , LSA type (toolless)
- Connection 2 , LSA type (toolless)
- Cat. 6 A specific compliant cable
- Shielding class: STP
- Signal transmission: maximum bandwidth 500 MHz
- Material: Die-cast zinc
- Length: 65 mm
- Width: 11 mm
- Height: 11 mm

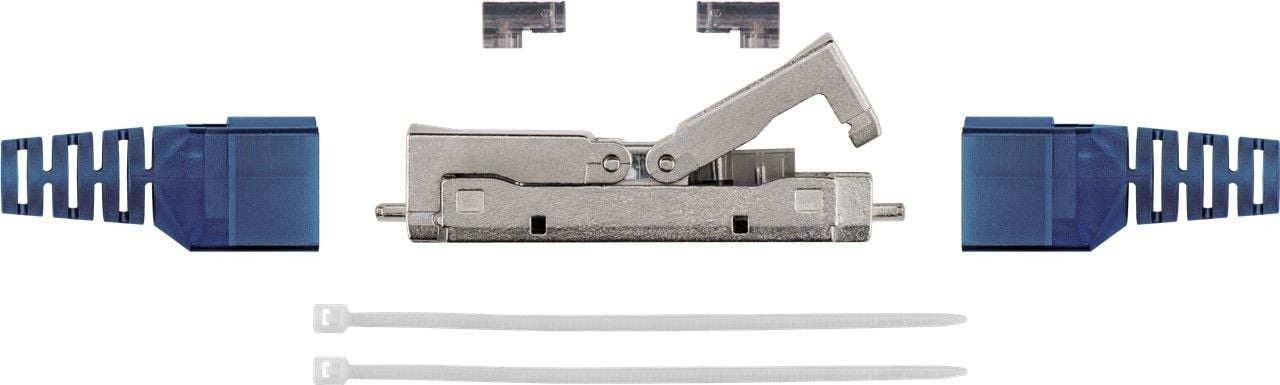

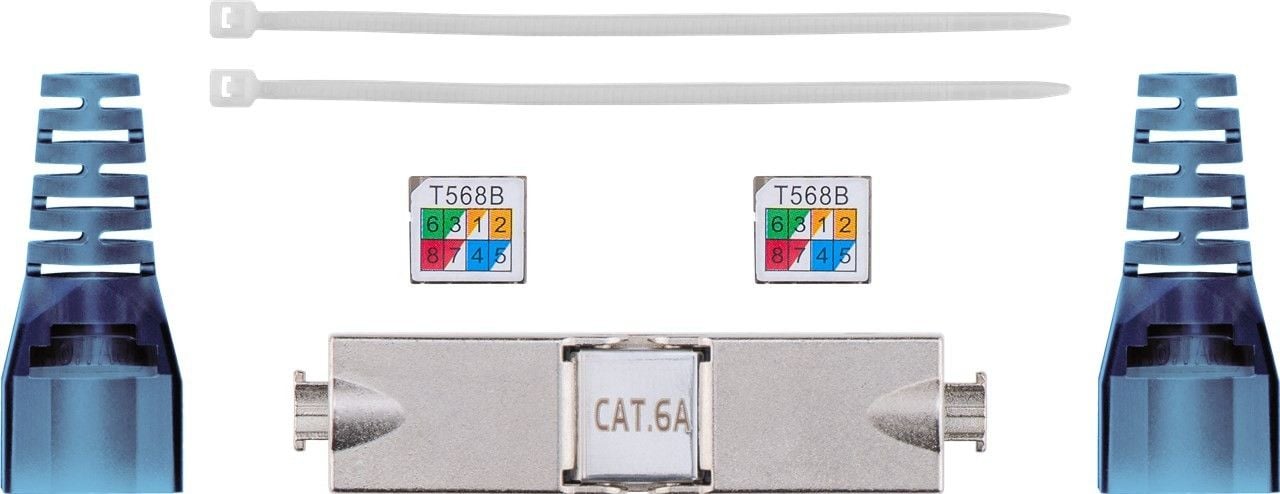

Package contents- Coupler for Cat cable. 6 A screened
- Connector covers and cable ties
