Security box for DVR and video surveillance White RAL 9016 - Techly Professional ICRLIM 08 W 2

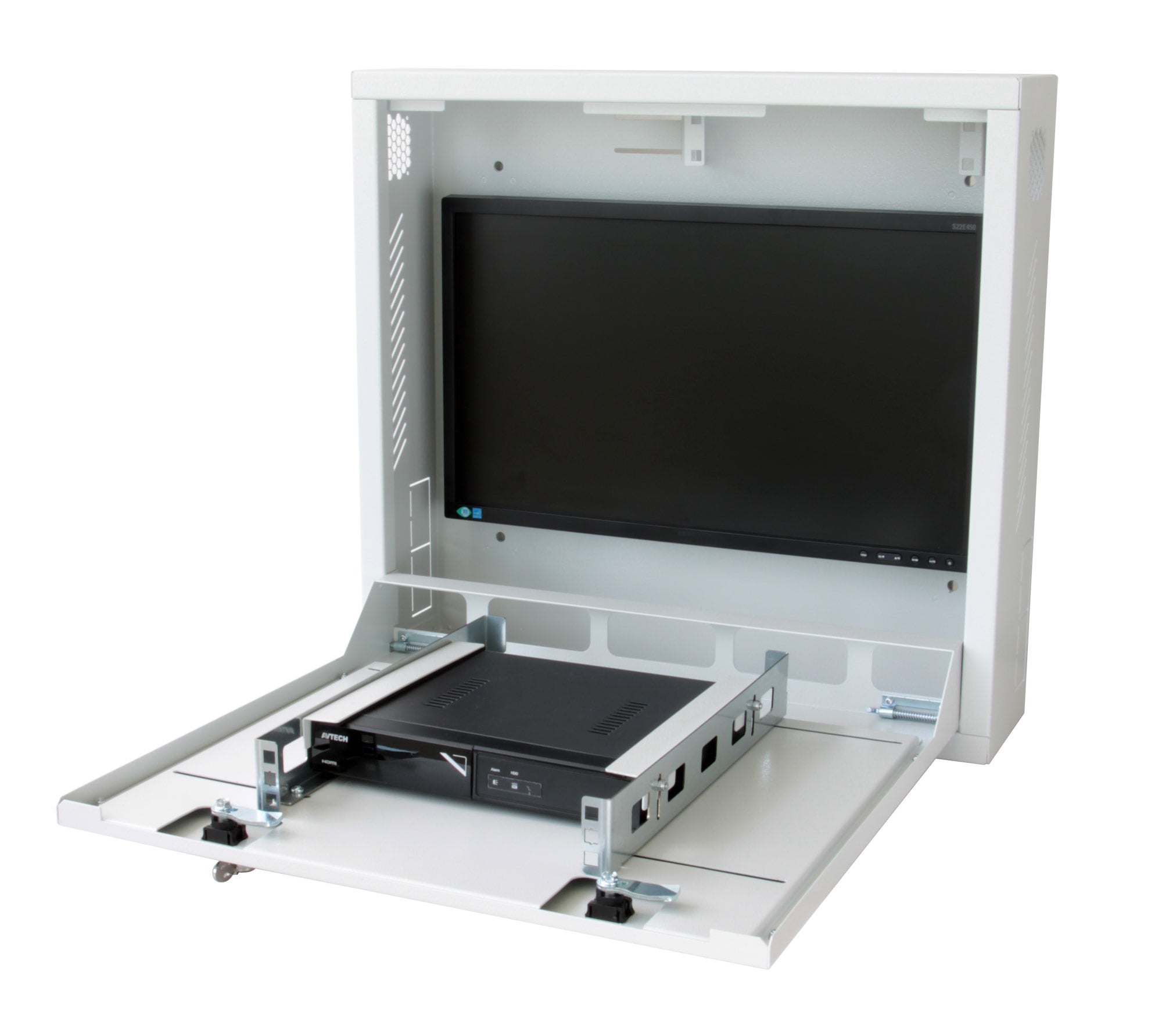

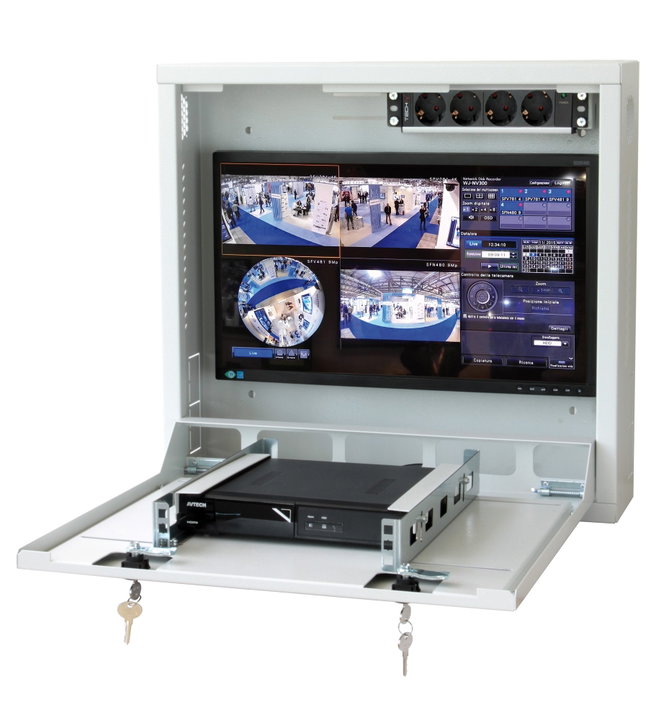

The ICRLIM 08 è cabinet designed to secure your video surveillance system from unauthorized accesses; it allows you to house inside a video recorder and monitor, but also small switches thanks to the 1 U bracket with 19 holes provided. The devices are installed directly on the lid that, thanks to the opening to 90 °, allows a quick and practical access to the same devices that will be found in horizontal position. The monitor is installed on the bottom where the VESA 50 / 75 and 100 attacks are located. The box è also provided with a double lock with different keys to ensure greater protection.The presence on all sides of the box of wounds guarantees the internal circulation of the air; the heat dissipation can be enhanced with the installation of two fans on the sides, thanks to the pre-arranged configurations. The sides also have pre-cut profiles to facilitate the passage of the cables; inside è provided the housing of a multi-pitch from 10



Features

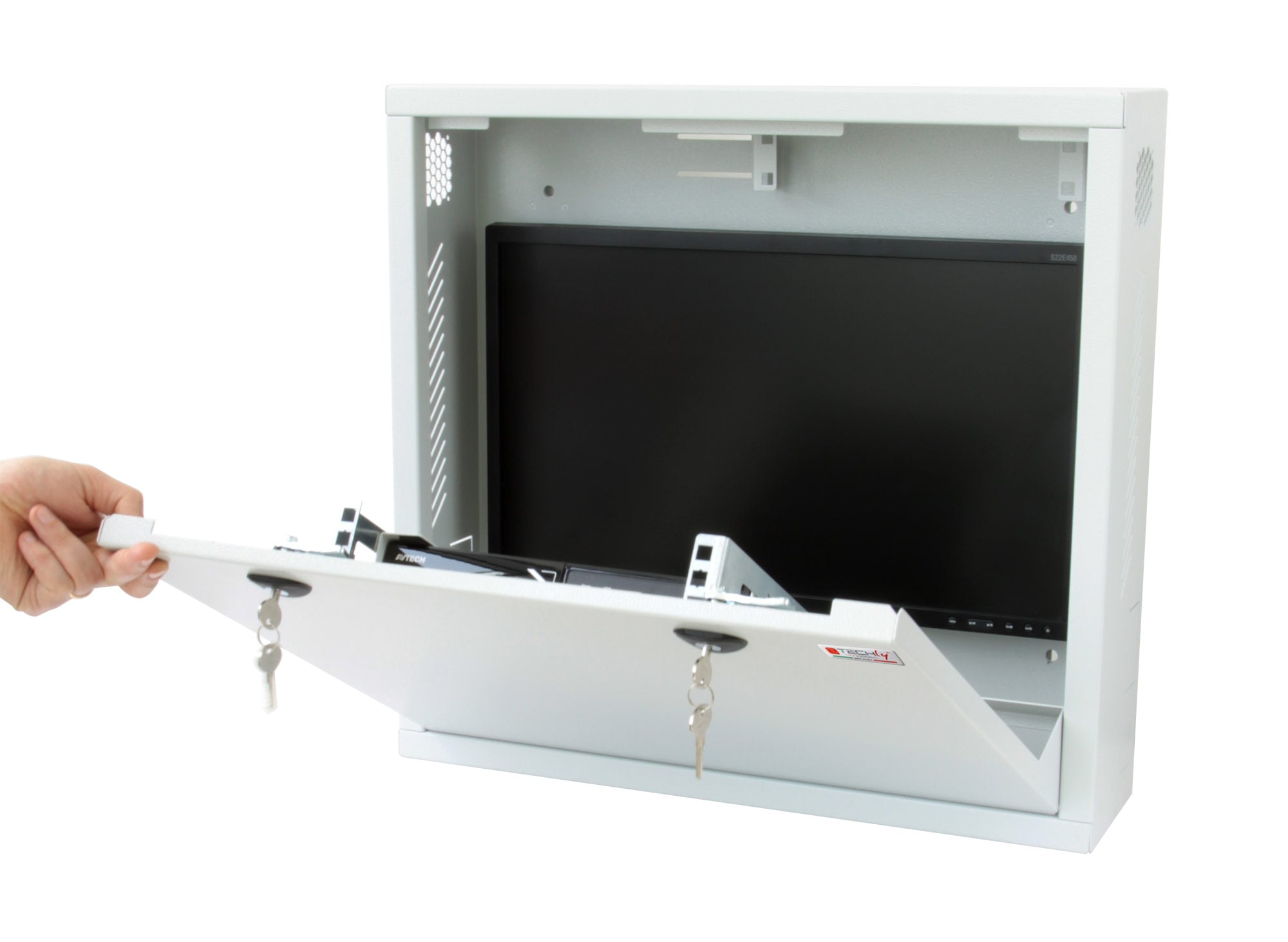

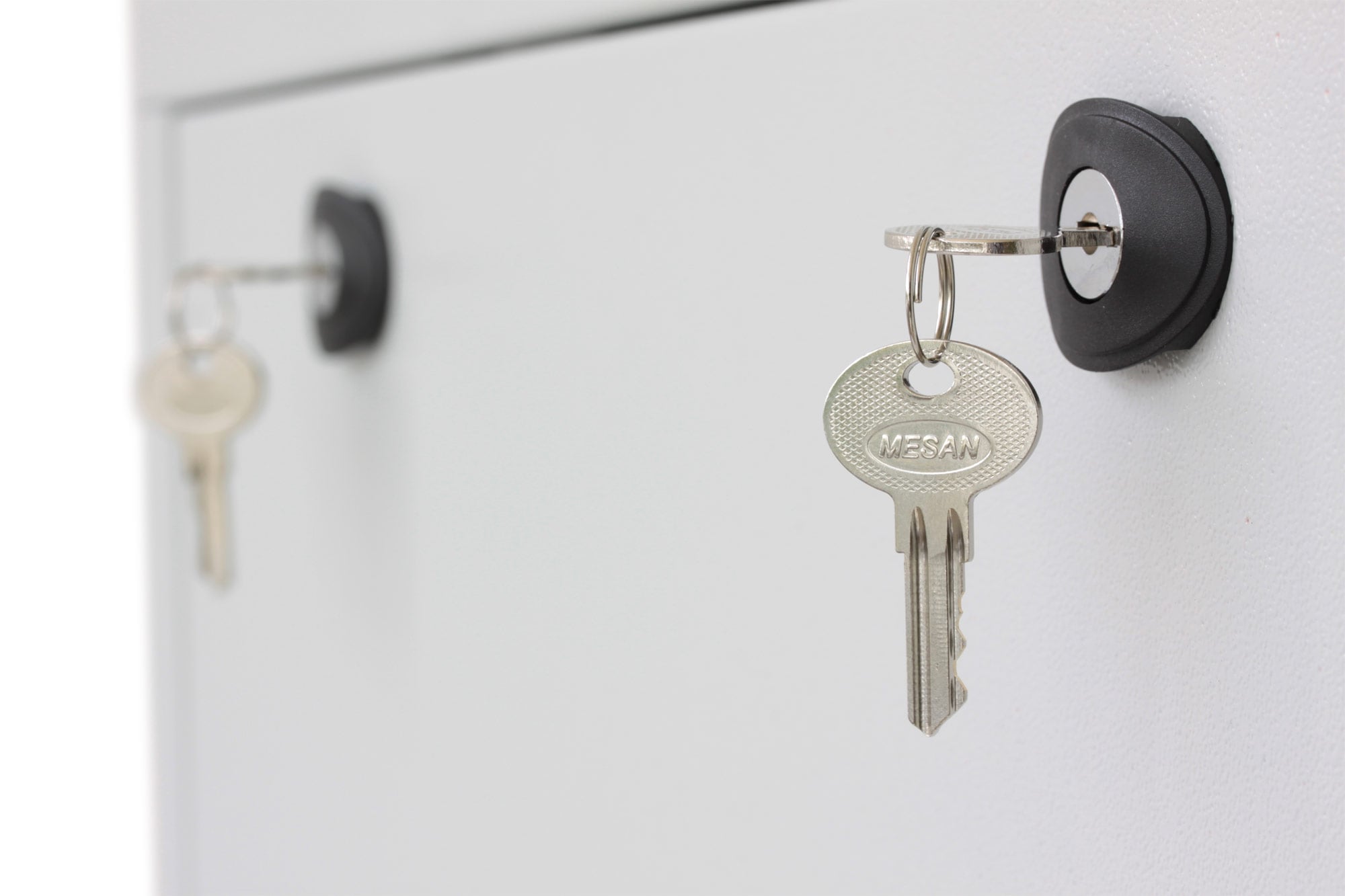

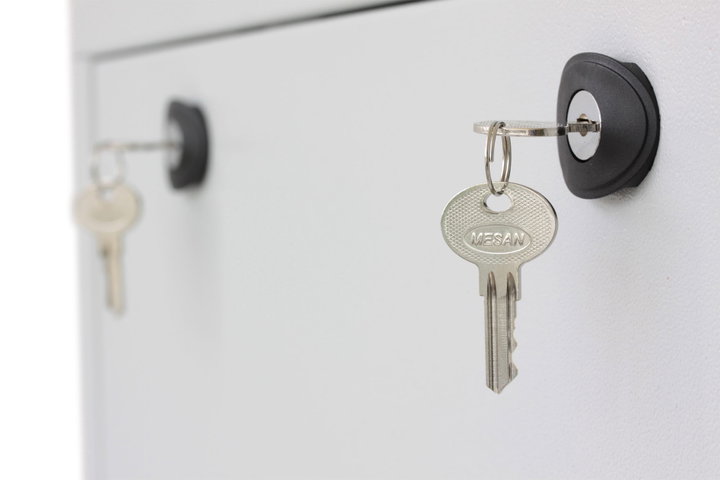

• Metal cabinet for video surveillance with door with double lock key (different keys)

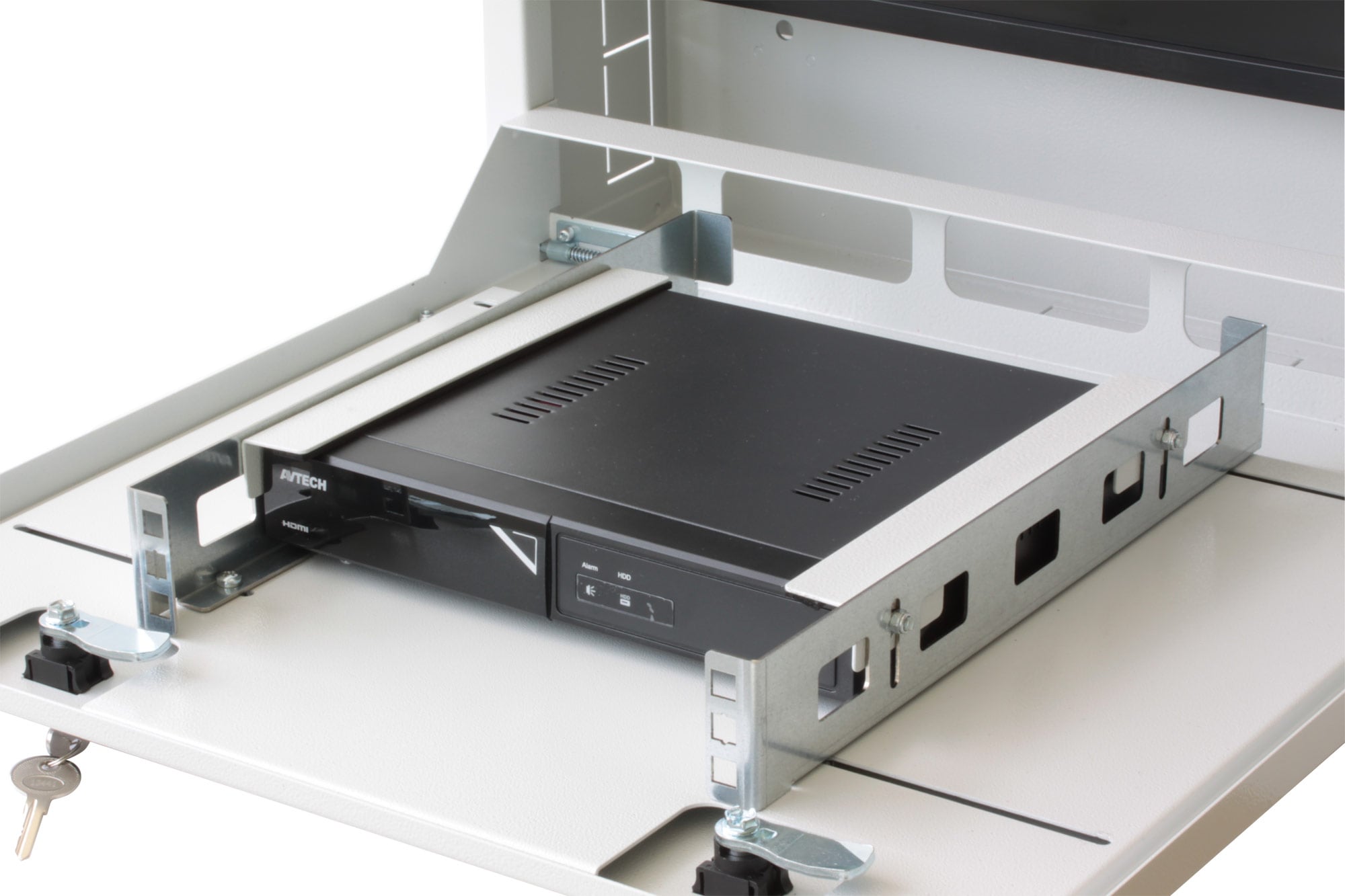

• Tray for equipment housing equipped with 19 1 U bracket with length 36.5 cm, adjustable in width (minimum 24 cm, maximum 48 cm)


• L bracket for fixing equipment not equipped with 19 connection (with minimum height 1 cm and maximum 5 cm)


• Possibility to replace the 1 U bracket with 2 U bracket (ICRLIMRAIL 2) for housing of peripheral 2 (uninstalled monitor)


• Wings for fixing a 10 multi-spoke (guides adjustable in width from 25.7 cm to 34.2 cm); we recommend the purchase of the I-CASE M 10 multi-spoke - 4

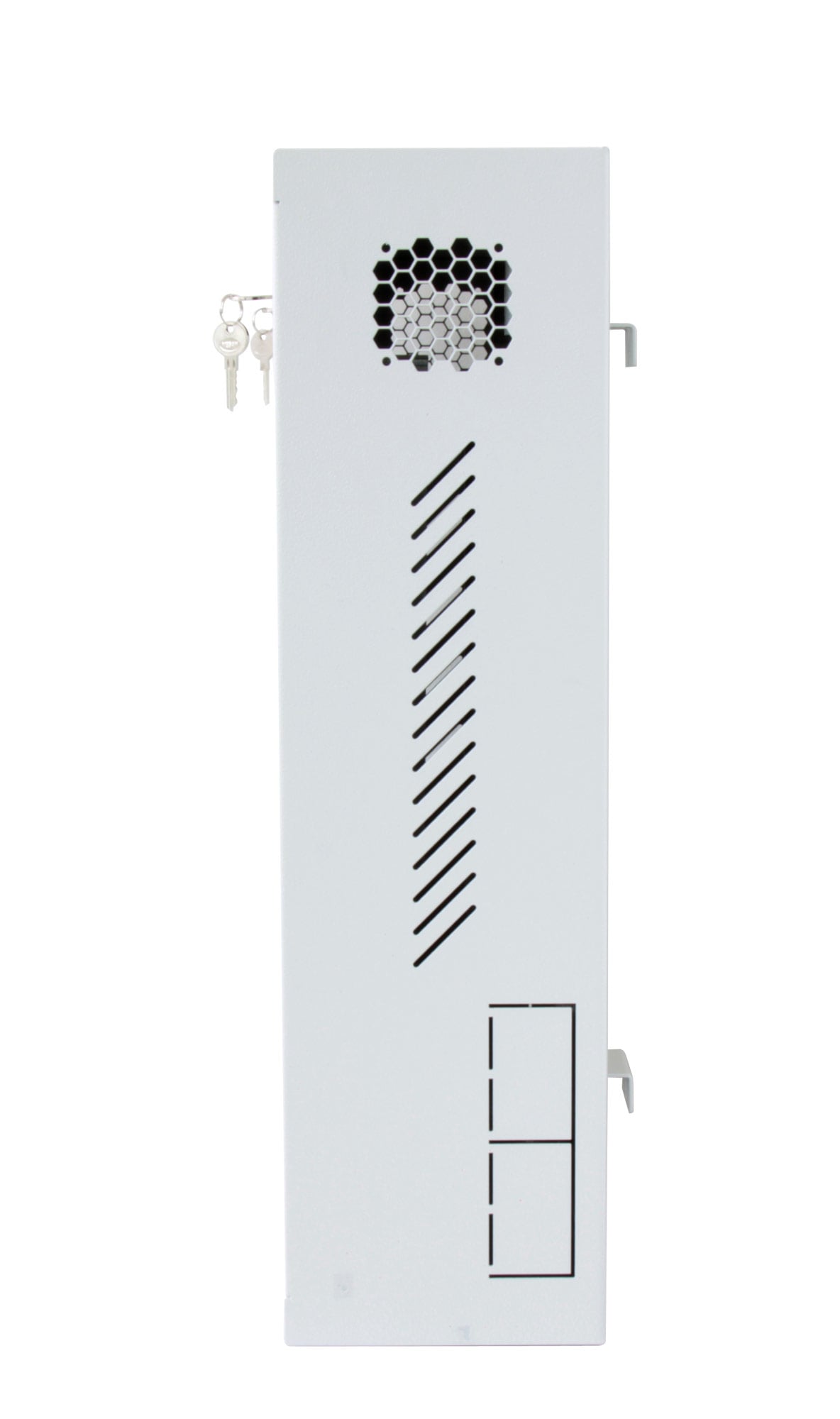

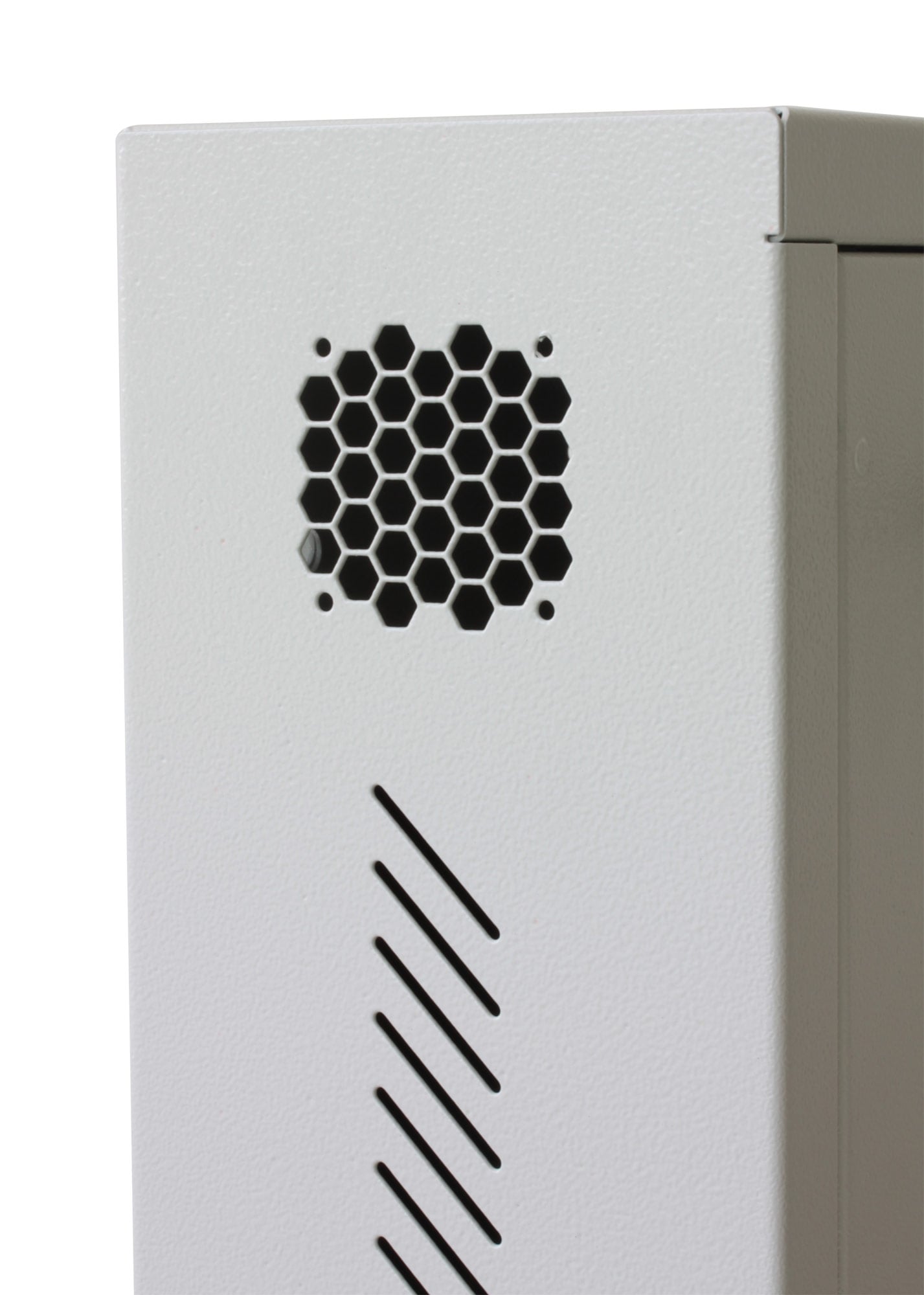

• Sides equipped with slitholes for passive dissipation; on the upper part predisposition for fixing a fan to increase the flow of air; pre-cut profiles for the passage of the cables at the bottom of the side (size 13 x 4 cm)


• Roof equipped with heat exchange slits and two pre-cut profiles for cable passage (dimensions 6.5 x 4 cm)


• Base provided with heat exchange slits and a pre-cut profile for cable passage (size 6.5 x 4 cm)

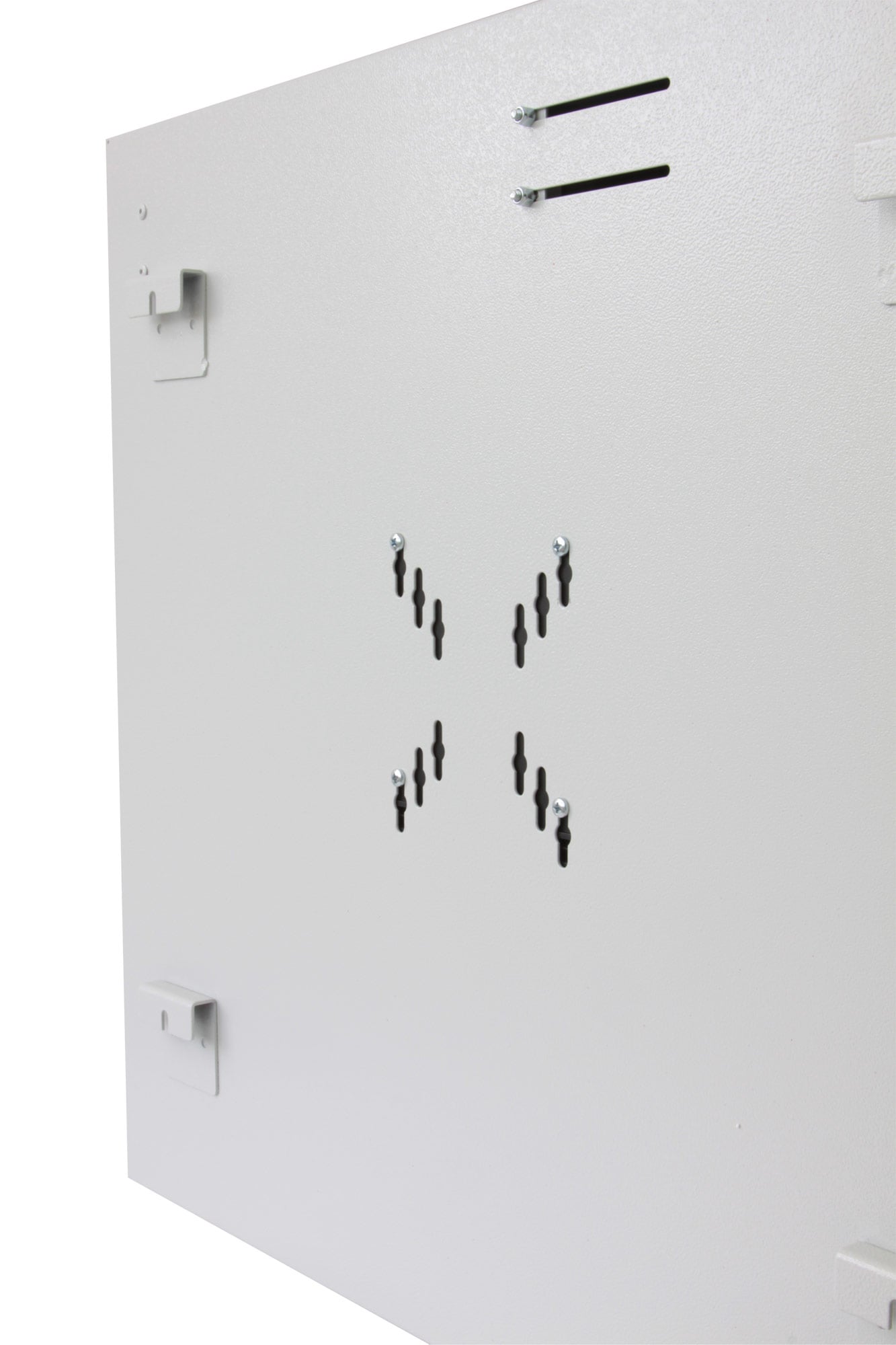

• Bottom equipped with VESA 50 x 50 , 75 x 75 , 100 x 100 connection indicated for the installation of a monitor

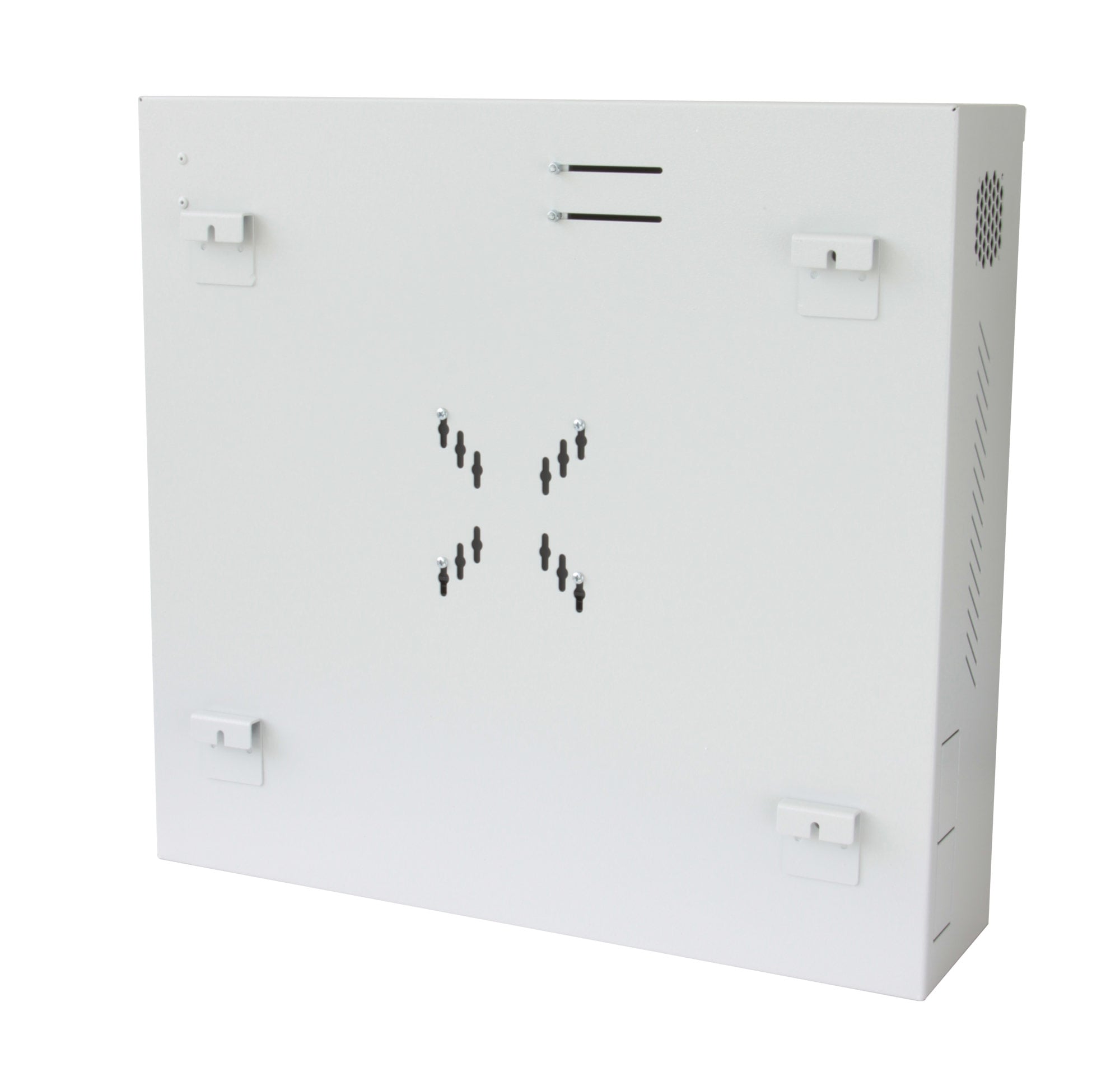

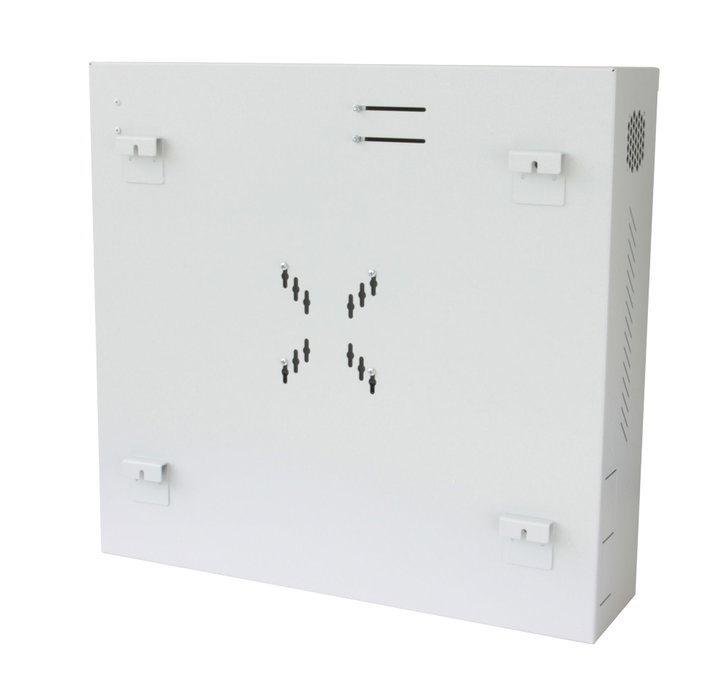

• Back equipped with spacers from 11 mm for wall mounting

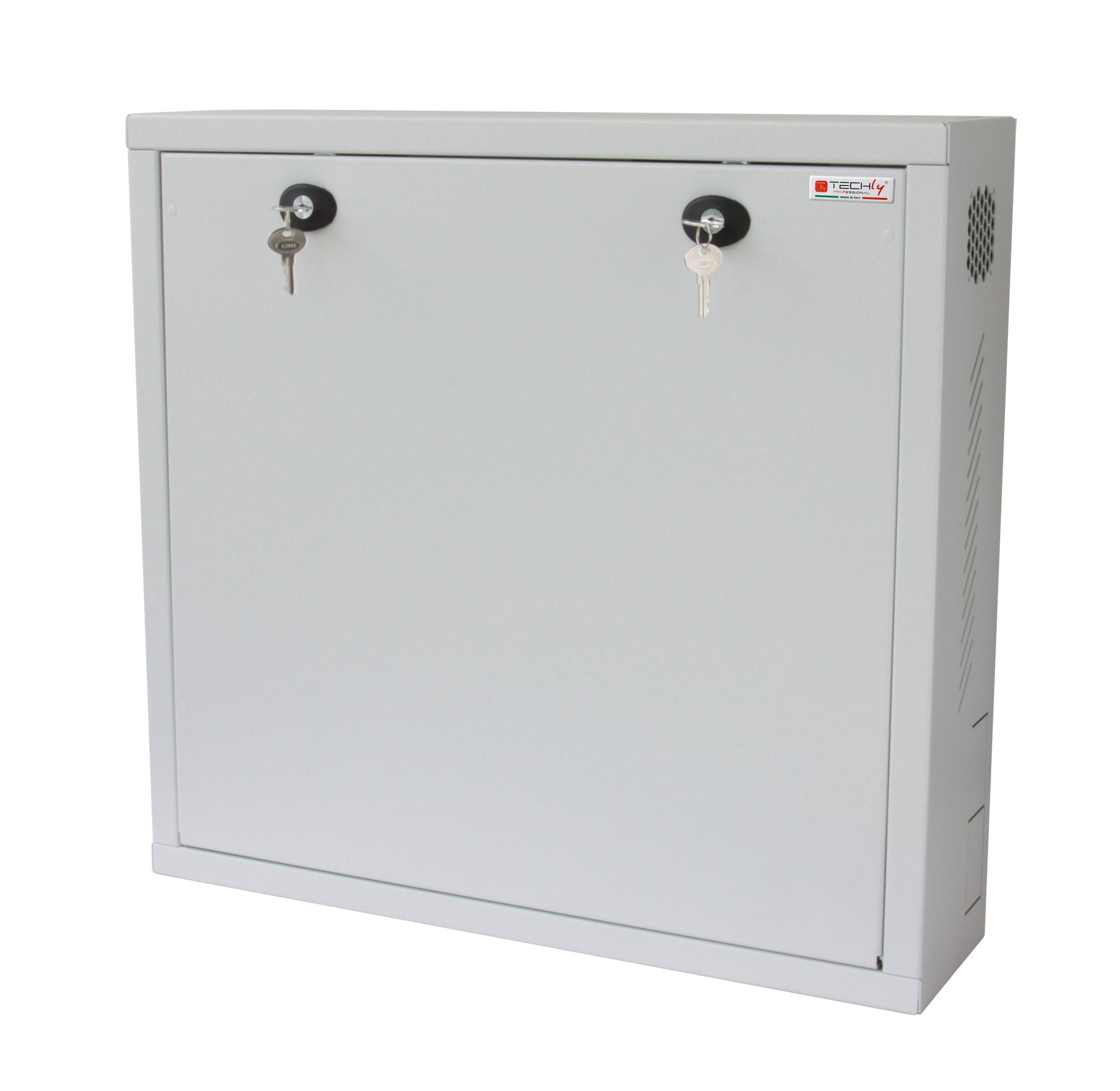

• External dimensions (L x H x P): 58 x 54.6 x 15 cm


• Color: White RAL9016



Package size:

• White video surveillance cabinet


• Pair of brackets 19 1 U


• Two keys to lock
