Rack Cabinet 19" 8U P600mm for Photovoltaic Battery Storage White - Techly Professional I-CASE EE-2008WH6

€176.67
Tax included €144.80 excl. VAT

Rack cabinet 19" single section of 8U, depth 600 mm, white color. Ideal for housing up to 4 lithium battery modules for photovoltaic. Reversible front door with 75% ventilation, removable side panels with key lock.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Robust rack cabinet 19 single-section 8 units, ideal for housing photovoltaic accumulators

  • Maximum installation of 4 lithium battery modules

  • The accumulators allow storing the energy produced by the photovoltaic system and using it when needed.

  • Increases self-consumption and thus reduces the purchase of electricity from the grid

  • Can be associated with any existing system



Three possible positions:

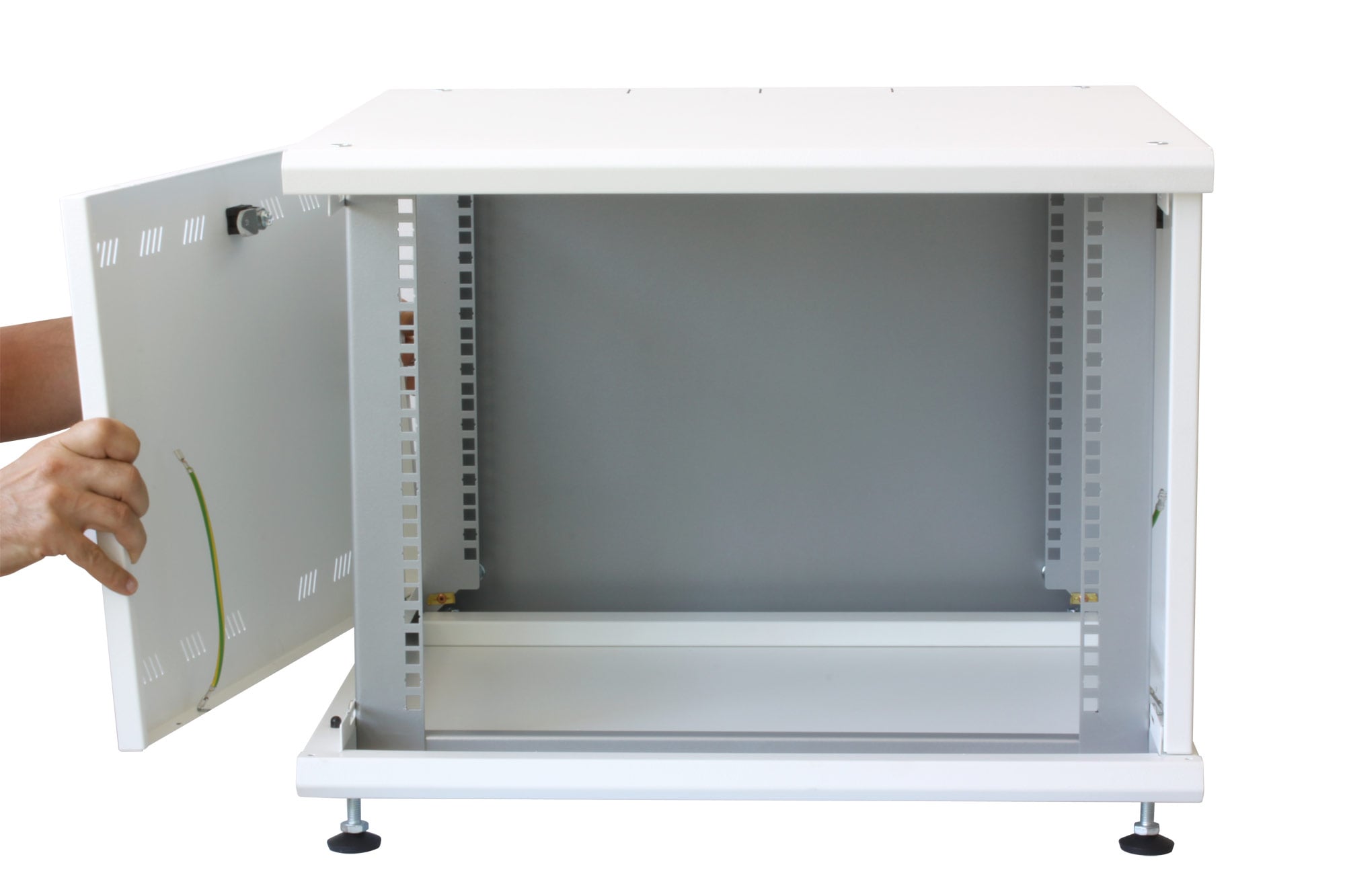

  • Floor/table placement in horizontal position: thanks to the supplied feet, the cabinet can be used with front door opening.

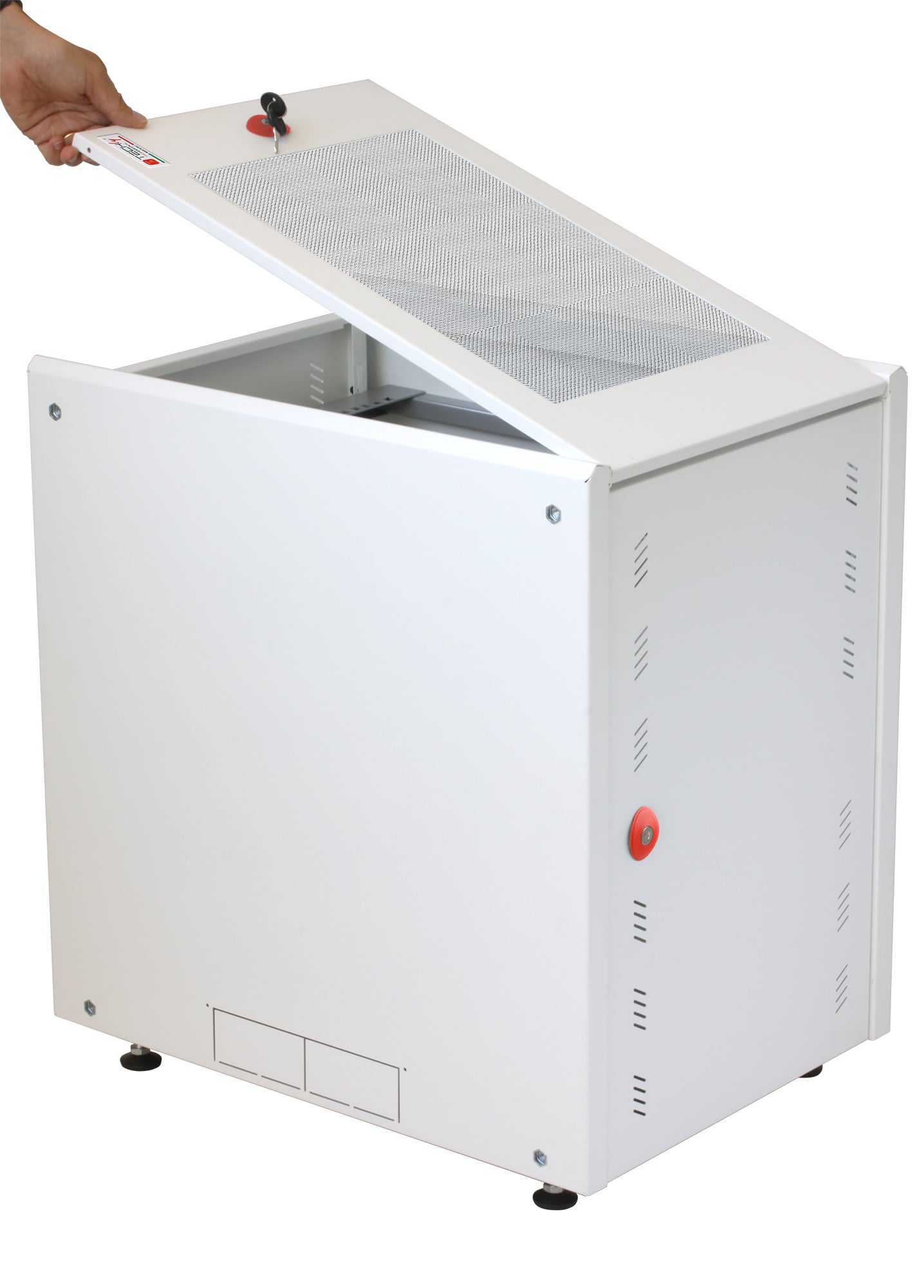

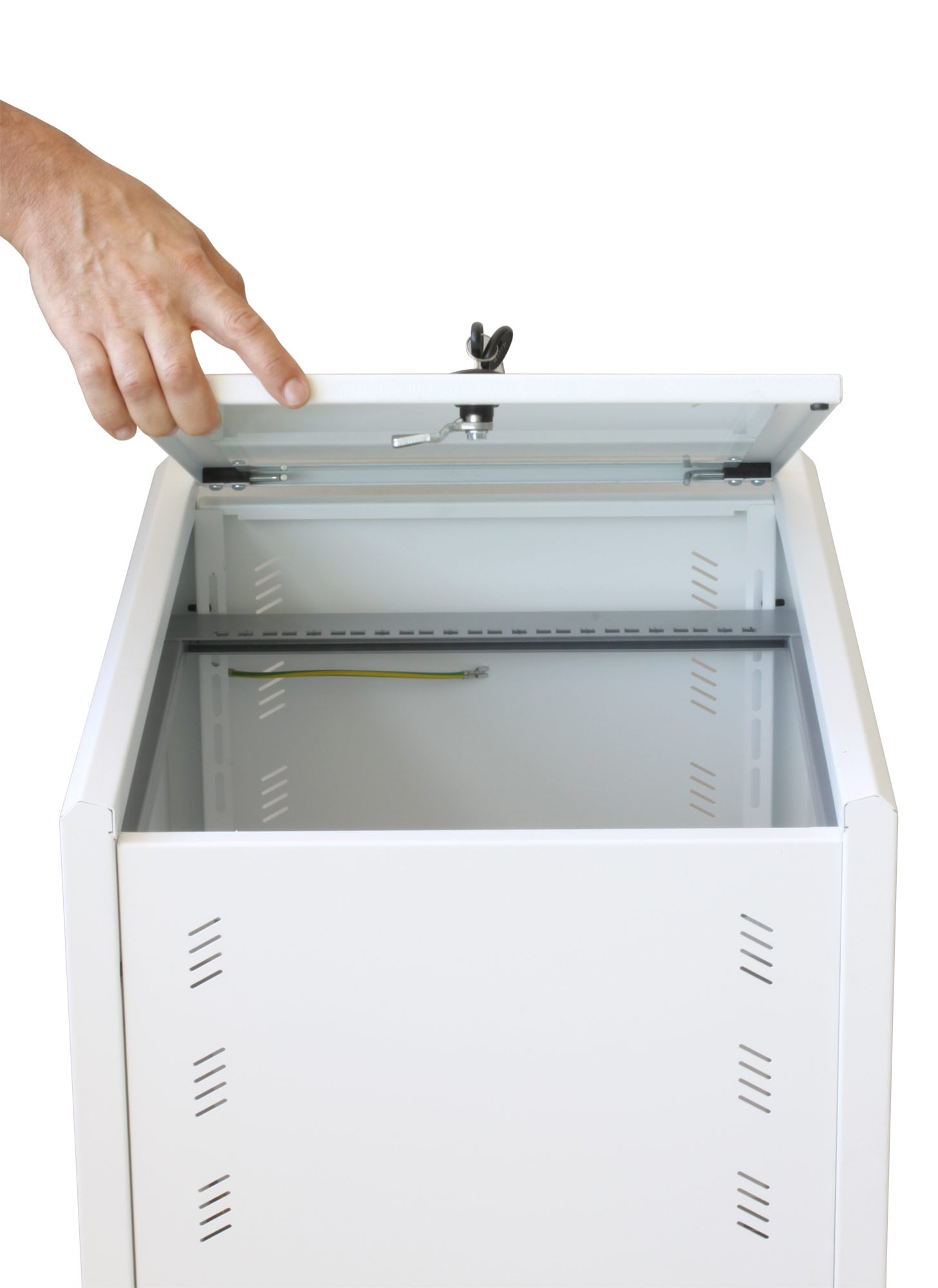

  • Floor/table placement in vertical position: it is possible to mount the feet on the rear panel for a space-saving solution with door opening from above.

  • Wall mounting with optional brackets (not supplied) and door opening from above.



Technical specifications

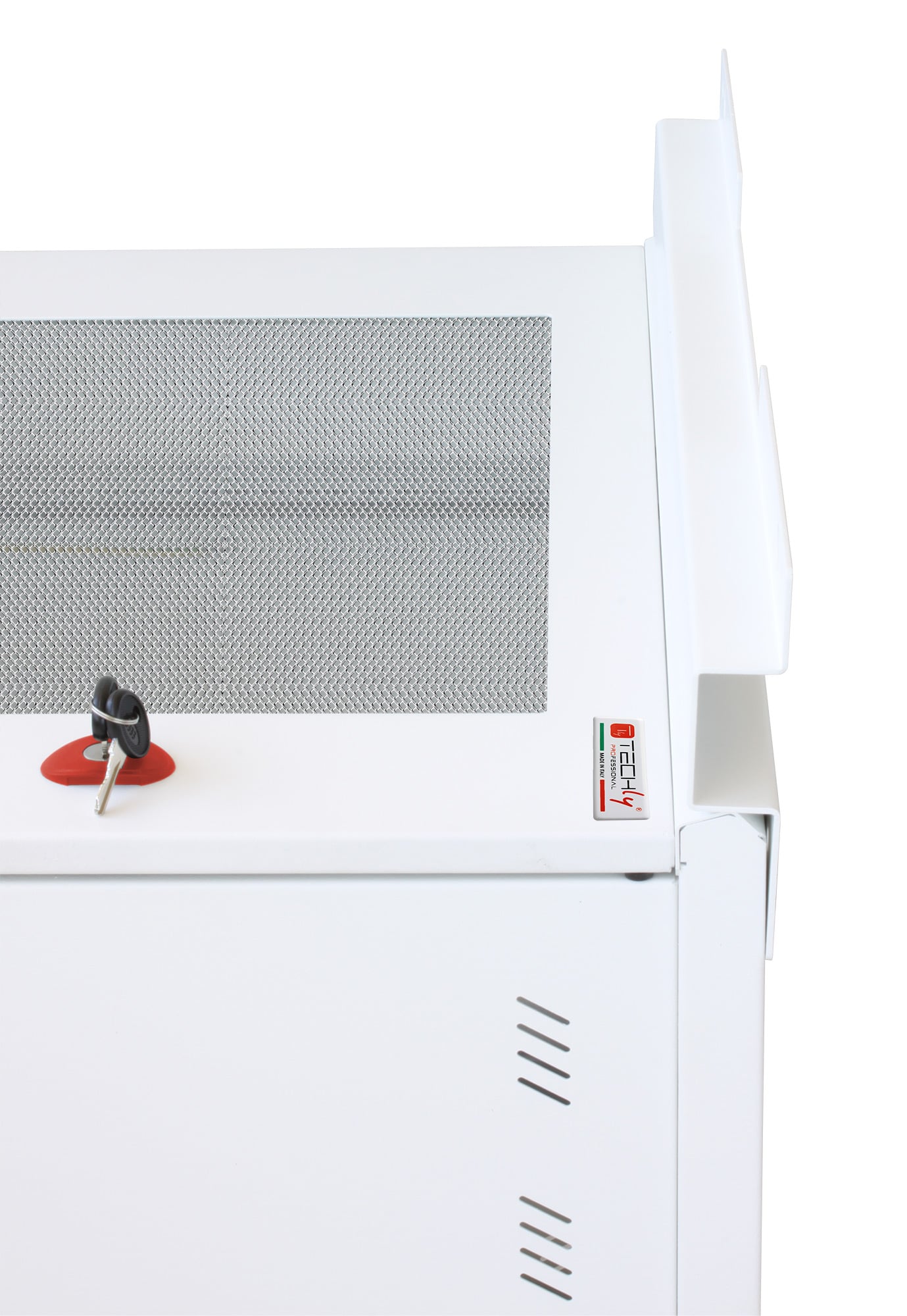

  • Front door with one leaf, perforated 75%, reversible

  • Fixed solid rear panel

  • Removable blank side panels with key lock and ventilation slots

  • Provision for cable entry on base and roof via pre-cut profiles (210 x 50 mm)

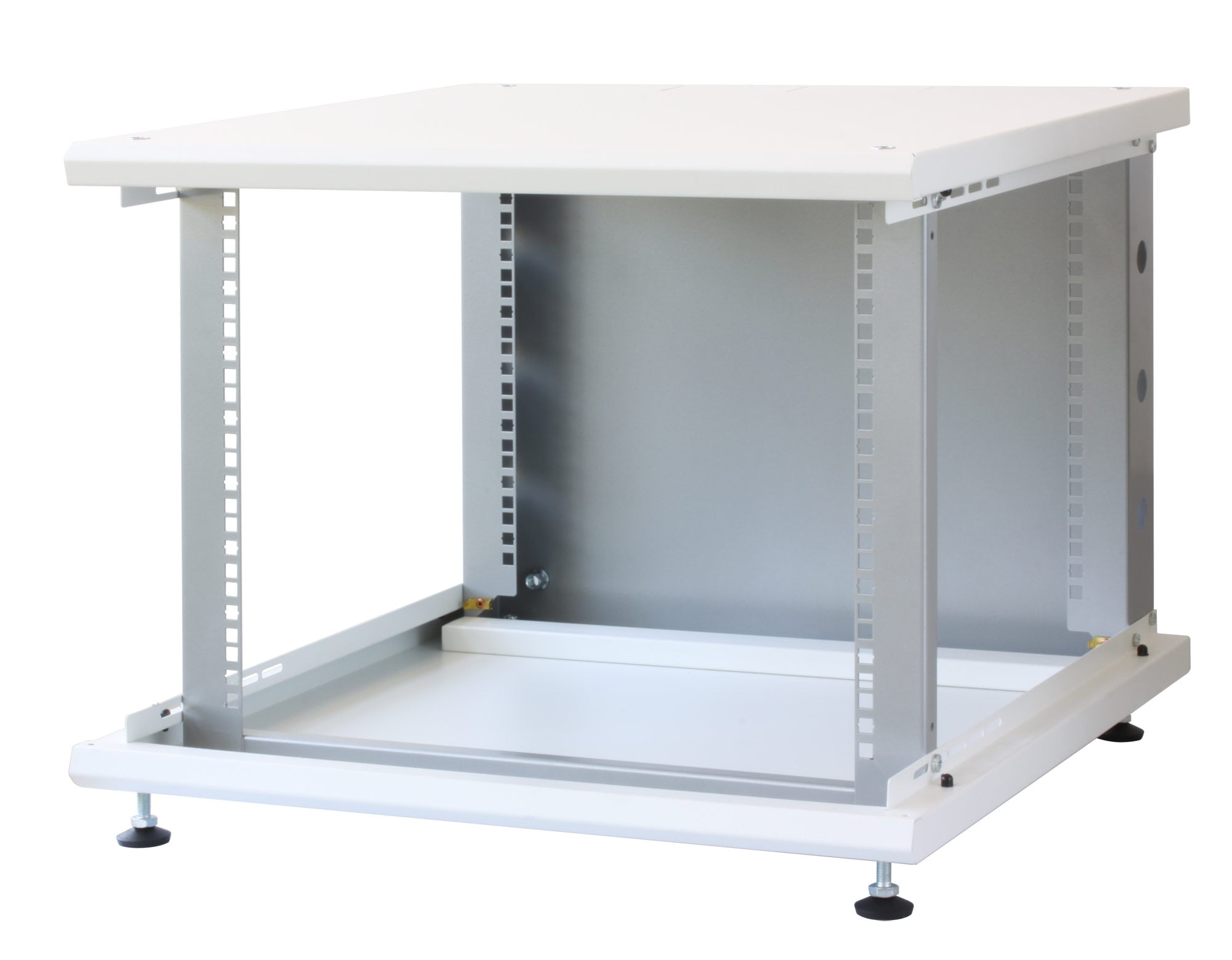

  • Pair of front mounting rails 19 in welded steel, painted with metallized powder, adjustable in depth (useful depth: minimum 300 mm, maximum 460 mm)

  • Pair of fixed rear mounting rails 19

  • Internal useful height: 390 mm

  • Internal steel base, reinforcing for heavy loads (e.g., lithium batteries)

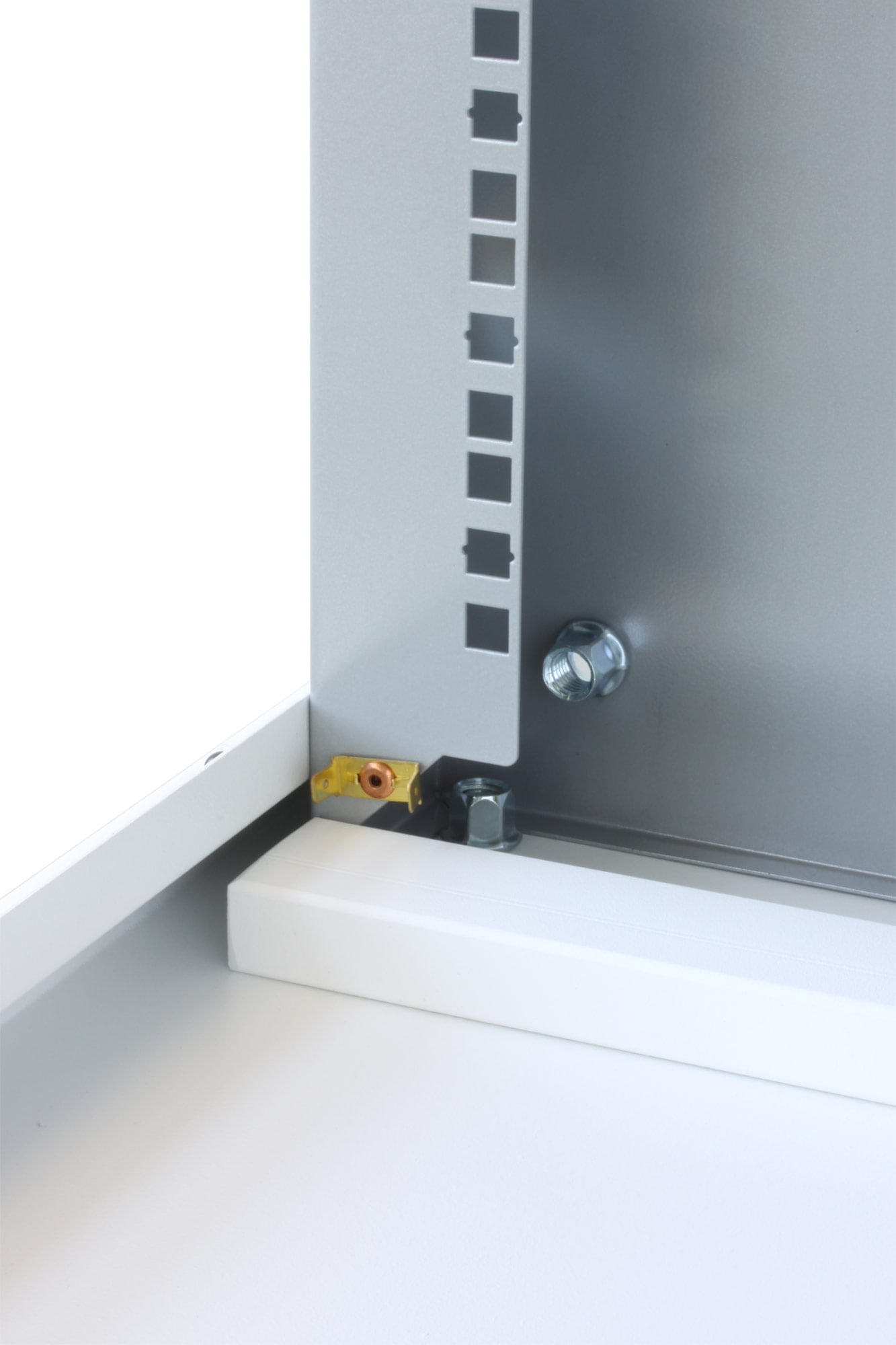

  • Grounding kit and cables included in the supply

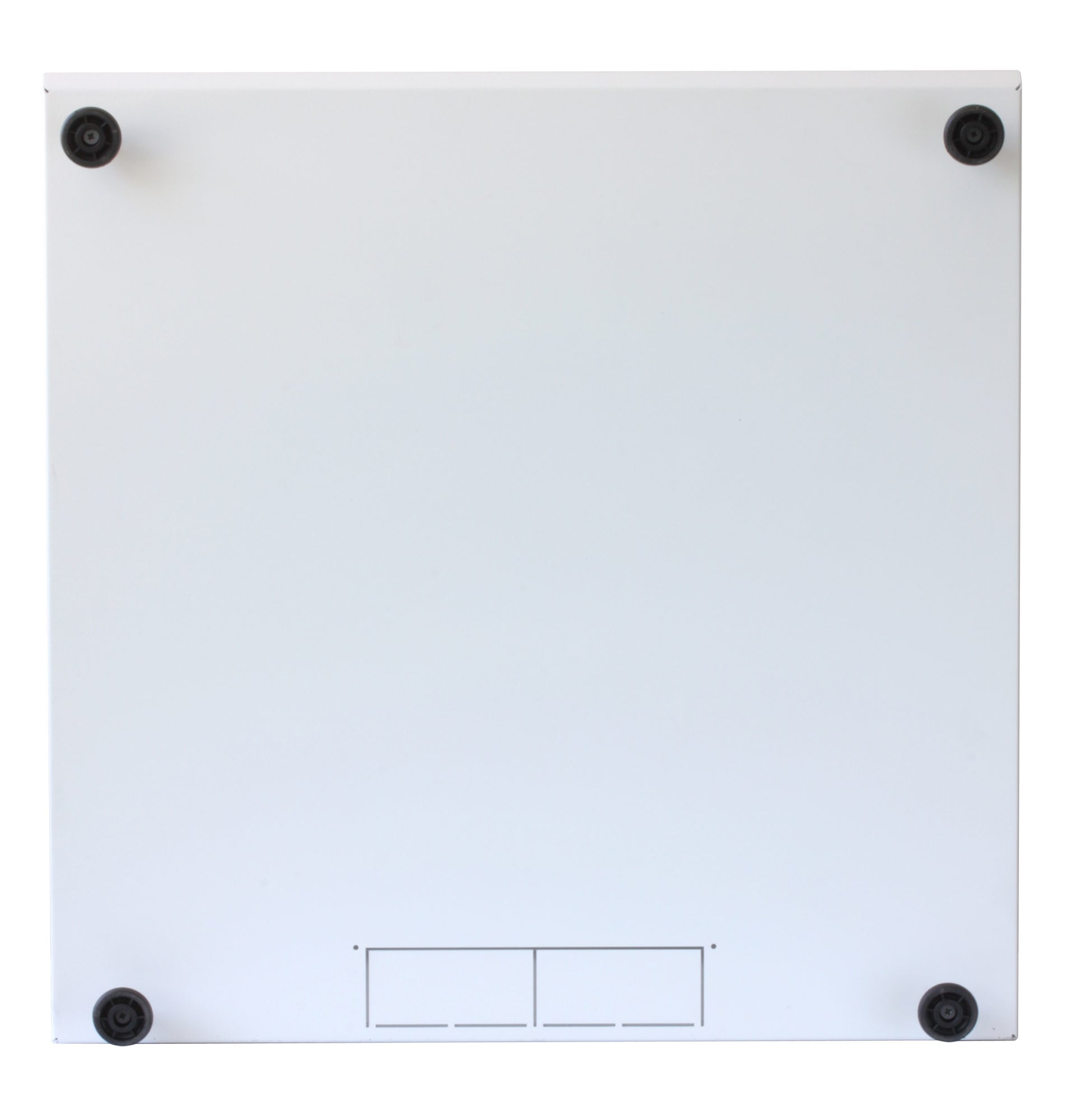

  • Threaded holes for feet on the base and on the rear panel to allow two different positions

  • Protection rating: IP20 according to standard EN 60529

  • RAL Color 9016 (White)

  • Dimensions: 435 x 600 x 600 mm (HxWxD)



Certifications

  • CE certification according to EN 62208

  • Conformity to IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; EN60529; EN12150-1

  • Compliance with standard UNI EN ISO 9001:2015

  • Brand
  • Reference
    I-CASE EE-2008WH6
  • In stock
    1 Item
  • EAN13
    8051128108811
