Wall bracket with double arm for LED/LCD TV 32 - 55 " - Techly ICA-PLB 3646

ICA-PLB 3646 è a wall mount with double arm with full movement for flat screen and curved TV up to 55 and up to 50 kg. This support extends for 510 mm from the wall and allows the monitor to rotate 60 ° to the left or right. Full movement allows maximum flexibility à: tilt and turn the TV for easy viewing from any point in a room. The adjustment of the level after installation allows the TV to rotate up to 3 ° clockwise and counter-clockwise to ensure it is perfectly positioned. The integrated system of cable management keeps the cables organized and protected. Wide wall plate suitable for installation to 406 / 450 mm pin.



Features

• Free tilt design: for more ù display angles of the monitor


• Adjustable arm: offers maximum flexibility; vision


• Integrated level adjustment: ensures perfect positioning



Specifications

• Material: steel


• Metal thickness: cold rolled sheet bracket arm from 2 mm; cold rolled sheet wall panel from 2,5 mm; cold rolled sheet VESA panel from 2 mm


• Finishing: powder coating


• Color: black

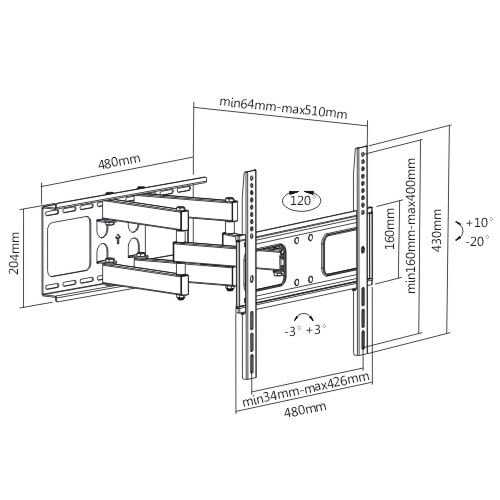

• Dimensions: 510 x 480 x 430 mm


• Supported monitor dimensions: 32 - 55


• Suitable for curved TV


• Assembly holes: VESA and Universal


• Compatibilityà VESA: 200 x 200 , 300 x 300 , 400 x 200 , 400 x 400


• Max VESA: 400 x 400


• Supported weight: 50 kg


• Distance from the wall: min. 64 max 510 mm


• Tilt: + 10 ° - 20 °


• Rotation: + 60 ° - 60 °


• Screen Leveling: + 3 ° - 3 °


• Screen tilt freely


• Direction indicators


• Installation: double pin (406 mm/ 450 mm) solid wall


• Panel type: detachable


• Wall plate type: fixed wall plate


• Integrated cable management



Package contents

• Wall bracket with double arm for LED/LCD TV 32 - 55


• Fastening material


• Installation manual
