Passive DisplayPort Male to HDMI Female Full HD Adapter - Techly IADAP DP-HDMIFP

Connect DisplayPort-compatible PCs to an HD TV, monitor or projector with HDMI port. Transmits high-definition audio and video from your computer to an HDTV for video streaming or gaming; connect and set up your monitor for an extended desktop or mirrored screens. Supports video resolutions up to 1920x1200 / 1080P (Full HD). Gold-plated connectors and foil and braid shielding combine to provide both superior performance and reliable connectivity. The DisplayPort connector with latches provides a secure connection with a release button that must be pressed before disconnecting.

• Converts a DisplayPort signal to an HDMI signal


• Supports Deep Color, 10.8 Gbps bandwidth application and HD resolutions at 1080p (1920x1200p)


• Provides a di alta qualità digital video signal - perfect for connecting a new DisplayPort source to an existing HDMI display


• Passive adapter requires DP++ (dual-mode) video/graphics card to regenerate the signal and ensure the best connection to an HD monitor, a projector, and many other sources


• Integrated design to simplify connection and eliminate cable clutter; the snap-lock connector ensures a secure connection


• Plug and Play installation



Features

• Resolution: 1080P@60Hz (1920x1200)


• Supports 8-bit and 10-bit Deep Color


• Bandwidth 10.8 Gbps


• Supports auxiliary channel: 1 Mbps


• Supports one line, one direction, supports four-line connection


• Passive



Connections

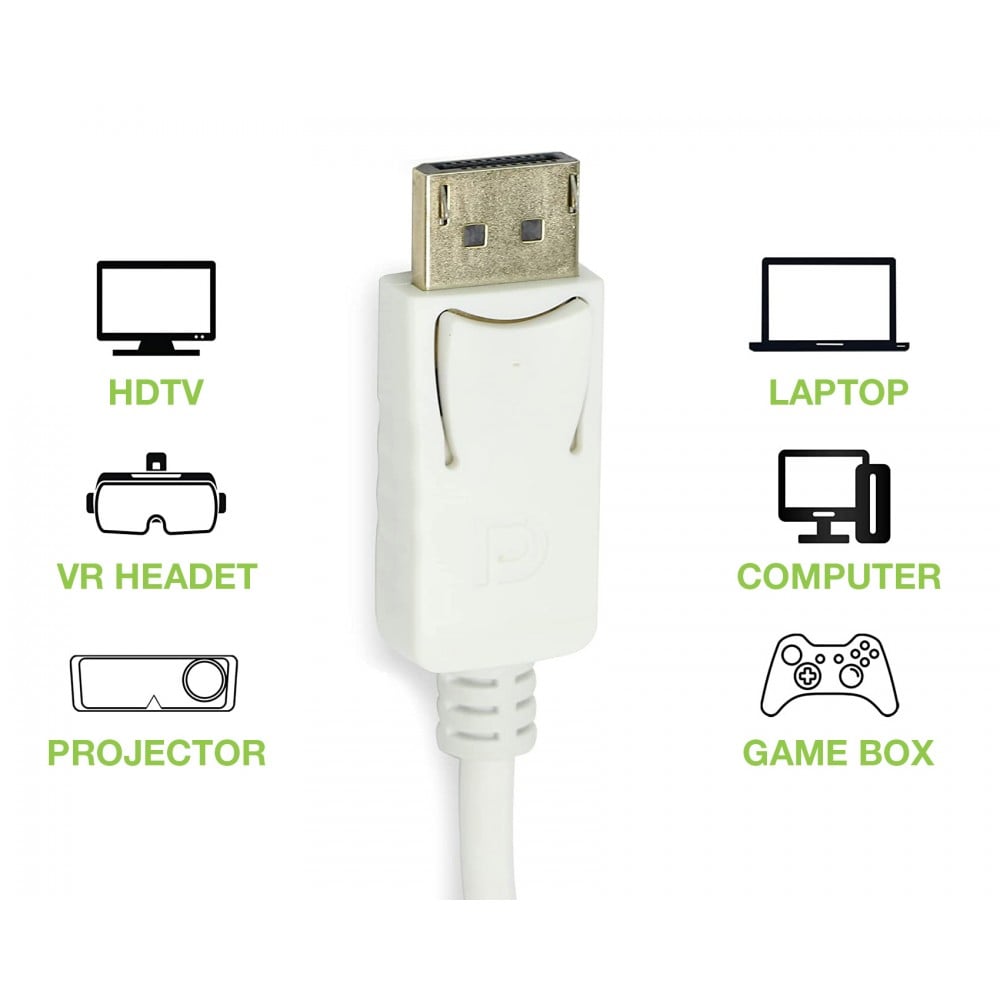

• DisplayPort 20 pin male (with snap-lock)


• HDMI 19-pin female


• Gold-plated contacts


• Molded PVC

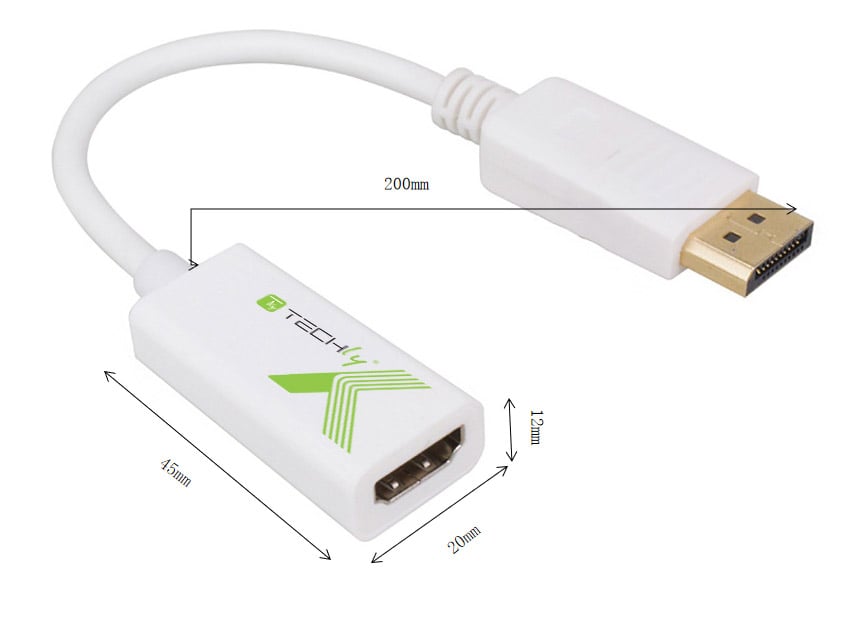

Dimensions

• Cable length: 200 mm


• Body dimensions: 45 x 20 x 12 mm


• Total length: 245 mm



System requirements

Windows XP/Vista/7/8/8.1/10, Linux or Mac 9.x/10.x or higher



Package contents

• Passive DisplayPort to HDMI Adapter
