Portable HDMI 1080P Video Capture Card - Techly I-USB-VIDEO-1080TY

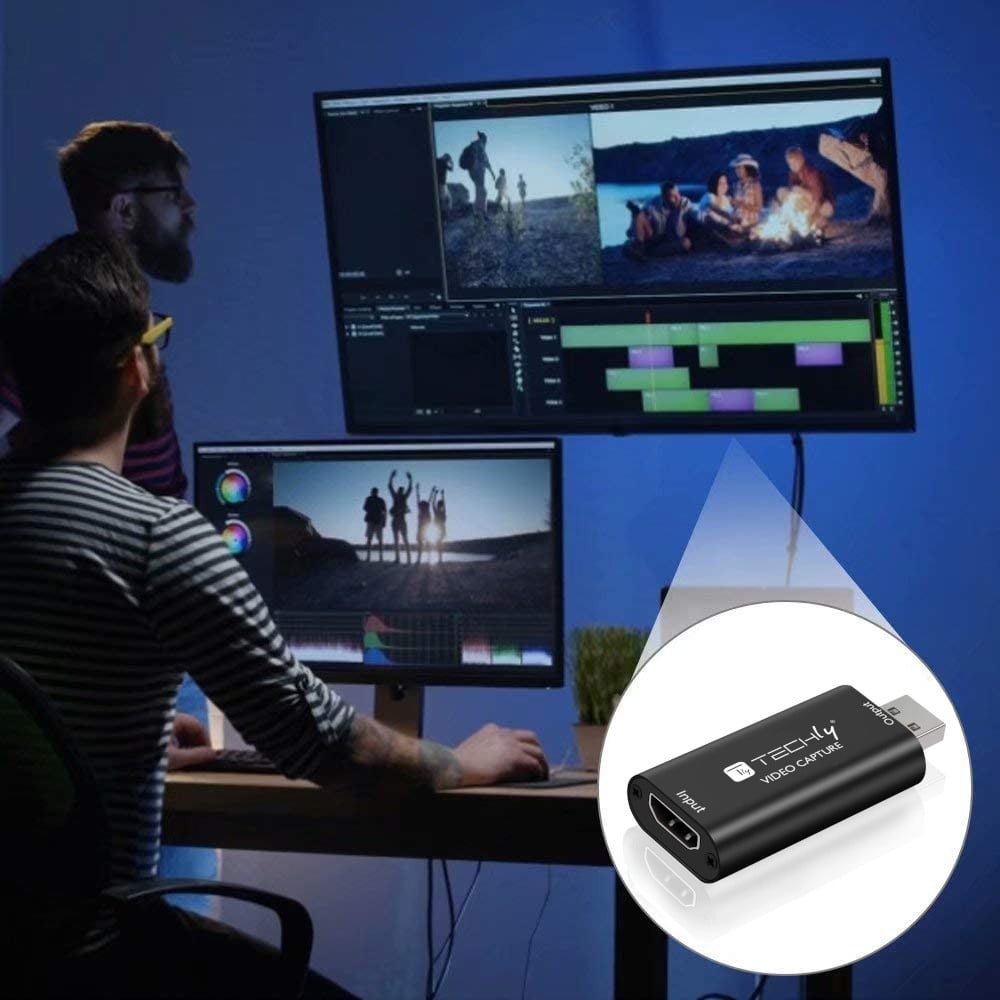

I-USB-VIDEO-1080TY è una scheda di acquisizione video in grado di acquisire contemporaneamente audio e video HDMI e trasmetterli ad un computer o uno smartphone, tramite porta USB, per l anteprima e l archiviazione. È adatta per l acquisizione ad alta definizione di video in diretta e la registrazione online.

Supports maximum input resolution of 4K 60Hz and maximum output resolution of 1920×1080@60Hz.

Thanks to its compact size, it is very convenient to carry everywhere.



Features

• Supports maximum input resolution of 3840×2160@60Hz


• Supports maximum output resolution of 1920x1080@60Hz


• Supports Deep Color 8/10/12bit


• Supports standard HDMI AWG26 cables: maximum length 15 meters, (resolution 1080P and lower)


• Supports most capture software, such as VLC, OBS, Amcap, etc.


• Supports Windows and Android


• Compliant with USB Video and UVC standard


• Compliant with USB Audio UAC standard


• Does not require external power supply


• Compact and portable



Technical specifications

• HDMI resolution Maximum supported input 3840×2160@60Hz


• Supported video format Deep Color 8/10/12 bit


• Output video format YUV, JPEG


• Video output resolution The maximum output can be 1920×1080@60Hz


• Supported audio format L-PCM


• Input cable length ≤15m, Standard HDMI AWG26 cable


• Maximum working current 0.4A/5VDC


• Operating temperature From -10 to +55°C)



Connections

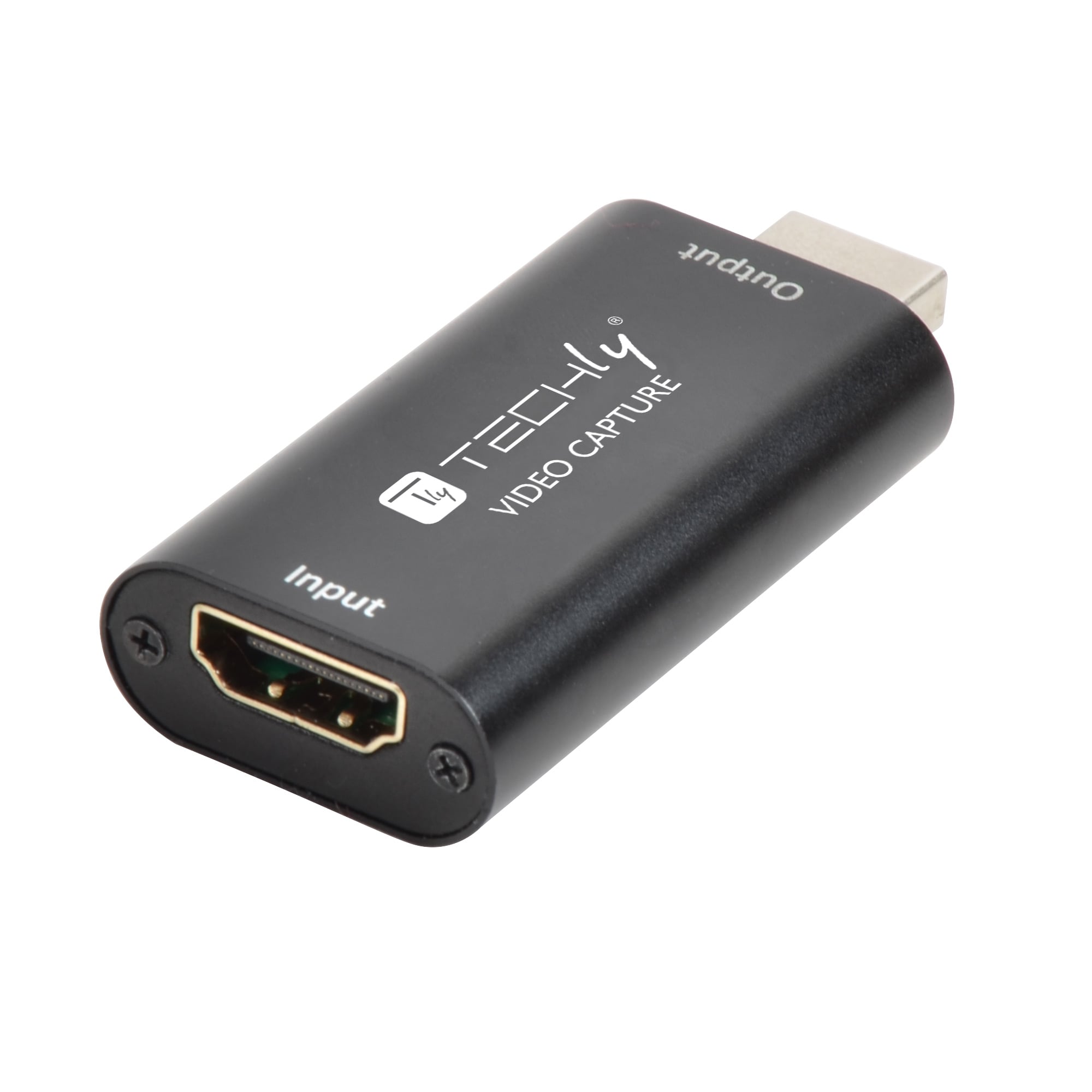

• Input: HDMI female

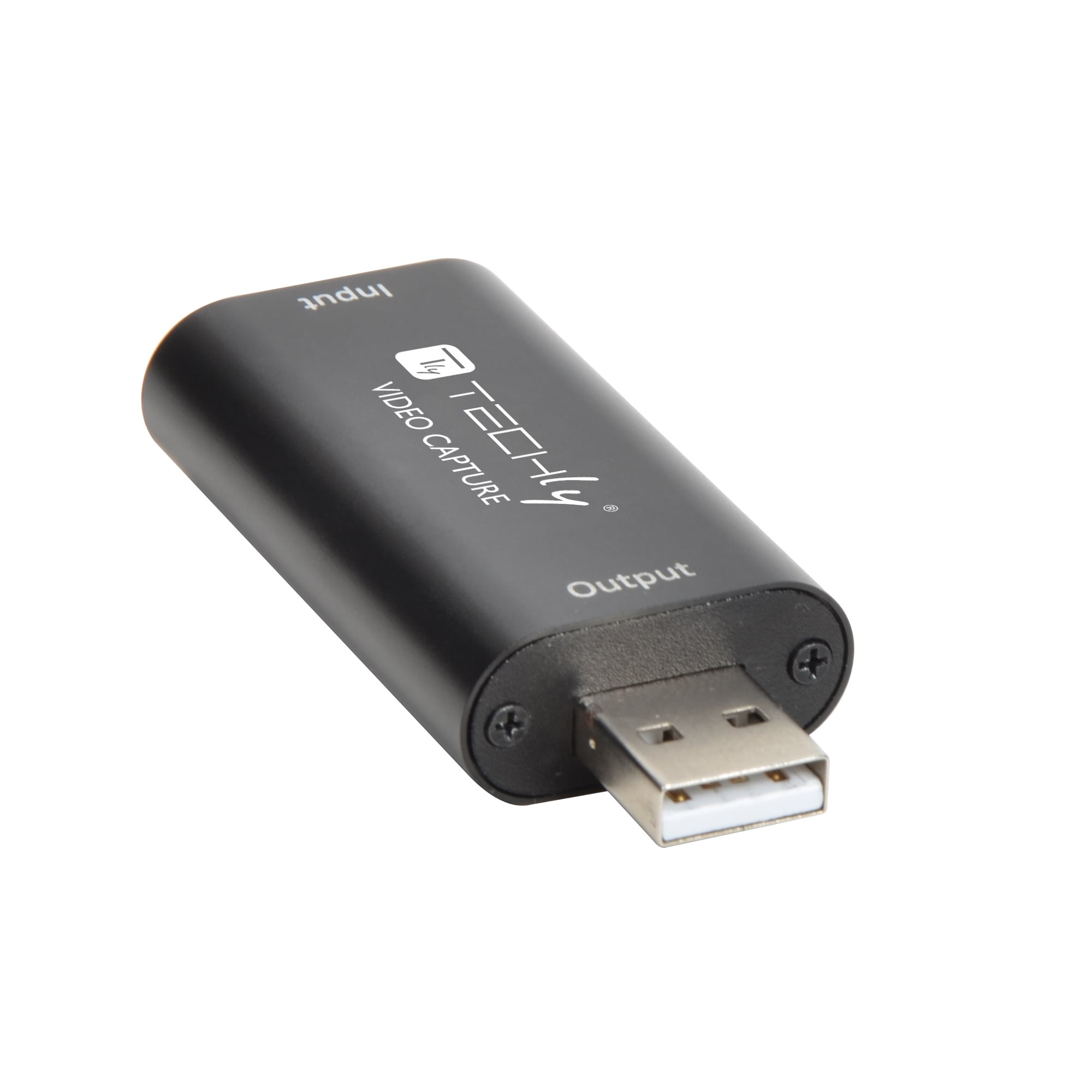

• Output: USB A male

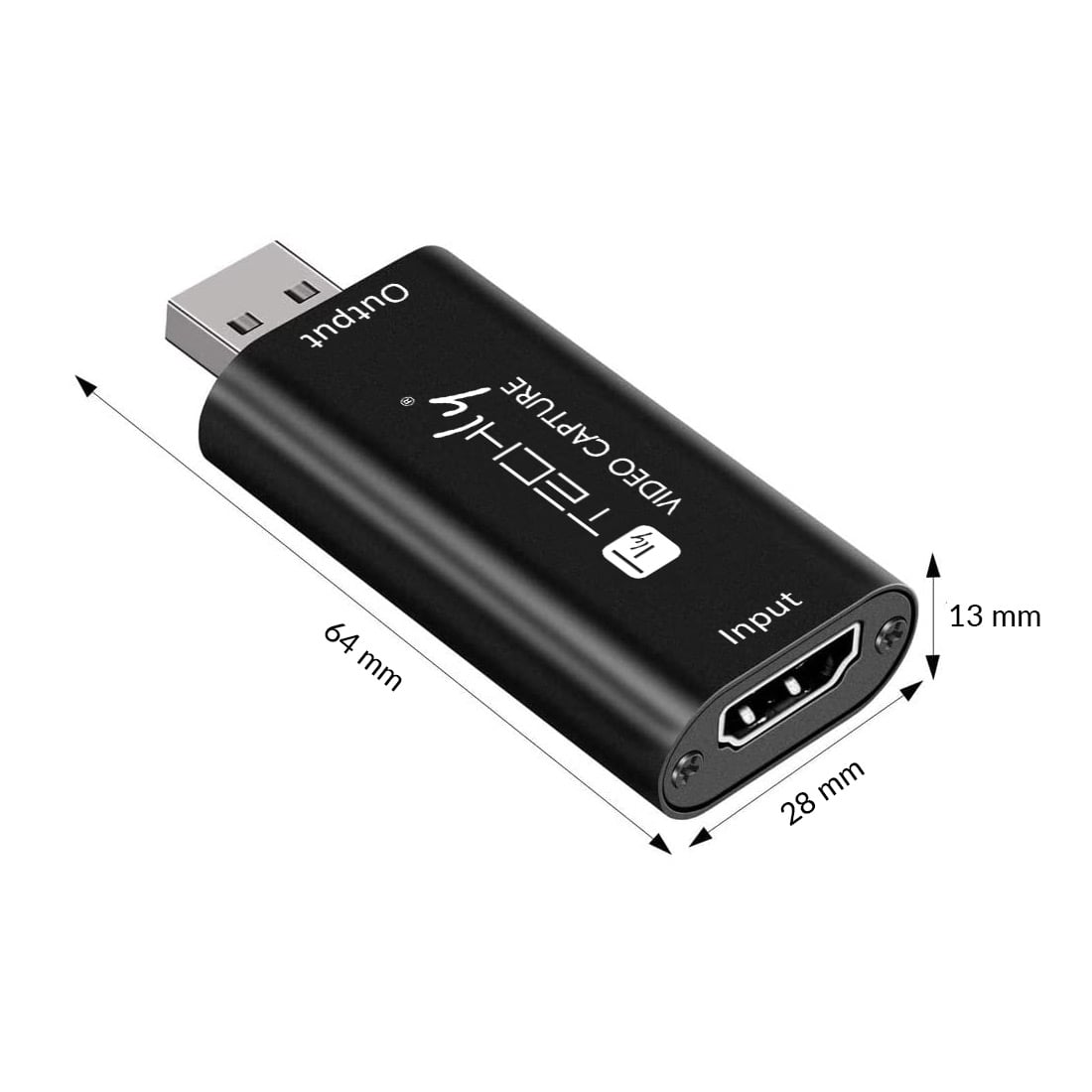

Dimensions

• Length: 64 mm


• Depth: 28 mm


• Height: 13 mm


• Weight: 21.4 g



Certifications

• CE


• RAEE



Package contents

• Video capture card I-USB-VIDEO-1080TY


• User manual
