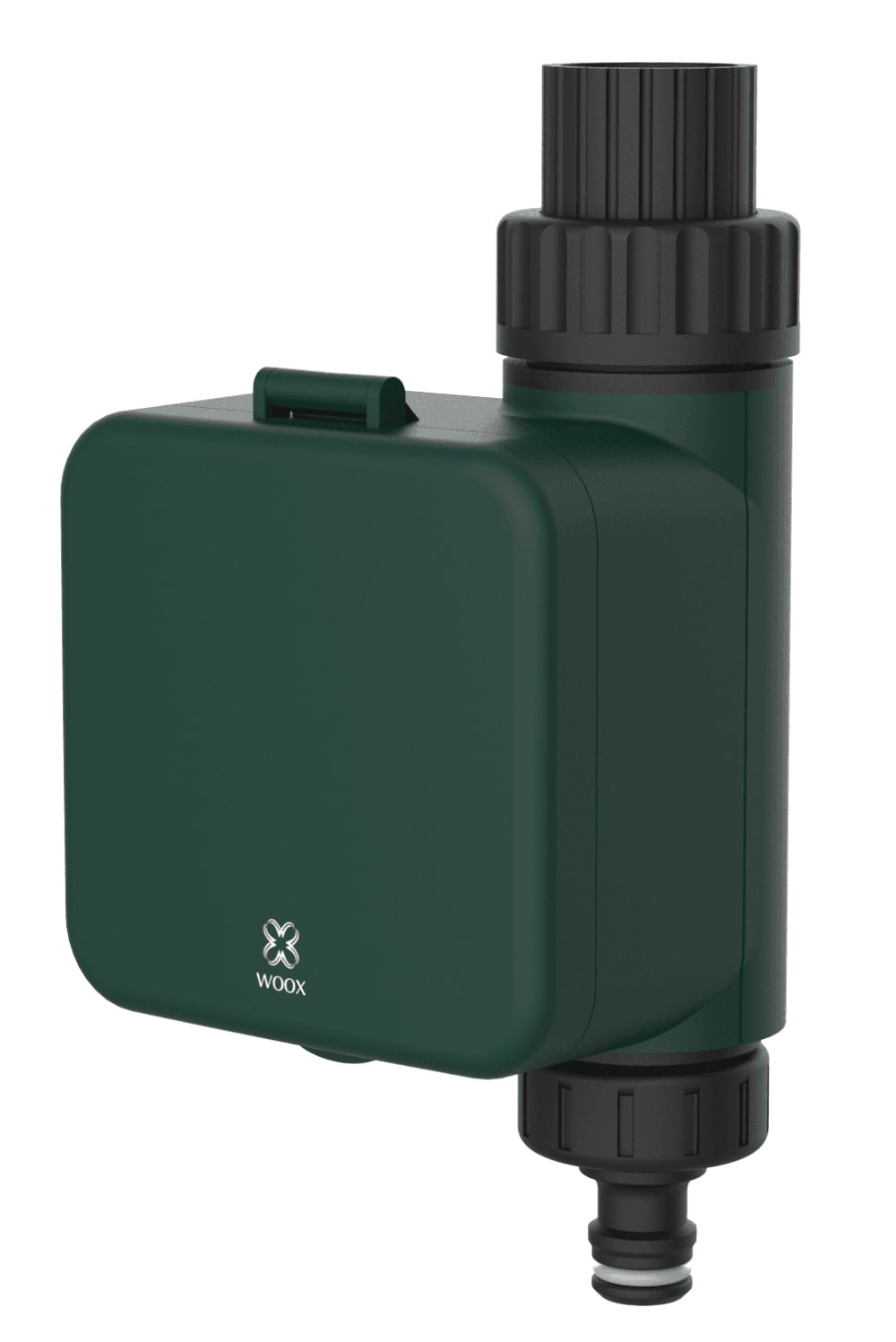

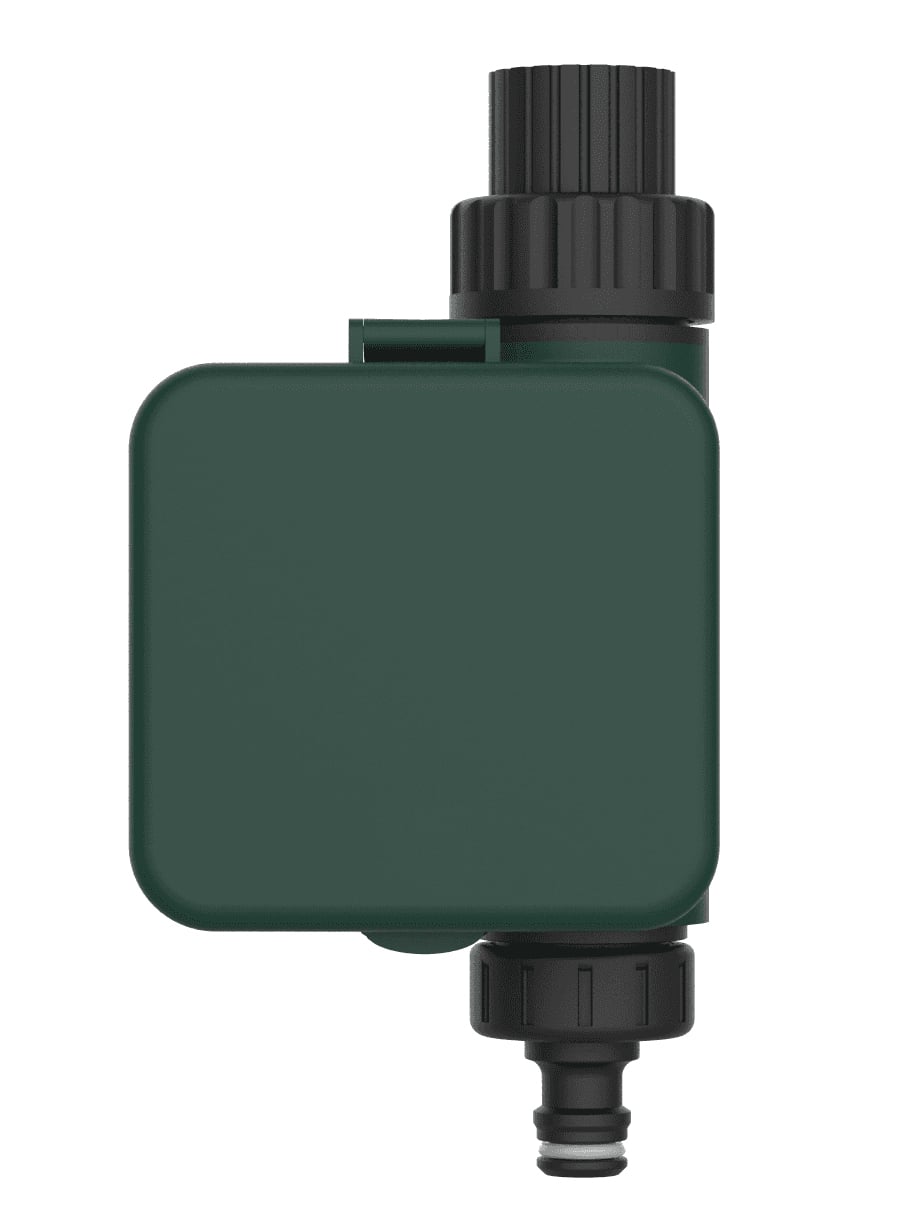

Irrigation Control Garden Zigbee R 7060 - Woox IC-WO 7060

Never forget to water your garden, complete remote control enabled by WOOX Home.

The intelligent control of garden irrigation WOOX Home IC-WO 7060 automatically controls the water supply in your garden and thus ensures flexible irrigation of your plants according to your needs. Irrigation times can be conveniently adjusted using your smartphone or tablet via the WOOX Home smart app. IC-WO 7060 works with the Zigbee protocol and must be connected for operation with a Zigbee WOOX gateway such as IC-WO 7070 (not included).



Energy

IC-WO 7060 è powered by 4 AA batteries (included in the package) that last for 6 months. In the WOOX Home app you will receive a warning when the battery is running out.



Connection

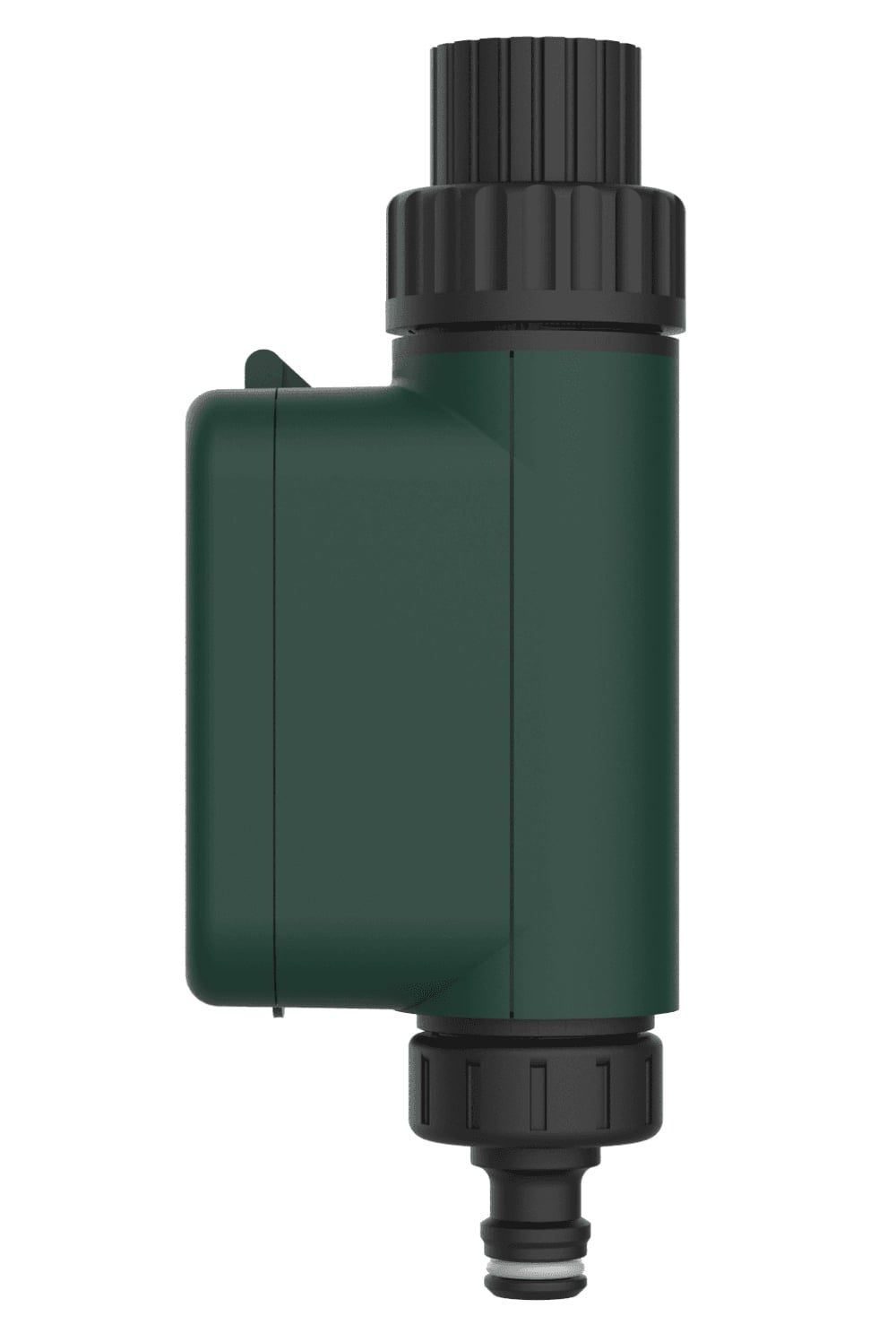

IC-WO7060 is installed directly on the water outlet pipe. It supports the standard external pipe inlet of 26,5 mm G 3/4 and comes with an additional quick-connect male adapter for quick-connect fittings of 1/2 which are mandatory in the outdoor irrigation market. On the R7060 it is also possible to connect a male connector of 3/4” which allows greater user satisfaction and offers multiple possibilities to connect the desired outlet irrigation system. IC-WO7060 supports a water pressure range between 0,2 and 0,7 MPa.



Check the irrigation of your garden

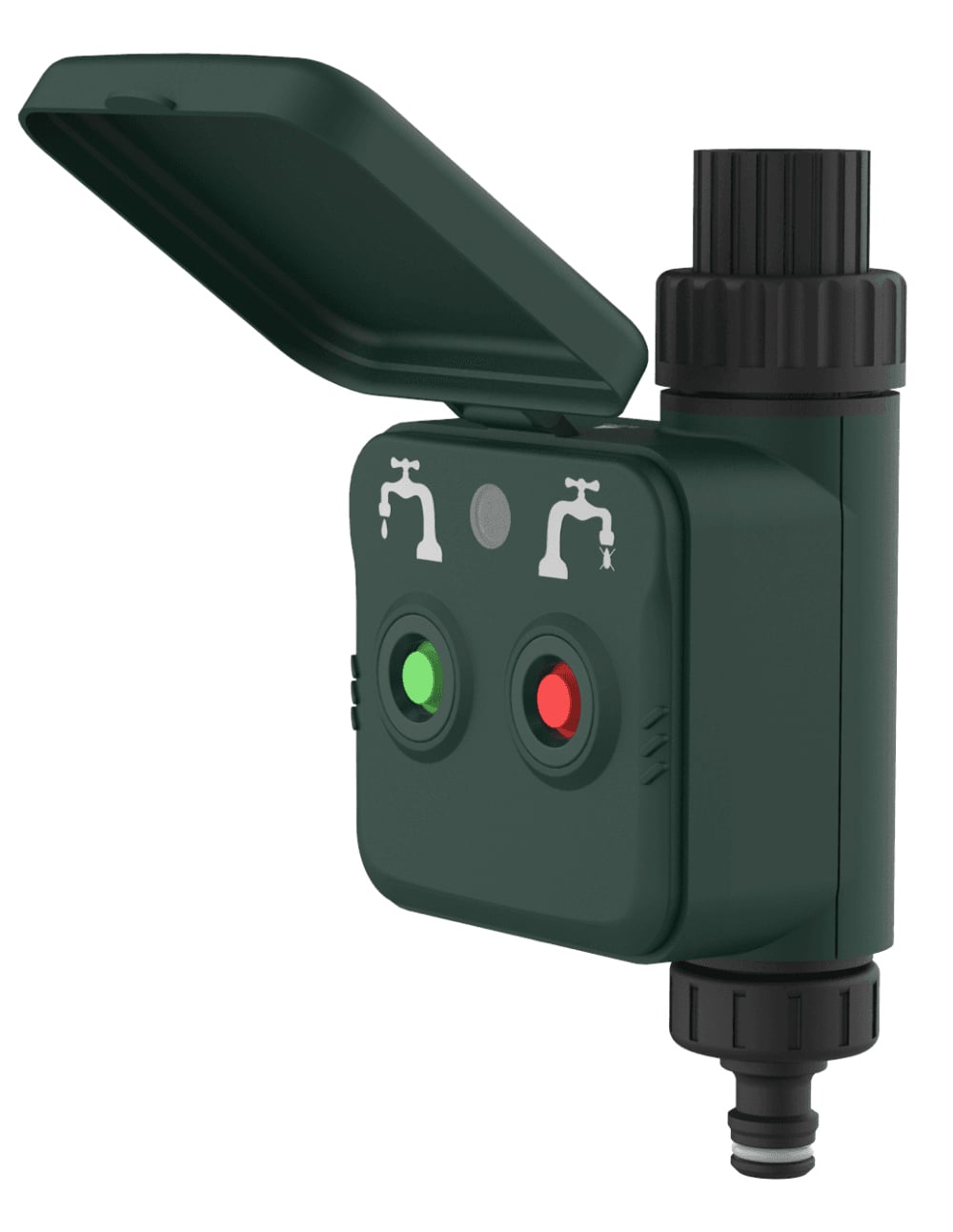

IC-WO 7060 dà the ability to water your garden whenever you want. In the WOOX Home app connect the intelligent garden irrigation control R 7060 to your Zigbee WOOX gateway. Once connected, è you can start or stop the water output of the plumbing hose. You can do it from the WOOX Home app or from the manual green and red button on the R 7060 device itself. WOOX Home ti dà the opportunityà to set irrigation programs, create automations with other WOOX Home devices and allow control via Google Assistant and voice control speakers Amazon Alexa, Tuya.



Technical specifications

• Wireless protocol: ZigBee 3.0


• Working voltage: DC 6 V


• Product dimensions: 190,5 * 99,6 * 77 mm (connector with tube)


• Powered by: AA battery from 1,5 V * 4 (included)


• Waterproof level: IP 44


• Product weight: 355 g


• Water pressure range: 0,2 ~ 0,7 MPa


• Standby current: 20 uA


• Working current: 270 mA (30 mS)


• Transmission range: 10 ~ 30 covered meters and 30 ~ 50 open air meters (different environments will have different results)



RF specifications

• Zigbee module: TYZS 3


• Wireless frequency: 2.400 ~ 2.483 GHz


• Network standard: 802.15 . 4 / ZigBee


• Transmission power: velocità transmission: 250 kbps


• Channels: 16


• Battery life: 6 months



Environmental features

• Working temperature: 0 °C ~ + 45 °C


• Working humidità 0 • 95 % RH


• Low pressure alarm

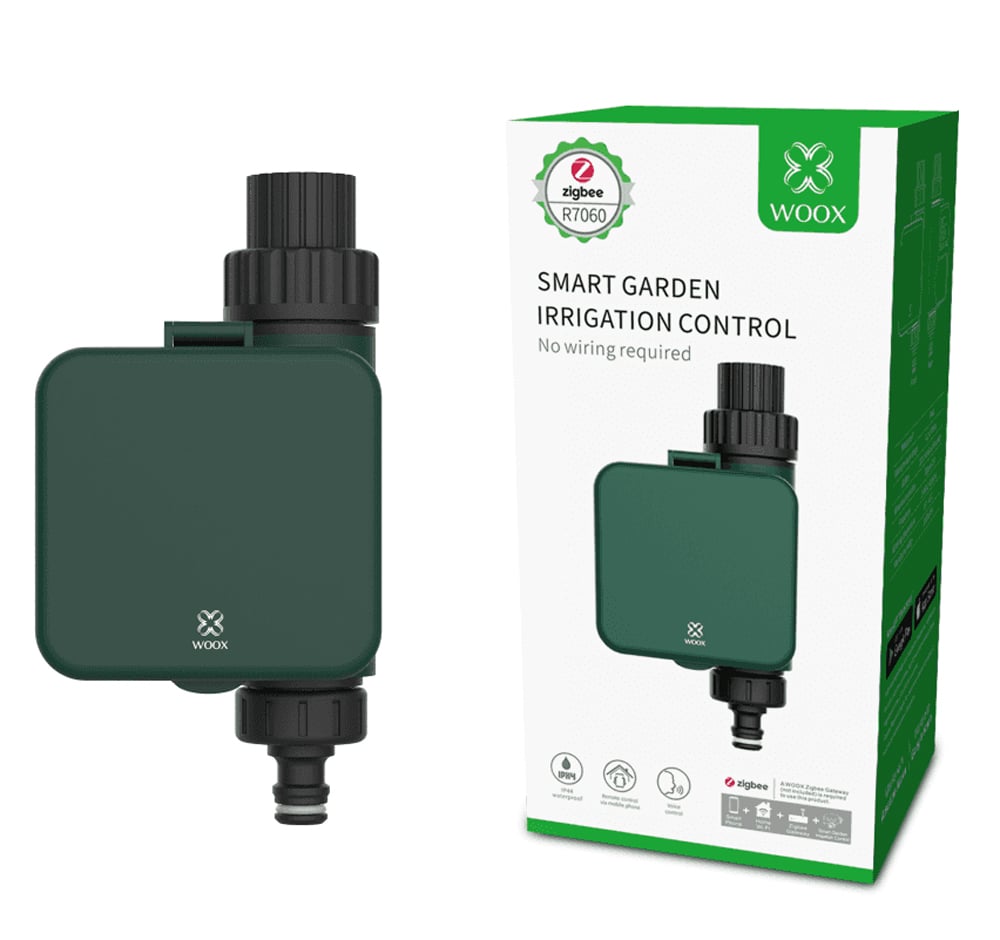

Package contents

• 1 x Intelligent garden irrigation control


• 4 x AA battery


• 1 x Adapter G 3 / 4 from 26,5 mm


• 1 x Multilingual user manual
