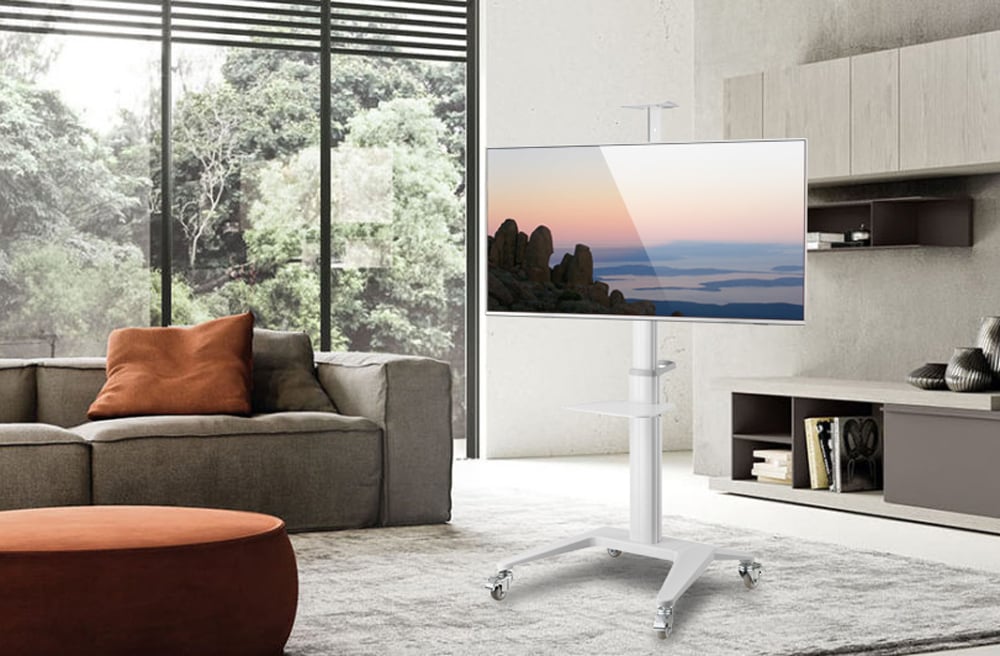

37 ' to 70 ' White - Techly ICA-TR 48 W TV Floor Support

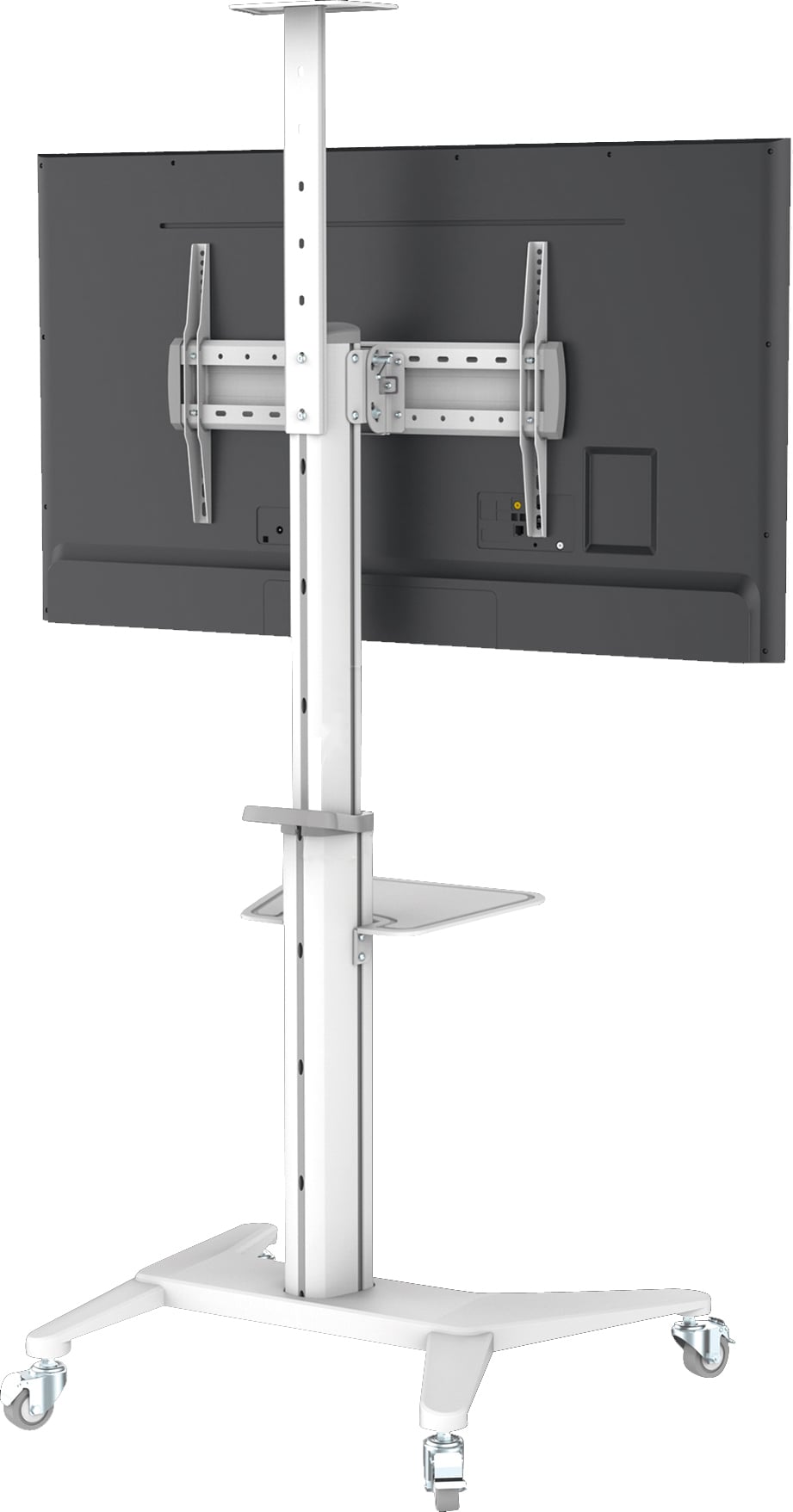

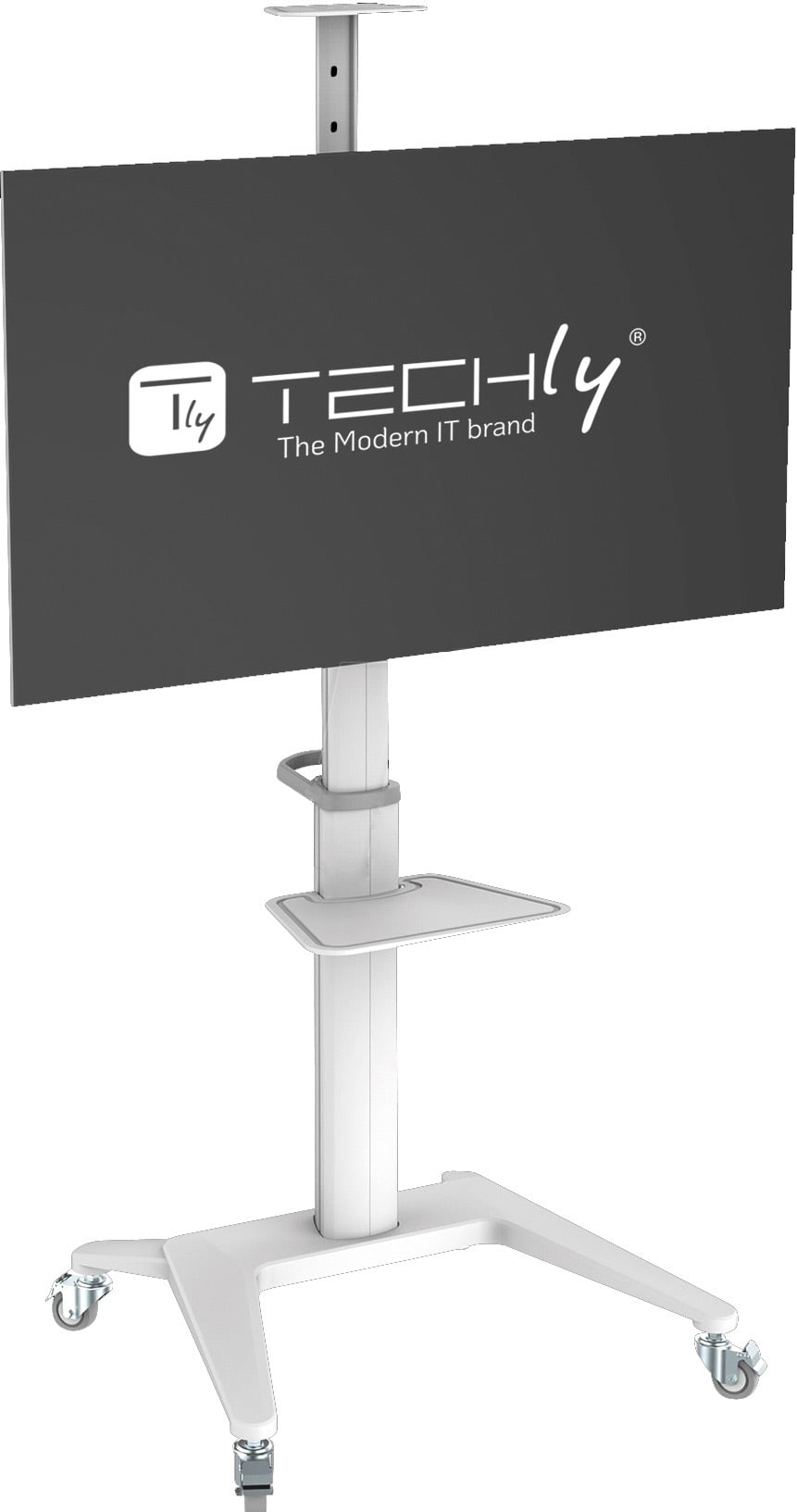

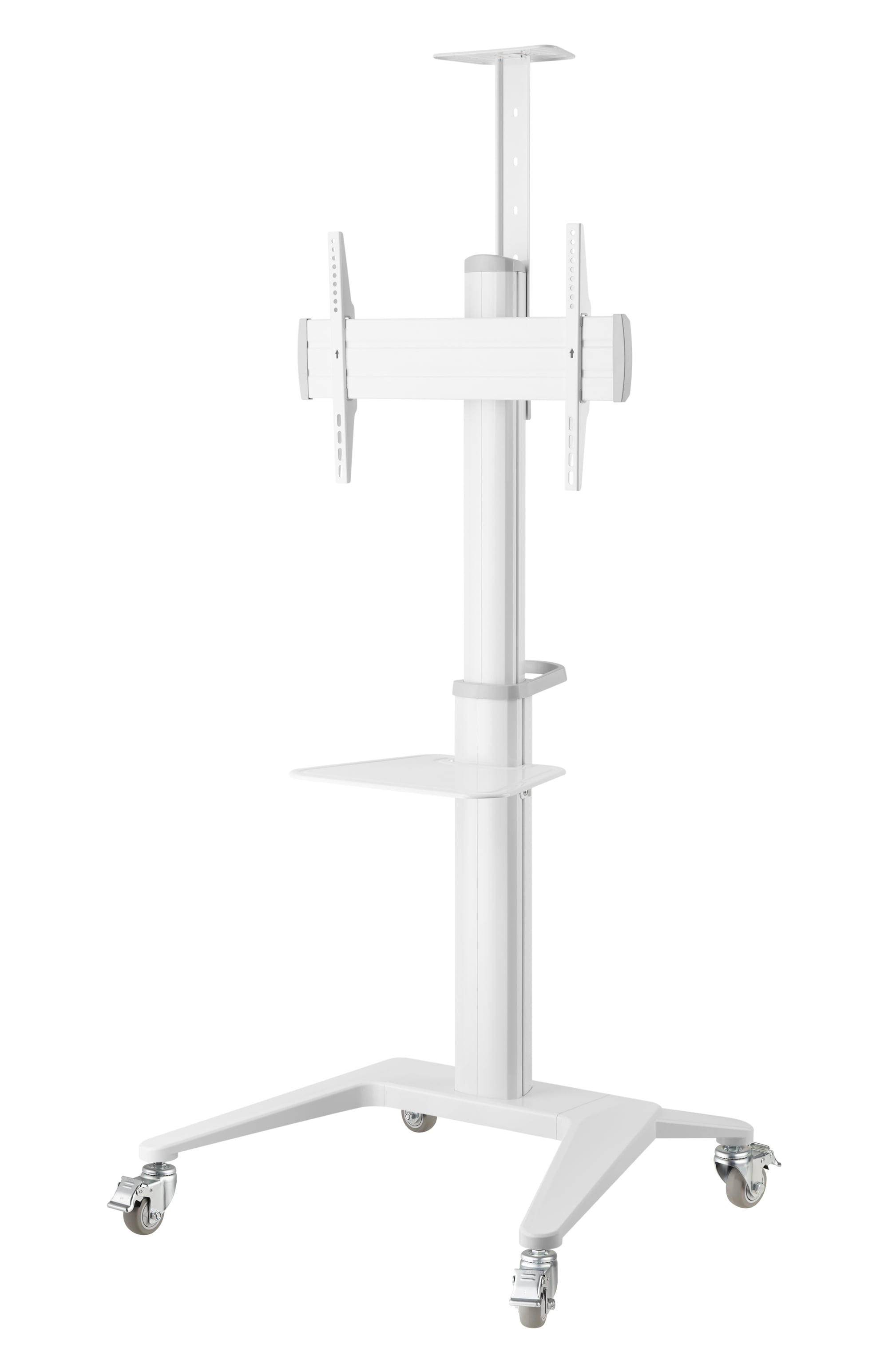

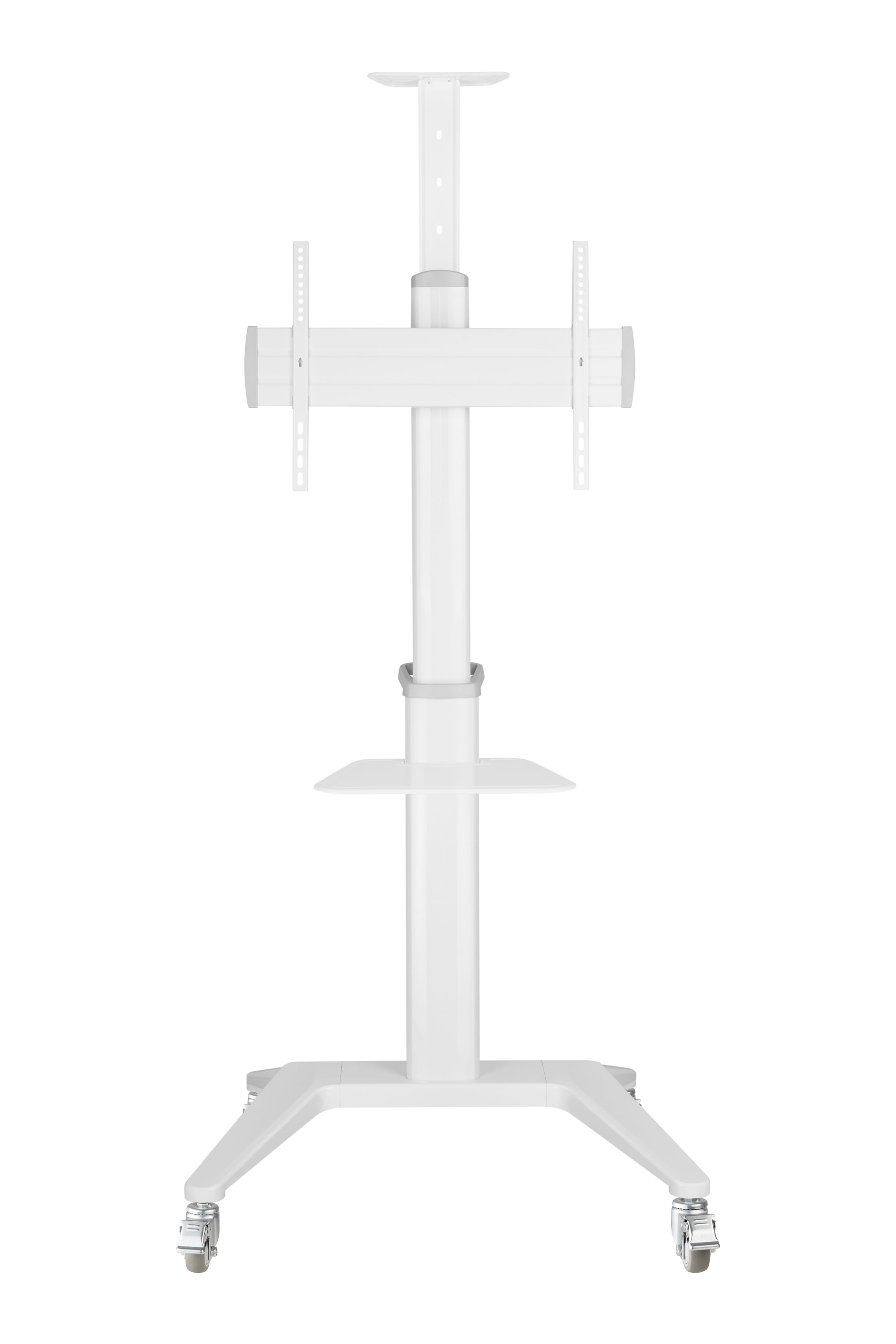

ICA-TR 48 W è consists of an ultra-resistant and lightweight aluminium column, firmly attached to an aesthetically pleasing base, which offers a stable and secure solution for large displays. Users can easily rotate the TV from horizontal to vertical orientation or adjust the height in any position along the column. The tiltrotable design without tools offers a variety of viewing angles. The trolley è easy to move thanks to the handle with integrated D-ring, while four lockable wheels guarantee maximum stabilityà during handling. It is equipped with a height adjustable camera shelf and a shelf for additional equipment, while the integrated cable management system maintains the organised and protected wiring.



Features

• The support column thanks to improved design increases stabilityà


• The screen can be positioned either vertically or horizontally: a single solution adapts to any installation and needs visualization


• Toolless tilt: allows easy and fast adjustment


• Heavy duty wheels with locking mechanism: can be moved or stopped at will


• Height adjustable camera shelf


• Robust base with aerodynamic design guarantee a long life and a pleasant appearance


• Height adjustment: versatile vertical positioning of the display anywhere along the column


• D-ring handle for quick and facile da usare


• Shelf for height adjustable equipment, offers more space to store accessories


• Integrated cable management to elegantly hide all cables connected to the screen

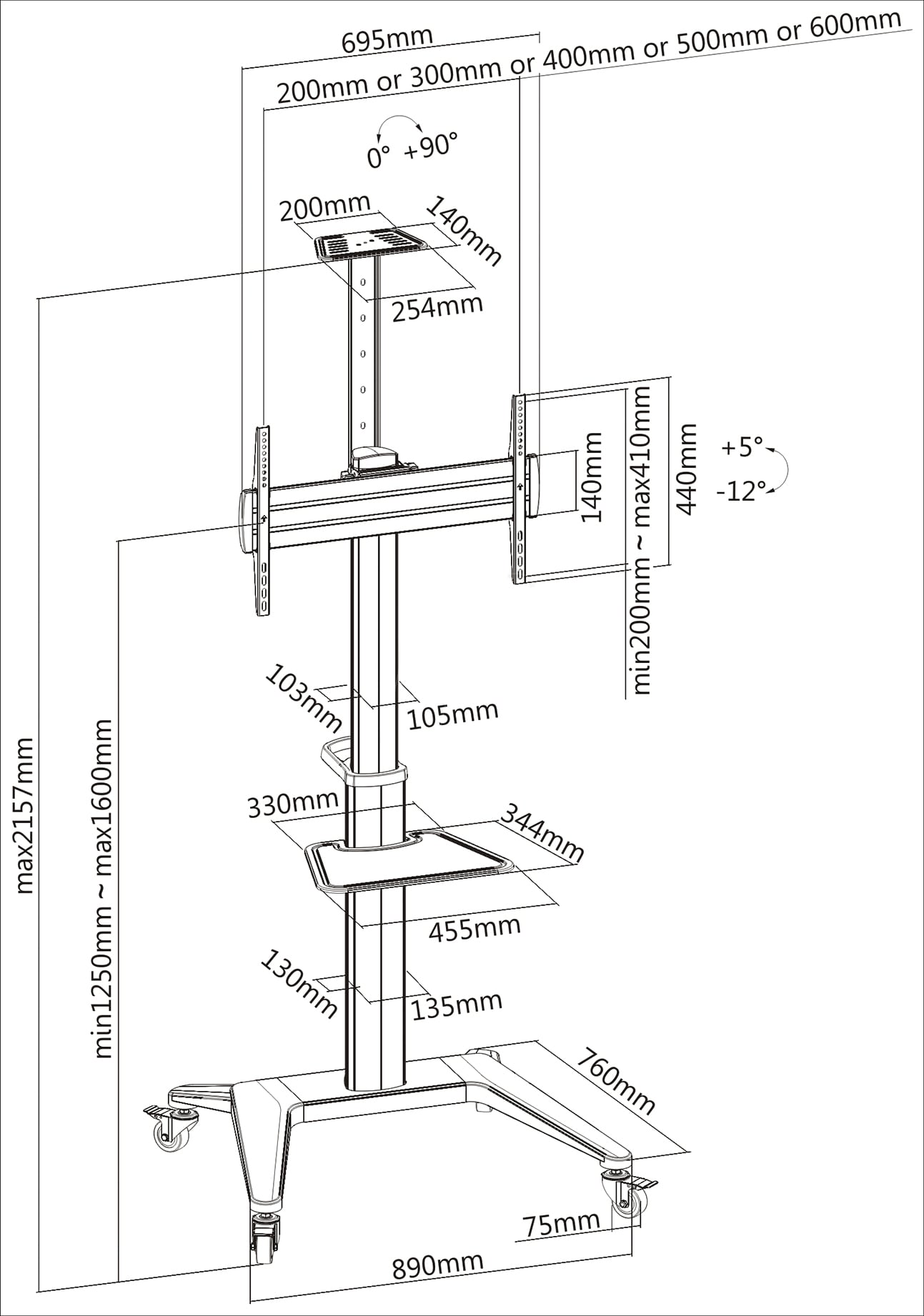

Technical specifications

• Material: steel, plastic, aluminium


• Surface finish: powder coating


• Color: glossy white


• Dimensions: 890 x 760 x 2157 mm


• Column dimensions (main column/extend column): 135 x 130 x 1,6 tx 725 mm / 105 x 103 x 1,6 tx 725 mm


• Suitable for 37 to 70 monitors


• VESA compatible: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400


• Maximum weight supported: 70 kg


• Tilt range: + 5 ° ~ - 12 °


• Screen rotation: 0 ° ~ + 90 ° for horizontal and vertical viewing


• Height adjustable from 1250 to 1600 mm


• Capacità shelf weight: 5 kg


• Capacità camera shelf weight: 5 kg


• TV stand with integrated cable management



Package contents

• Floor support ICA-TR 48 W


• Hardware and installation instructions
