Audio/Video DisplayPort 1.4 8 K to 60 Hz M/M 2 m Black - Manhattan ICOC DSP-A 14 - 020 M

€9.28
Tax included €7.60 excl. VAT

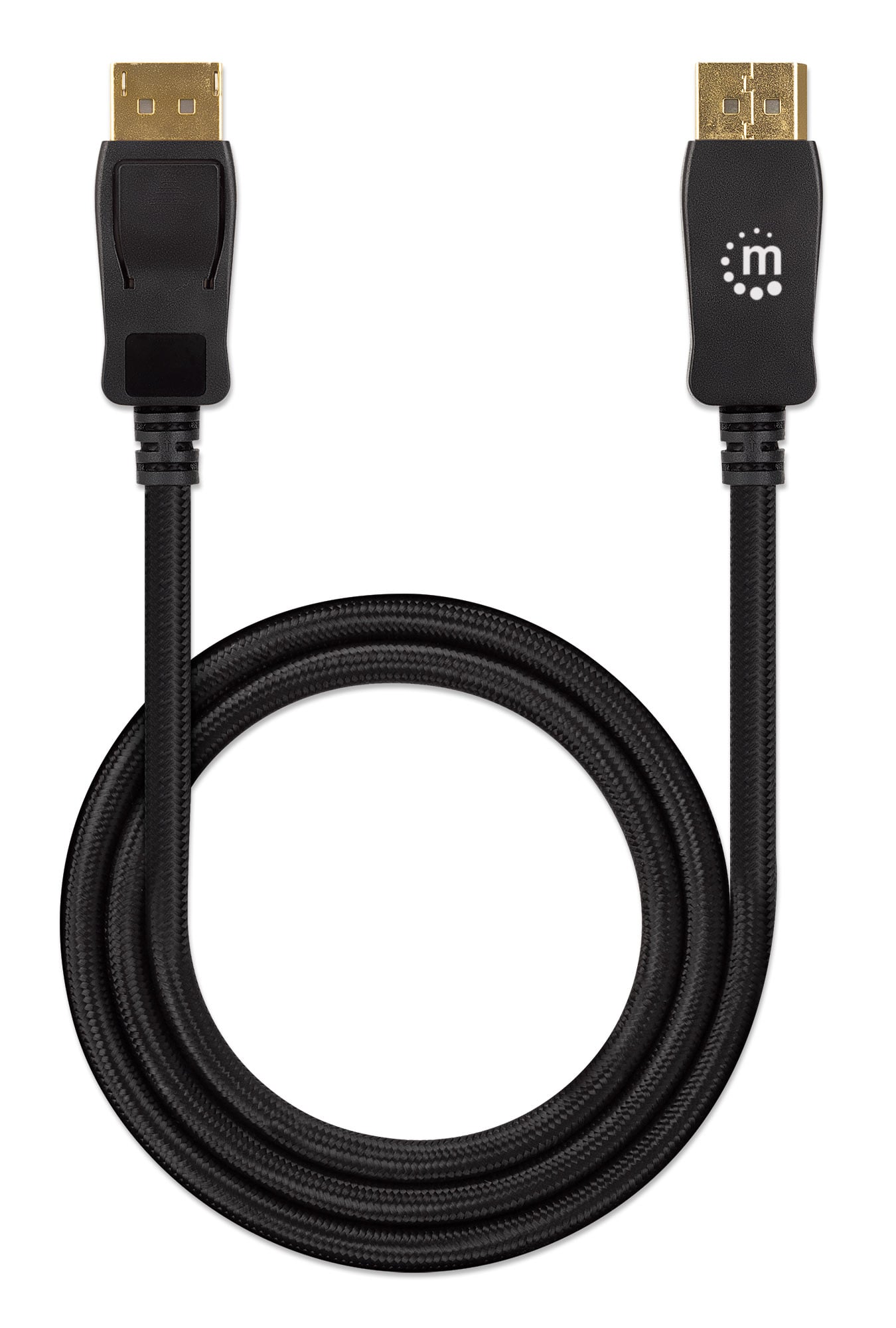

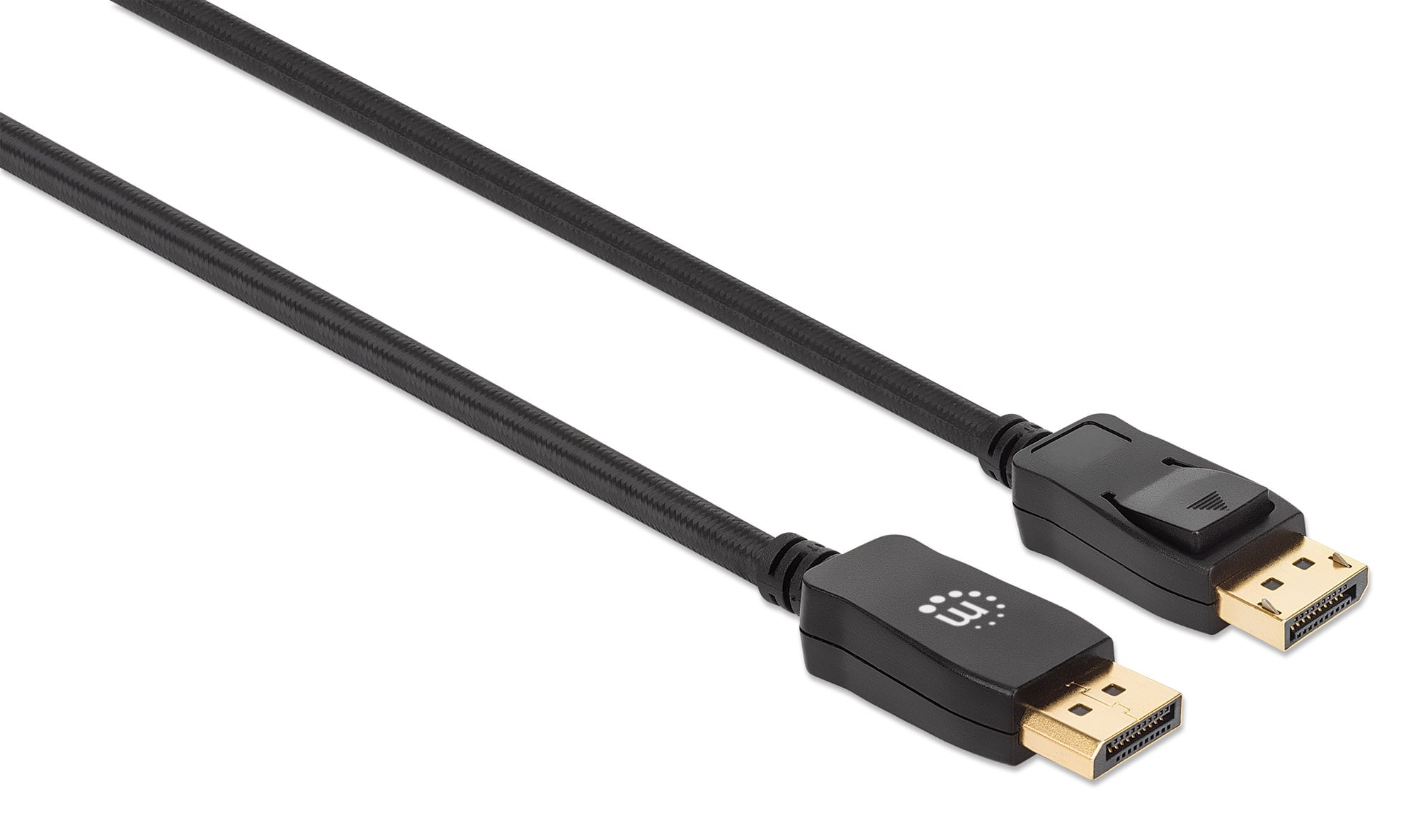

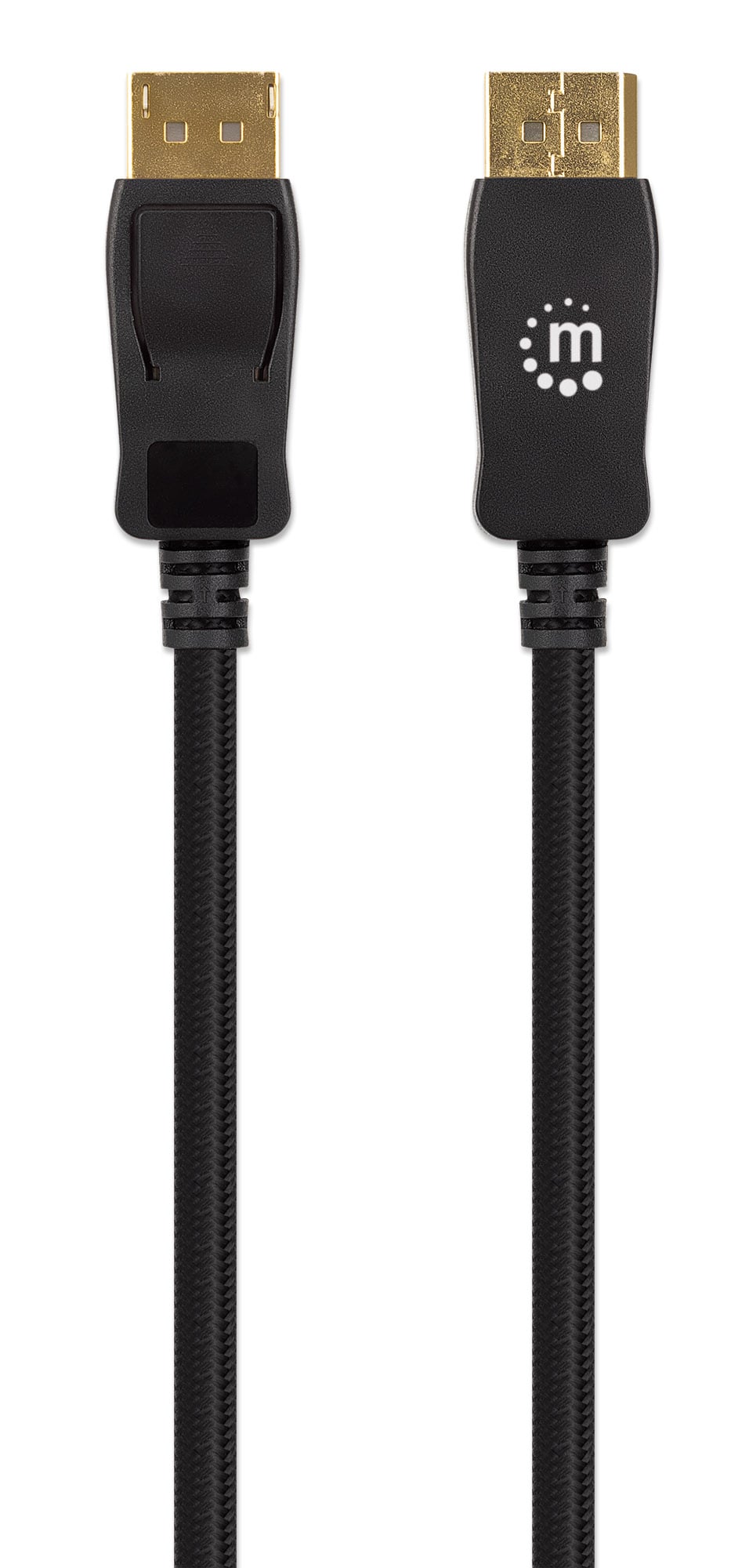

DisplayPort 1.4 male-male cable from 2 meters. Supports 8 K@ 60 Hz, HDR 10, bandwidth 32,4 Gbps. Triple shielding and gold contacts.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Connections: DisplayPort 20 -pin male to DisplayPort 20 -pin male

  • DisplayPort 1.4 with cutting-edge and future-proof functionality for high-end games and AV applications

  • Supports 8 K resolutions at 60 Hz, 4 K at 120 Hz, 1440 p at 144 Hz (UWQHD), 1440 p at 165 Hz (WQHD) and 1080 p at 240 Hz

  • HDR 10 for superior contrast and bright colors

  • Bandwidth up to 32,4 Gbps

  • Golden contacts for a long duration of time

  • Triple shielding to reduce EMI interference and other sources

  • 20 Pin not wired to avoid short circuits

  • Intertwined, anti tangle design

  • Supports Multi-Stream Transport (MST) to connect in cascade more ù display

  • Uncompressed 32 audio channels

  • Fully compatible with DisplayPort High Bit Rate 3 (HBR 3)

  • 1.2 Stream Compression Display (DSC) for maximum output resolution



Standards and certifications

  • DisplayPort v 1.4

  • CE

  • FCC

  • RoHS



Connections:

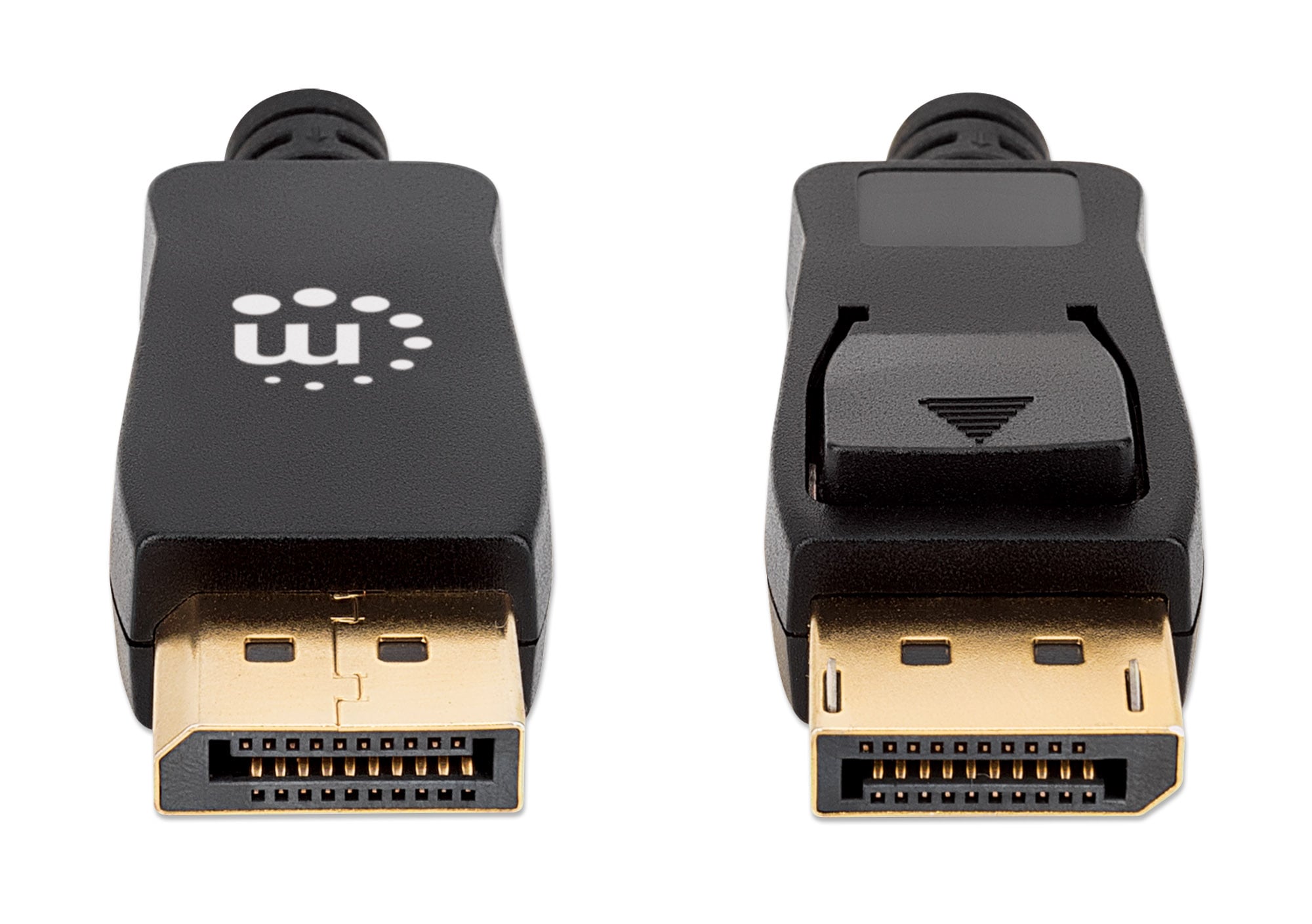

  • Two DisplayPort male to 20 pin with stops

  • 19 conductor

  • Golden Contacts

  • ABS connector cover



Cable:

  • AWG 30 drivers

  • Triple shielding: aluminum and Mylar braid

  • Voltage: 300 V DC

  • Insulation resistance: 5 MOhms

  • Contact resistance: 10 Ohms

  • Weaved fabric sheath

  • Length: 2 m

  • Weight: 170 g



Environmental features

  • Operating temperature: 0 - 40 °C

  • Storage temperature: - 20 to 60 °C

  • Humidità (without condensation): 0 - 96 %

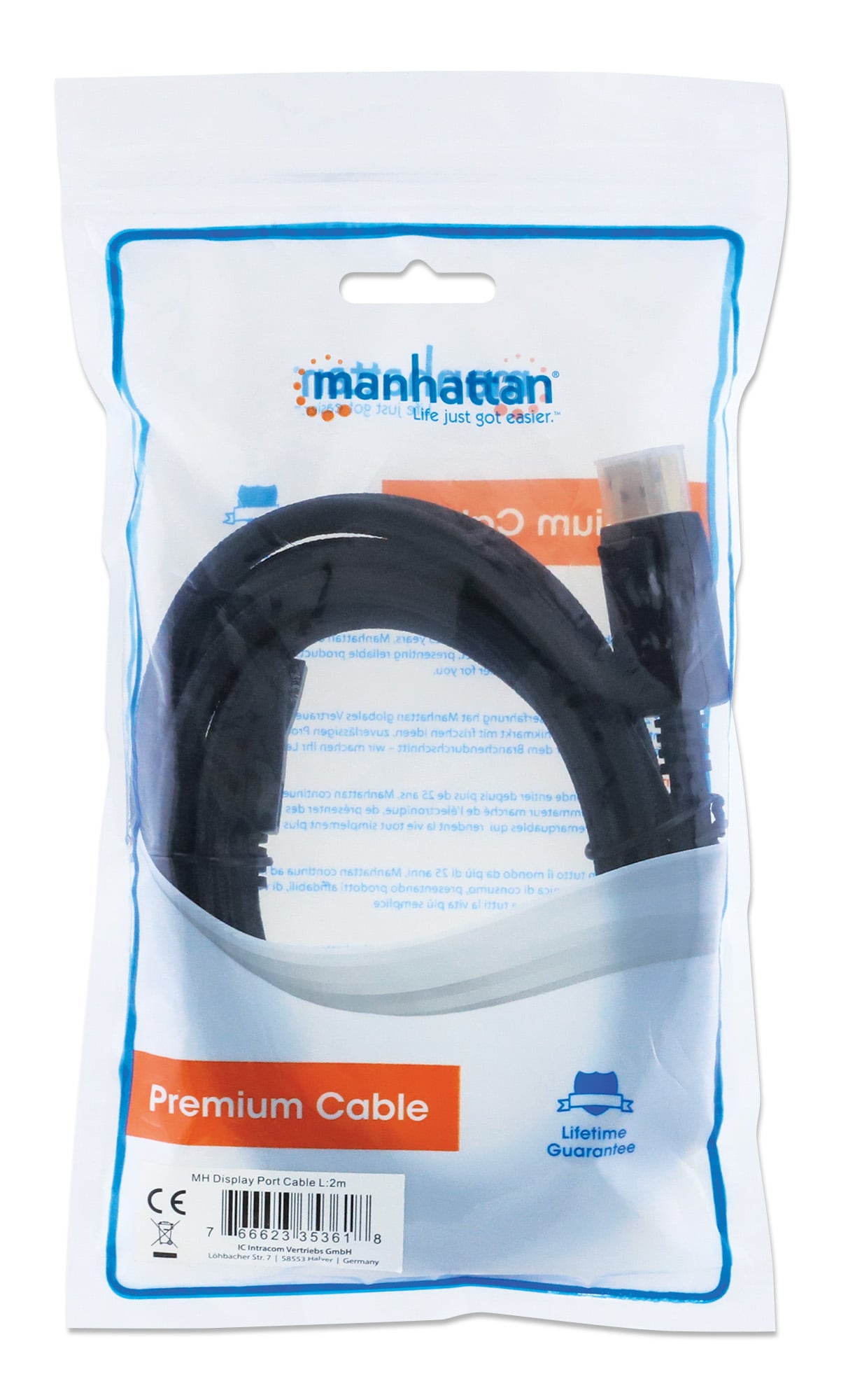

Package contents

  • DisplayPort cable 1.4 8 K to 60 Hz

  • Brand
  • Reference
    ICOC DSP-A14-020M
  • In stock
    209 Items
  • EAN13
    0766623353618
