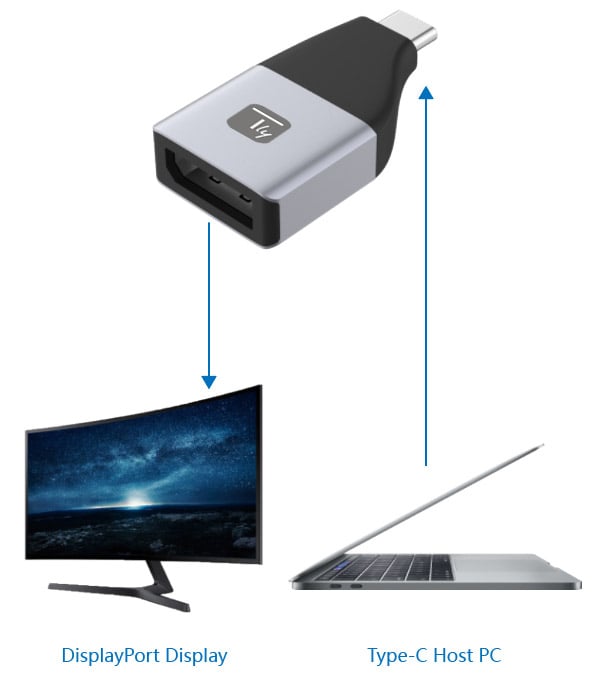

IADAP USBC-DP4K is a USB-C™ to DisplayPort adapter. It allows connecting the USB-C™ source or Thunderbolt™ 3 source to the DisplayPort display with a maximum resolution of 3840x2160 at 60Hz. It supports operation on any Type-C host that supports Alt DP1.2 mode. When working on a Thunderbolt™ 3 host, this product transmits the DP signal.
Features- Supports USB-C™ input and DisplayPort output
- Supports DisplayPort 1.2 Alt mode
- Supports data transmission rates of 5,4 Gbps (HBR2), 2,7 Gbps (HBR) and 1,62 Gbps (RBR)
- Supports HDCP1.4 and HDCP 2.2 content protection
- Supports DisplayPort resolution up to 3840x2160 at 60Hz
- USB bus power (no external power)
Technical specifications- Input connector: USB-C™ male
- Output connector: DisplayPort female
- Resolution: up to 3840x2160@60Hz

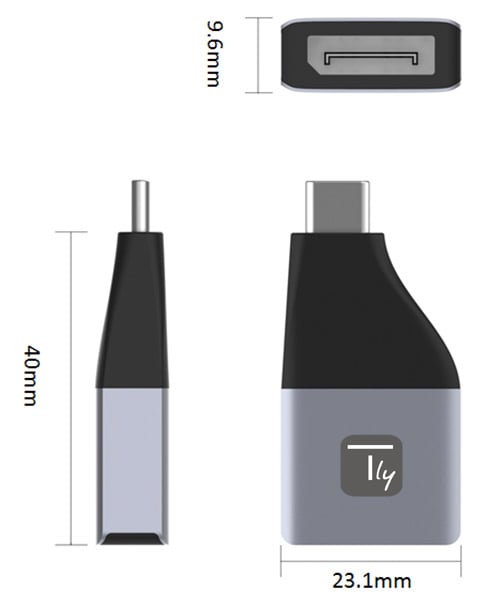

- Dimensions: 40 x 23,1 x 9,6 mm
- Operating temperature: 0°C ~ 45°C
- Operating humidity: 10% ~ 85 % RH (non-condensing)
- Storage temperature: -10°C ~ 70°C
- Storage humidity: 5% ~ 90 % RH (non-condensing)
- Bus powered
- Certifications: FCC, CE
Package contents- USB-C™ to DisplayPort converter adapter
