4 K adapter from USB-C to HDMI 60 Hz - Aten IDATA UC 3008 A 1

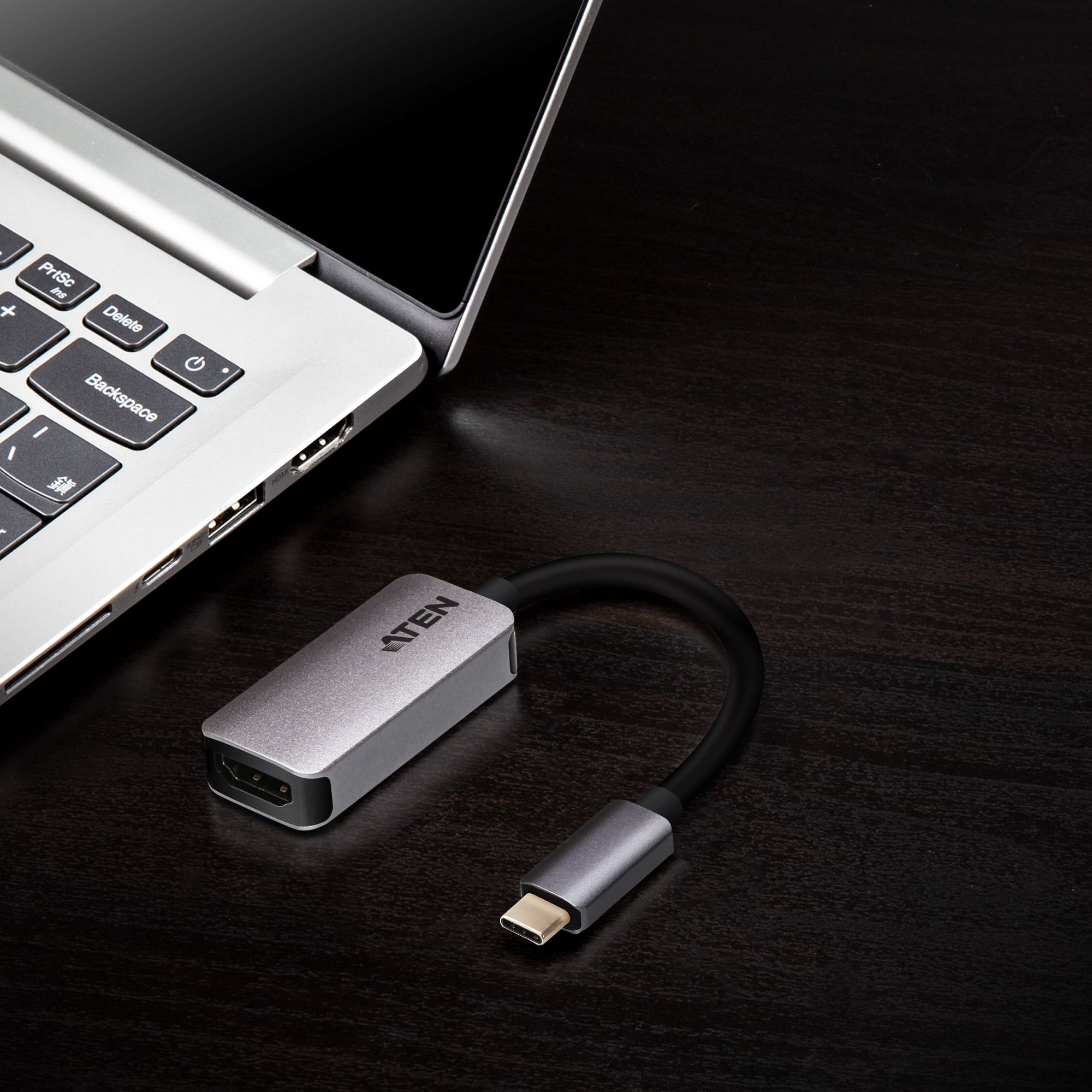

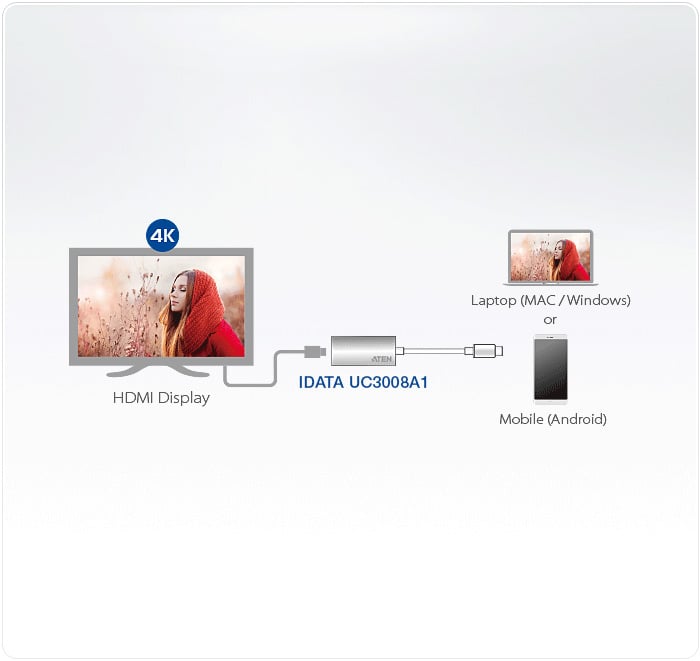

IDATA UC 3008 A 1 è a 4 K adapter from USB-C to HDMI that allows you to transfer videos from laptop, tablet or smartphone equipped with USB-C on a monitor, TV or projector. It supports video resolutions up to 4096 x 2160 to 60 Hz so you can easily scale the viewing output to a larger monitor or perform presentations from a projector. Also, it does not require external drivers or additional power. It works with computers and smartphones equipped with USB-C port with modeà DP Alt, compatible with iPad Pro, Android, Mac OS X and Windows operating systems, as well as being convenient to use and transport.

• It transfers high quality videos from a laptop or smartphone with USB-C to a screen, TV or HDMI projector 4 K to 60 Hz (4096 x 2160 to 60 Hz)*


• The premium housing resists signal interference during video transmissions as well as isolating from heat

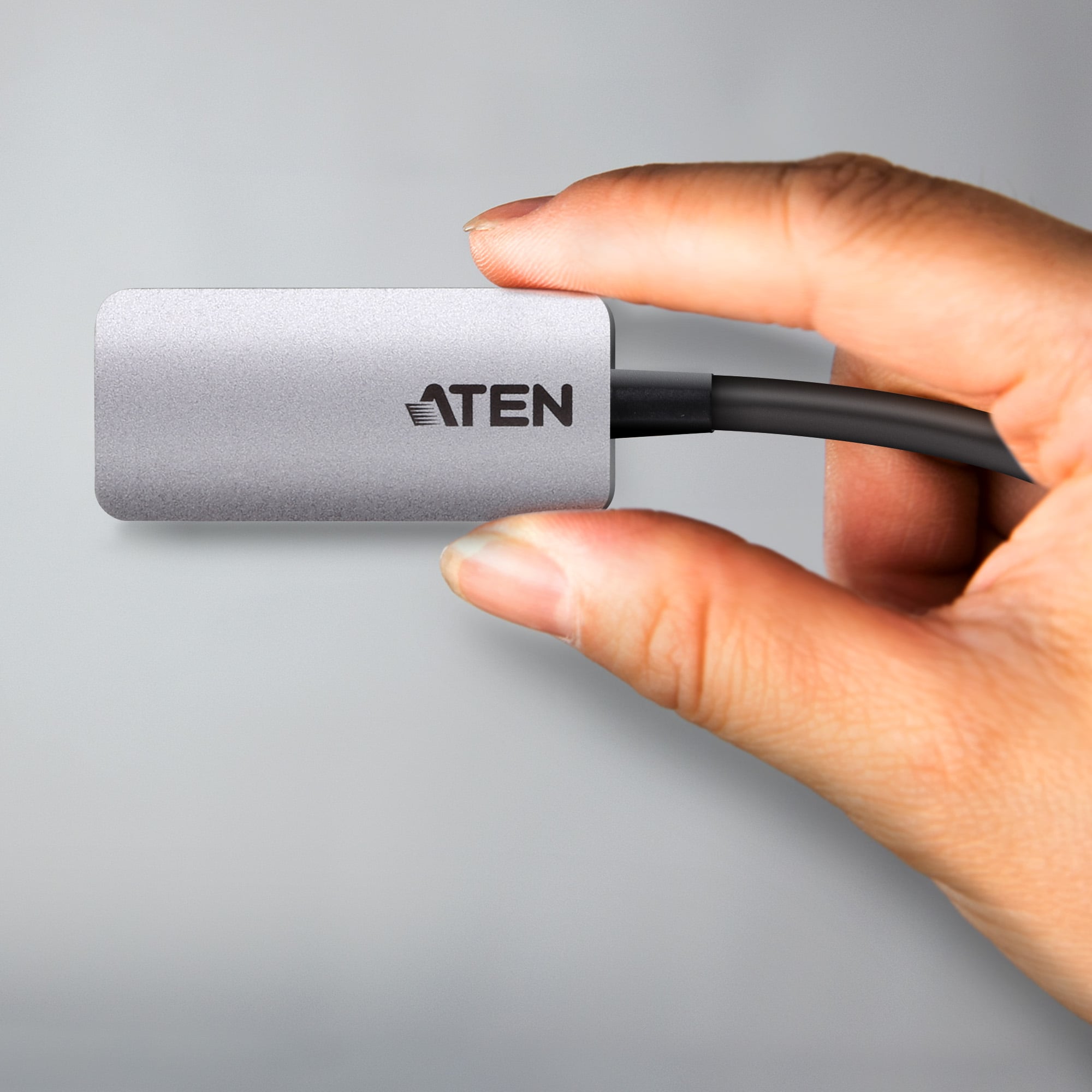

• Compact and lightweight design


• Works with all major operating systems: Windows®, OS X®, iPad Pro and Android


• Plug-and-play, no software needed



* With Intel Core processor from 7 to generation (Kaby Lake) and higher. To use video output via a USB-C port, it must support modeà DP Alt.



Technical specifications

• Video input interface: USB cable 3.2 Gen 1 Type C from 15,4 cm


• Video output interface: 1 x female HDMI


• Video pixel clock max.: 594 MHZ


• Max. video resolution: 4096 x 2160 at 60 Hz


• USB 3.2 Gen 1 Type C conformation with modalità DP Alt (compatible with Thunderbolt™ 3)


• HDMI 2.0 Conforms


• HDCP 2.2 Conforms


• Billboard USB device class conform


• Audio output: 1 x HDMI female


• Consumption: DC 5 V: 1 W: 5 BTU



System requirements

• Windows 10 and higher, computer equipped with USB-C with mode à DP Alt*



* With 7 Intel Core processor per generation (Kaby Lake) and higher. More info about CPU generation on: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

• Mac OS X 10.12 and higher, computer equipped with USB-C


• Android 8.0 and top, smartphone equipped with USB-C with mode à DP Alt


• iOS 12.1 and higher, iPad Pro 3 to generation (2018)



Environmental information

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Physical characteristics

• Structure: aluminium


• Dimensions: 4,32 x 1,10 x 2,20 cm
