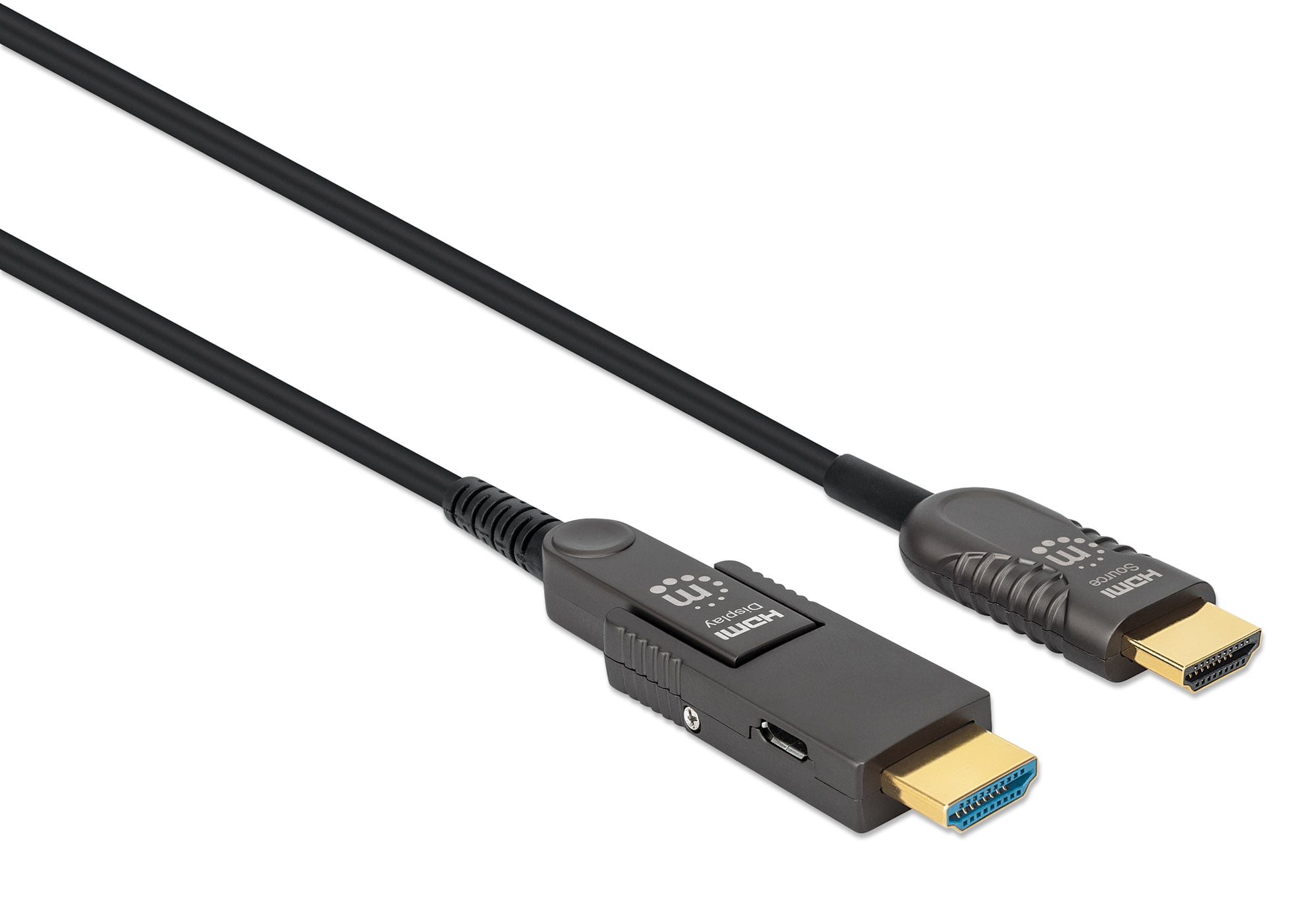

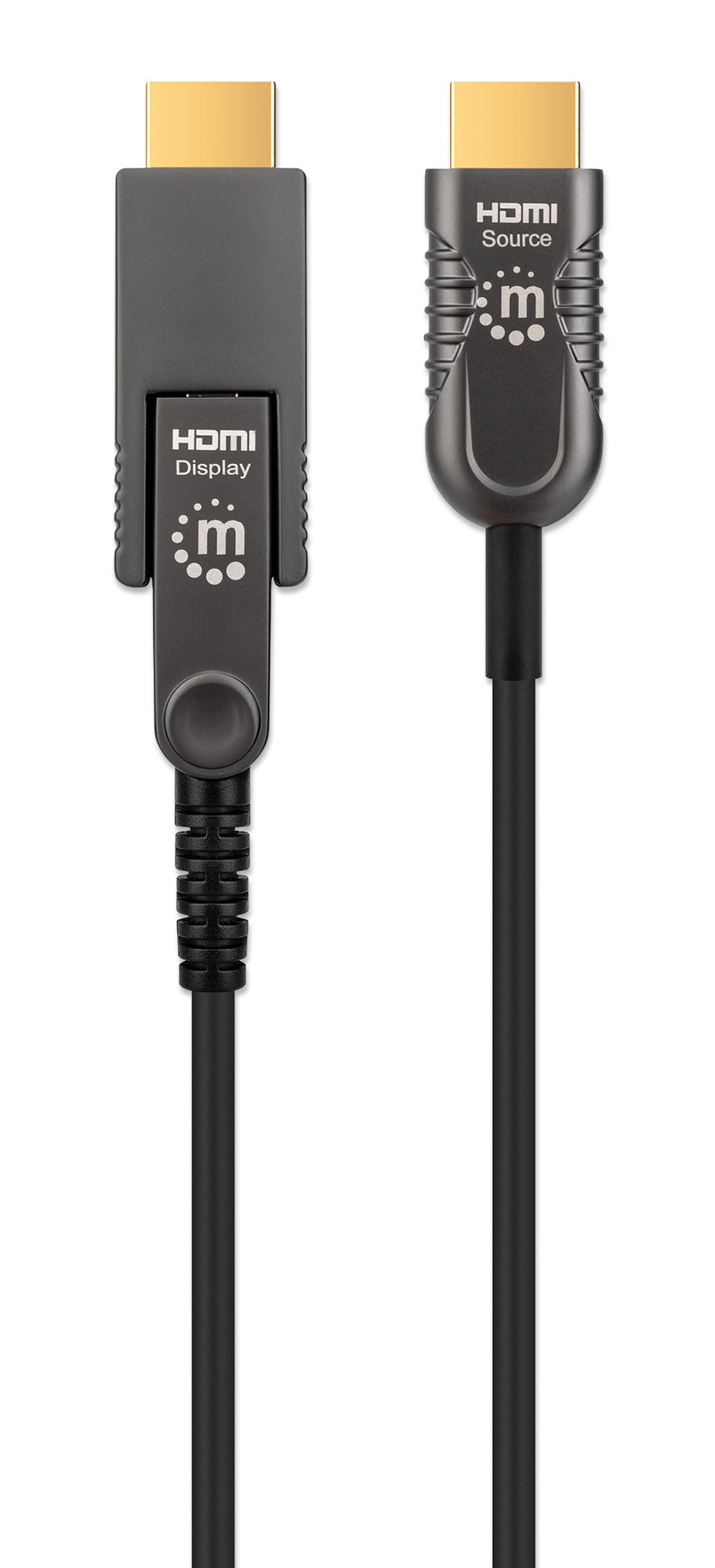

Active HDMI fiber optic cable with detachable connector 70 m - Manhattan ICOC HDMI-AOC- 070

€203.73
Tax included €167.00 excl. VAT

HDMI active hybrid fiber/copper cable from 70 m. Supports Ultra HD 4 K@ 60 Hz (4 : 4 : 4 ), HDR and bandwidth up to 18 Gbps. HDMI type A and Micro HDMI connectors (type D) with adapter included. Common to EMI/RFI, plug and play without external power supply.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Extends an HDMI signal over long distances without an external repeater, signal loss or interference

  • Supports high definition Ultra HD (UHD) 4 K@ 60 Hz with 4 chrome subsampling: 4 : 4

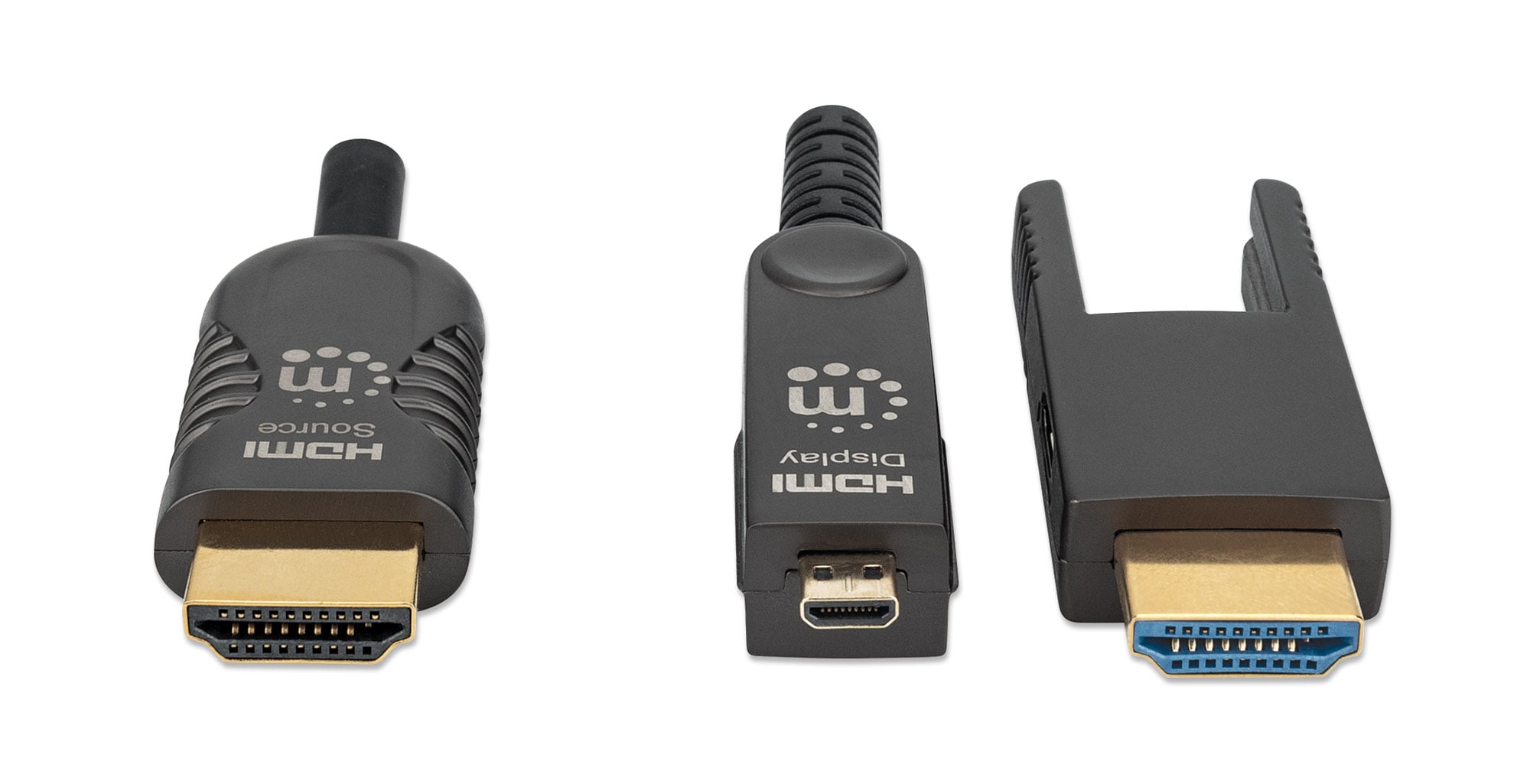

  • Standard HDMI connector (type A) to Micro HDMI (type D) to facilitate connection in confined spaces; it includes an HDMI type A adapter for traditional source to display connection

  • Hybrid fiber and copper wire for a thinner cable; ideal for wall installations and confined spaces

  • Immune to electromagnetic interference (EMI) and radio frequency interference (RFI)

  • Golden contacts for a long duration of time

  • High Dynamic Range (HDR) for superior contrast and bright colors

  • Supports HDMI Ethernet Channel (HEC)

  • Supports HDCP 2.2 , CEC and ARC

  • Compatible with Dolby, Dolby Atmos, DTS and PCM audio formats

  • Supports bandwidth up to 18 Gbps

  • Plug and Play; does not require external power supply

  • Incorporated active amplification circuit



Standards and certifications

  • RoHS

  • CE

  • FCC



General information

  • Optical fibre OM 3

  • Resolution 4 K (3840 x 2160) at 60 Hz

  • Bandwidth: 18 Gbps

  • Supports HDCP 2.2

  • Supports CEC

  • HDR support

  • Supports ARC

  • Length: 70 m (230 ft.)

  • Weight: 2,1 kg (4,63 pounds)



Chipset

  • Output: SL 82817

  • Entry: SL 82827

  • VCSEL II-VI

  • Operating voltage: 5 V

  • Operating current: 50 mA

  • Consumption: 250 mW



Connections:

  • A male HDMI to 19 pin, type A

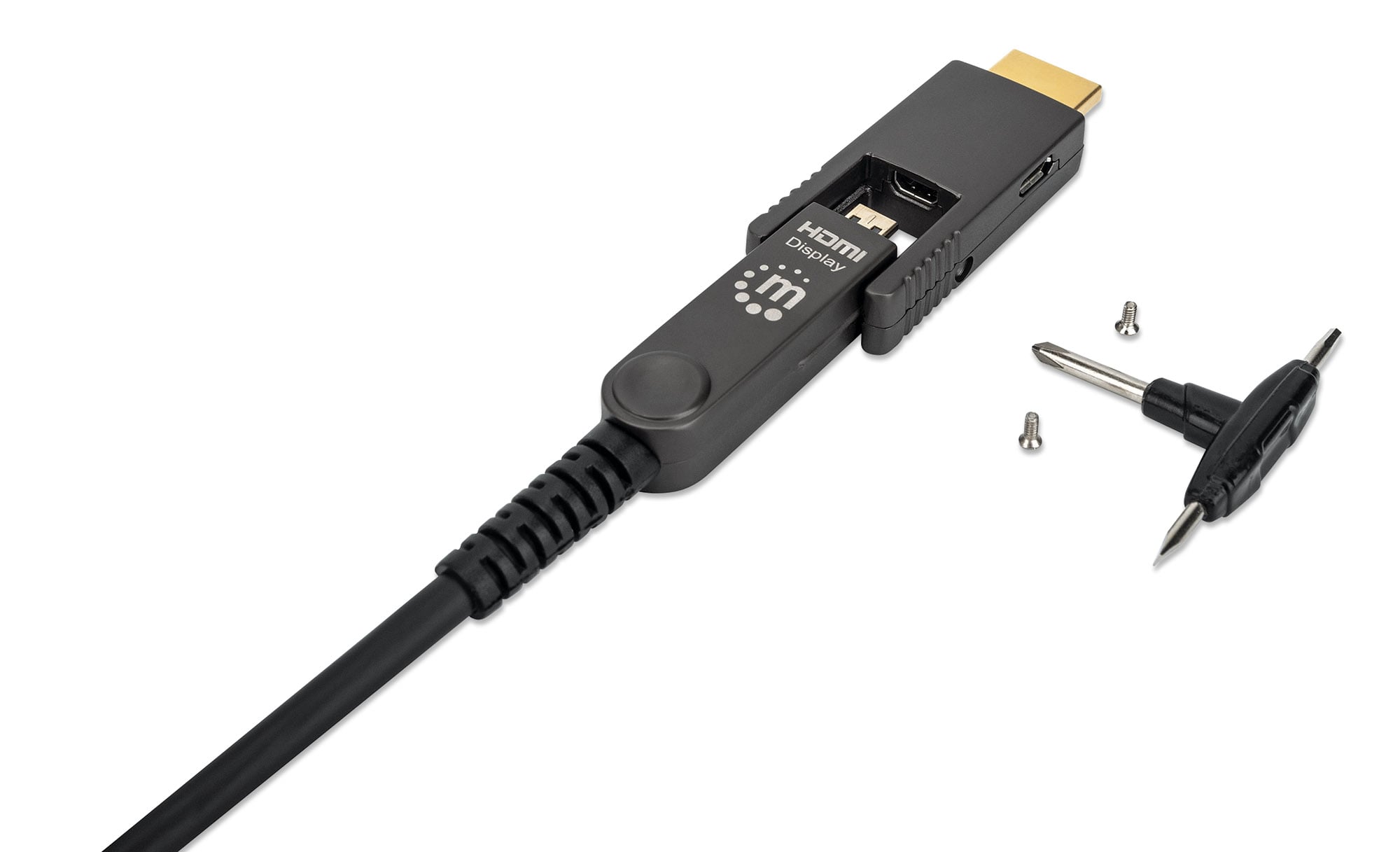

  • A Micro HDMI male with 19 pin, type D (with male HDMI adapter to 19 pin removable, type A)

  • Micro-B USB input: DC 5 V (optional)

  • Golden Contacts

  • Zinc die-cast connectors



Cable:

  • 28 AWG cable

  • OD: 4.5 mm, ± 0.2 mm

  • Bending radius: 20 mm

  • Fiber shooting/traction resistance: 25 kg (250 N)



Environmental features

  • Operating temperature: 0 to 75 ° C

  • Storage temperature: - 20 to 70 ° C

  • Humidità (without condensation): 10 to 85 %



Package contents

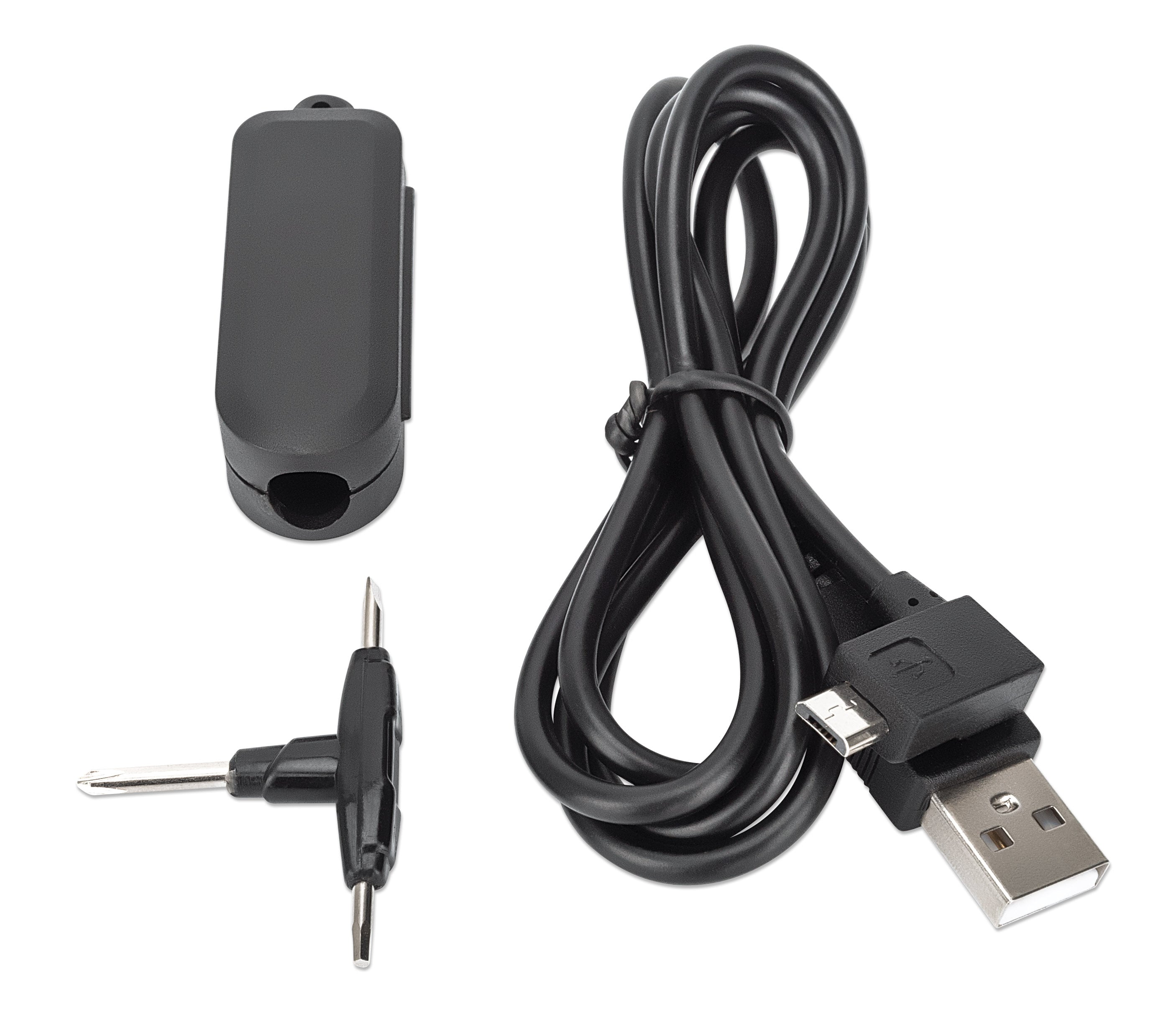

  • High-speed active optical cable; from HDMI to micro HDMI with HDMI adapter

  • Power cable from USB Micro-B male to USB-A male, 0,7 m (2,3 feet)

  • Brand
  • Reference
    ICOC HDMI-AOC-070
  • In stock
    18 Items
  • EAN13
    0766623355544
