FTTH Indoor Junction Box IP20 4x SC/LC Duplex 80x80 with Heat Shrink Cable Gland - OEM I-CASE FTTH7

€6.21
Tax included €5.10 excl. VAT

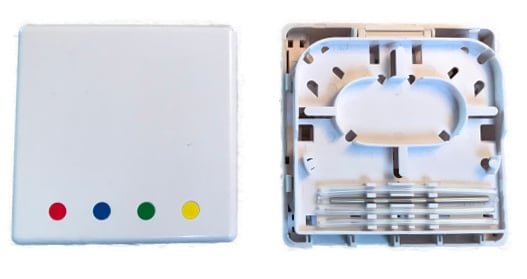

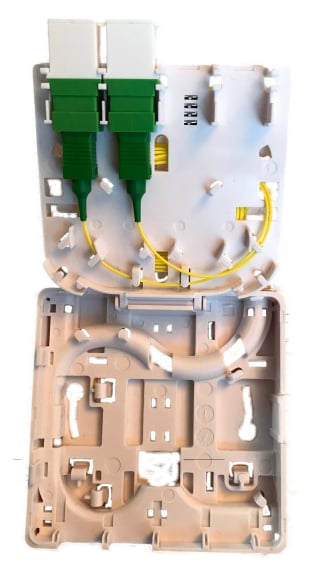

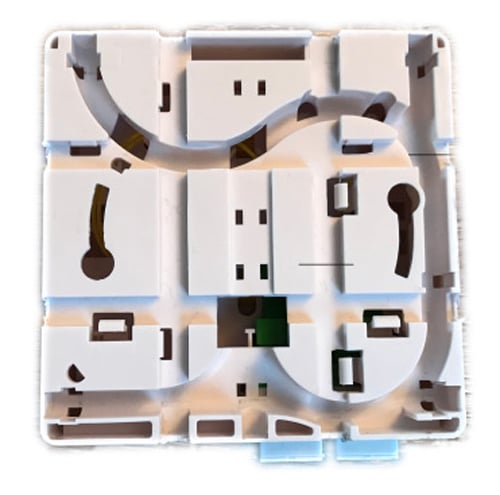

FTTH indoor junction box, IP rating 20, dimensions 80x80 mm. Supports up to 4 SC Simplex or LC Duplex adapters, wall-mount or DIN rail. Version with heat shrink splice protection.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Suitable for drop cable to be spliced inside the box with pigtail

  • Allows installation of pre-terminated drop cables of different lengths with LC and SC connectors; in this application no splicing process will be necessary.

  • The box supports 1/2/4F SC or 2/4F LC Duplex connections

  • Can be mounted on DIN rail or on wall with screw fixing

  • The splice tray is designed for buffer splice from 0,9 mm (sleeves of 40 * 1,2 mm)

  • It can connect drop cables between 2,0 mm and 5,0 mm



Technical specifications

  • Field of application: indoor

  • Mounting type: wall or DIN rail mounting

  • Material: plastic

  • Color: white

  • Cable entry without cable gland: 5 x 5 mm

  • Number of fibers: 4

  • Splice protection type: heat shrink

  • Suitable for SC Simplex / LC Duplex / E2000® adapter

  • Maximum number of adapters: 4

  • With extra length fiber cassette

  • Hinged splice tray

  • Cable sheath support

  • Degree of protection IP20



Dimensions

  • Width: 80 mm

  • Depth: 80 mm

  • Height: 28 mm



Package contents

  • Fiber optic connection box for 4 SC or LC Duplex adapters

  • Brand
  • Reference
    I-CASE FTTH7
  • In stock
    48 Items
  • EAN13
    4049759256623
