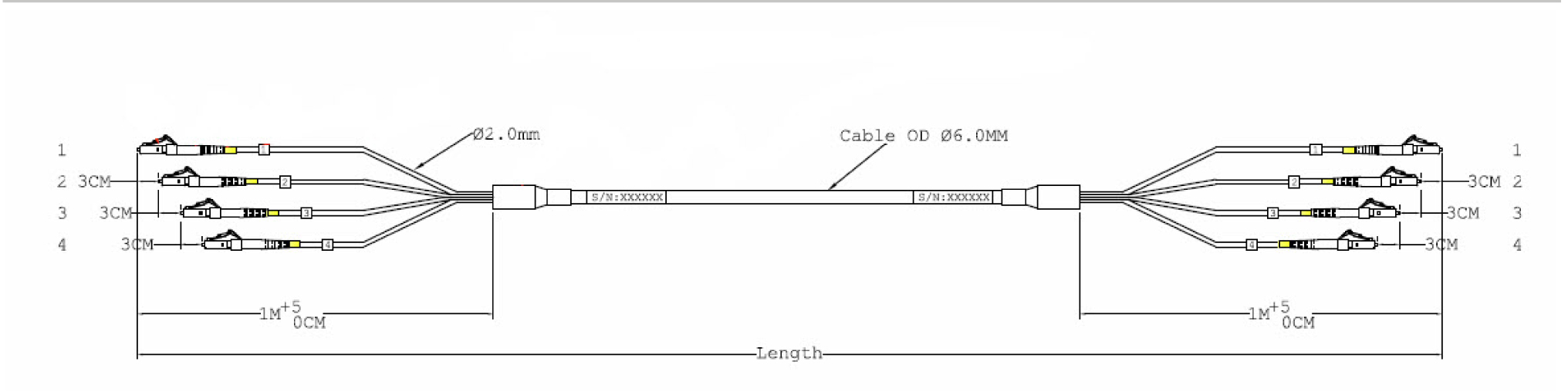

Fiber optic cable multimodal trunk 50 / 125 4 fibers OM 3 Dca LC/LC 100 m - ICOC FO- 4 - 100 LC-OM 3 T

• Fiber optic cable Loose Dielectric with glass yarn armor and sheath LSZH Multimodale 50 / 125 OM 3 pre-assembled


• Fiber Type: Multimodal 50 / 125


• Category: OM 3
• CPR class: Dca
• Fiber optimized for fold OM 3 sec. according to IEC 60793 - 2 - 10 type A 1 a. 2 and A 1 a. 3


• Number of fibres: 4


• Type of connector connection 1 : 4 x LC beige


• Type of connector connection 2 : 4 x LC beige


• Length: 100 m



• Maximum voltage: 200 N


• Minimum radius of curvature (static): 90 mm


• Minimum radius of curvature (dynamic): 180 mm


• Type of cable: U-DQ (ZN) BH


• Cable construction: multifibre


• Cable diameter: 6,0 mm


• Outer sheath color: black


• Sheath material: LSZH


• Cable divider dimensions: 11,5 x 50 mm



• Operating temperature: 0 – 50 °C


• Storage temperature: - 20 – 70 °C



Transmission characteristics

• Insertion loss 850 nm: < 0,3 dB


• Multimodal quality class: A/ 1 according to IEC- 61753 - 222 - 2



• IEC 61754 - 20 standard connector


• Standard Cable: IEC 60793 - 2
