Server Rack Cabinet 19" 600x1000 32U Black Evolution Series - Techly Professional I-CASE EV-3261B

Solid floor-standing rack cabinet characterized by a robust structure and manufacturing meeting high quality standards. The strength of the structure combines with a unique and innovative design, studied in every detail to guarantee maximum versatility, as well as ease and practicality of installation. Quick-release hinges, key locks on panels, reversible door, removable side and rear panels, double pair of numbered mounting rails, provision for cable routing, bottom with sliding plate, roof with a special pagoda structure to promote air circulation: these are among the main features of the Evolution series. A system of brackets sold separately makes the cabinet usable in every space, allowing equipment to be installed also laterally, thus fully exploiting the internal space that would remain unused in the case of shallow devices. Furthermore, the increased depth allows housing and protection of all major types of servers on the market. Finally, thanks to the wide range of accessories offered, these cabinets are able to meet all installation needs.



Features

• Panels and door easily removable to facilitate equipment installation

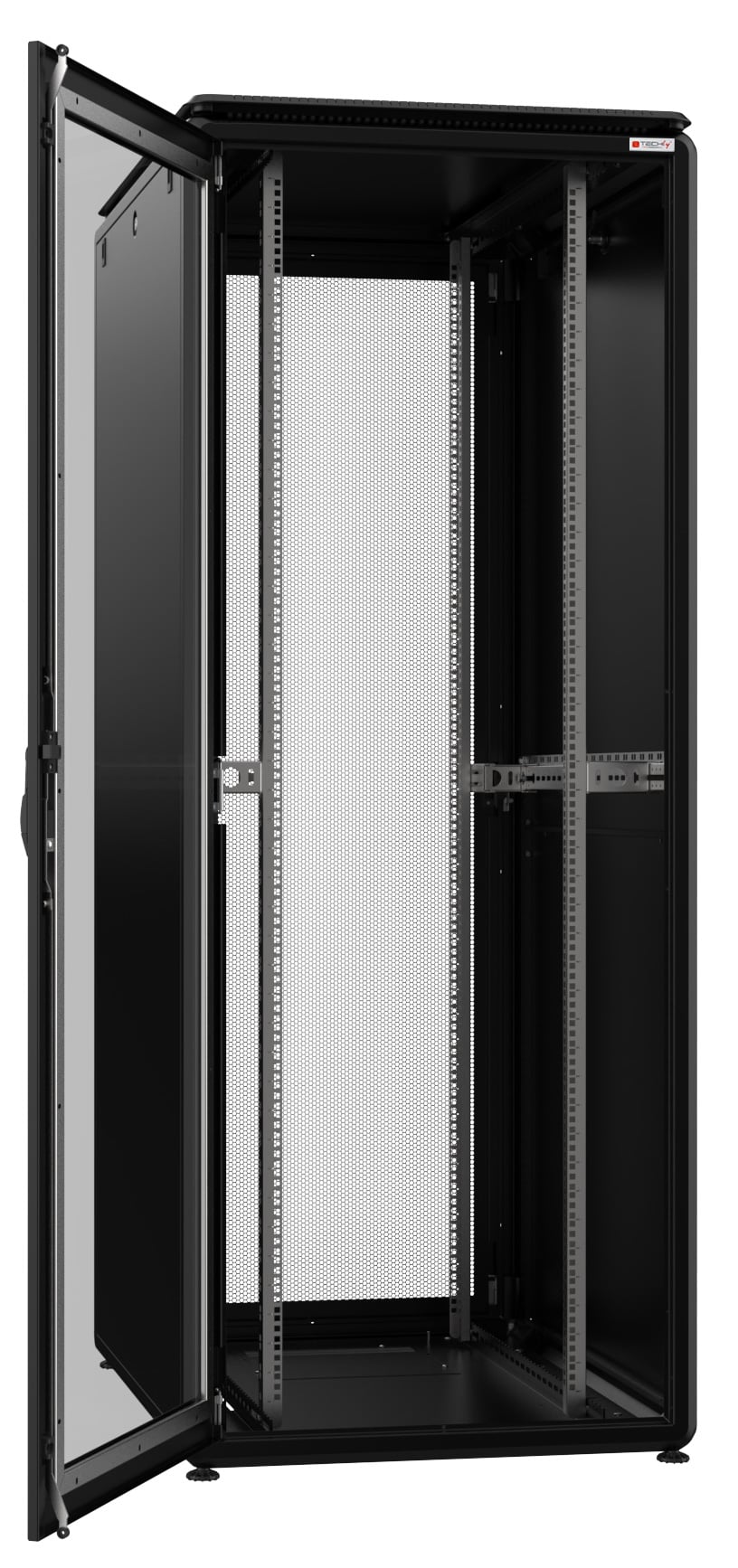

• Reversible front door with tempered glass conforming to standard EN UNI 12150-1, with quick-release hinges and handle with key lock


• Removable two-section blind side panels with key lock

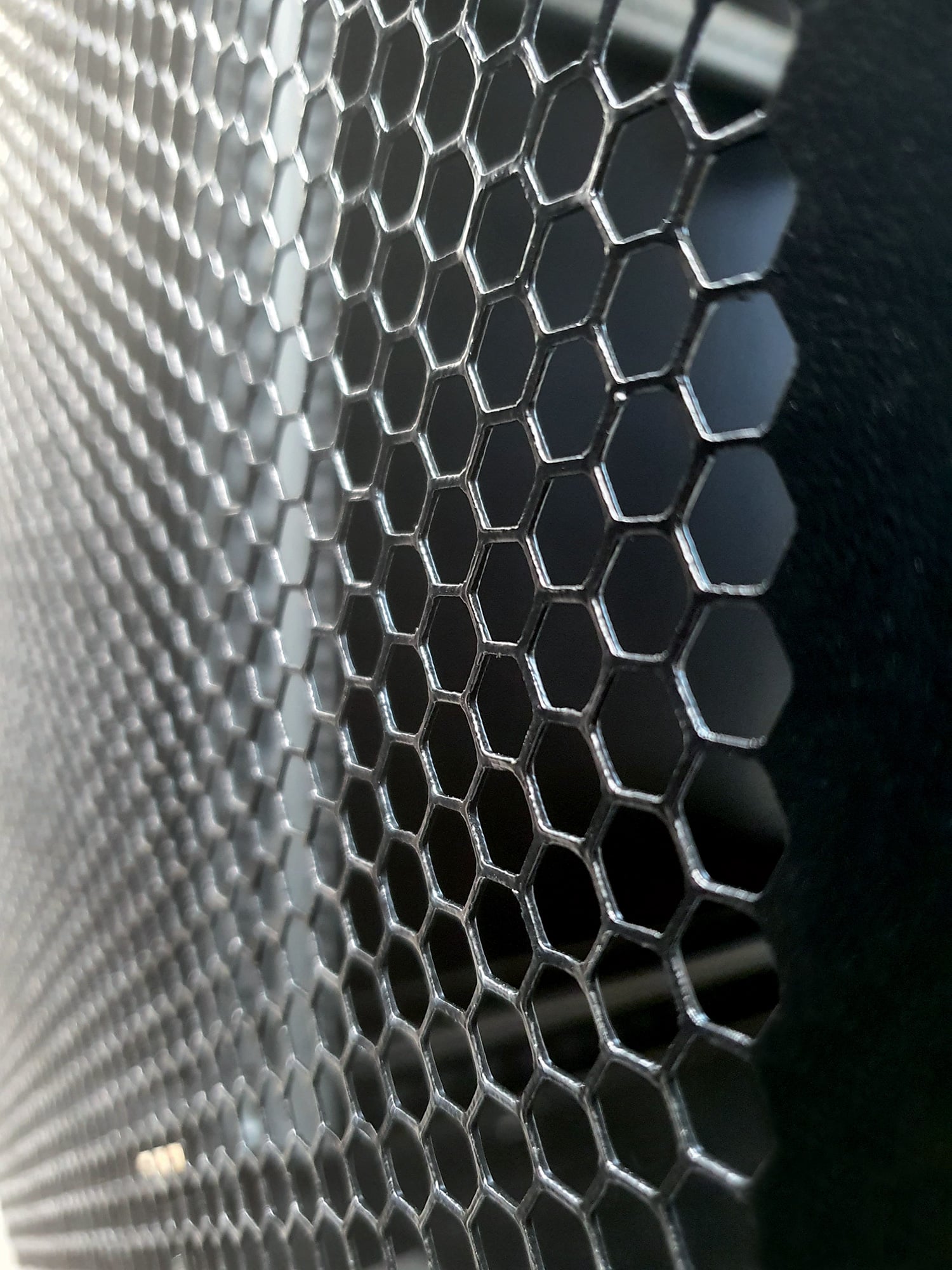

• Rear door perforated at 63%, removable with key lock

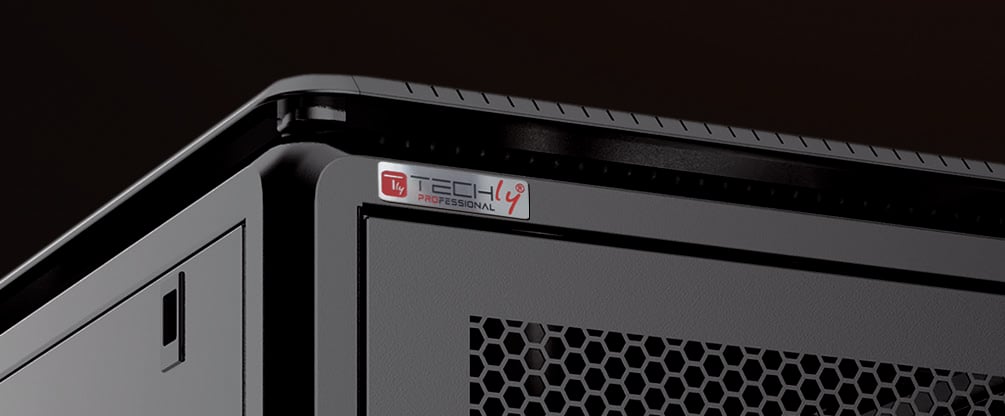

• Special pagoda roof installed 10 mm from the cabinet structure to facilitate passive ventilation if no ventilation units are present, or active ventilation if ventilation units are installed on the roof


• Bottom prepared for cable entry and equipped with a sliding panel (300x250 mm) which, when closed, allows placing devices such as UPS, when open, promotes ventilation

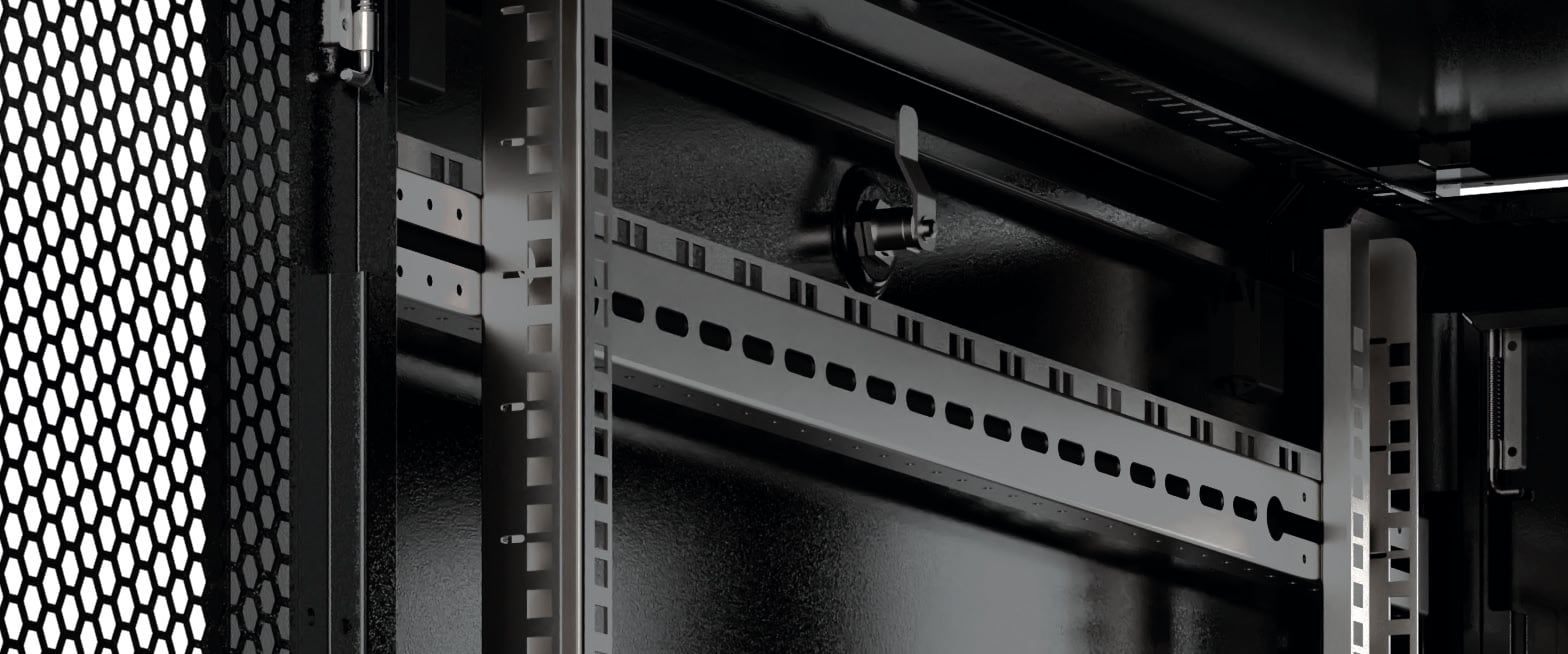

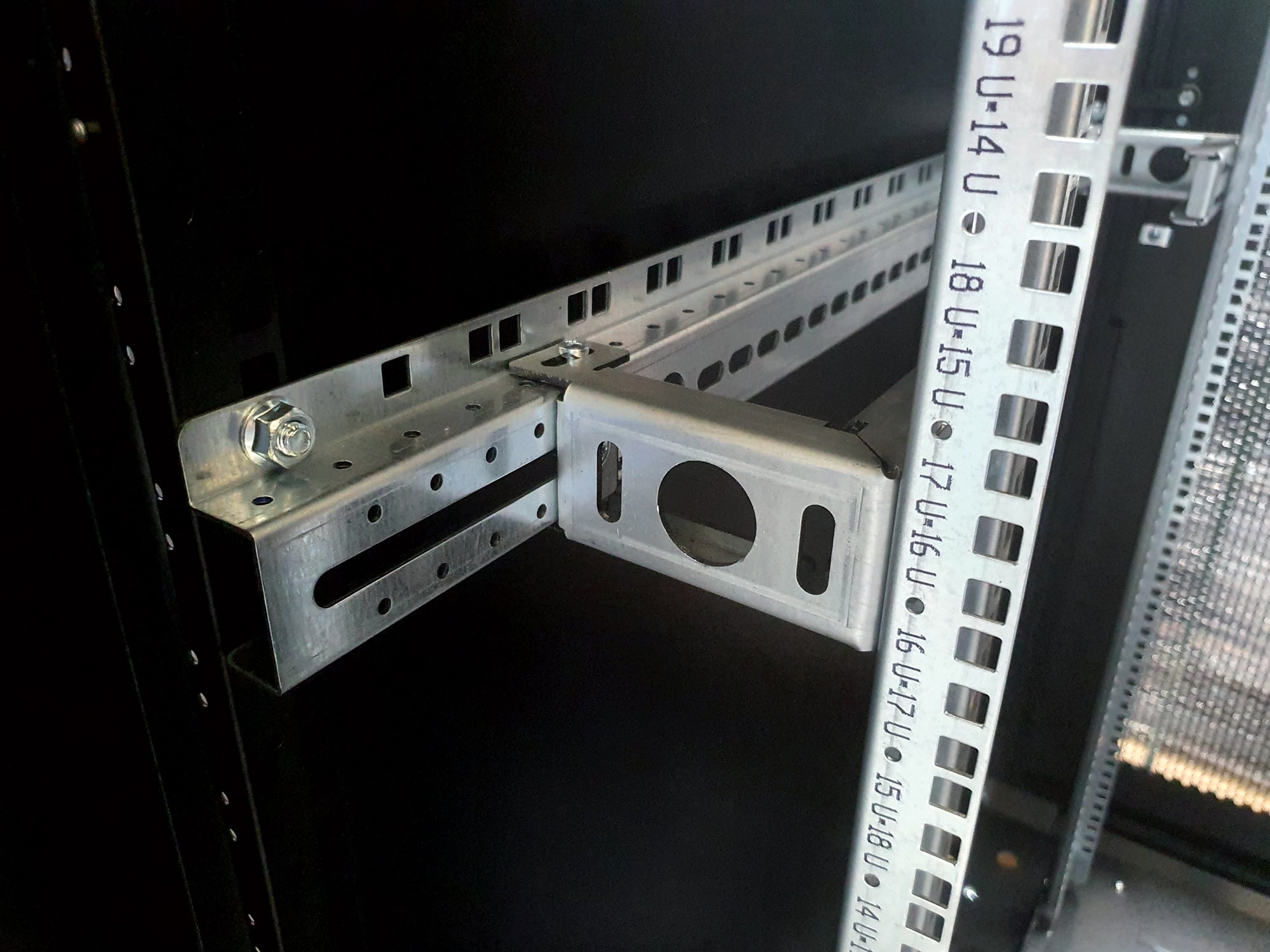

• Supplied with a pair of numbered 19” front and rear mounting rails adjustable in depth


• Supplied with feet


• Static load capacity 2000 kg


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 1608 x 600 x 1000 mm



Certifications

• CE certification according to EN 62208


• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN60529; EN12150-1; RoHS II 2001/65/EU
