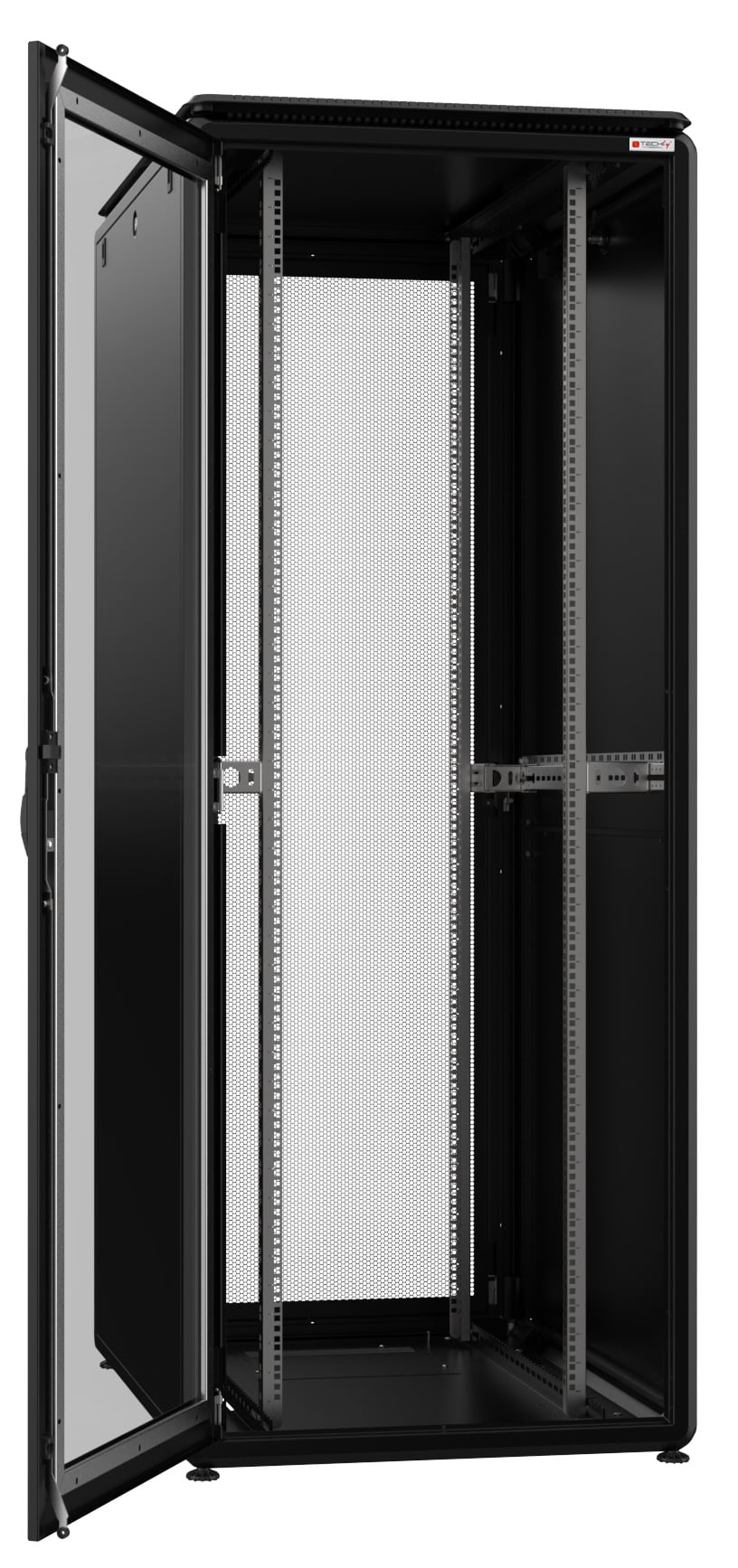

Server Rack Cabinet 19" 800x1000 26U Black Evolution Series - Techly Professional I-CASE EV-2681B

Solid floor-standing rack cabinet characterized by a robust structure and manufacturing that meets high quality standards. The robustness of the structure is combined with a unique and innovative design, studied in every detail to ensure maximum versatility, as well as ease and practicality of installation. Quick-release hinges, key locks on panels, reversible door, removable side and rear panels, double pair of numbered mounting rails, cable management provision, base with sliding plate, roof with a special pagoda structure to promote air circulation: these are among the main features of the Evolution series. A system of separately purchasable brackets makes the cabinet usable in every space, allowing equipment to also be installed laterally, thus fully exploiting the internal space that would remain unused in the case of shallow devices. Furthermore, the increased depth allows housing and protection of all major types of servers on the market. Finally, thanks to the wide range of accessories offered, these cabinets are able to satisfy all installation needs.



Features

• Panels and door easily removable to facilitate equipment installation


• Reversible front door with tempered glass compliant with EN UNI 12150-1 standard, with quick-release hinges and key lock handle


• Removable solid side panels with key lock

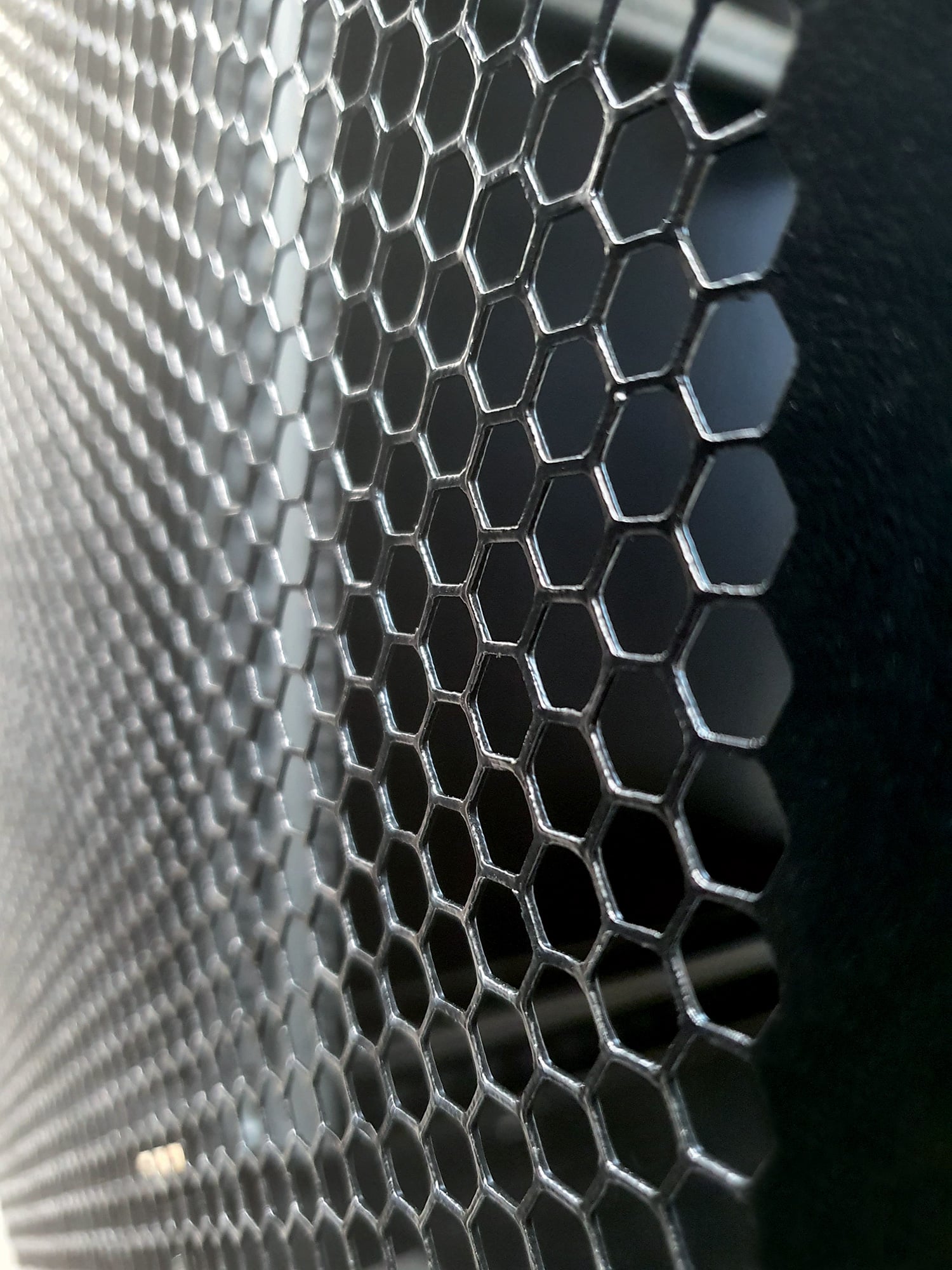

• Rear door perforated 63% removable with key lock

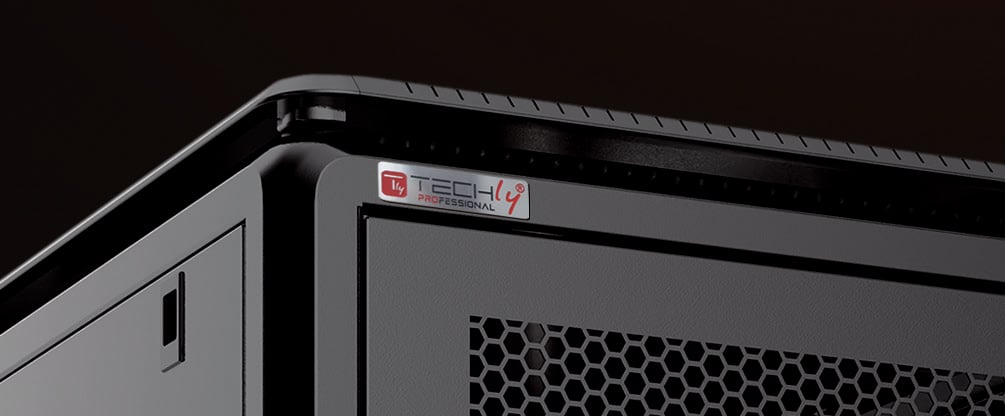

• Special pagoda roof installed 10mm from the cabinet structure to facilitate passive ventilation if there are no ventilation units or active ventilation in case of ventilation units installed on the roof; two cable entries positioned on the left and right side of the roof complete with brushes


• Base prepared for cable entry and equipped with a sliding door (300x250 mm) which when closed allows placing equipment like UPS, when open promotes ventilation; on the sides of the sliding panel two additional cable entries with brush positioned on the right and left side of the base (70x300 mm)

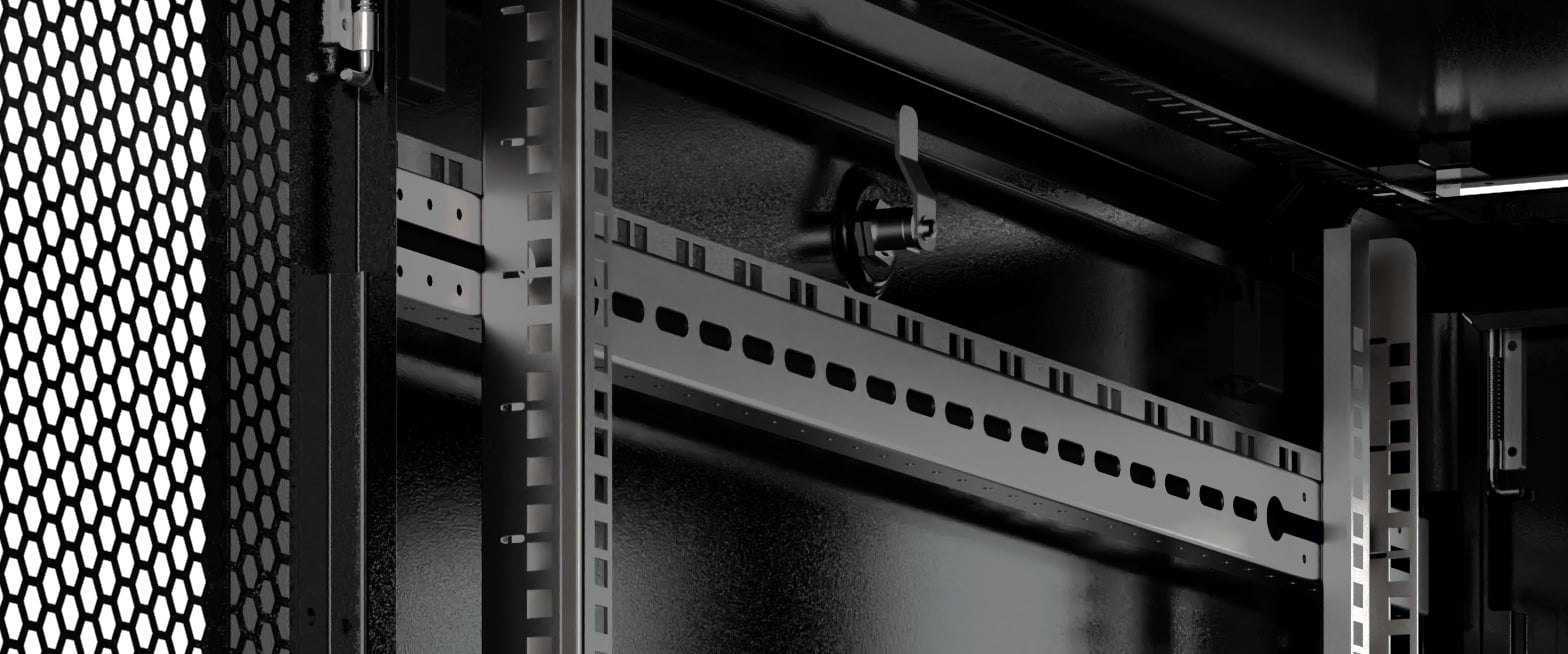

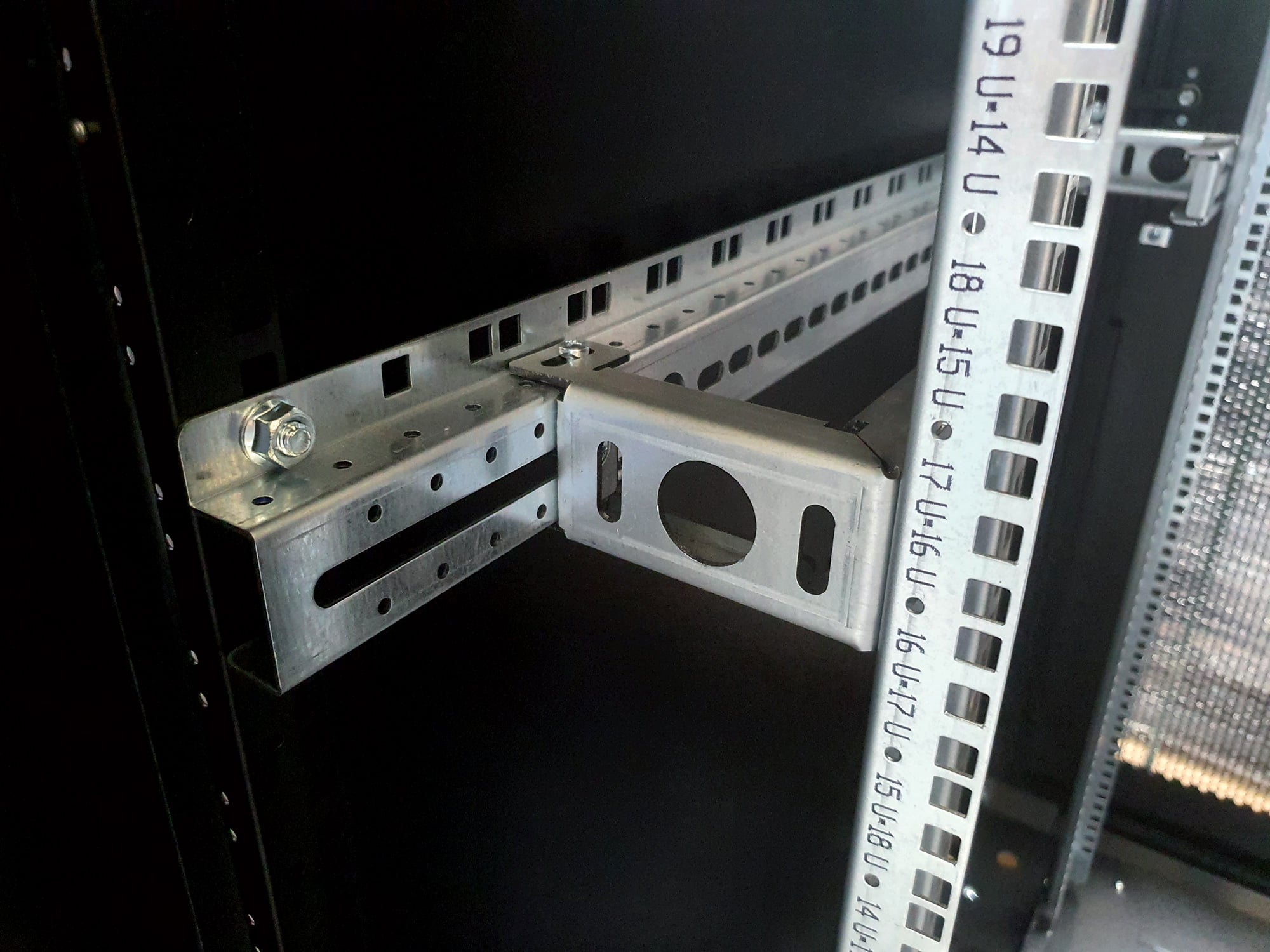

• Complete with a pair of numbered 19" front and rear mounting rails adjustable in depth


• Complete with leveling feet


• Static load capacity 2000 kg


• Protection degree IP20 according to EN 60529 standard


• Color: RAL9005 (Black)


• External dimensions: (A x L x P) 1342 x 800 x 1000 mm



Certifications

• CE certification according to EN 62208 standard


• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN60529; EN12150-1; RoHS II 2001/65/EU
