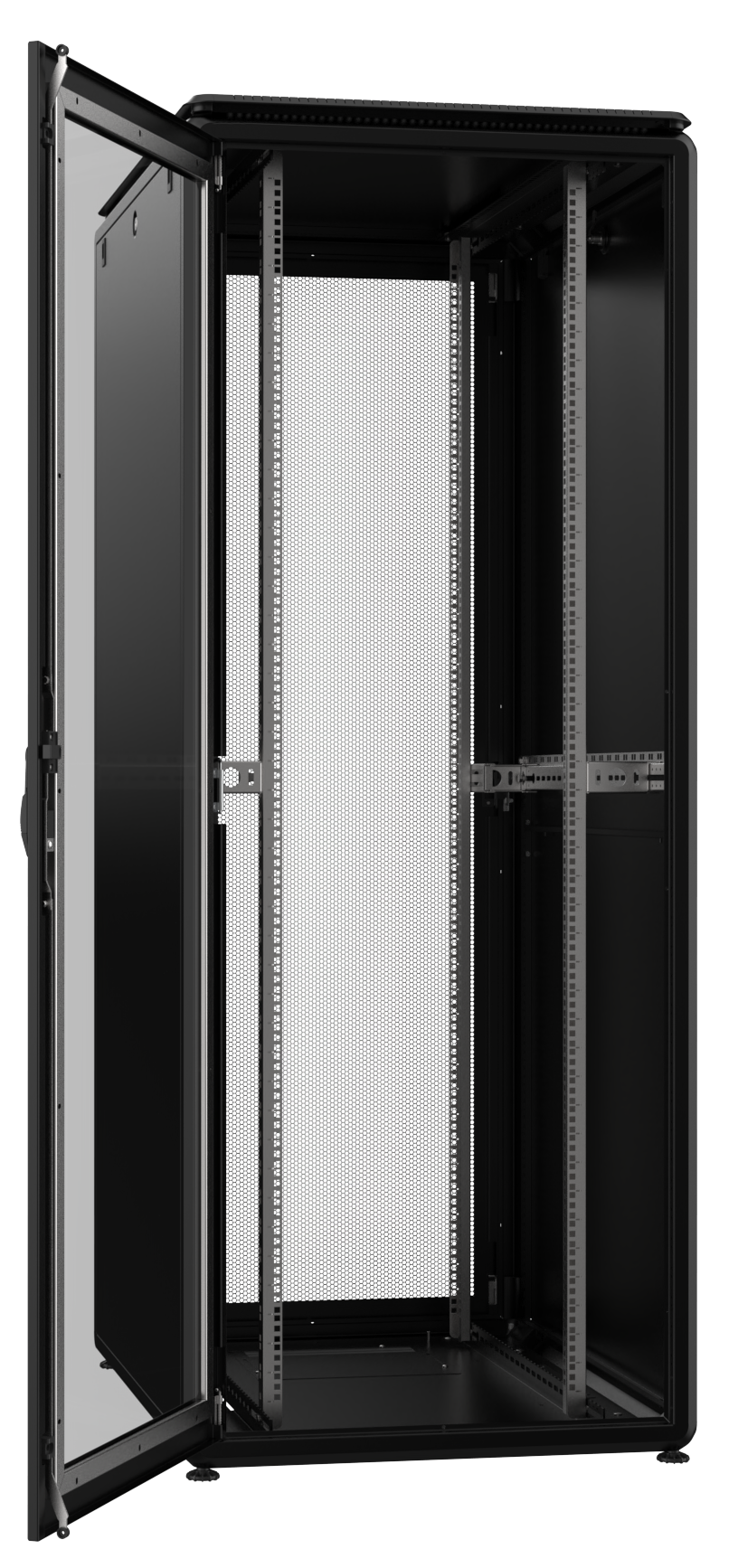

Server Rack Cabinet 19" 800x1000 32 Units Black Evolution Series - Techly Professional I-CASE EV-3281B

Solid floor-standing rack cabinet characterized by a robust structure with mounting rails 19” of 2mm thickness and innovative angle brackets of 3mm thickness and reinforced base. The strength of the structure combines with the innovative and modern design, which does not neglect practicality in installation. In fact, using a simple key, the cabinet can be easily assembled and disassembled, thus allowing a quick installation. This speed of assembly is guaranteed by the quick-release hinges on the front door and the key locks on the panels. Other fundamental features such as the reversible door, removable side and rear panels, the double pair of numbered mounting rails, the bottom that can be kept either closed or open to promote air circulation, together with the wide range of accessories offered, make these cabinets able to meet all installation needs. Furthermore, thanks to the increased depth, they allow the housing and protection of all major types of servers on the market.



Features

• Panels and door easily removable to facilitate equipment installation


• Reversible front door with tempered glass conforming to standard EN UNI 12150-1, with quick-release hinges and handle with key lock


• Removable two-section blind side panels with key lock

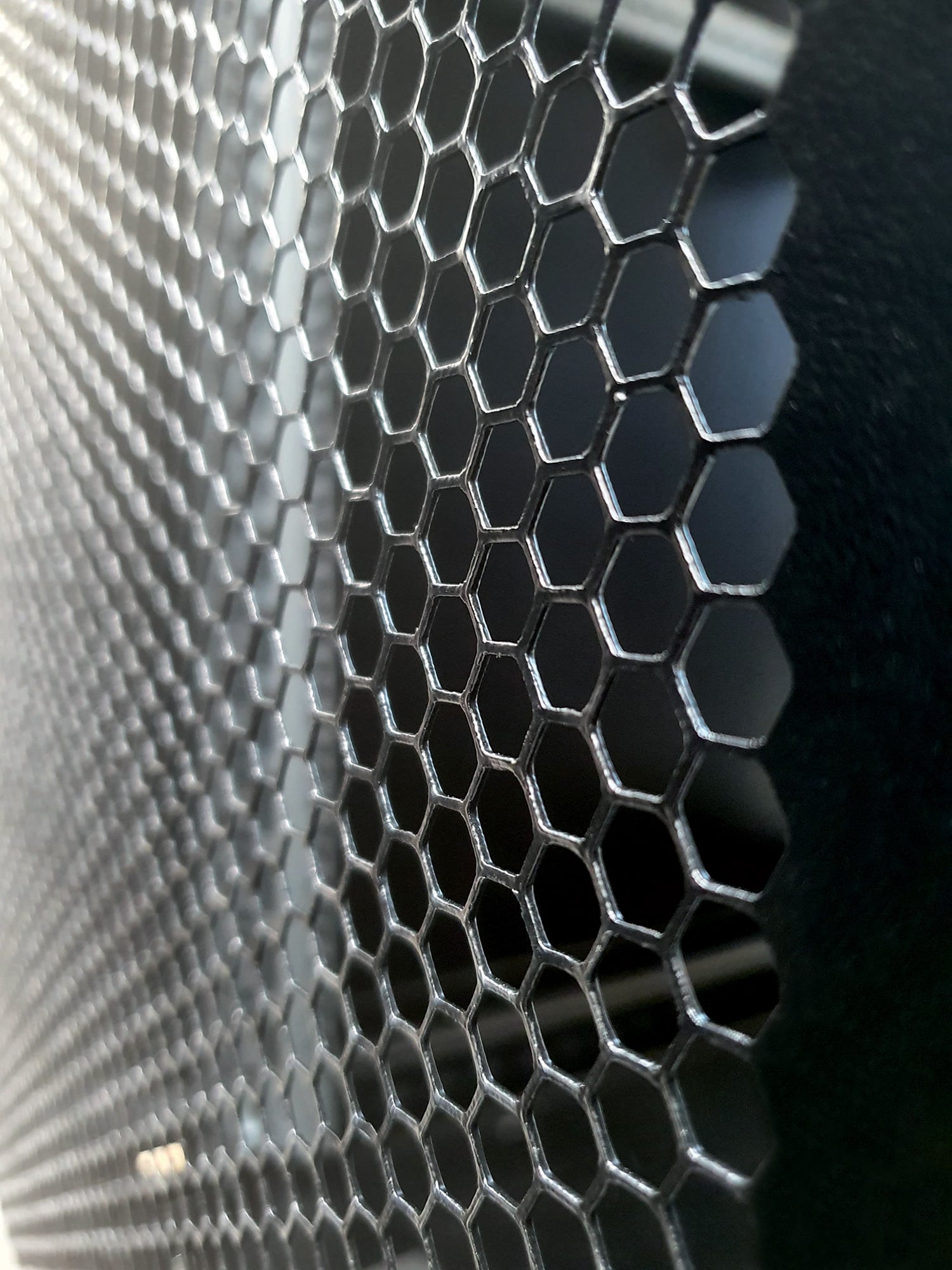

• Rear door perforated at 80% removable


• Special pagoda roof installed 10mm from the cabinet structure to facilitate passive ventilation if there are no ventilation units or active ventilation in case of ventilation units installed on the roof; two cable entries located on the left and right sides of the roof complete with brushes


• Base prepared for cable entry and equipped with a sliding hatch (300x250 mm) which, when closed, allows placing devices like UPS, and when open, promotes ventilation; on the sides of the sliding panel, two additional cable entries with brush positioned on the right and left sides of the base (70x300 mm)

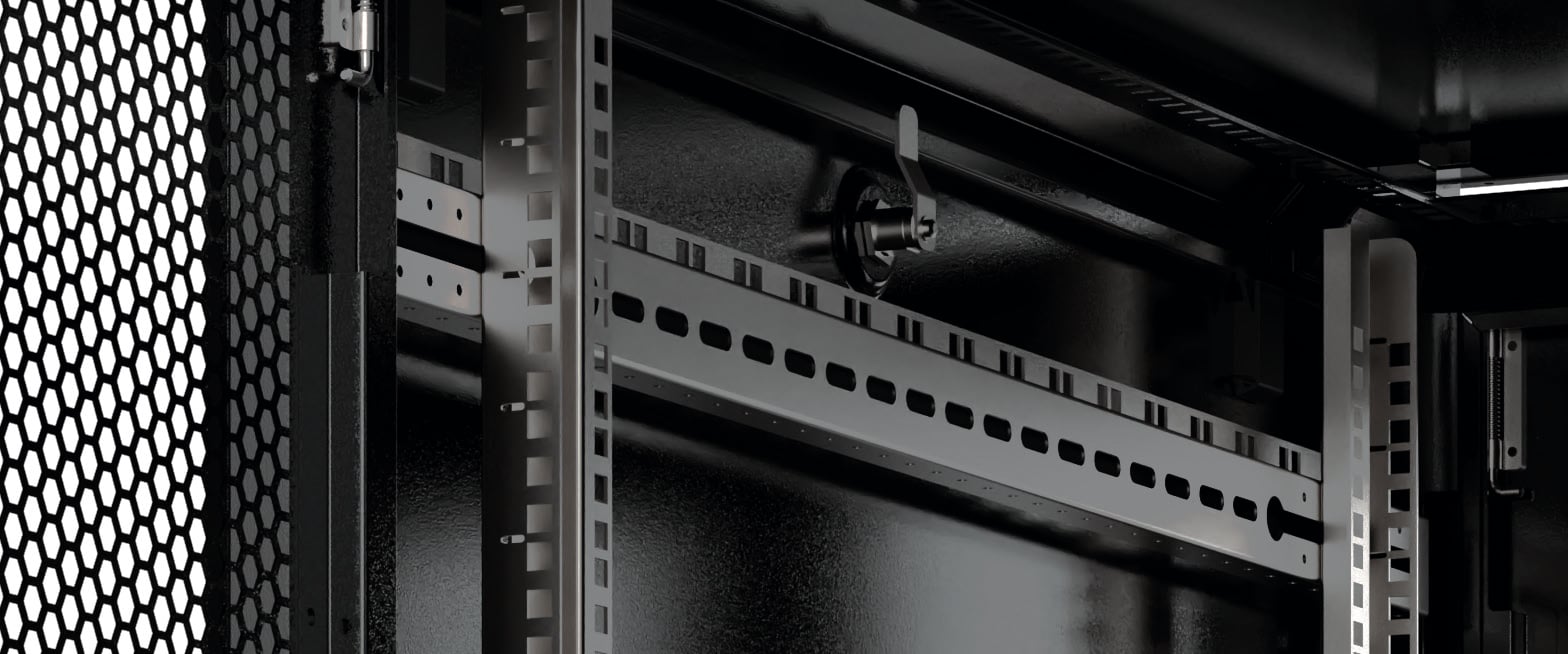

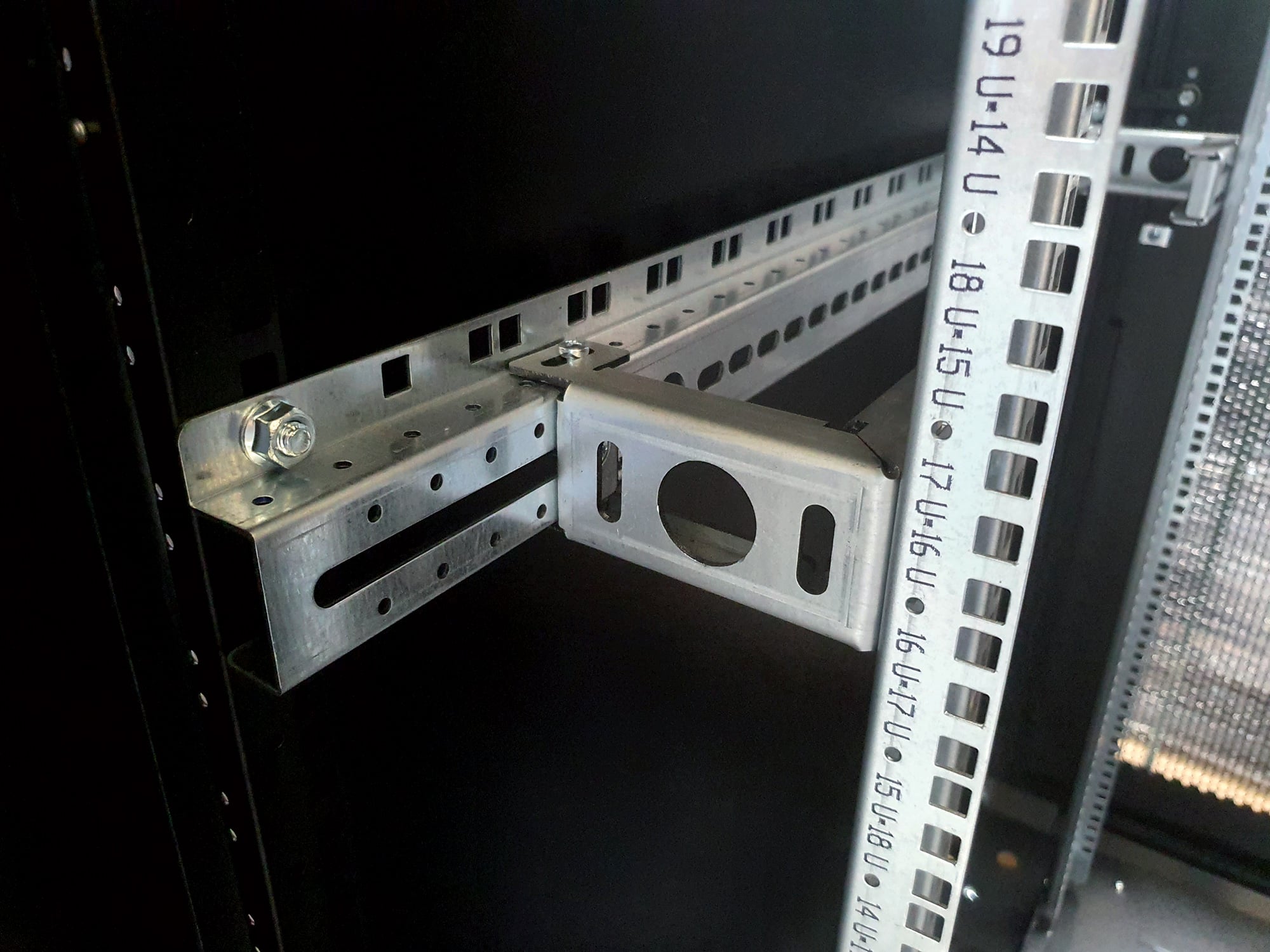

• Supplied with a pair of numbered 19” front and rear mounting rails adjustable in depth


• Supplied with feet


• Static load capacity 2000 kg


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 1608 x 800 x 1000 mm



Certifications

• CE certification according to EN 62208


• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN60529; EN12150-1; RoHS II 2001/65/EU
