Security Box for DVR and Video Surveillance with Screen Window - Techly Professional ICRLIM 08 W 2 S

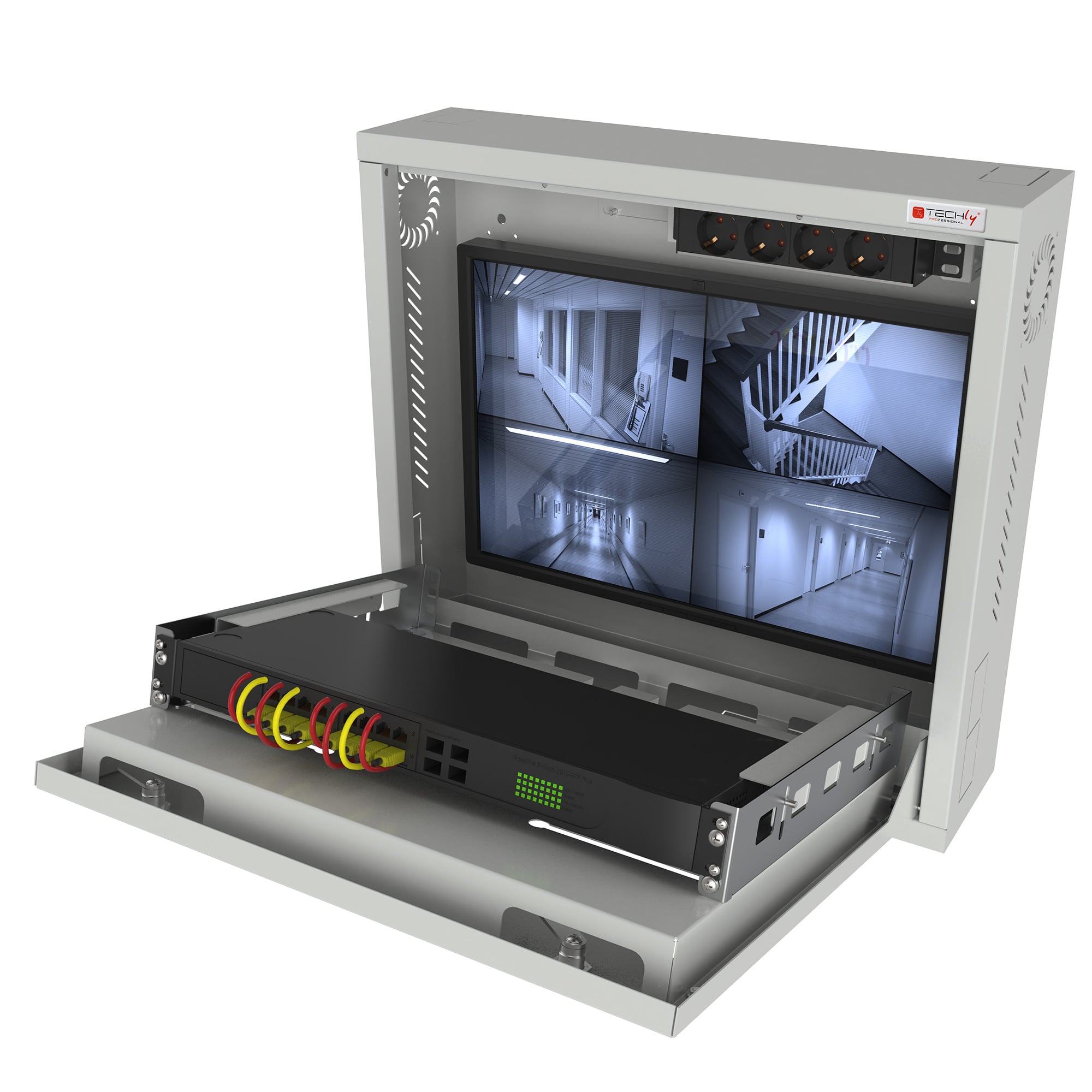

The ICRLIM 08 W 2 S è cabinet designed to secure your video surveillance system from unauthorized access; in fact, it allows to house inside a video recorder and monitor, but also small switches thanks to the 1 U bracket with 19 holes provided.

It is equipped with a practical window for the screen. The box è also equipped with a double lock with different keys to ensure greater protection. The presence on all sides of the box of slits guarantees the internal circulation of the air; the heat dissipation can ò also be enhanced with the installation of two fans on the sides, thanks to the predispositions provided. The sides also have pre-cut profiles to facilitate the passage of the cables; inside è provided the housing of a multistake from 10



Features

• Metal cabinet for video surveillance with door with double lock key (different keys), with window for the screen


• L bracket for fixing equipment not equipped with 19 connection (with minimum height 1 cm and maximum 5 cm)


• Wings for fixing a 10 multi-spoke (guides adjustable in width from 25.7 cm to 34.2 cm); we recommend the purchase of the I-CASE M 10 multi-spoke - 4


• Sides equipped with slitholes for passive dissipation; on the upper part predisposition for fixing a fan to increase the flow of air; pre-cut profiles for the passage of the cables at the bottom of the side (size 13 x 4 cm)


• Roof equipped with heat exchange slits and two pre-cut profiles for cable passage (dimensions 6.5 x 4 cm)


• Base provided with heat exchange slits and a pre-cut profile for cable passage (size 6.5 x 4 cm)


• Bottom equipped with VESA 50 x 50 , 75 x 75 , 100 x 100 connection indicated for the installation of a monitor


• Back equipped with spacers from 11 mm for wall mounting


• Window size for screen: 440 x 270 mm

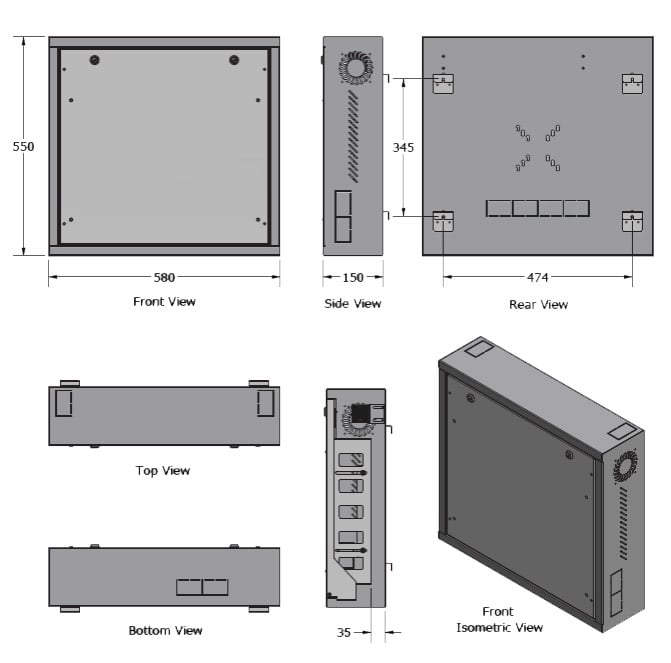

• Vertical distance between the wall attachments: 34,5 cm; horizontal distance: 47,4 cm


• External dimensions (L x H x P): 58 x 55 x 15 cm


• Color: White RAL 9010



Package size:

• White video surveillance cabinet


• Pair of brackets 19 1 U


• Two keys to lock
