Extender USB 2.0 4 Doors on Cable Cat 6 150 m - Techly IUSB-EXTEND 1504 P

€110.15
Tax included €90.30 excl. VAT

USB 2.0 High-Speed 4 port extender with transmitter and receiver. Transmission up to 150 m on Cat cable. 6 (100 m on Cat. 5 e), supports Gigabit switch cascade and speed up to 480 Mbps.



Return policy



Delivery policy



Direct contact for info



Secure Payment

USB Extender 2.0 capable of realizing an installation via a Cat.5e/6/7 network cable (in copper and of excellent quality) with a transmission distance of 100m for Cat.5e and 150m for Cat.6 and higher via dedicated switch. Supports 4 USB2.0 inputs to connect printers, cameras, scanners, USB drives, keyboards, mice, touchscreens, etc. and supports cascading gigabit switches.



Features

  • USB 2.0 High-Speed 4 port extender with transmitter and receiver

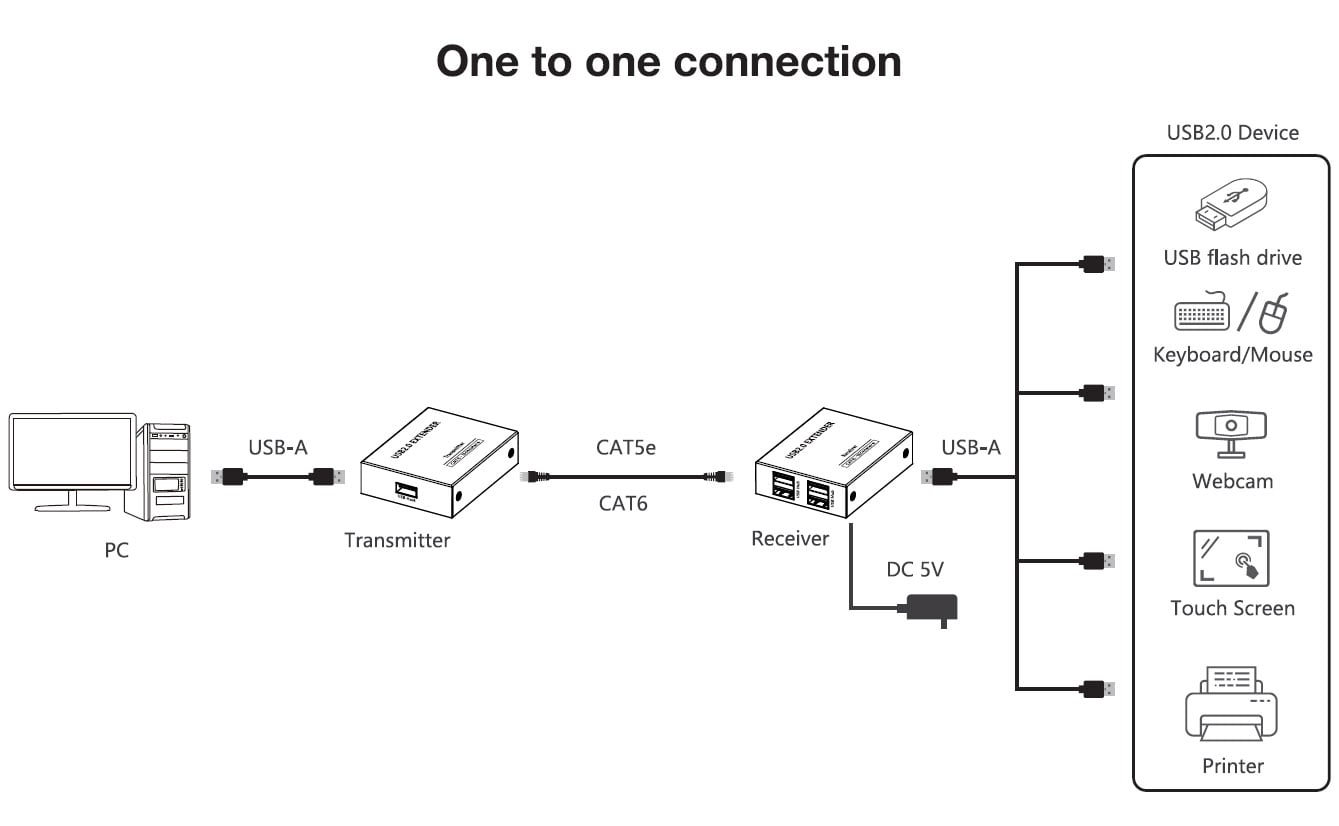

  • It allows to realize a one-to-one connection through a network cable Cat. 5 and/ 6 / 7 , with a transmission distance up to 100 m for Cat. 5 and and 150 m for Cat. 6 and higher with dedicated switch

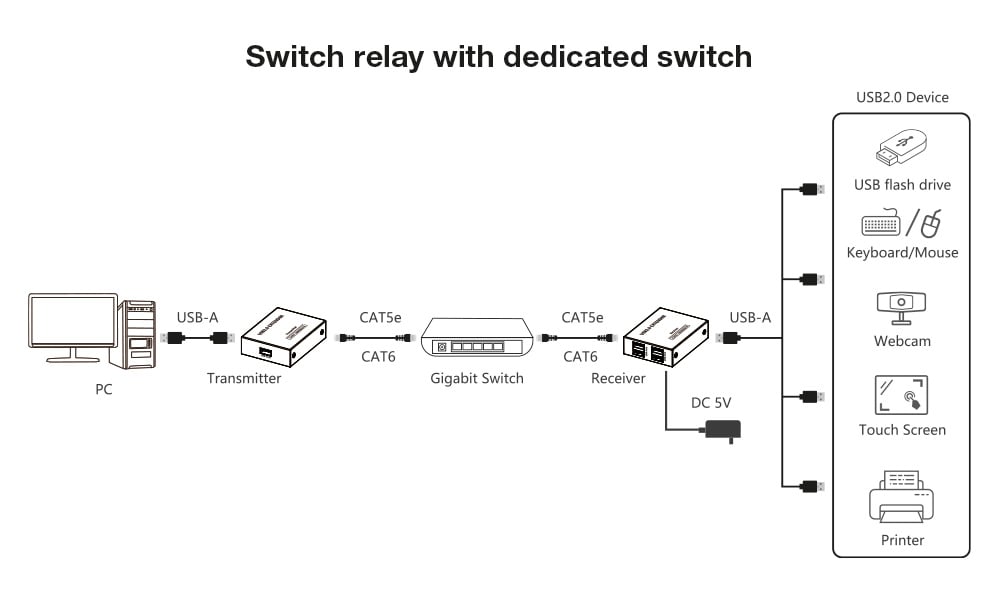

  • Supports relay switch, signal transmission distance can & grave; be increased using an independent Gigabit switch that is not connected to the network

  • Supports hot connection of USB devices and automatically identifies high-speed USBà, full speedà and low speedà

  • Supports USB 2.0 devices up to 480 Mbps; USB 1.1 /USB 1.0 compatible backword

  • Supports 4 2.0 USB inputs and 1 2.0 USB output

  • The è transmitter powered by the source device, does not require any additional power



Protection

  • Protection against lightning

  • Overload protection

  • ESD protection



Technical specifications

  • Compatibilityà: USB 2.0, USB 1.1, USB 1.0

  • Velocità transmission: compatible with High-Speed (480 Mbps), Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps)

  • Transmission distance: CAT 5 E≤ 100 m; CAT 6 / 6 A/ 7 ≤ 150 m with dedicated switch

  • Supported USB Hot-Plug

  • Connections: 4 USB-A ports in input; 1 USB-A port in output

  • Standard: Cat. 5 e/ 6 / 6 A/ 7 standard EIA/TIA 568 B

  • Power supply: TX: Powered by the source; RX: DC 5 V/ 1 A

  • Consumption: TX ≤ 2 W; RX≤ 2 W



Operating systems

  • Windows

  • Mac OS

  • Linux

  • Android



Dimensions

  • Width: 76 mm

  • Depthà: 60 mm

  • Height: 21 mm

  • Weight: TX 123 g; RX 128 g



Environmental features

  • Operating temperature: from - 20 ° ~ 60 °C

  • Storage temperature: from - 30 ° ~ 70 °C

  • Humidità: 0 ~ 90 % (without condensation)



Certifications

  • CE

  • FCC

  • RoHS



Package contents

  • 1 x Transmitter

  • 1 x Receiver

  • 1 x DC power supply 5 V/ 1 A

  • 1 x USB cable

  • 1x User manual

  • Brand
  • Reference
    IUSB-EXTEND1504P
  • In stock
    89 Items
  • EAN13
    8059018365580
