Wall-Mount Cabinet 19" Open Frame 2 Flat Pack Mounting Rails 15U - Intellinet I-CASE OFSW-1550FPBK

€163.02
Tax included €133.60 excl. VAT

Wall-mount cabinet 19" Open Frame 2 mounting rails Flat Pack 15U. carico massimo 30 kg (closed frame), usable depth 400 mm. Compliant with IEC 60297 / EIA 310, shipped in mounting kit.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Open frame for easy access to equipment from any side for maximum air exchange and efficient heat dissipation

  • Front hinge design allowing the frame to open for even easier access to panels

  • Wall-mountable for network installations with limited floor space

  • Simple and economical solution; great for testing IT equipment and for use in secure environments that do not require a cabinet with a lock

  • Robust structure in di alta qualità cold-rolled SPCC steel with antistatic powder coating

  • Two posts with front mounting rails and and reversible frame

  • Maximum supported load capacity of 30 kg with frame closed or 10 kg with frame open

  • Maximum usable depth: 400 mm

  • Compliant with IEC 60297 / EIA 310; compatible with all standard 19 inch / 482.6 mm equipment

  • Shipped as a mounting kit to save space and shipping costs

  • Includes mounting material on 19 with set of 20 cage nuts

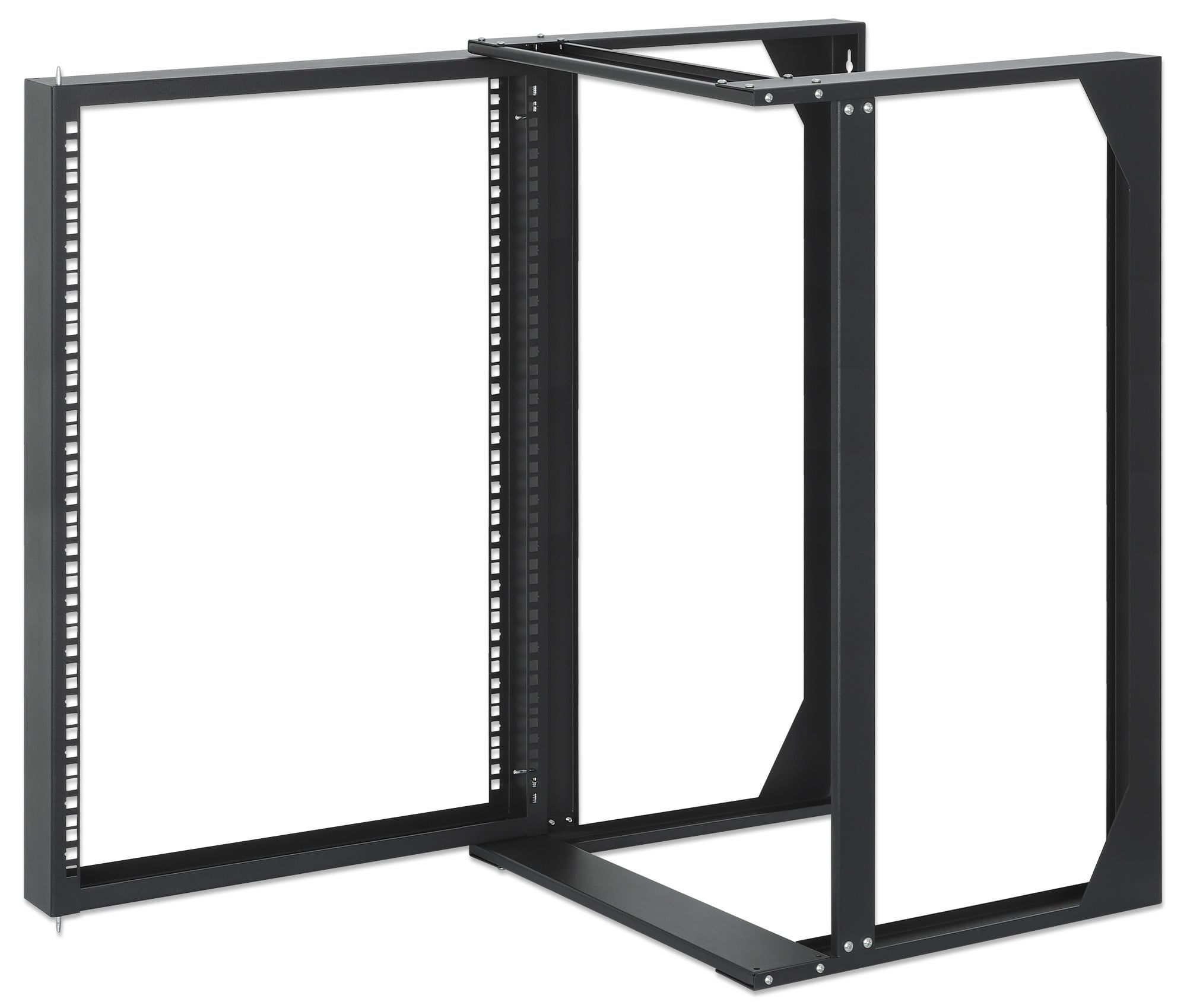

  • The frame can be opened to the left or to the right as needed



Standards and certifications

  • RoHS

  • ANSI/EIA 310-E

  • IEC 60297-3



General information

  • Dimensions (D x W x H): 450 x 500 x 760 mm; 15U

  • Maximum usable depth: 400 mm

  • Net weight: 11.1 kg

  • Gross weight: 12.7 kg

  • Maximum static load: 30 kg with frame closed or 10 kg with frame open

  • Material: verniciato a polvere steel

  • Color: black RAL 9004



Package contents

  • Wall-mount cabinet 19 open frame 2 mounting rails, 15U

  • Set of cage nuts for 19 rack equipment installation ((20 x screws #10-32 UNF, 20 x cage nuts #10-32 UNF, 20 x plastic washers)

  • Mounting material (24 self-tapping screws M4 * 8 mm, 8 x cylindrical head screws M5)

  • Mounting instructions



This product is part of a complete range, below is the full list of variants:

  • I-CASE OFSW-0660BK - 19 wall-mount open frame 4 mounting rails, 6U, Assembled

  • I-CASE OFSW-0960BK - Wall-mount cabinet 19 open frame 4 uprights, 9U, Assembled

  • I-CASE OFSW-1260BK - Wall-mount cabinet 19 open frame 4 uprights, 12U, Assembled

  • I-CASE OFSW-1560BK - Wall-mount cabinet 19 open frame 4 uprights, 15U, Assembled

  • I-CASE OFSW-0650FPBK - Wall-mount cabinet 19 open frame 2 uprights, 6U, Flat Pack

  • I-CASE OFSW-0950FPBK - Wall-mount cabinet 19 open frame 2 uprights, 9U, Flat Pack

  • I-CASE OFSW-1250FPBK - Wall-mount cabinet 19 open frame 2 uprights, 12U, Flat Pack

  • I-CASE OFSW-1550FPBK - Wall-mount cabinet 19 open frame 2 uprights, 15U, Flat Pack

  • Brand
  • Reference
    I-CASE OFSW-1550FPBK
  • In stock
    32 Items
  • EAN13
    0766623716208
