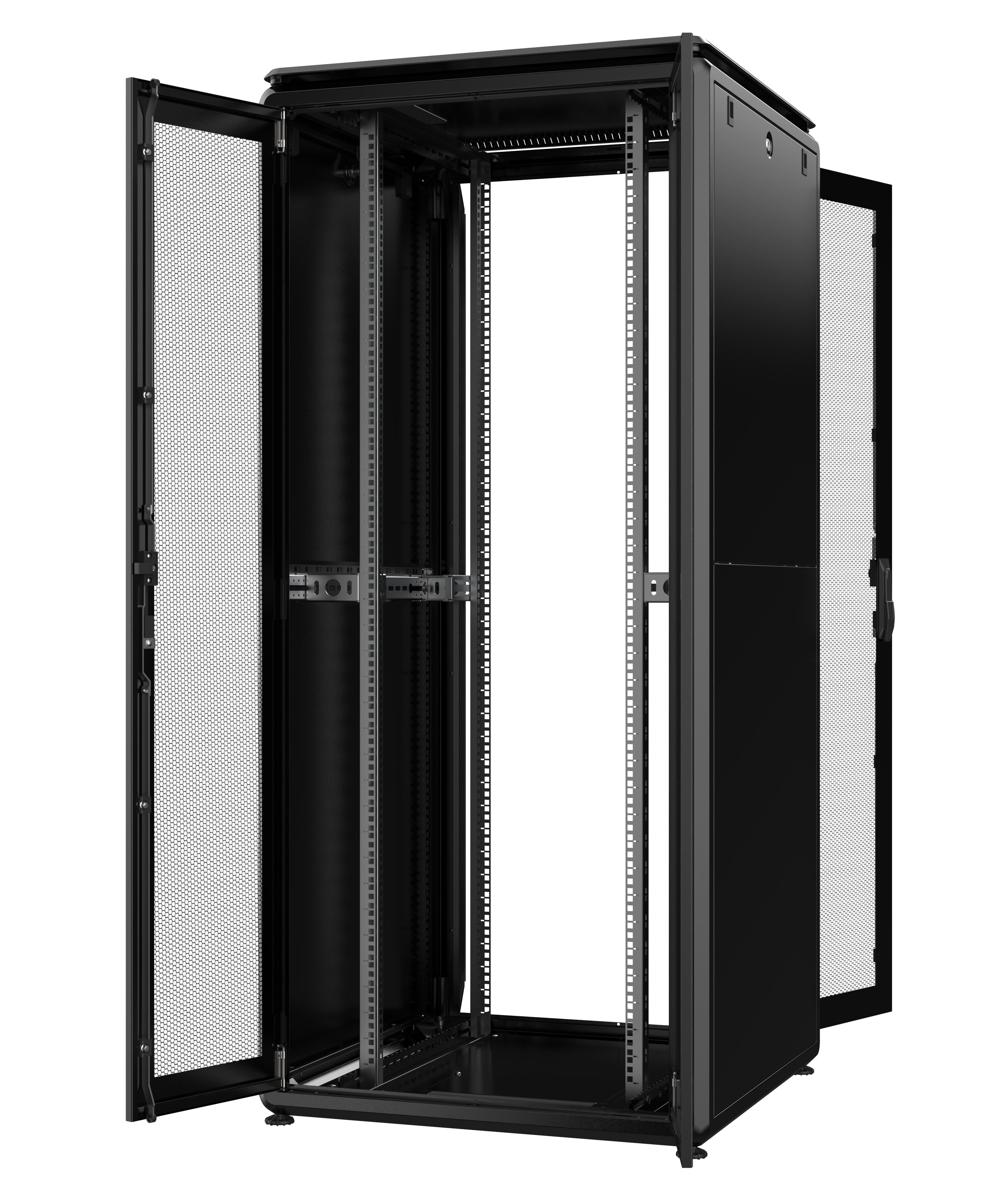

Server Rack Cabinet 19" 800x1000 42U Black Double Swing Grille Door - Techly Professional I-CASE EV-4281V2PBF

Solid floor rack cabinet characterized by a robust structure and manufacturing meeting high quality standards. The robustness of the structure combines with a unique and innovative design, studied in every detail to ensure maximum versatility, as well as ease and practicality in installation. Quick-release hinges, key locks on panels, double swing door, removable side and rear panels, double pair of numbered mounting rails, cable management provision, bottom with sliding plate, roof with special pagoda structure to promote air circulation: these are among the main features of the Evolution series. A system of brackets (sold separately) also makes the cabinet usable in any space, allowing installation of equipment even laterally, thus fully exploiting the internal space that would remain unused in the case of shallow devices. Furthermore, the increased depth allows housing and protection of all main types of servers on the market. Finally, thanks to the wide range of accessories offered, these cabinets are able to meet all installation needs.



Features

• Panels and doors easily removable to facilitate equipment installation


• Two front swing doors in metal perforated at 80%, with quick-release hinges and handle with key lock


• Removable two-section blind side panels with key lock


• Rear door perforated at 80% double swing removable with key lock


• Special pagoda roof installed 10mm from the cabinet structure to facilitate passive ventilation if there are no ventilation units or active ventilation in case of ventilation units installed on the roof; two cable entries located on the left and right sides of the roof complete with brushes


• Base prepared for cable entry and equipped with a sliding hatch (300x250 mm) which, when closed, allows placing devices like UPS, and when open, promotes ventilation; on the sides of the sliding panel, two additional cable entries with brush positioned on the right and left sides of the base (70x300 mm)


• Supplied with a pair of numbered 19” front and rear mounting rails adjustable in depth


• Installed roof ventilation unit with 4 fans


• Supplied with feet


• Static load capacity 2000 kg


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 2053 x 800 x 1000 mm



Certifications

• CE certification according to EN 62208


• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN60529; EN12150-1; RoHS II 2001/65/EU
