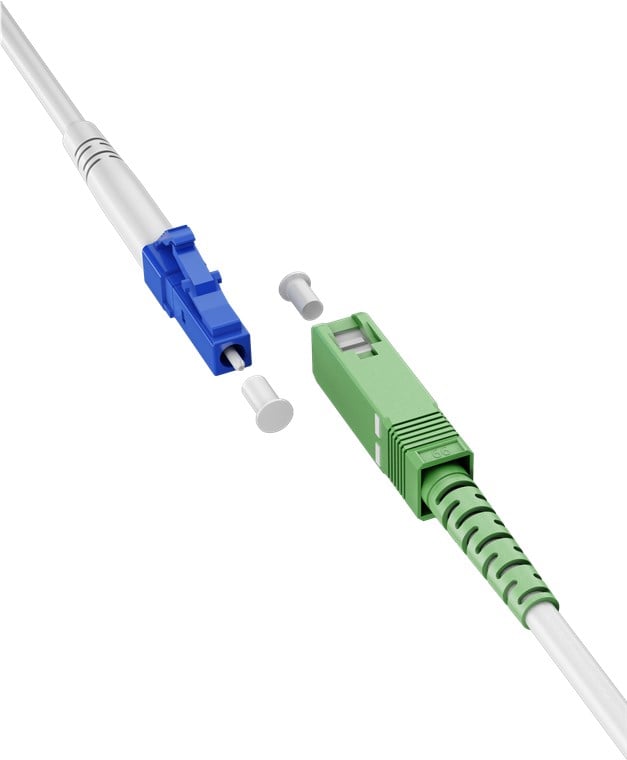

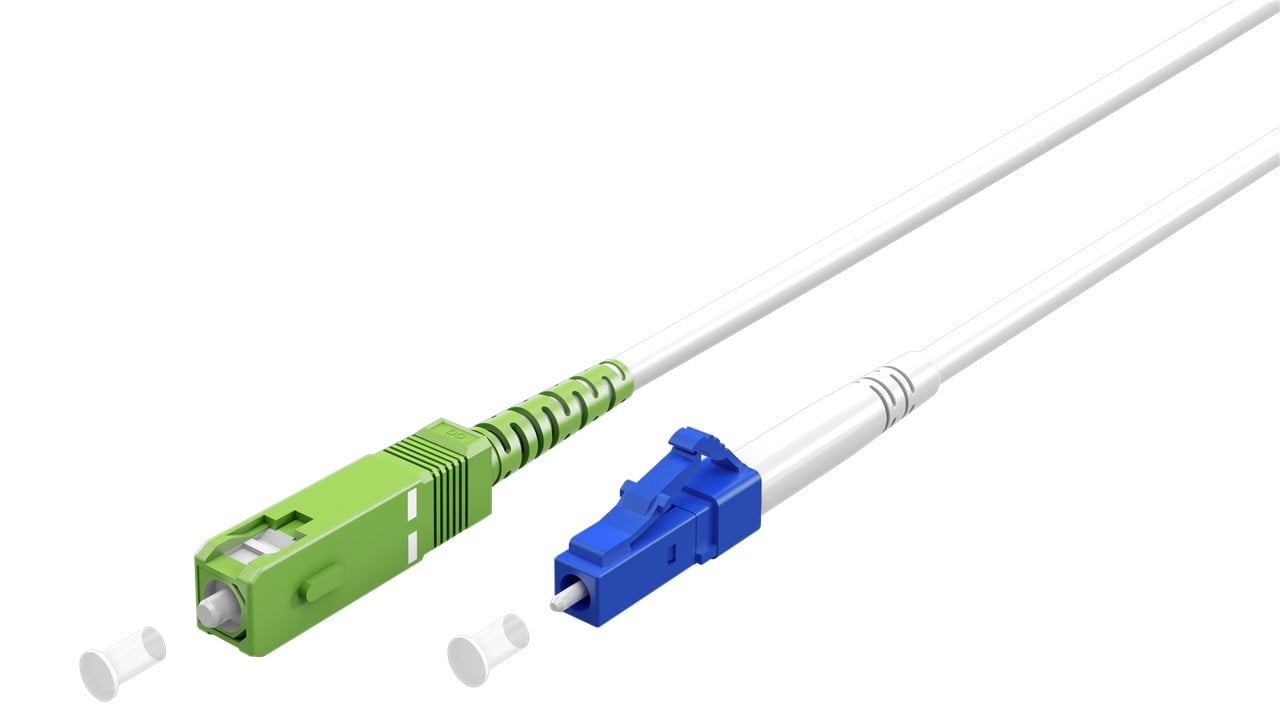

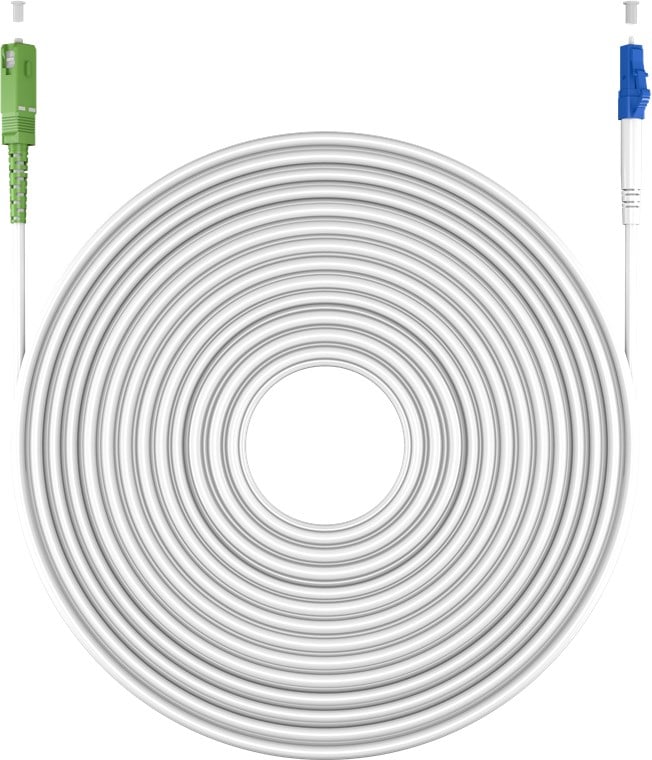

Fiber optic cable FTTH Monomodal SC-APC (8 °)/LC-UPC OS 2 9 / 125 Simplex 15 m - Goobay ILWL D 9 -MAL- 150

€10.11
Tax included €8.30 excl. VAT

Single-mode fiber optic patch cable SC-APC male > LC-UPC male, OS 2 9 / 125 μm, length 15 m. LSZH sheath, minimum curvature radius 30 mm, up to 100 Gbit/s.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Optical fibre (FOC) SC-APC (8 °) male > male LC-UPC, halogen-free sheath (LSZH)

The patch è cable suitable for private and industrial applications, including home fiber (FTTH) and è compatible with the FTTH options of a wide range of telecom service providers. Thanks to an optimized radius of curvature of the fiber optic cable, è can a space-saving installation without increasing the attenuation and risk of interference.



Features

  • Monomodal fiber optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, at the office, in data centers etc.

  • The patch cable is the connection between the home transfer point and the optical network terminal (ONT) inside

  • Optical fiber cable up to 100 Gbit/s, optimized for bending and not bulky, with a minimum radius of curvature of 30 mm (static)

  • LSZH conform: the halogen-free è cable sheath and flame retardant according to IEC 60754 2 , IEC 60332 1 and IEC 61034

  • Reinforced traction discharge with aramid yarn provides greater stabilityà

  • Equipped with dust cap, Simplex connector, OS 2 fibre type, SM singlemode 9 / 125 µm according to ITU T G. 657

  • Individual test protocol with measurement of return loss and insertion loss



Connections

  • 1 connection: type SC-APC (8 °) male

  • 2 connection: male LC-UPC type

  • Connectors with ceramic ring



Cable

  • Cable length: 15 m

  • Specifications Monomode (OS 2) White

  • Fiber optic core diameter 9 µ

  • Fiber optic sheath diameter 125 µ

  • Wave length 1310 nm

  • Fiber Cable Glass fibre G 657 .A 2

  • Bending radius 30 mm

  • Simplex type cable

  • Cable diameter (approximately) 3 mm

  • Cable sheath material LSZH



Environmental features

  • Operating temperature from - 40 °C

  • Operating temperature up to 85 °C



Package contents

  • FTTH Single Mode Fiber Cable SC-APC (8 °)/LC-UPC OS 2 9 / 125 Simplex 15 m

  • Brand
  • Reference
    ILWL D9-MAL-150
  • In stock
    2 Items
  • EAN13
    4040849596131
