Name: 17 - 32 " Double Monitor Desk Support with Gas Spring and Docking Station 8 -in- 1 - Manhattan ICA-LCD DUAL-DOCKMH
Brand: MANHATTAN
SKU: ICA-LCD DUAL-DOCKMH
Price: 243.91 EUR
Availability: InStock

€243.91

Tax included

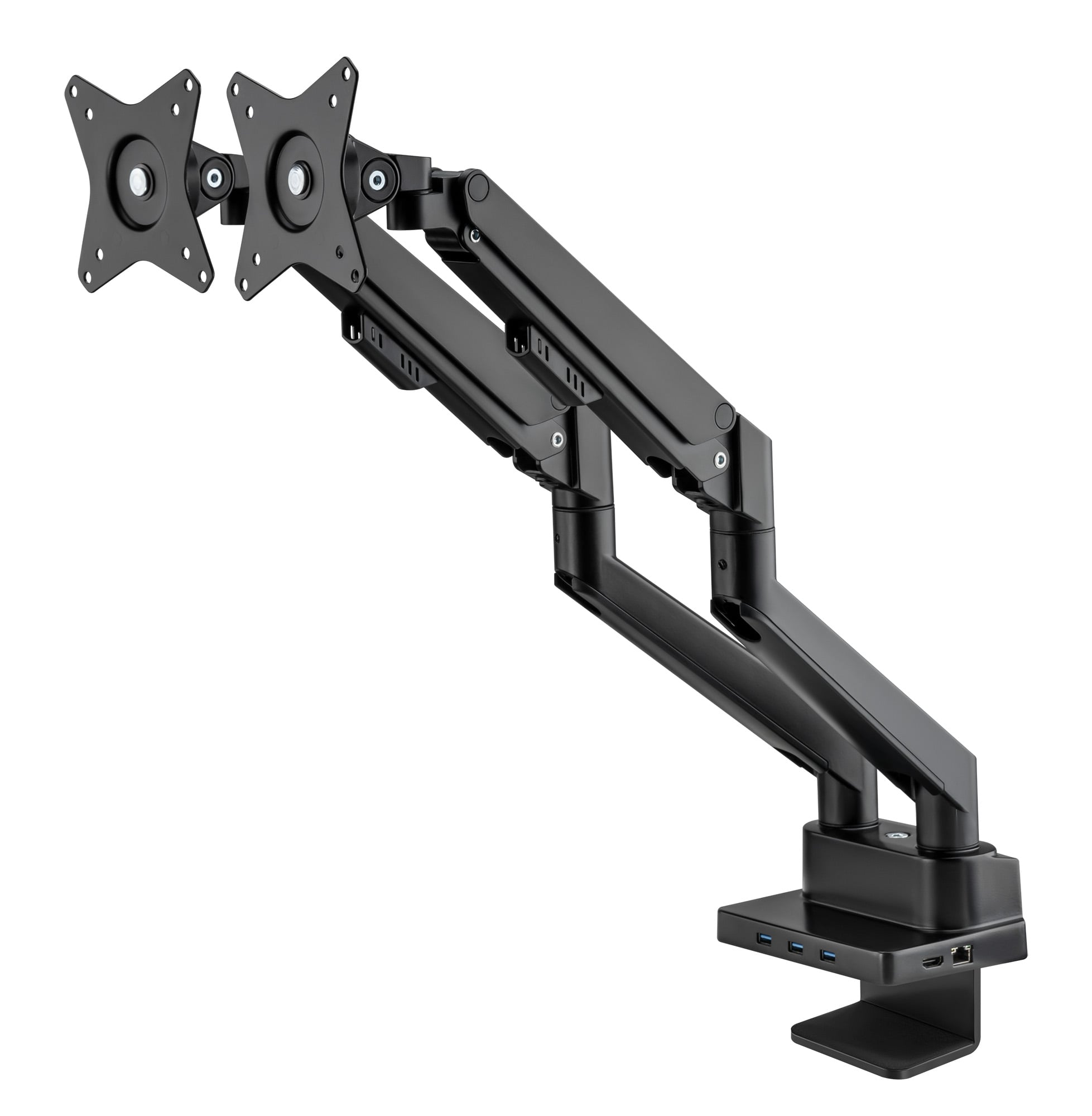

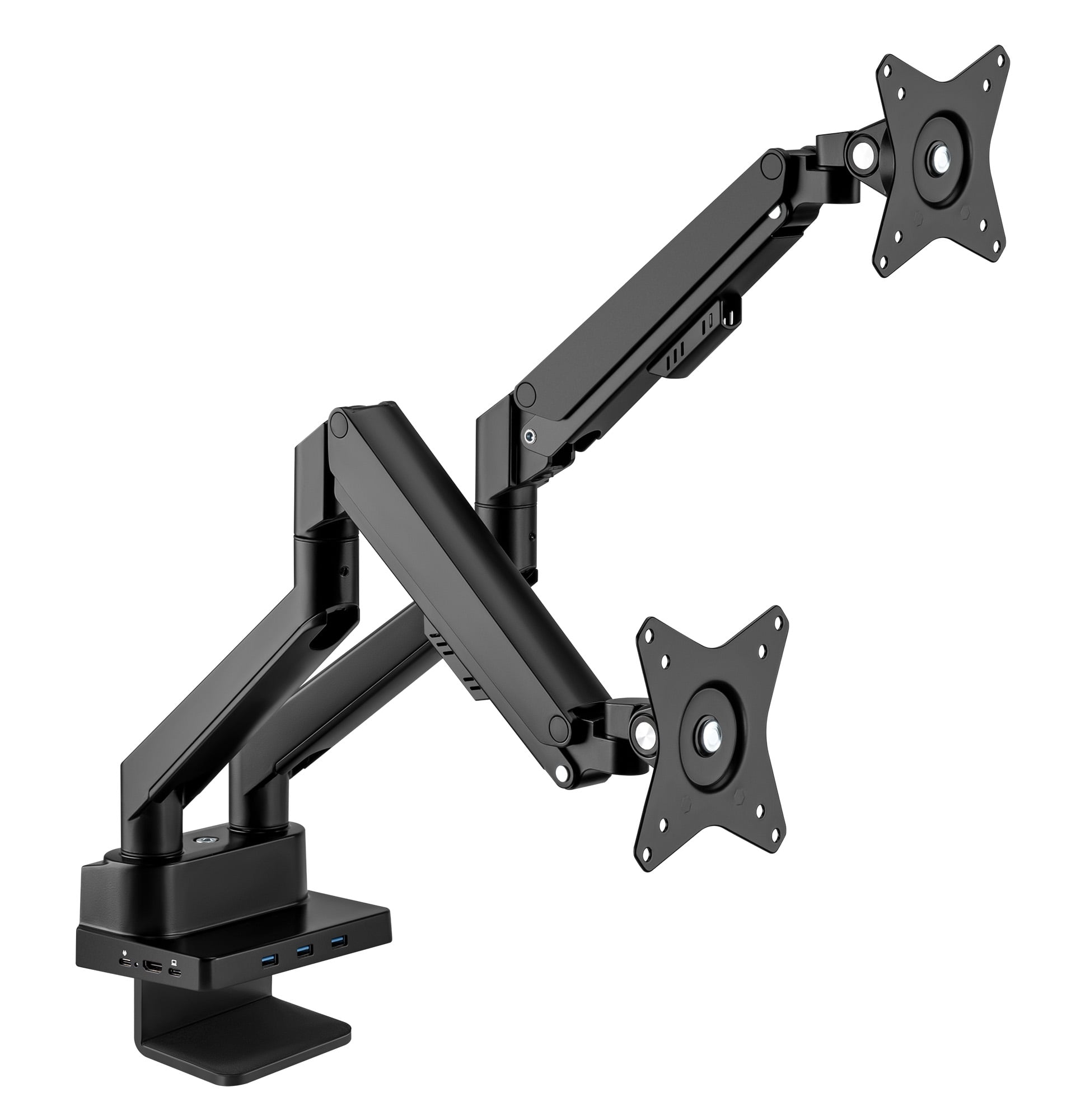

Desk stand with double articulated arm for monitors from 17 to 32 inches (up to 9 kg each) with gas spring, inclination + 45 /- 45 °, rotation 180 ° and 360 °. Includes docking station 8 -in- 1 on the base and conform to VESA 75 x 75 and 100 x 100.

Return policy

Delivery policy

Direct contact for info

Secure Payment

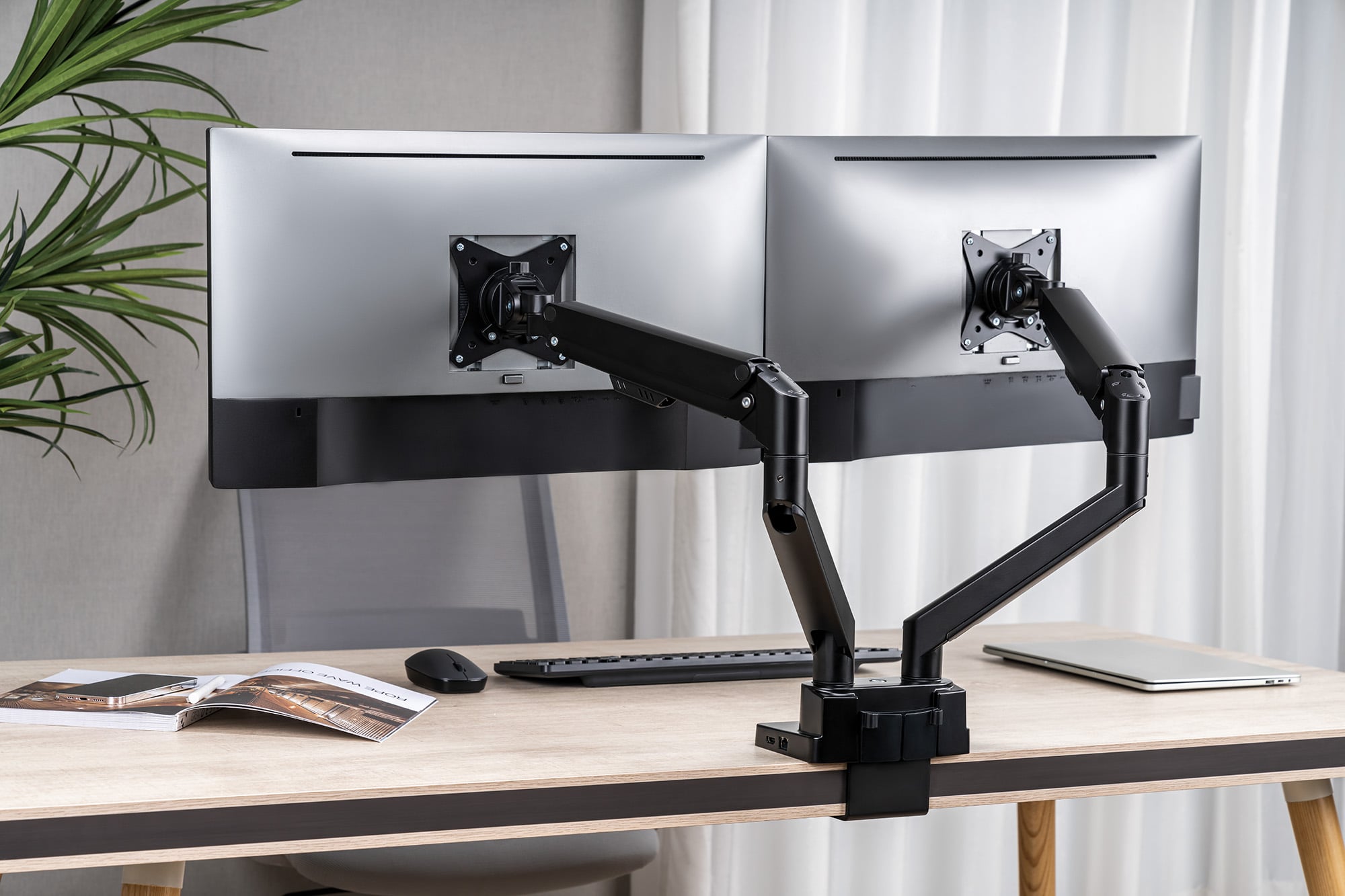

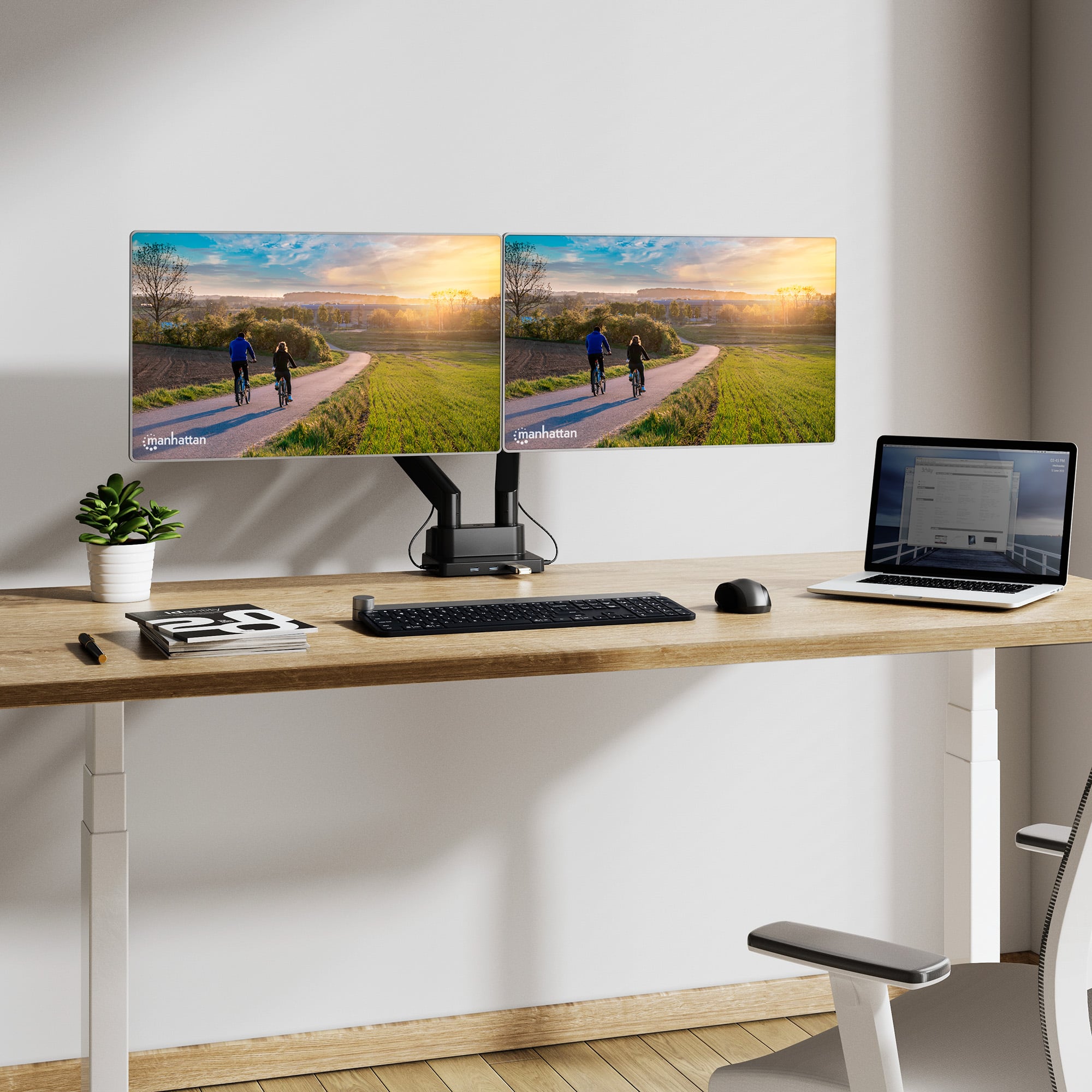

Improves ergonomics, free space on the desk and allows you to connect to the monitor, network and peripherals while charging devices
The articulated arms with double joint support two monitors from 17 to 32 up to 9 kg each
Optimized view with inclination + 45 /- 45 °, rotation 180 ° and height adjustment from 210 to 490 mm
Gas spring for height adjustment with one touch
Supports 360 ° rotation for horizontal and vertical display orientation

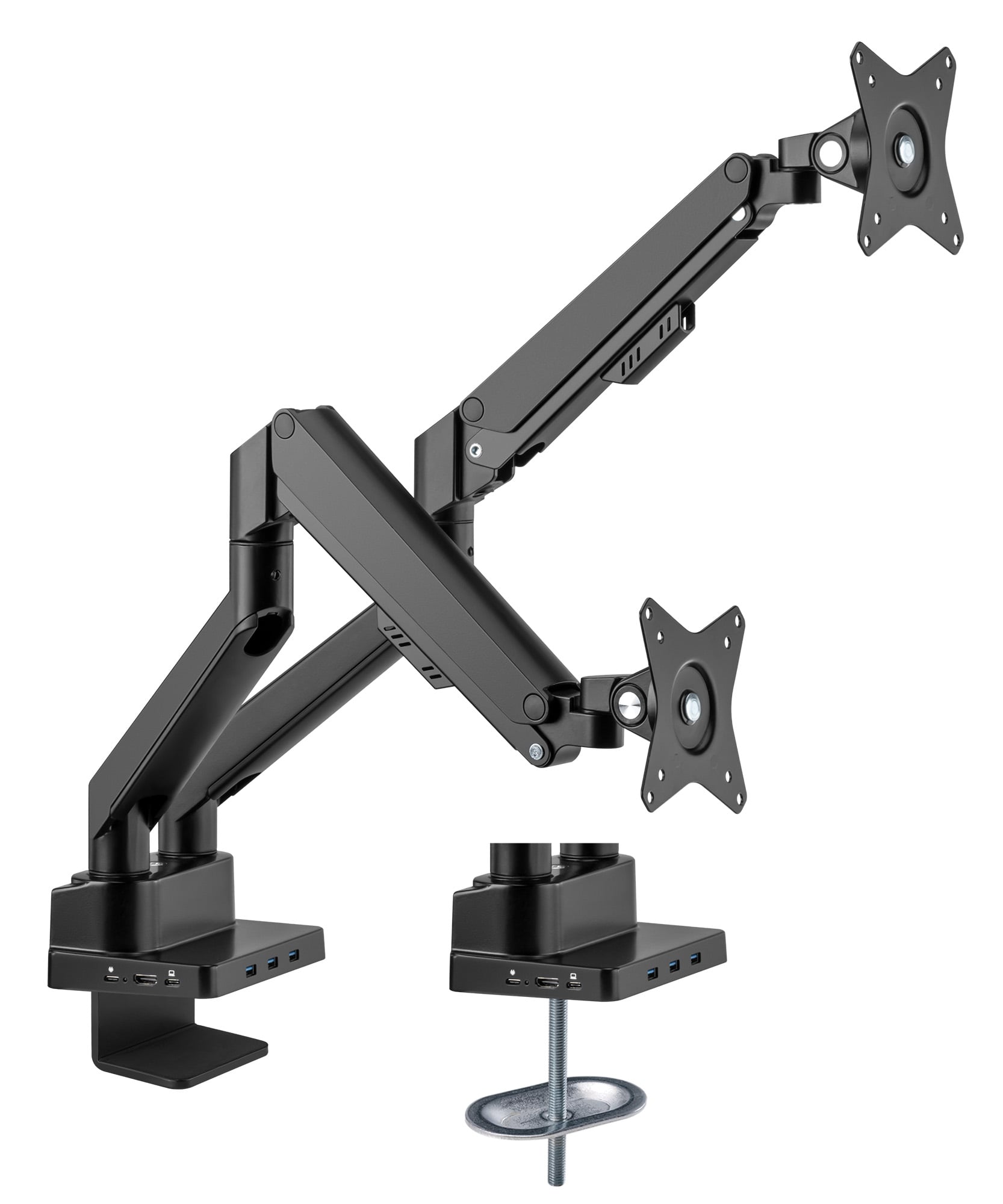

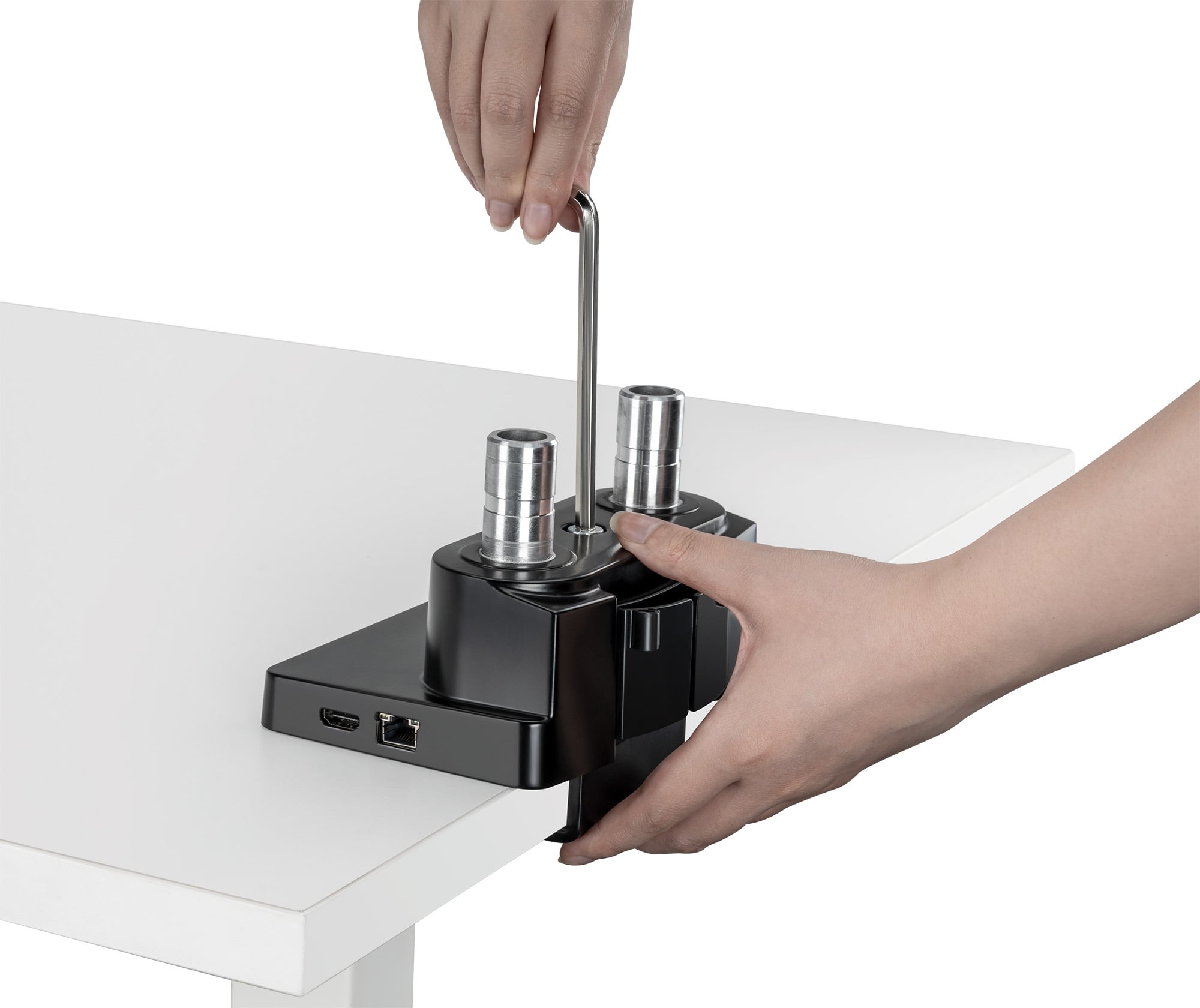

Installation options (for surfaces from 10 to 50 mm): C-shaped clamp installed on the desk edge or through screw through hole on the desk (hole from 10 to 60 mm width)
Adjusting the built-in voltage to fit the weight of the installed monitors

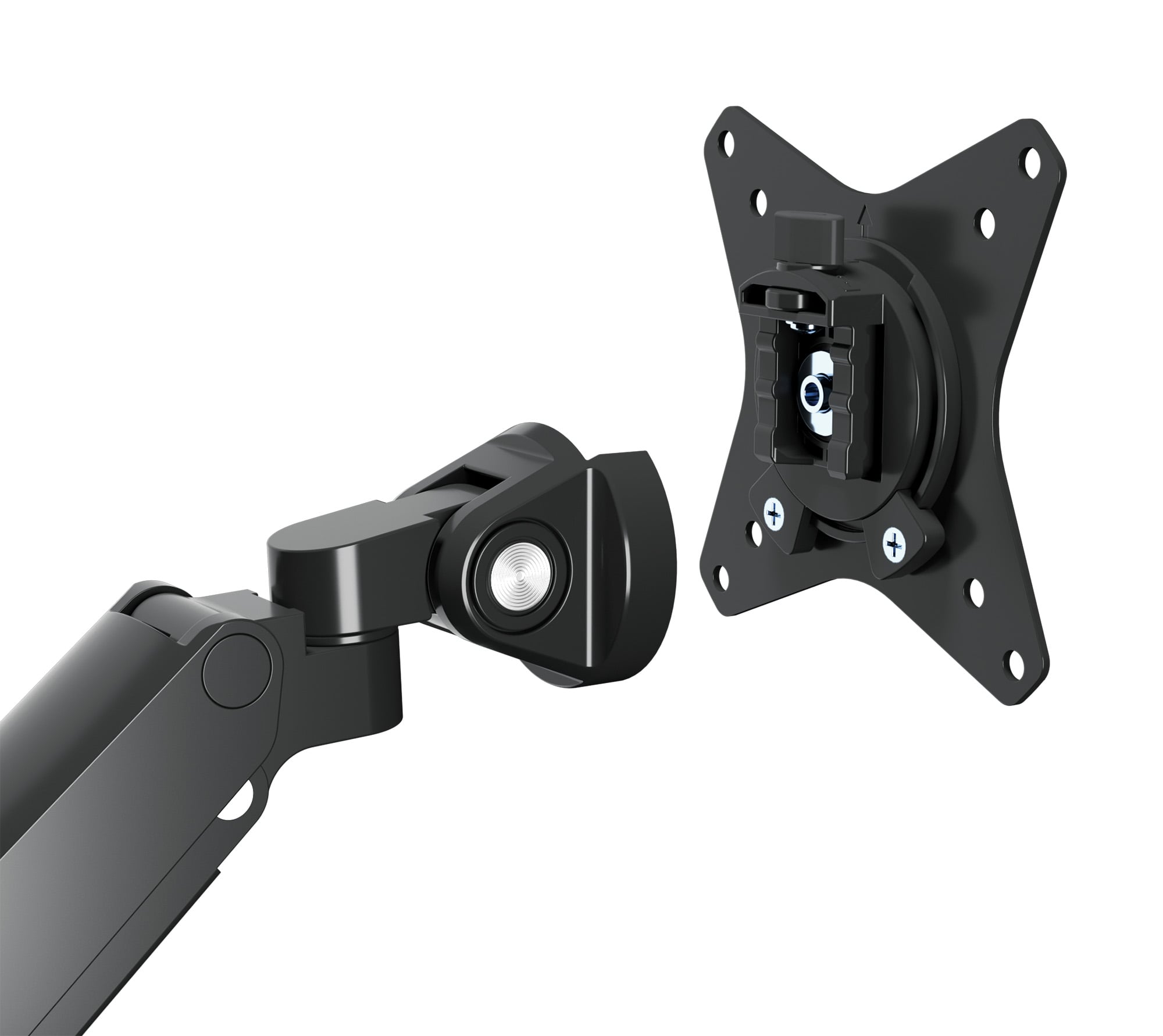

Design with VESA plate detachable for easy installation
Durable aluminium construction with powder coating
With integrated cable management system
Ideal for office, studio, home and IT and security networking applications
Quick and easy installation, all hardware included
Standard VESA conformation: 75 x 75 , 100 x 100
Docking station based on connecting screen, network and peripherals while charging devices
Two HDMI ports with resolution on single video output up to 4 K@ 60 Hz or double video output up to 4 K@ 30 Hz
Supports modeà Mirror & Extended display
Una porta Ethernet Gigabit (10 / 100 / 1000) per download più veloci, streaming multimediae e gaming
Supports USB Power Delivery function up to 87 W; requires an external PD power supply - available in the Manhattan line
Three USB ports 3.2 Gen 1 (formerly USB 3.0) type A with SuperSpeed transfer speed up to 5 Gbps and charging up to 4.5 W (5 V / 0.9 A)
USB-A ports to connect mouse, keyboards, USB flash drives, etc. or to load and synchronize mobile devices
Compatible with the mode à alternative DisplayPort 1.2 (DP Alt Mode)
Compatible with computers, laptops and USB-C™ tablets that support modeà DP-Alt-mode including MacBook®, Chromebook™, Pixel™ and many more
Allows your smartphone to function as a desktop PC while charging (desktop configuration requires devices equipped with Android 9 or later offering video output to USB-C™)
Includes USB 3.2 Gen 1 USB-C™ male USB-C™ male 1 m supporting 5 Gbps and PD up to 100 W
Install Plug and Play; Windows®, macOS®, Chrome OS™ and Android&trade compatible;
Fully compatible HDCP 2.3 , compatible with previous versions

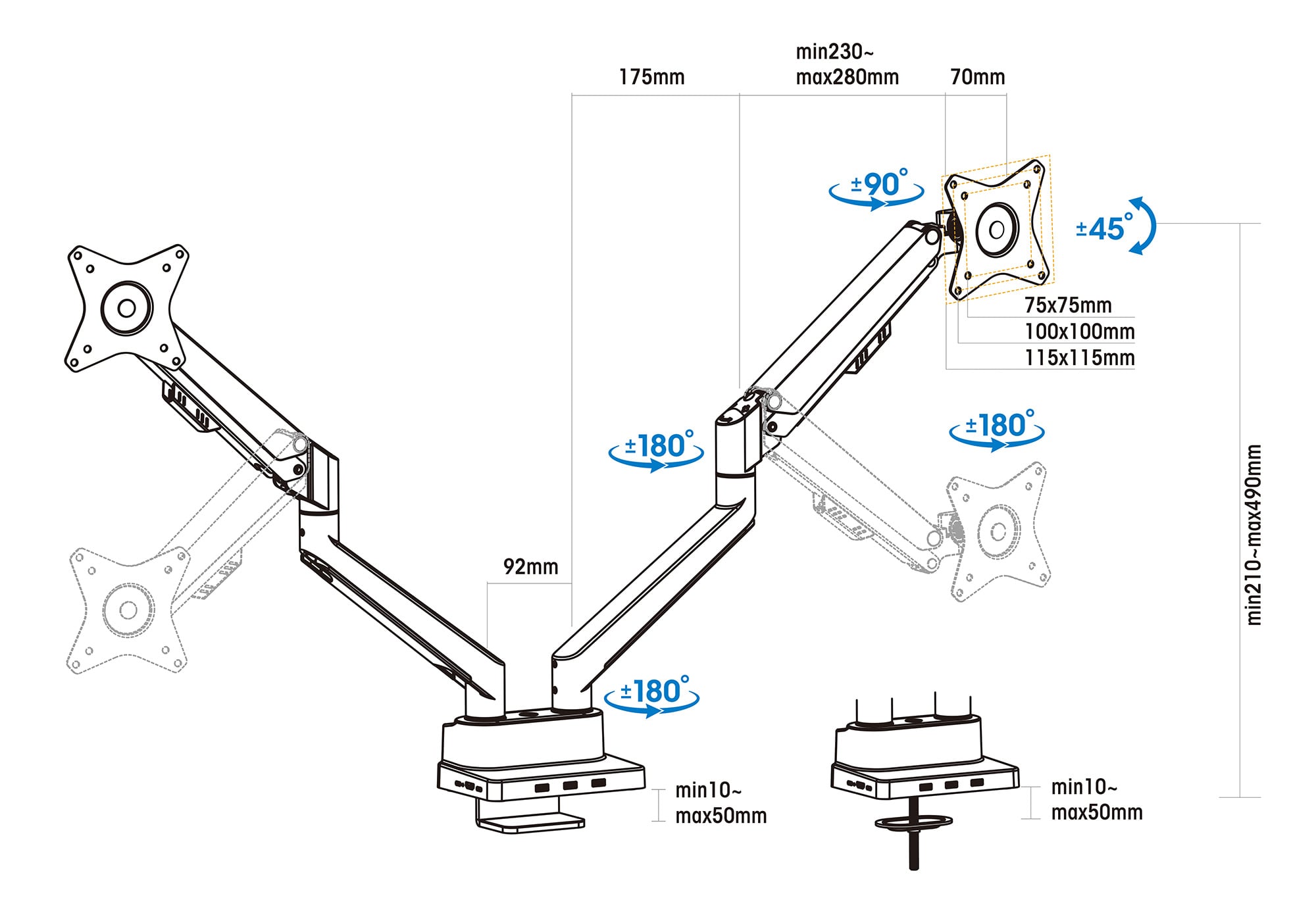

Technical specifications

Designed for most flat and curved screens from 17 - 32
Capacità weight: 9 kg per arm
Rotation: 180 °
Tilt: + 45 /- 45 °
Screen Rotation: 360 °
Height adjustment: from 210 to 490 mm

Dimensions

Total (L x P x A): 590 x 112 x 938 mm
Arm length (completely extended): 492 mm
Net weight: 4 kg
Gross weight: 5 kg
Material: aluminium
Surface thickness for clamp installation: from 10 to 50 mm
Hole diameter for the installation of the sealing ring: from 10 to 45 mm
Standard VESA: 75 x 75 , 100 x 100

Features

General information

Velocità USB-A port transfer: 5 Gbps
Bus-powered operation (except charging functions)
USB-A charging: 4,5 W (5,0 V to 0,9 A) max.
USB-C PD charging port: 87,0 W max.
Voltage/current settings (maximum):

- 5,0 V / 5,0 A

- 9,0 V / 5,0 A

- 12,0 V / 5,0 A

- 15,0 V / 5,0 A

- 19,0 V / 5,0 A

- 20,0 V / 5,0 A

Connections

Two HDMI 19 -pin, female
A RJ 45 10 / 100 / 1000 Mbps, female
Three USB-A 9 female pin
Two USB-C™ to 24 pin (one upstream port to connect laptop, one to Power Delivery), female

Environmental information

Operating temperature: from 0 to 70 °C
Storage temperature: - 10 to 90 °C
Humidità (without condensation): 10 - 90 %RH

System requirements

Windows 7 / 8.1 / 10 / 11 , Chrome OS, macOS or Android

Standards and certifications

DP 1.2 Alt mode on USB-C™
USB 3.2 Gen 1
HDMI 2.0
HDCP 2.3
CE
FCC
RoHS
REACH
UKCA

Package contents

Desk stand for double monitor with gas spring in aluminium with 8 docking station in 1
Hardware installation with instructions
Connection cable, from USB-C™ male to USB-C™ male, 1 m
