USB cable 4 EPR USB-C M/M 40 Gbps 240 W PD 3.1 8 K 1 m - Manhattan ICC MU 4 - 40 G 240 W 1 M

€19.59
Tax included €16.10 excl. VAT

4 USB cable with Extended Power Range (EPR) for charging up to 240 W to 48 V/ 5 A. Supports data transfer up to 40 Gbps, video output 8 K@ 60 Hz and is compatible with Thunderbolt 3 / 4. Equipped with E-Marker chipset and double shielding.



Return policy



Delivery policy



Direct contact for info



Secure Payment

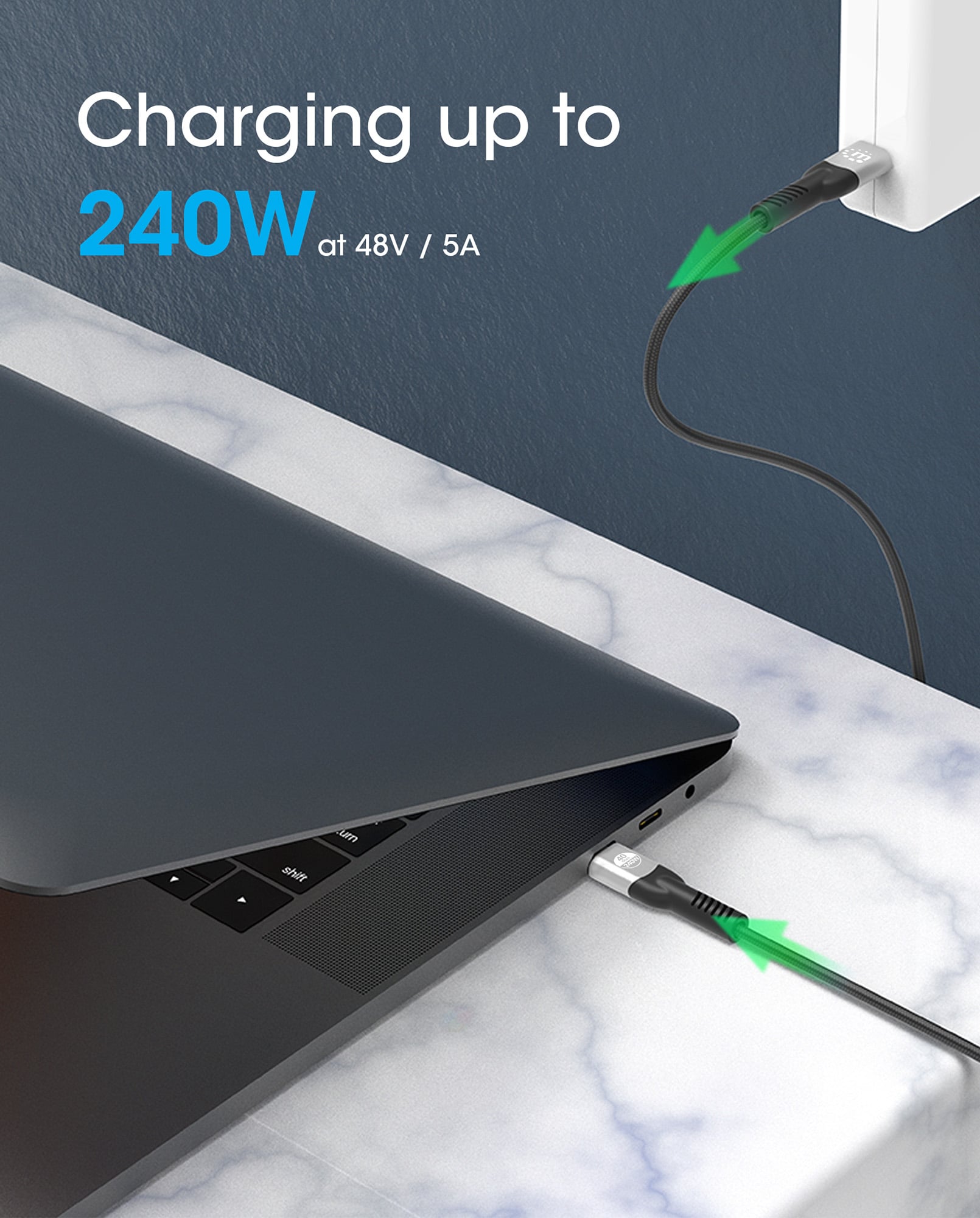

  • USB Power Delivery (PD) 3.1 cable with Extended Power Range (EPR) charging up to 240 W to 48 V/ 5 A, backcompatible with PD 3.0 / 2.0 / 1.0

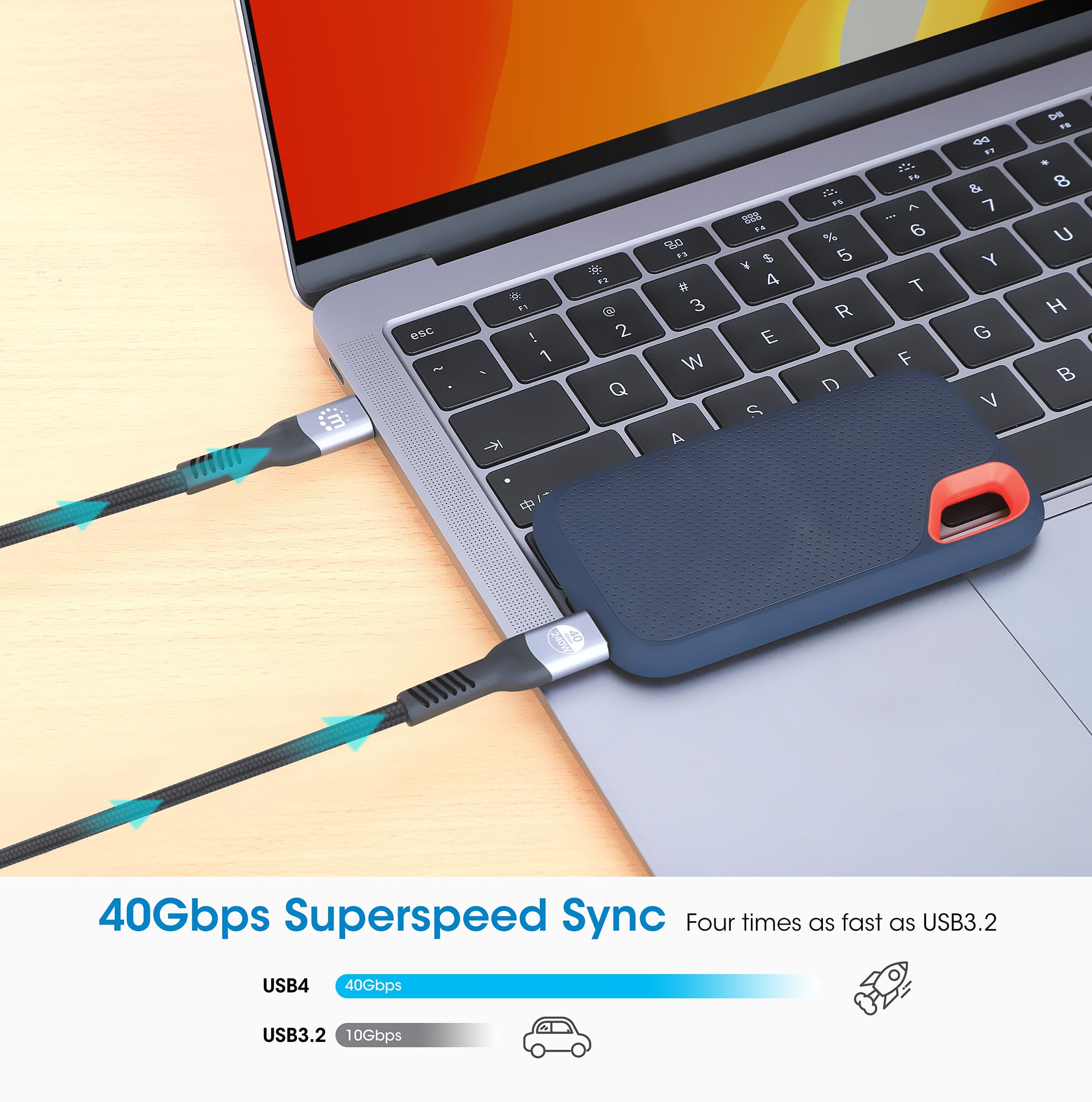

  • Supports ultra fast data transfer up to 40 Gbps

  • Compatible with USB 4 ® and Thunderbolt™ 3 / 4 interfaces

  • Supports video output resolution up to 8 K@ 60 Hz and 4 K@ 144 Hz on single display or 4 K@ 60 Hz on double display

  • USB-C™ male to USB-C™ male to connect USB-C&trade peripheral ports;

  • E-Marker chipset for reliable and leak-free power supply of 240 W over the entire distance

  • DisplayPort 2.0 Alternate Mode (DP Alt Mode)

  • HDR 10 dynamic for superior contrast and bright colors

  • Ultra high bandwidth, ideal for direct connection to a monitor with USB-C&trade interface; no signal loss

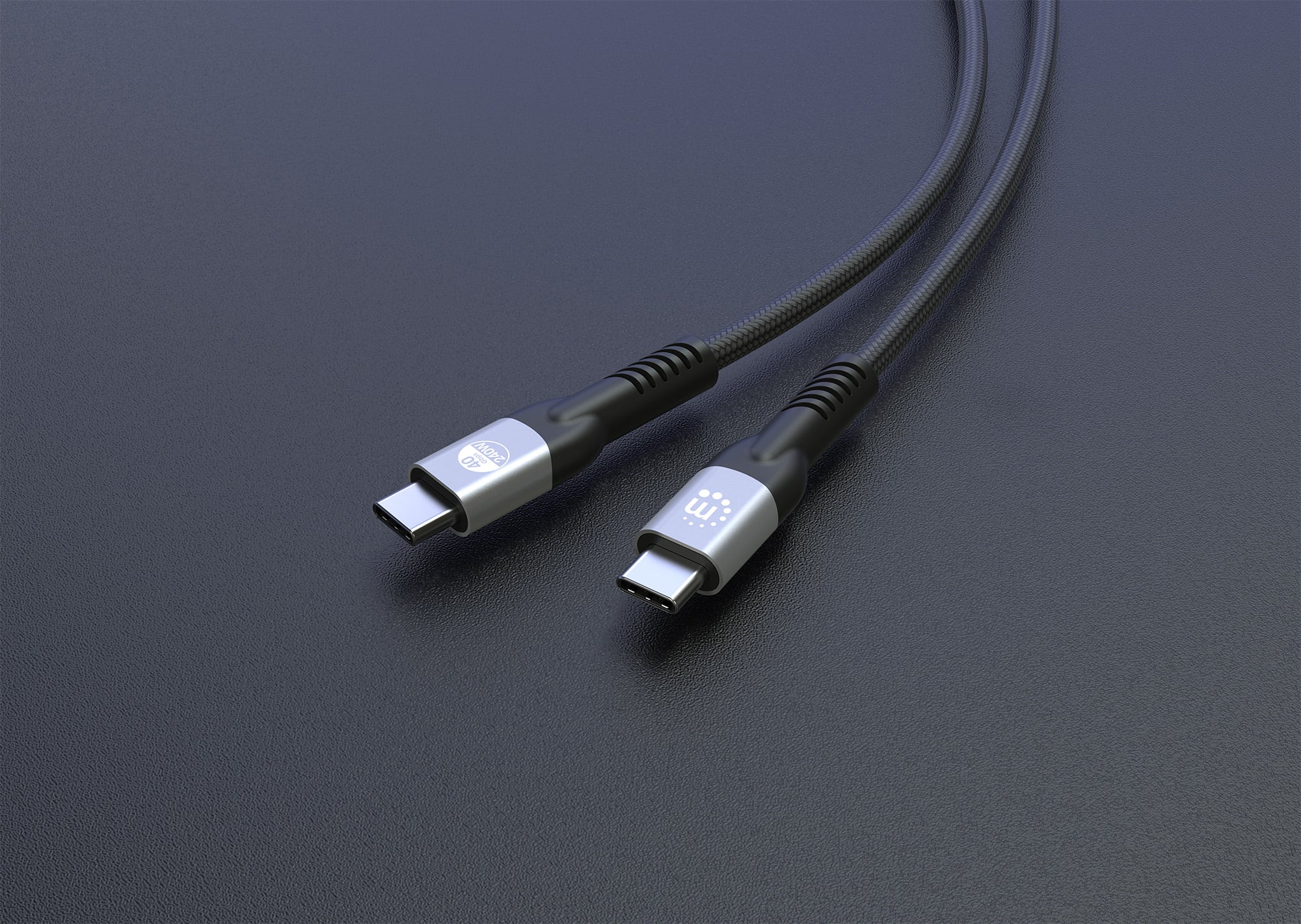

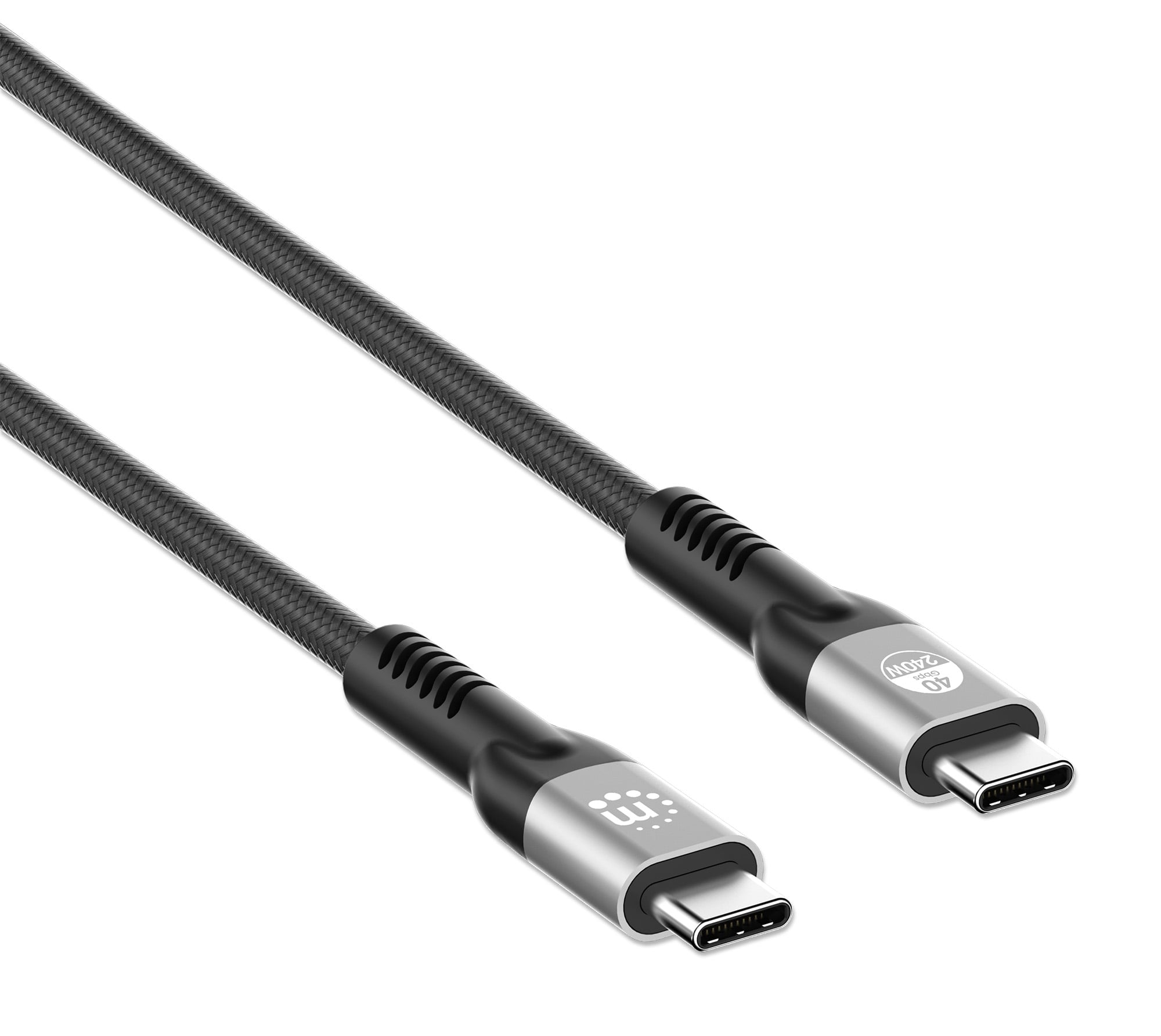

  • Tangle-resistant braided sheath with sturdy cable press

  • Robust aluminium connector cover for longer life

  • Double foil and braid shielding to reduce EMI and other sources of interference

  • Gold and copper conductors for reliable connections

  • Bidirectional design - both connectors can send power and data from a source or

  • Ideal for all laptops, MacBook® Pro or USB-C&trade powered docking stations;

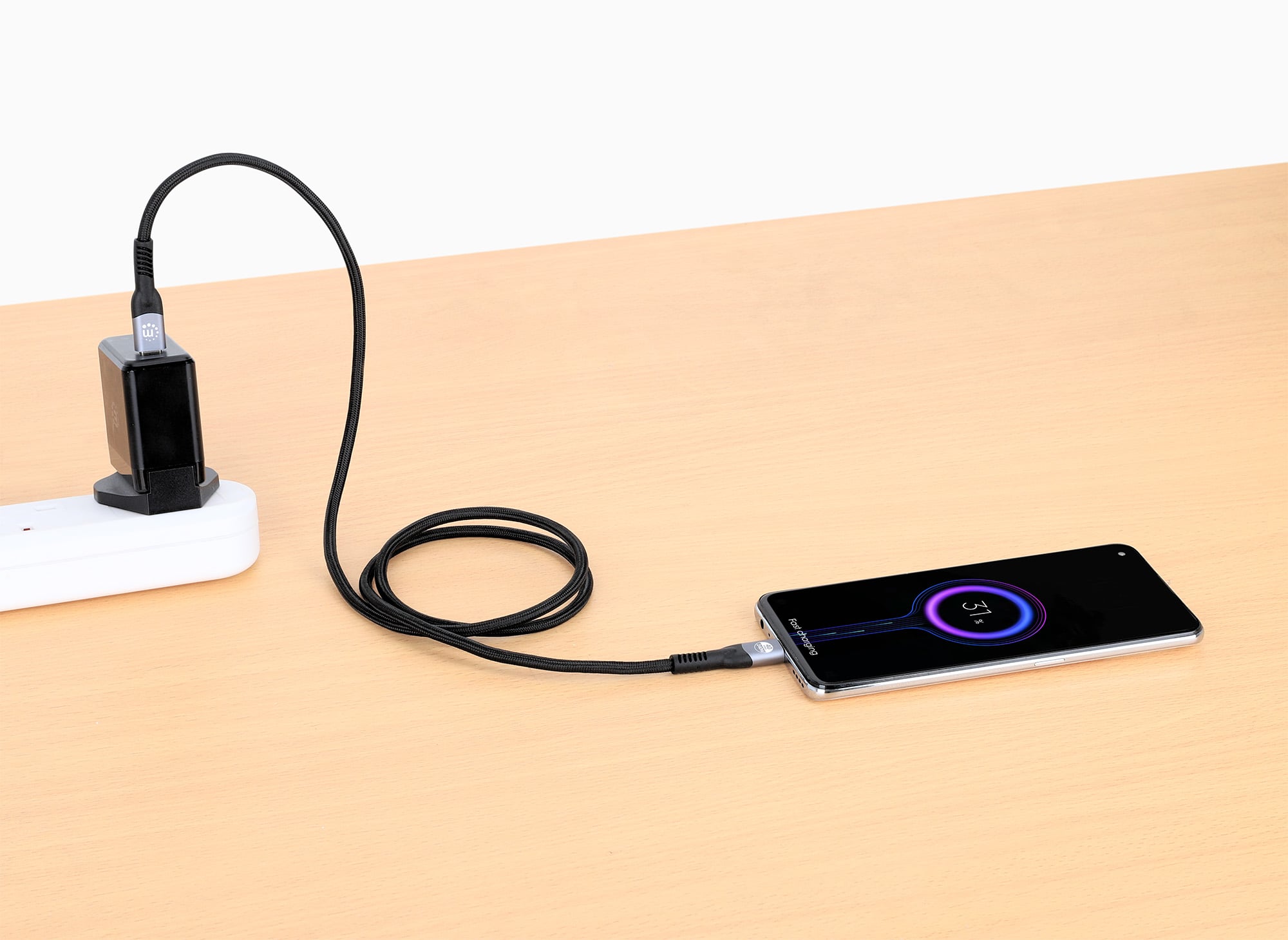

  • Reload other Type-C devices like phones, tablets, portable game consoles and much more

  • Retrocompatible with USB 3.2 Gen 1 / 2 , USB 3.0 , USB 2.0 and USB 1.1



Standards and certifications

  • CE

  • RoHS

  • REACH

  • USB 4 Den 3 x 2

  • PD 3.1



General

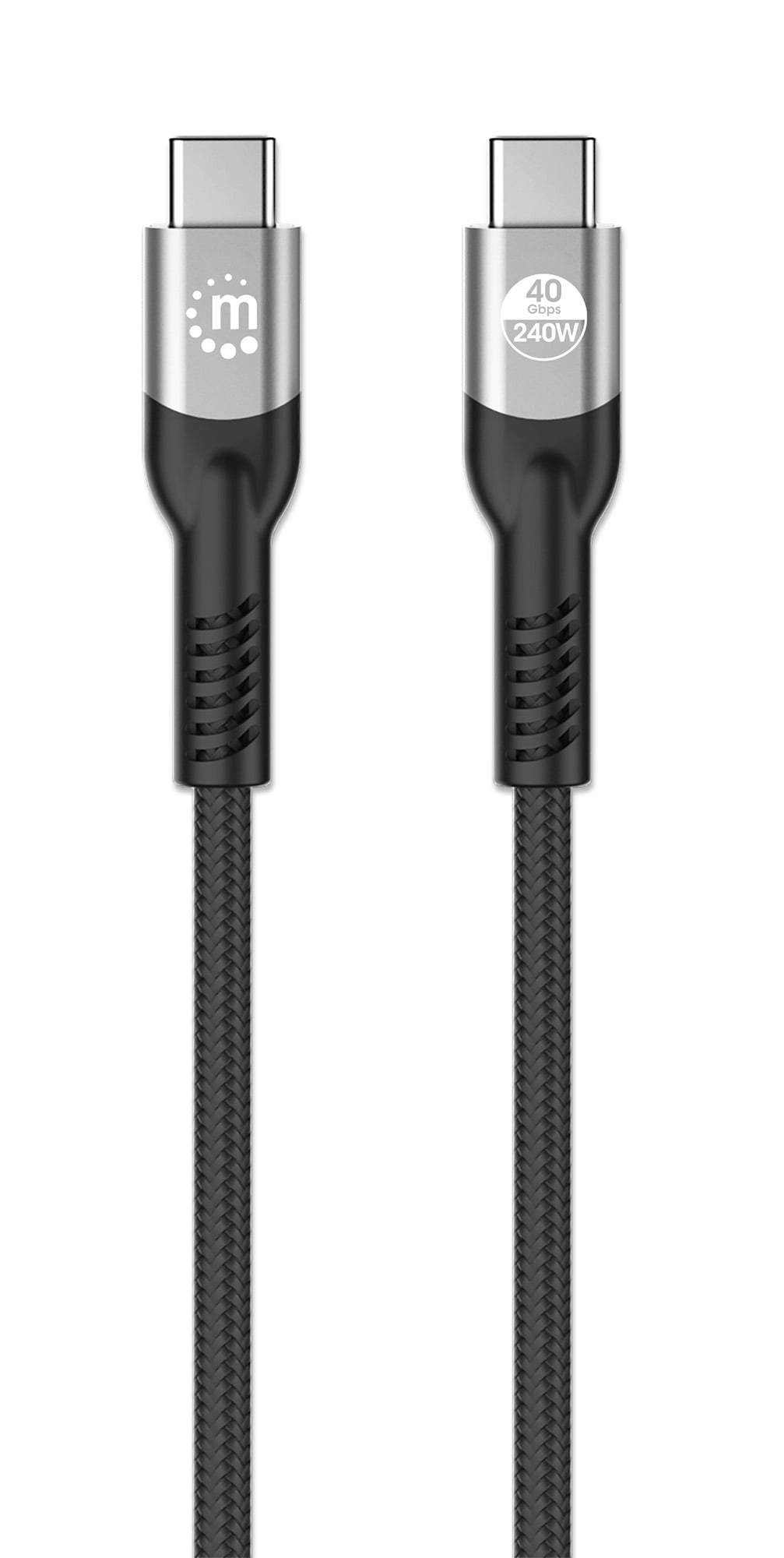

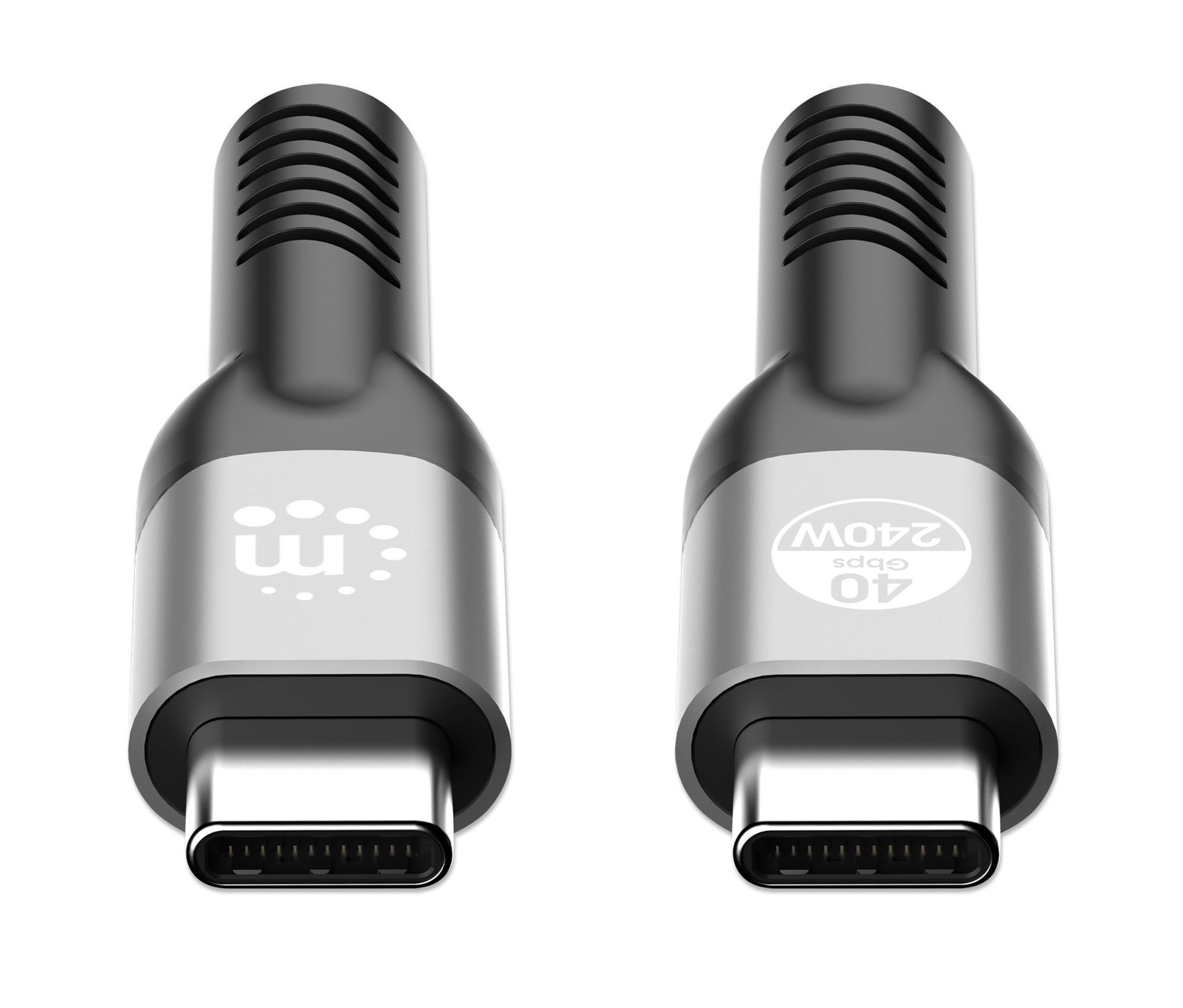

  • Two USB-C™ 24 -pin male connectors

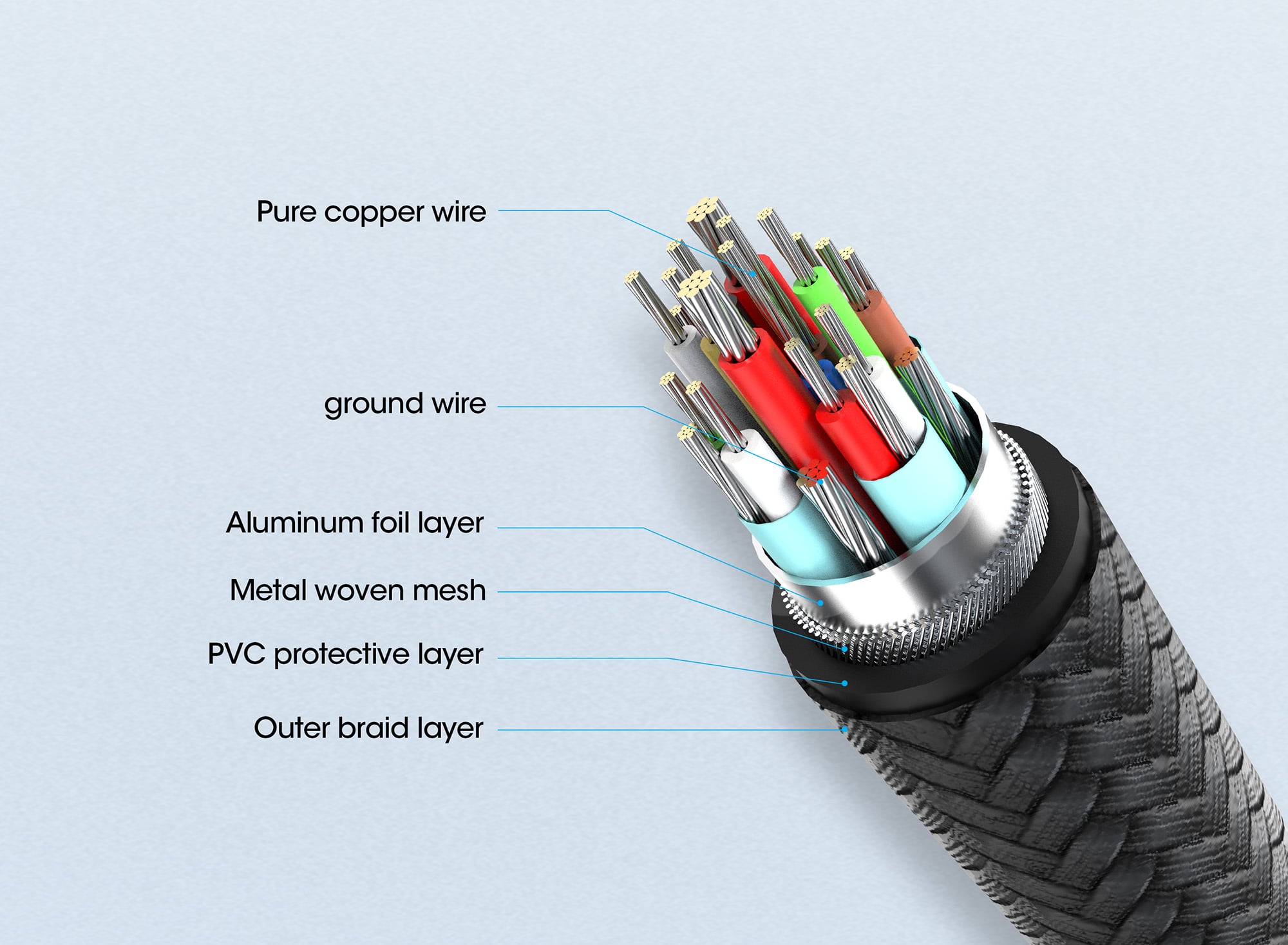

  • Double shielding: aluminium foil and braid

  • Conductors: pure copper

  • Cable: Pure copper

  • Aluminum connector cover with cable holder

  • 22 / 29 AWG

  • Length: 1 meter

  • Outer diameter (OD): 4.8 mm

  • Net weight: 35 g

  • Gross weight: 40 g



Electrical information

  • Voltage: 500 V DC 10 ms

  • Insulation resistance: 100 MΩ/km to 20 ° C

  • Contact resistance: 3 Ω (max.)

  • Supported effective power: 240 W at 48 V/ 5 A max.



Environmental features

  • Operating temperature: from 0 to 45 °C

  • Operating humidity (without condensation): 10 - 85 %

  • Storage temperature: - 10 to 70 °C

  • Storage humidità (without condensation): 5 - 90 %



Package contents

  • USB cable 4.0 USB-C™ male USB-C™ male 1 meter

  • Brand
  • Reference
    ICOC MU4-40G240W1M
  • In stock
    13 Items
  • EAN13
    0766623356374
