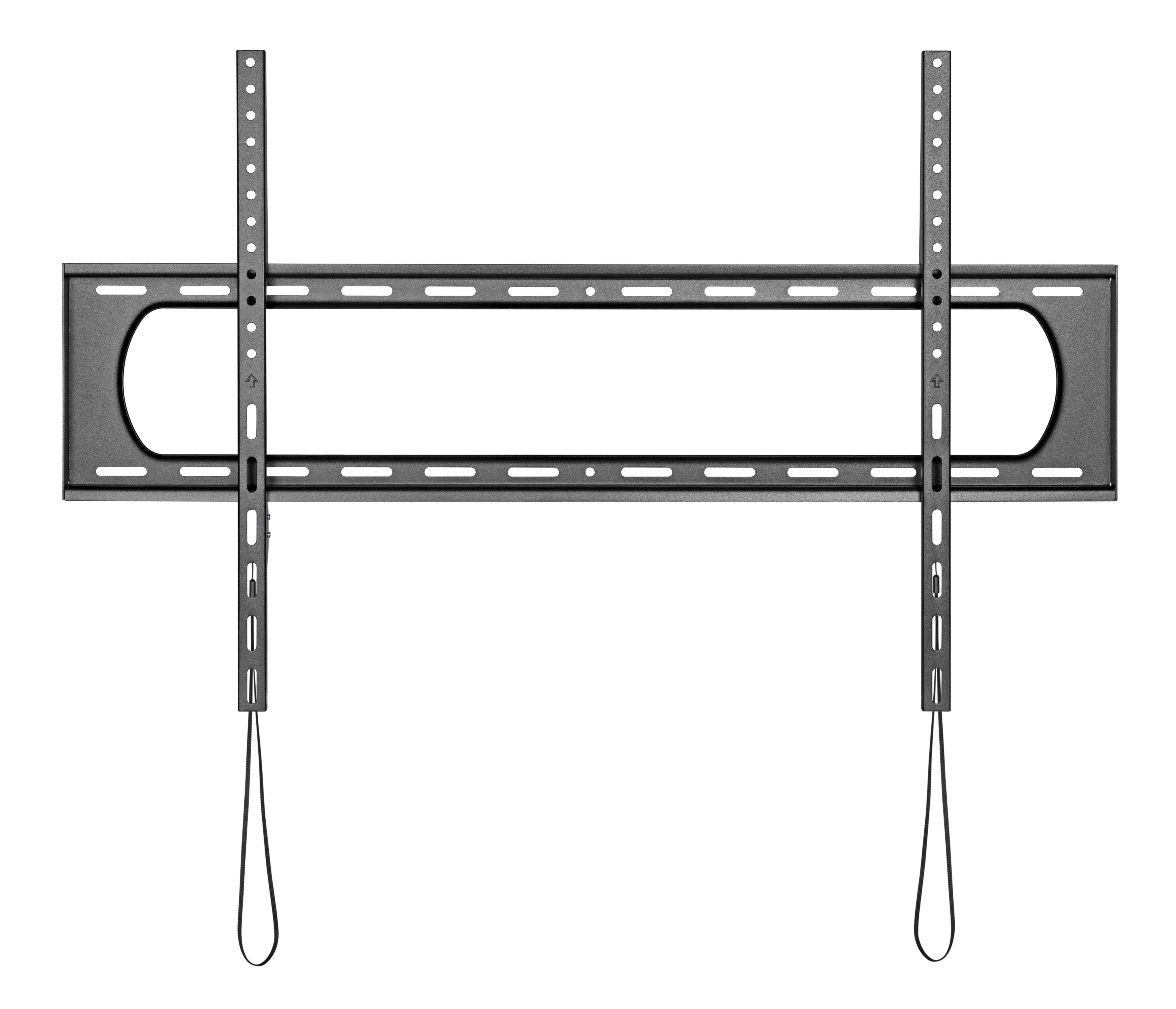

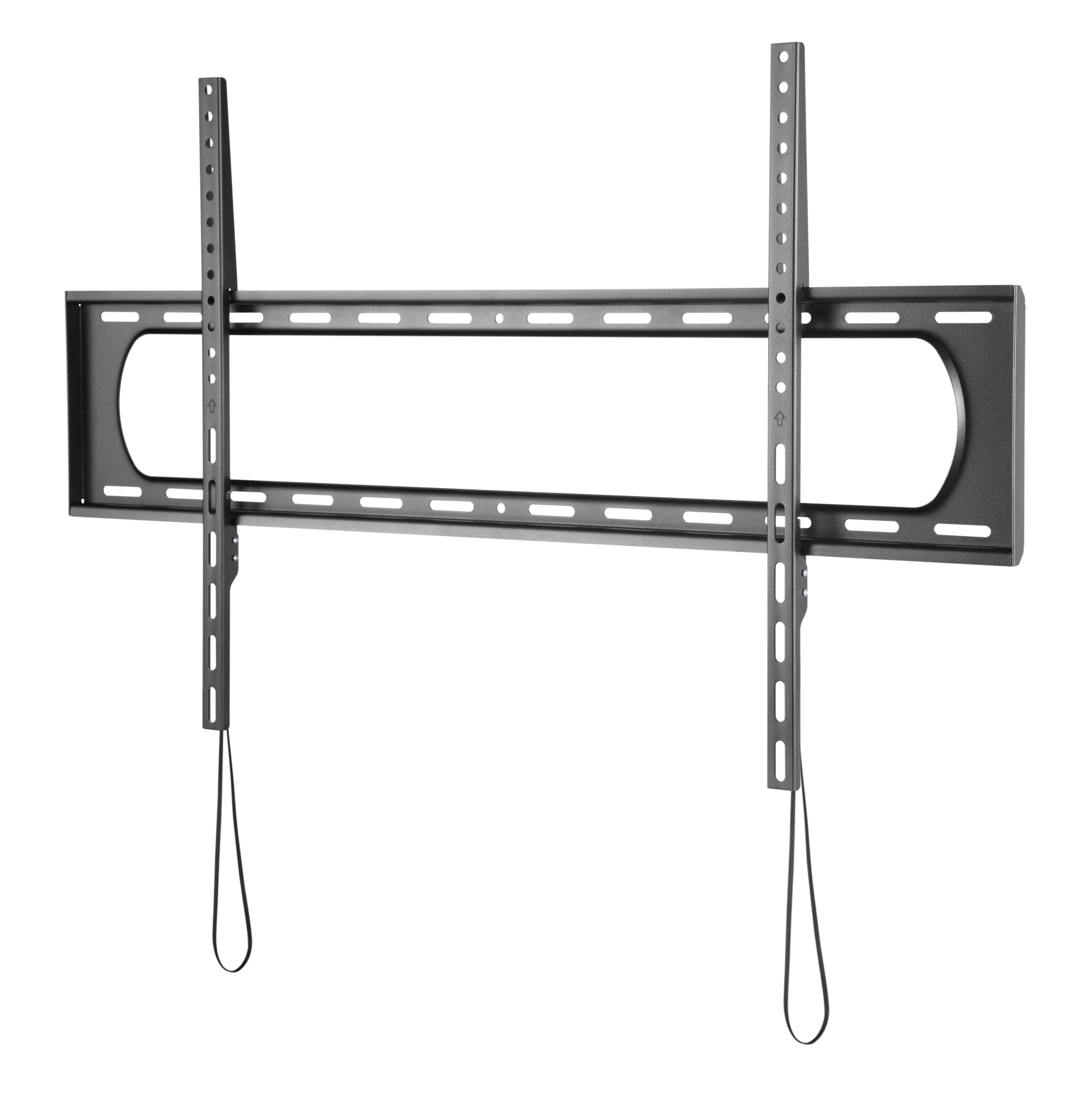

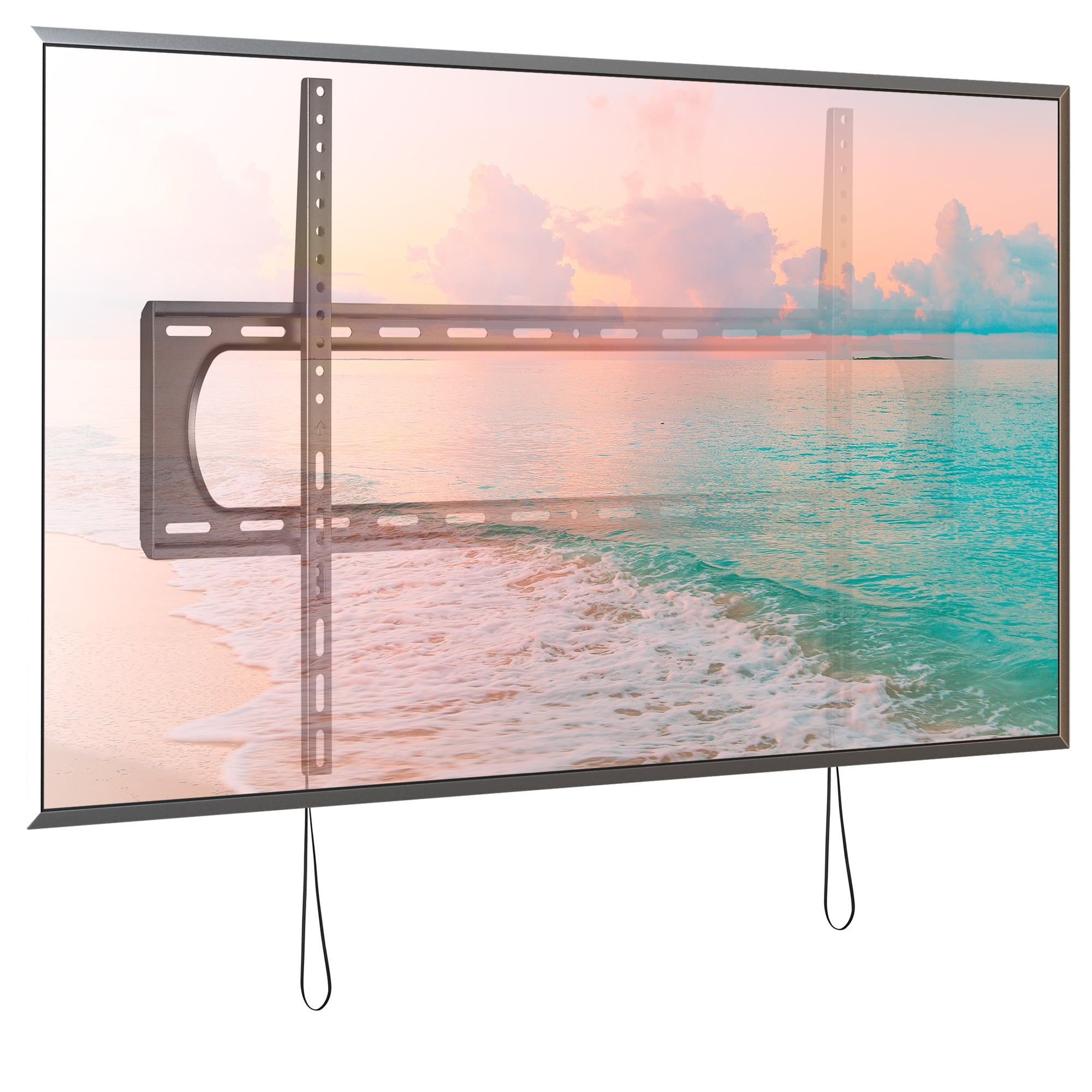

Wall bracket Fixed Slim LCD TV 60 - 120 ' - Techly ICA-PLB 369 F

To bridge the gap in the niche market of large TV wall mounts for heavy duty applications, ICA-PLB 369 F è a reasonable solution. A reinforcement structure level the capacity à weighing up to 120 kg to firmly support TV from 60 ~ 120. The large space in the center è perfect for installing the socket and hiding all disordered cables. A quick release spring block allows quick and easy removal of the TV and takes only a few seconds to install.



Features

• Steel construction for heavy duty applications: provides greater strength and durability


• Open Architecture: Provides increased ventilation and easier access to cables


• Automatic spring locks with quick release cables: allow quick and easy removal of the TV


• Reduced package size: Transport costs and relatively lower storage costs



Technical specifications

• Fixed TV bracket


• Material: steel


• Made of cold rolled sheet from 2 mm


• Powder coating


• Suitable for TV from 60 - 120


• Suitable for curved TV


• Compatible VESA: 50 x 50,75 x 75,100 x 100,100 x 150,150 x 100,100 x 200,200 x 100,150 x 150,200 x 200,200 x 300,300 x 200,200 x 400,400 x 200,300 x 300,300 x 400,400 x 300,600 x 200,400 x 400,600 x 300,400 x 600,600 x 400,700 x 400,800 x 400,600 x 600,800 x 500,800 x 600,900 x 600


• Max mounting hole: 974 x 602 mm


• Maximum weight supported: 120 kg


• Detachable Panel


• Dockable bubble level (included in component pack)

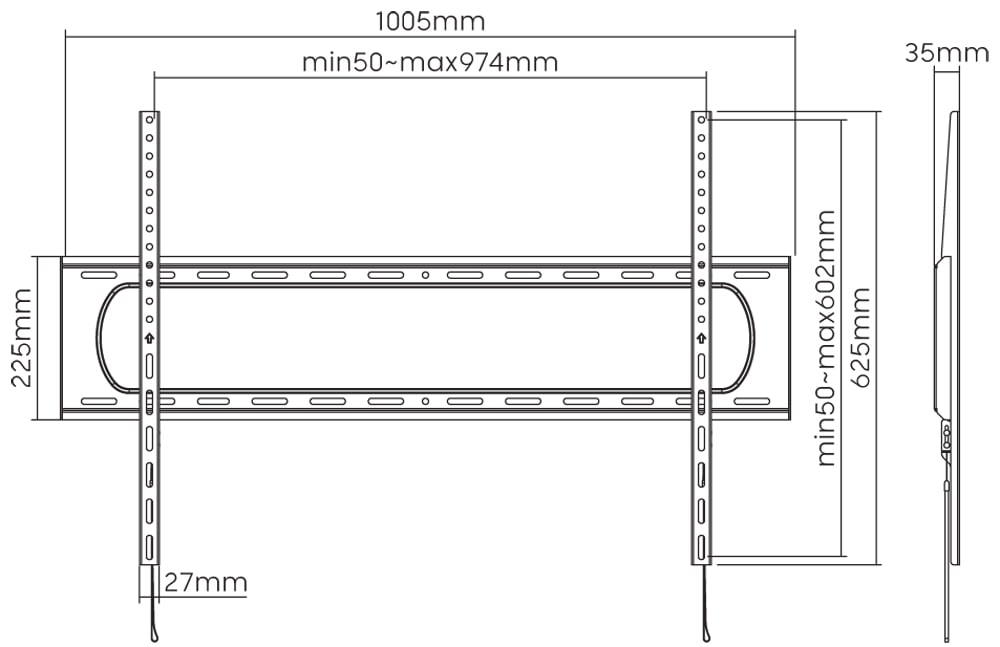

Dimensions

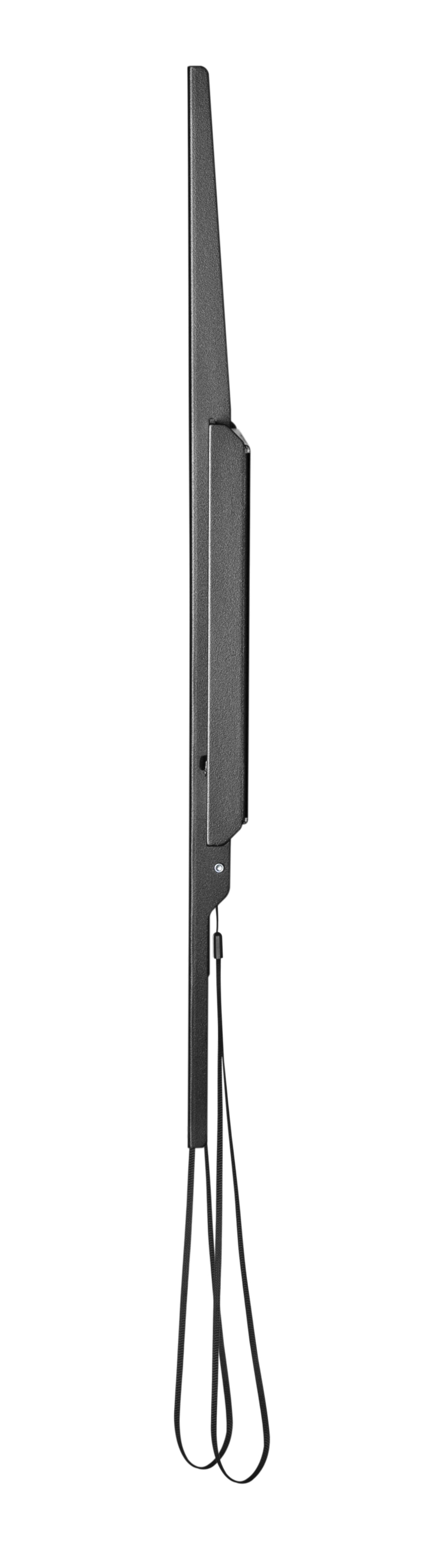

• Thickness: 35 mm


• Width: 1005 mm


• Height: 625 mm



Package contents

• Wall bracket for TV


• Bubble level dockable


• User manual
