19" Wall Mount Rack Enclosure 9U Depth 450 mm Flat Pack Gray - Techly Professional I-CASE FP-4509G

€103.33
Tax included €84.70 excl. VAT

19" wall mount rack enclosure 9U, depth 450 mm, gray color. SPCC steel structure, 5 mm tempered glass door, adjustable mounting rails. Static load capacity 60 kg.



Return policy



Delivery policy



Direct contact for info



Secure Payment

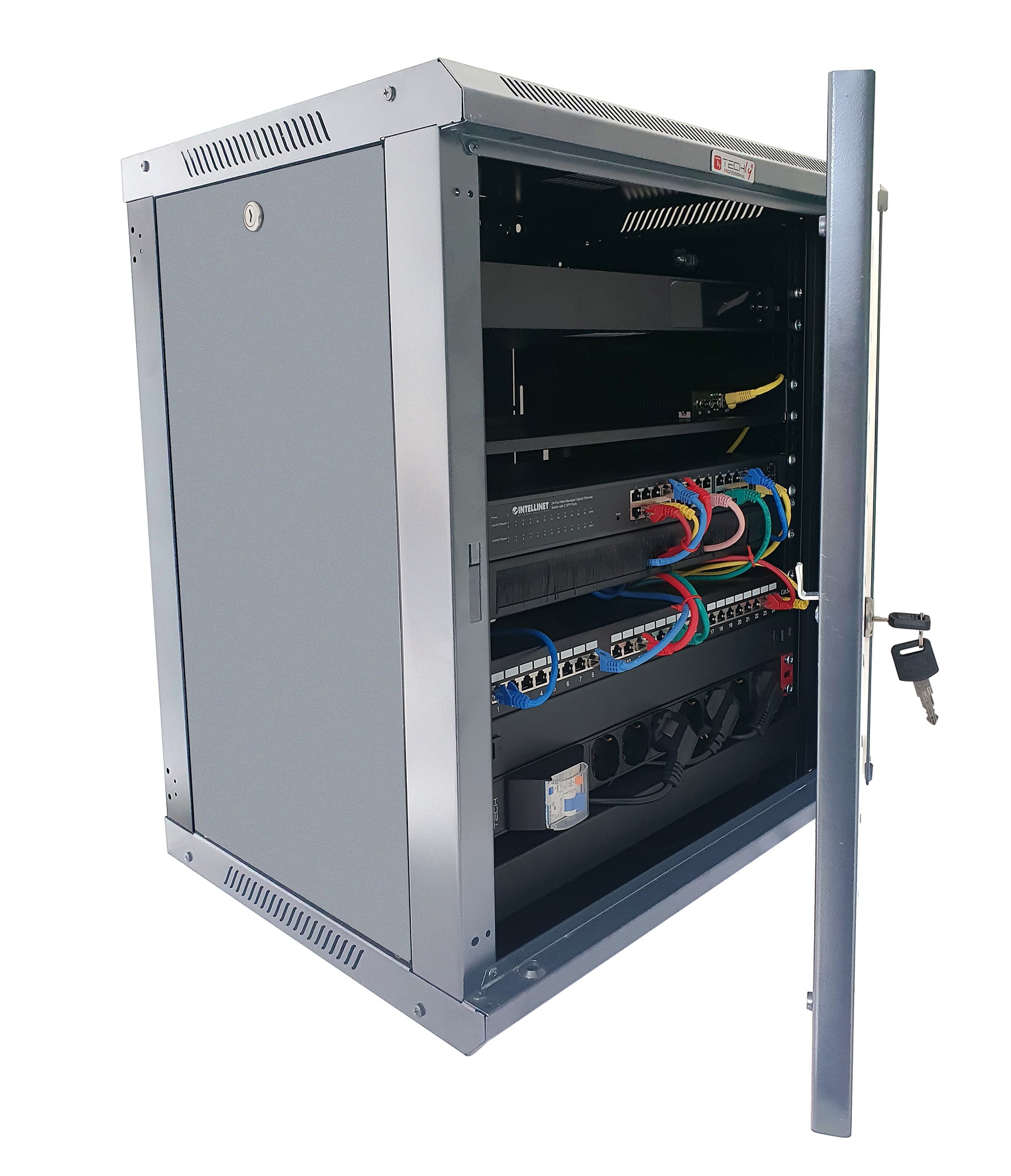

  • Single-section wall mount enclosure 9 units with removable side panels

  • Robust welded structure in cold-rolled SPCC steel

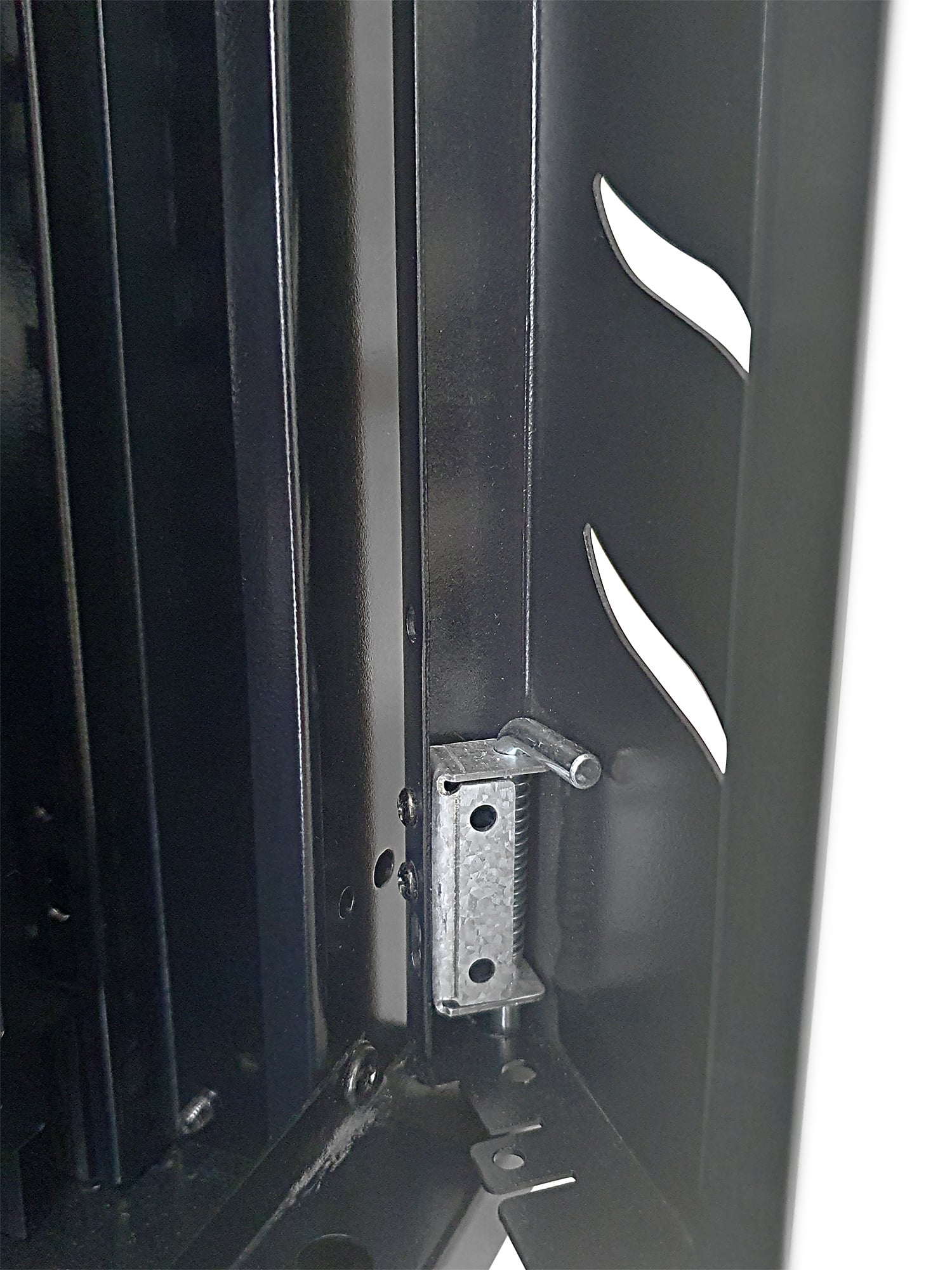

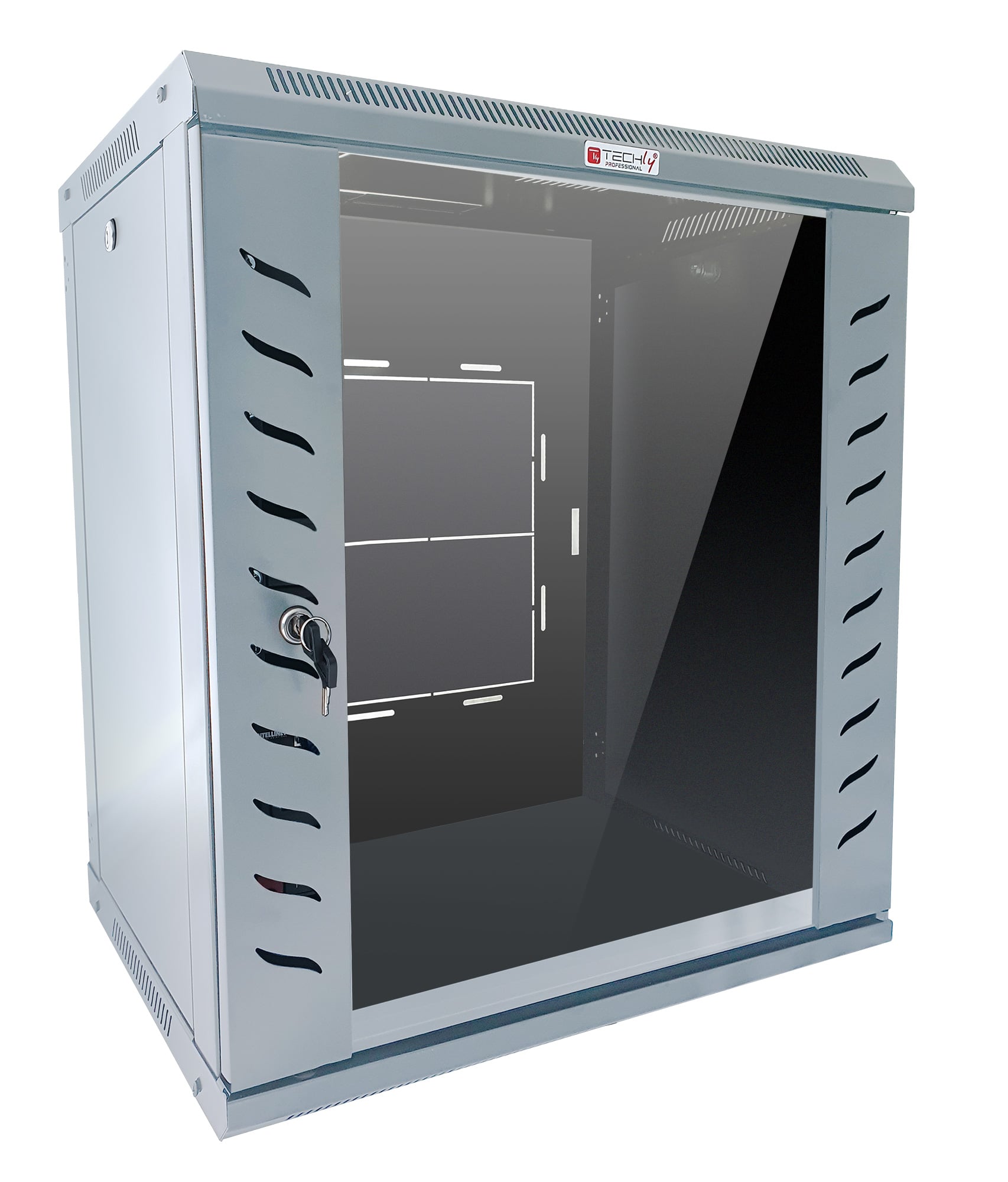

  • 5 mm tempered glass door easily removable and reversible, 180° opening angle, lock with key

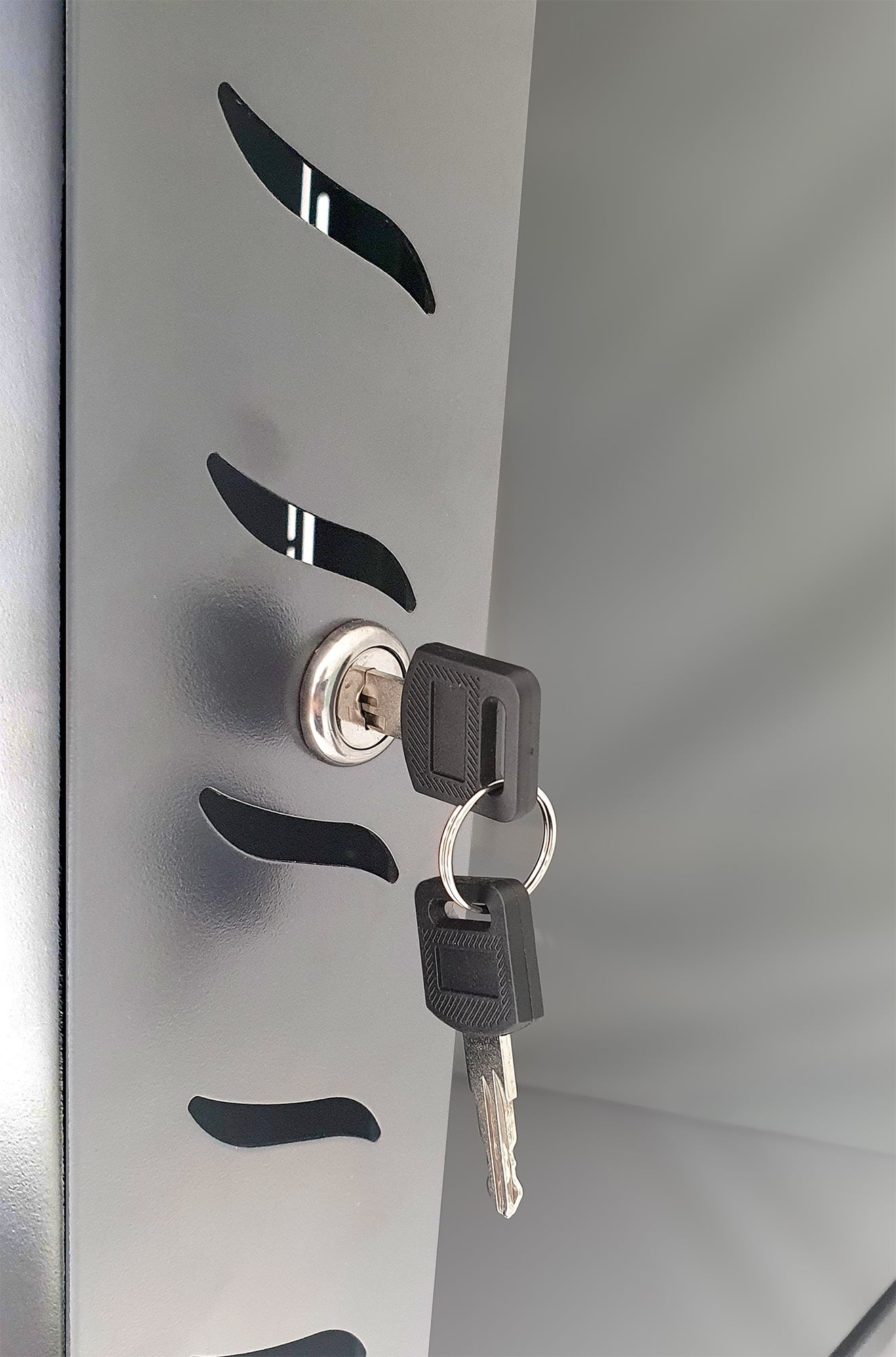

  • Front door lock key also compatible with side panel lock

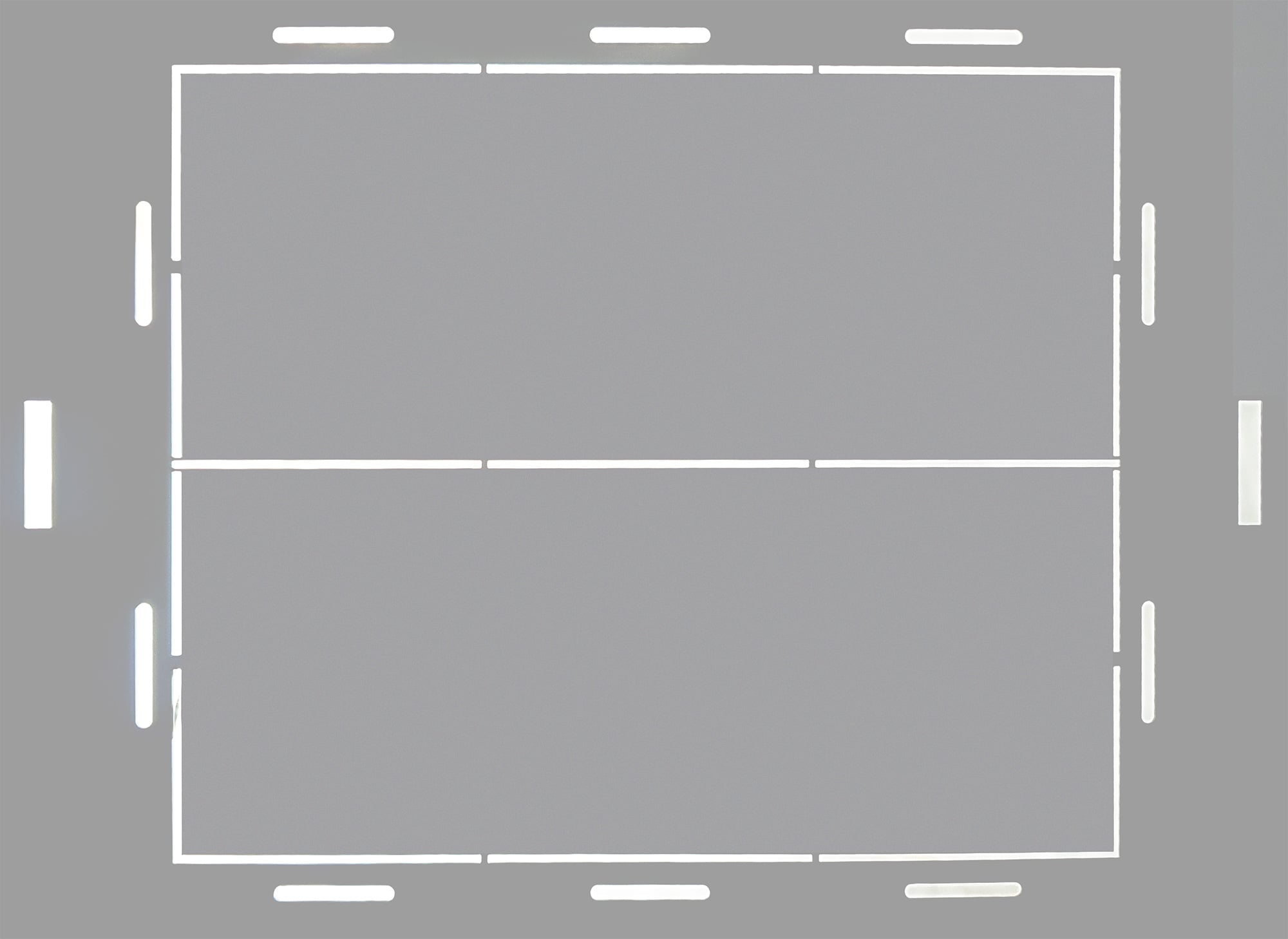

  • Fixed rear panel with two pre-cut panels on 6 points, size 40x16 cm each; thickness 0.8 mm

  • Removable blind side panels with 1/4 turn key lock; thickness 0.8 mm

  • Base and top panel thickness: 1.0 mm

  • Prepared for cable entry on base and top via pre-cut profiles (230 x 45 mm)

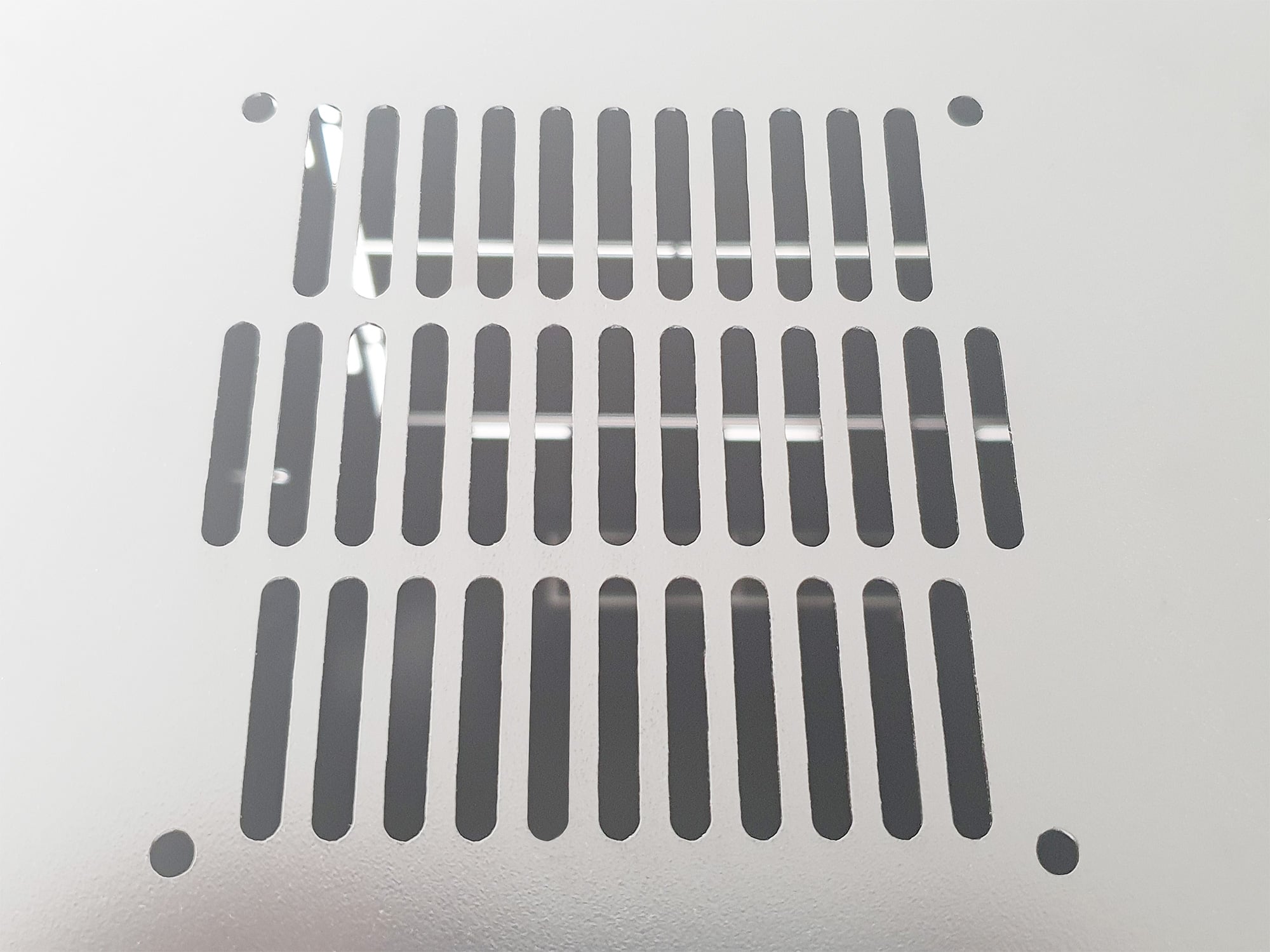

  • Prepared for installation of 2 x 120 mm fans on the top of the enclosure

  • Pair of front 19" mounting rails 1.2 mm, depth adjustable (usable depth: 425 mm; maximum usable depth with rails fully forward: 370 mm)

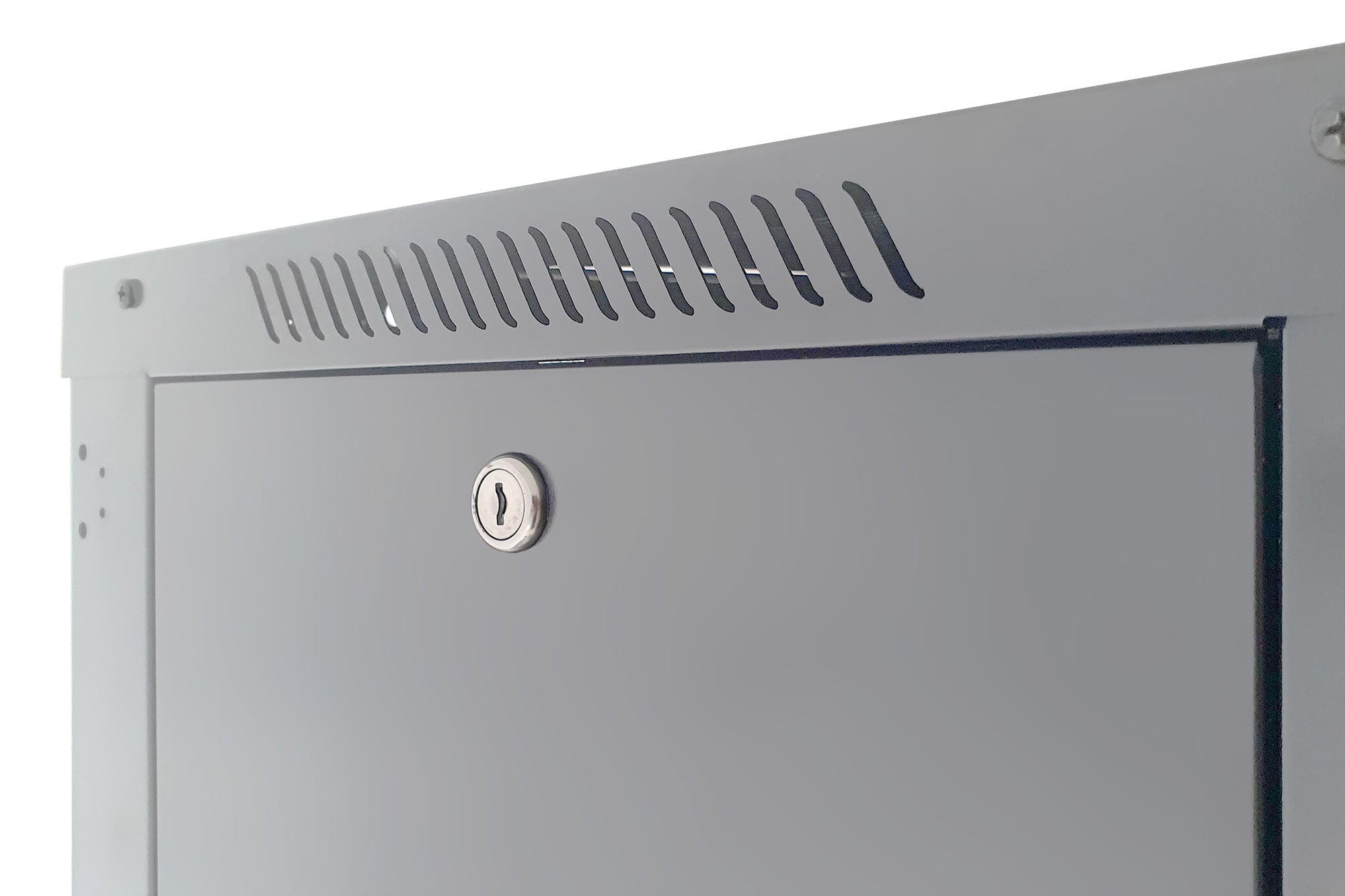

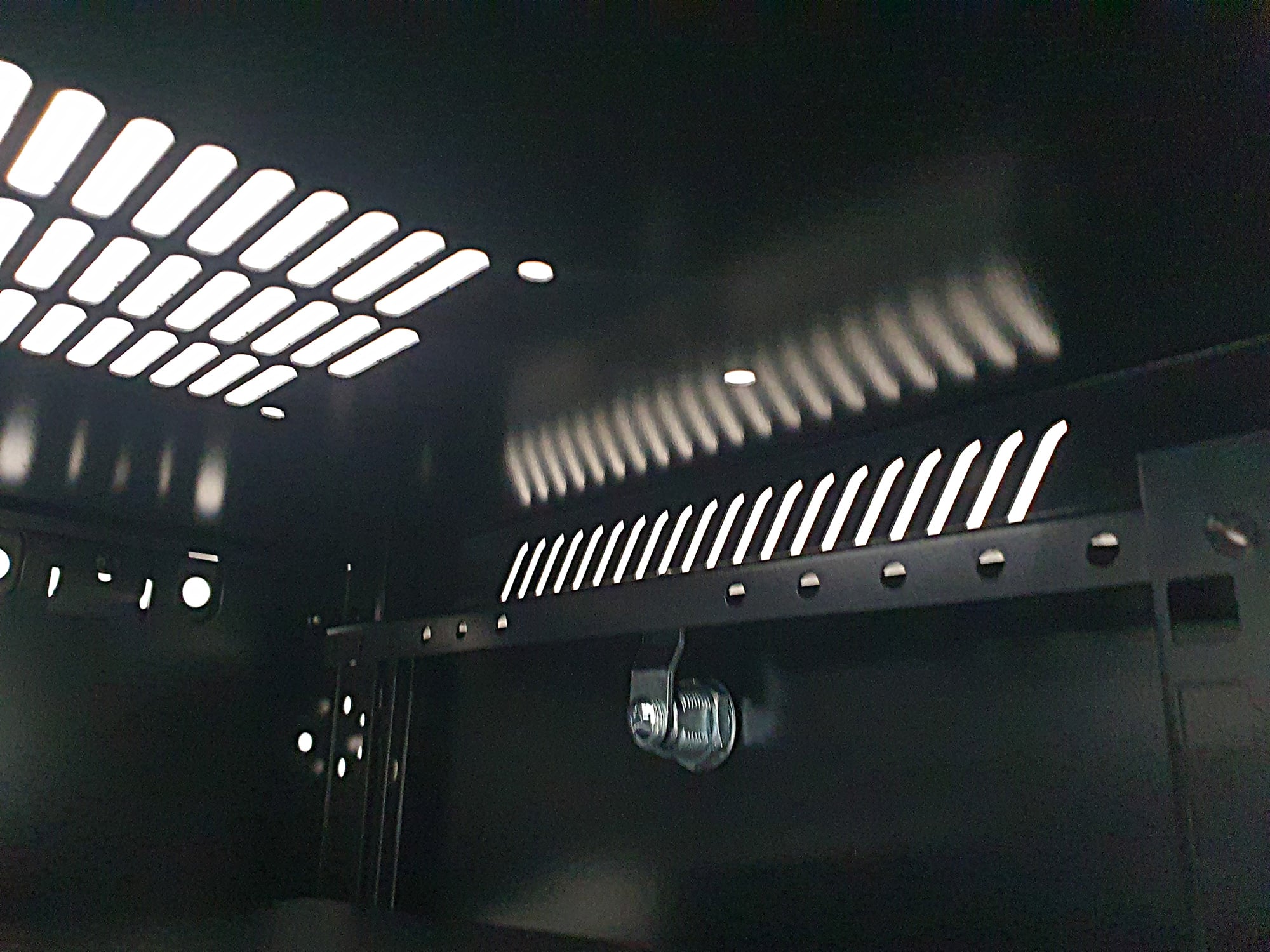

  • Ventilation slots on the top and bottom of the front and side panels

  • Quick wall mounting system with support bar

  • Bar with four fixing holes

  • Static load capacity: 60 kg

  • Shipped in assembly kit to save space and shipping costs

  • Easy to assemble



Standards and certifications

  • RoHS

  • ANSI/EIA RS-310-D

  • IEC297-2

  • DIN41494; PART1

  • DIN41494; PART7



General information

  • Dimensions (D x W x H): 450 x 570 x 502 mm; 9U

  • Package dimensions: 588 x 625 x 200 mm

  • Material: powder coated steel

  • Color: gray RAL 7035



Package contents

  • 19" wall mount flat pack rack 9U

  • 10 cage nuts

  • 22 self-tapping screws for assembly

  • 3 sets of 2 keys each

  • Assembly instructions

  • Brand
  • Reference
    I-CASE FP-4509G
  • In stock
    27 Items
  • EAN13
    8059018367348
