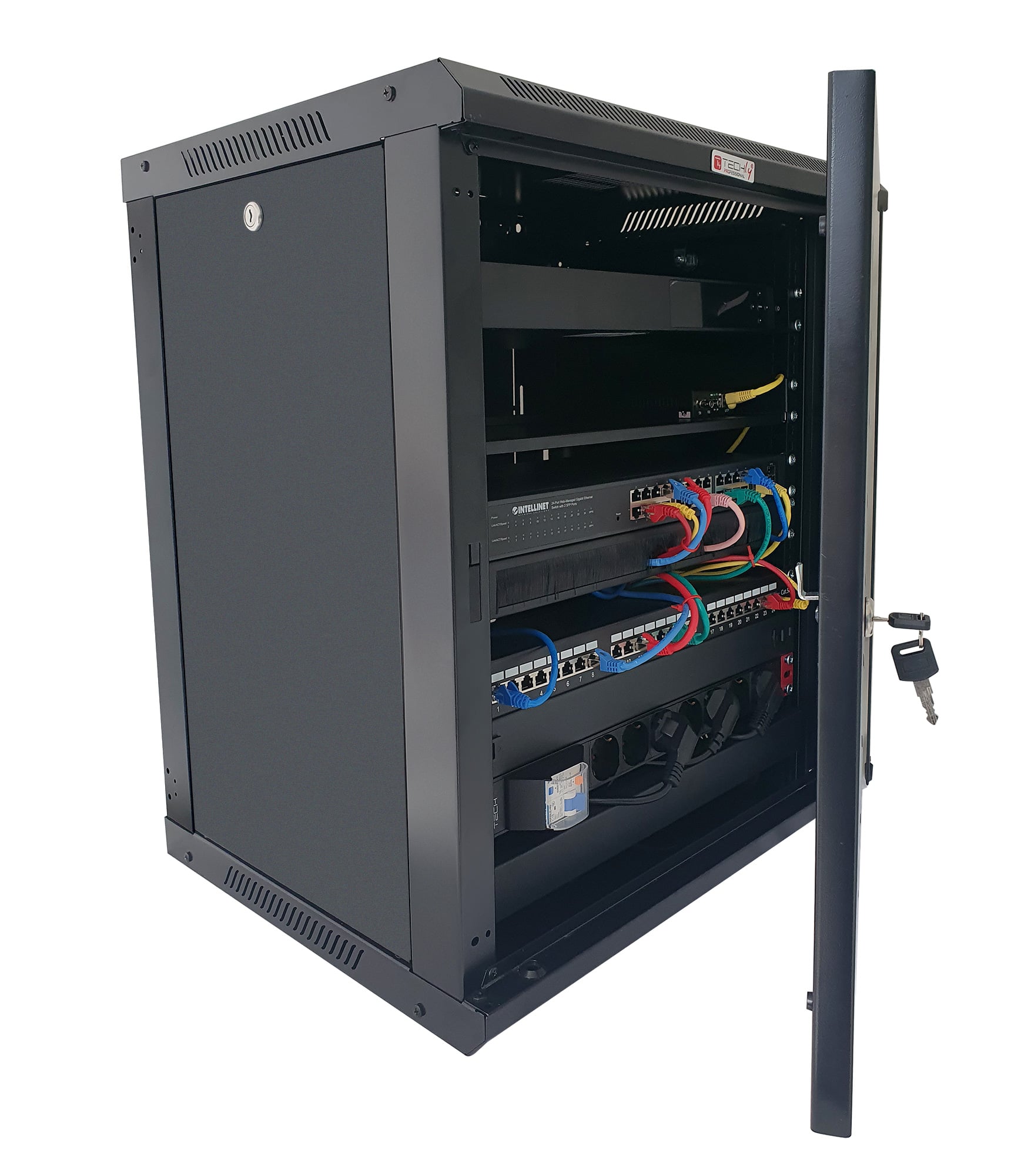

19" Wall Mount Rack Cabinet 9U Depth 450 mm Flat Pack Black - Techly Professional I-CASE FP-4509BK

€103.33
Tax included €84.70 excl. VAT

19" Wall mount rack cabinet 9U, depth 450 mm, black color. SPCC steel structure, 5 mm tempered glass door, adjustable mounting rails. Static load capacity 60 kg.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Single-section wall cabinet 9U with removable side panels

  • Robust welded structure in cold-rolled SPCC steel

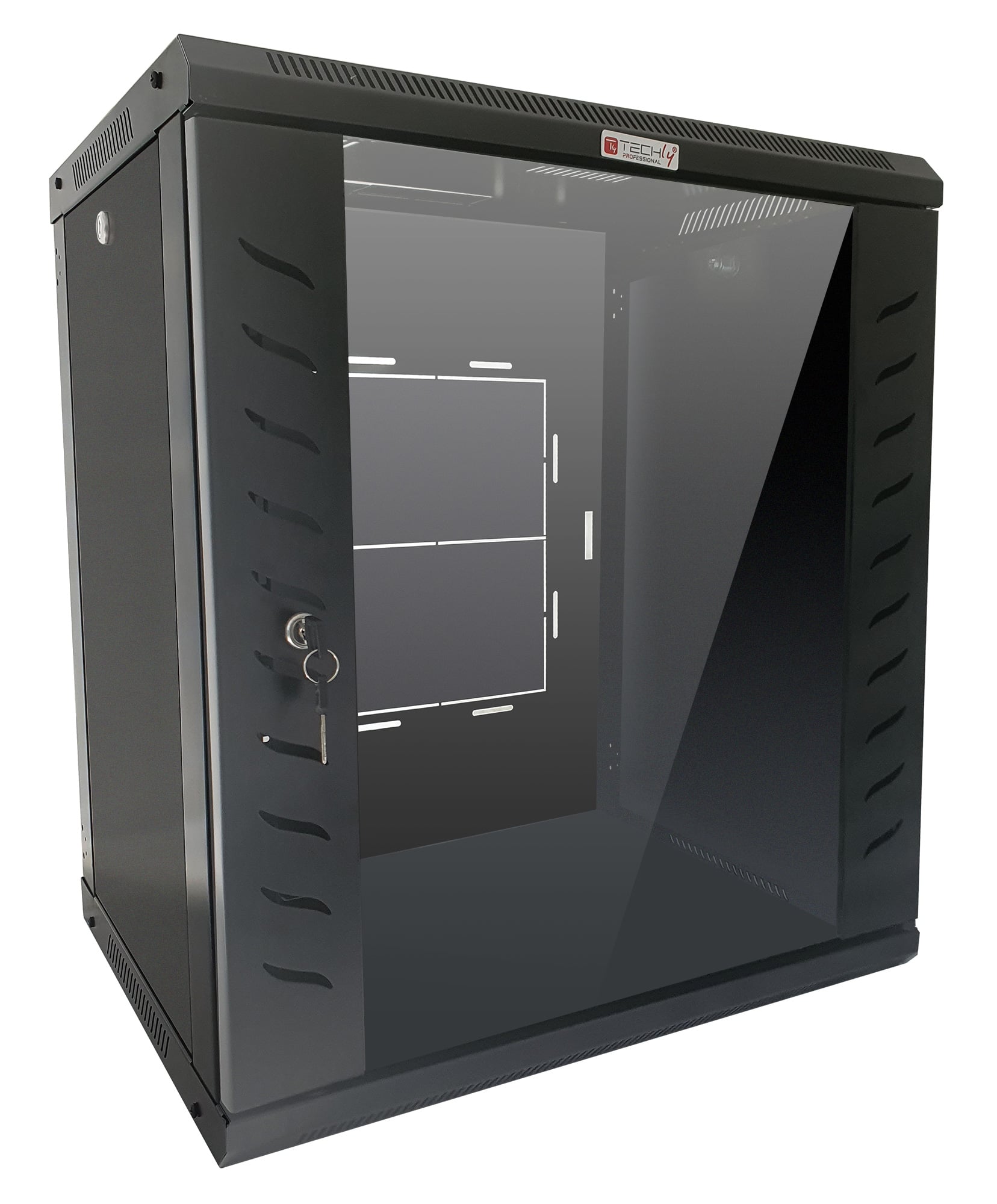

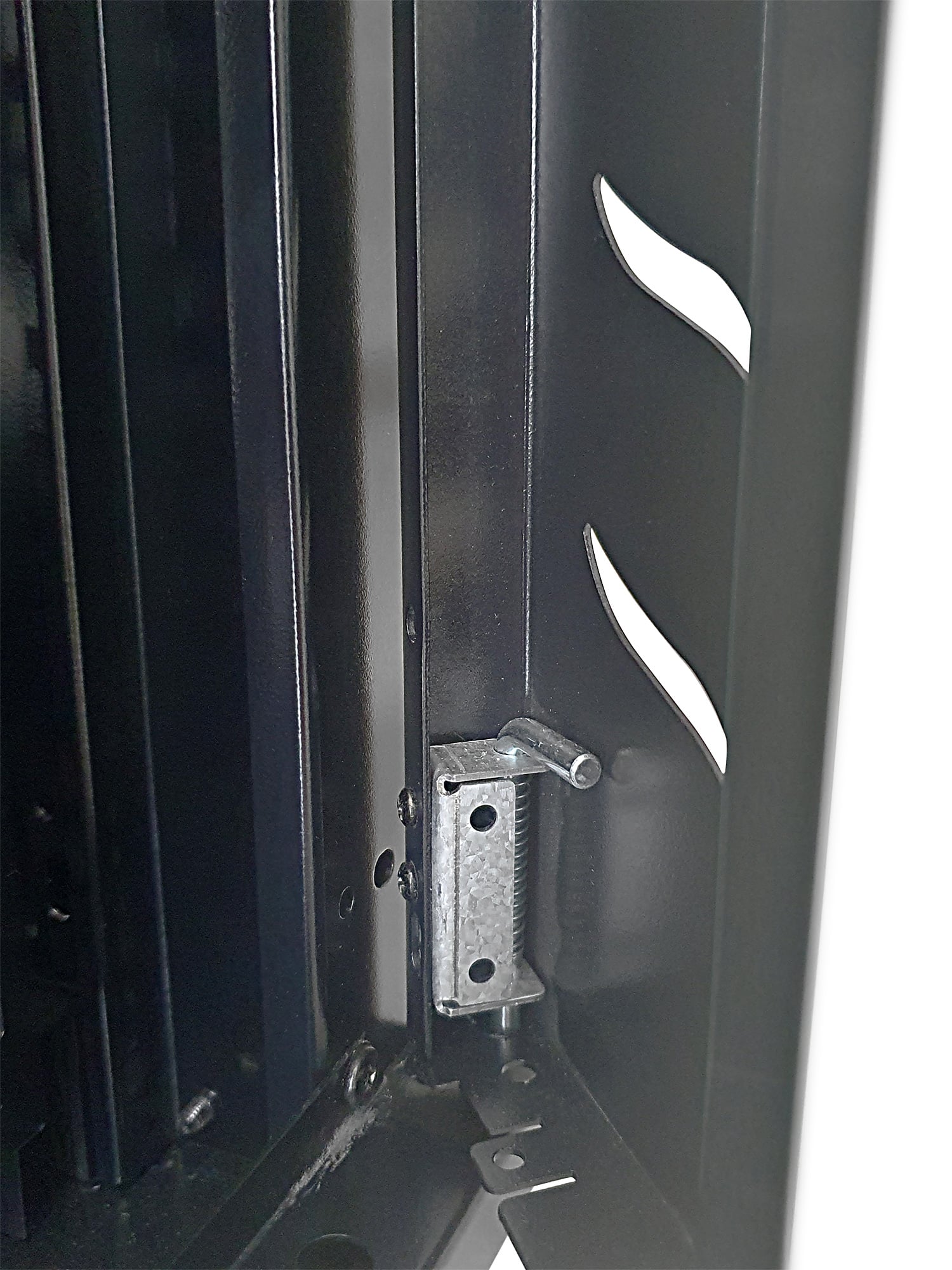

  • 5 mm tempered glass door easily removable and reversible, opening angle of 180°, lock with key

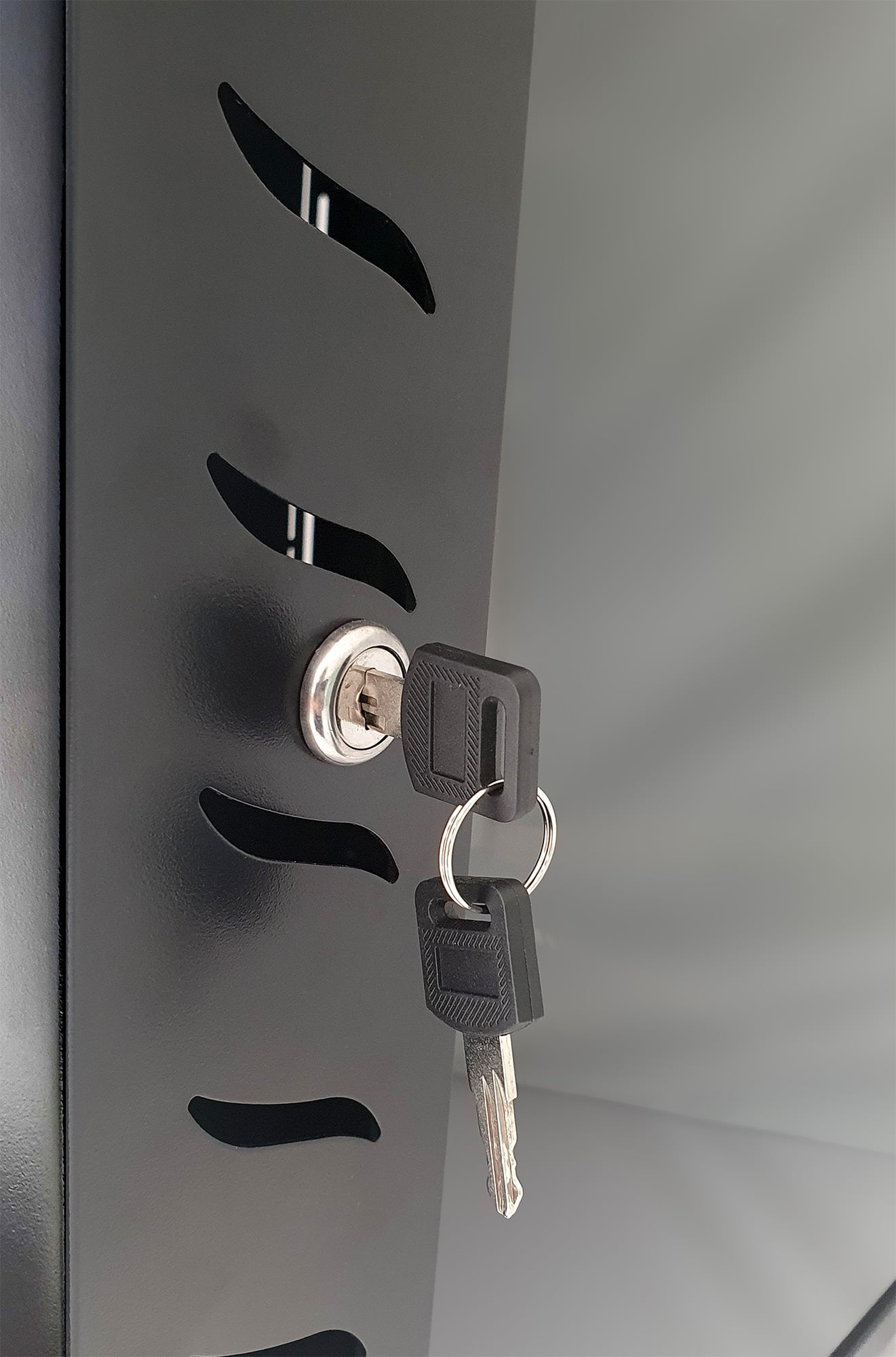

  • Front door lock key also compatible with the lock of the side panels

  • Non-removable blind rear panel, equipped with two pre-punched panels on 6 points, dimension 40x16 cm each; thickness 0.8 mm

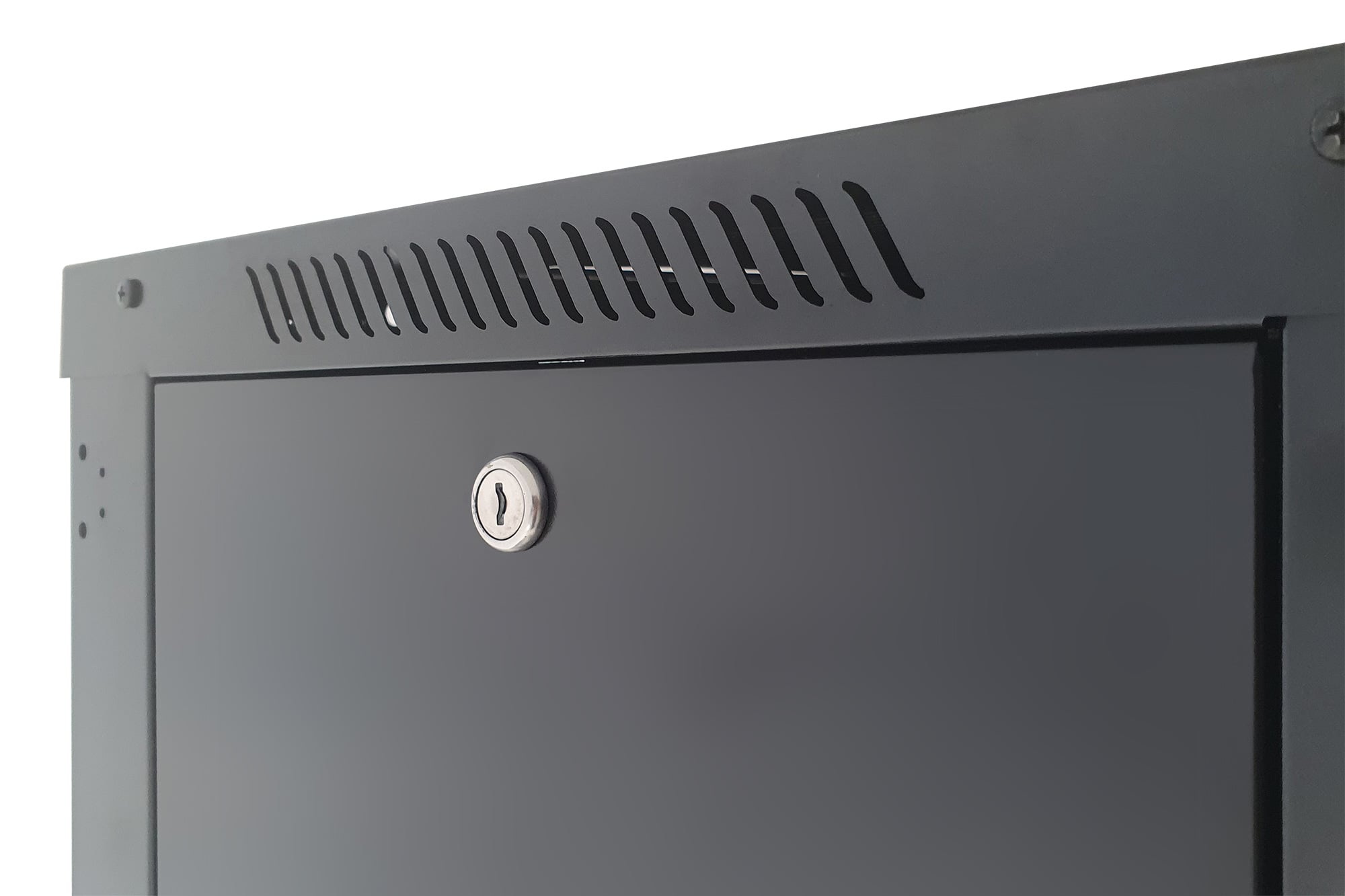

  • Removable blind side panels with 1/4 turn key lock; thickness 0.8 mm

  • Base and roof panel thickness: 1.0 mm

  • Provision for cable entry on base and roof via pre-punched profiles (230 x 45 mm)

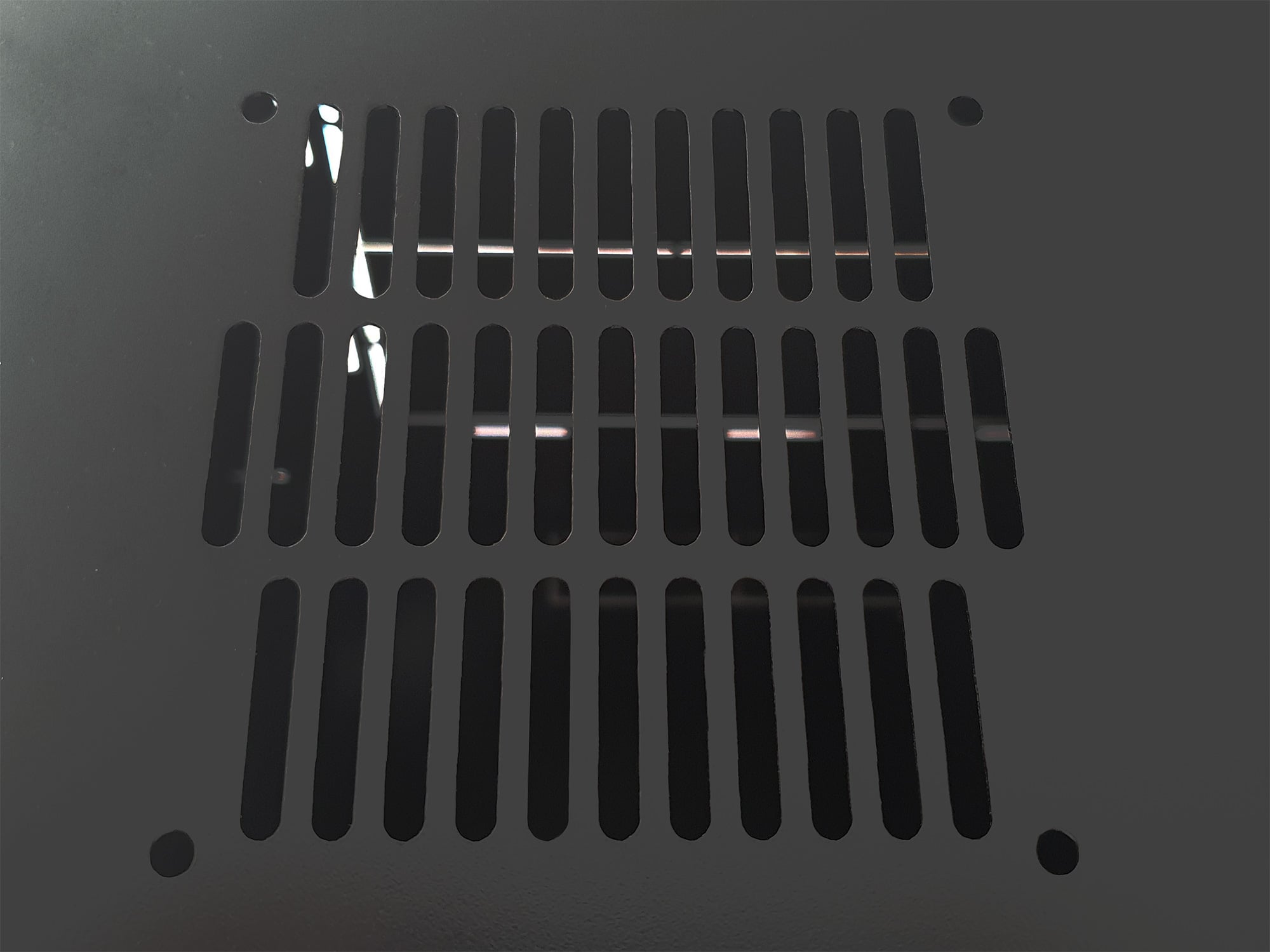

  • Provision for installation of 2 x 120 mm fans on the cabinet roof

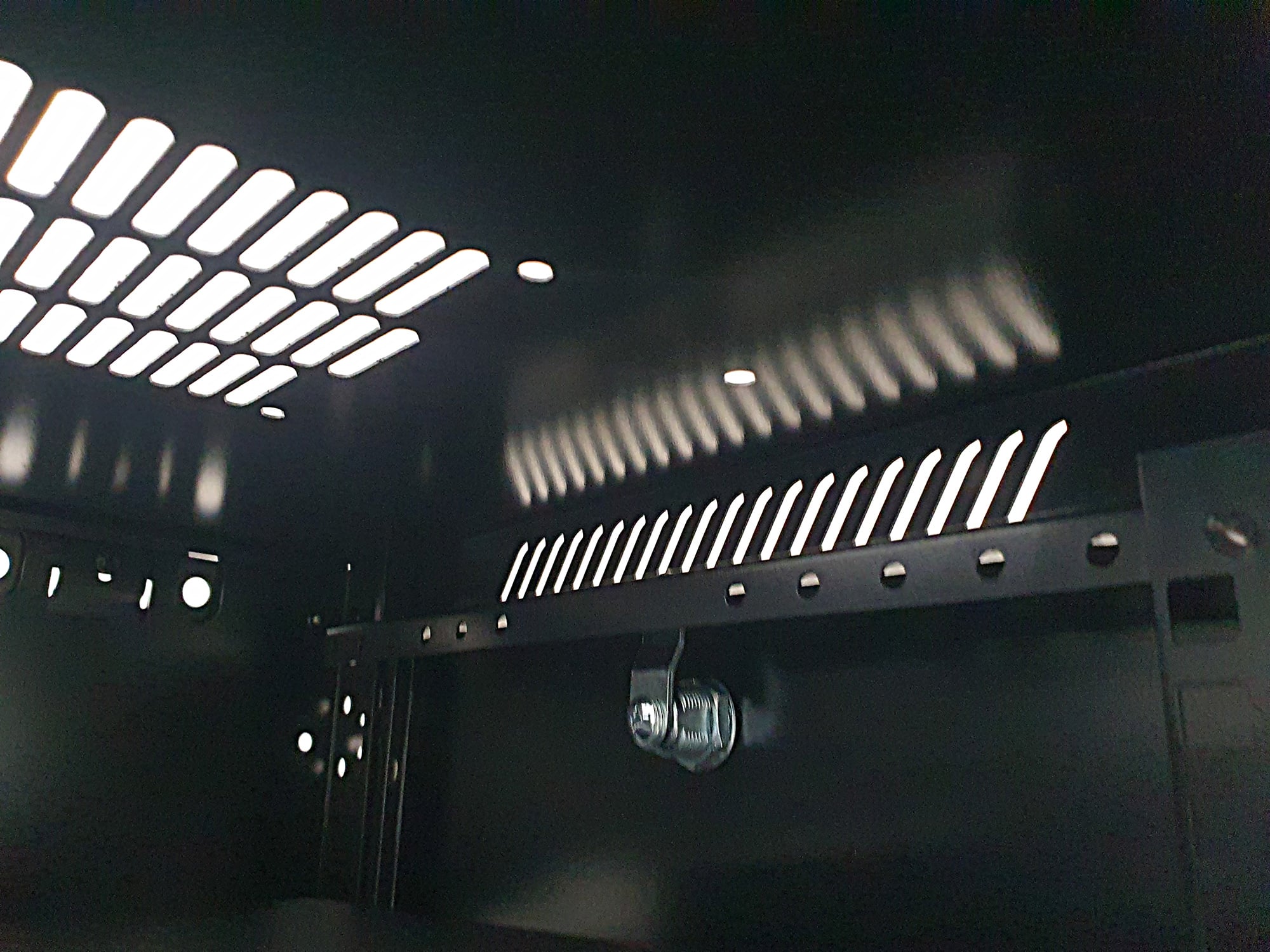

  • Pair of 19" front mounting rails of 1.2 mm, adjustable in depth (usable depth: 425 mm; maximum usable depth with rails fully forward: 370 mm)

  • Ventilation slots on the top and bottom of the front and side panels

  • Quick wall fixing system with support bar

  • Bar equipped with four fixing holes

  • Static load capacity: 60 kg

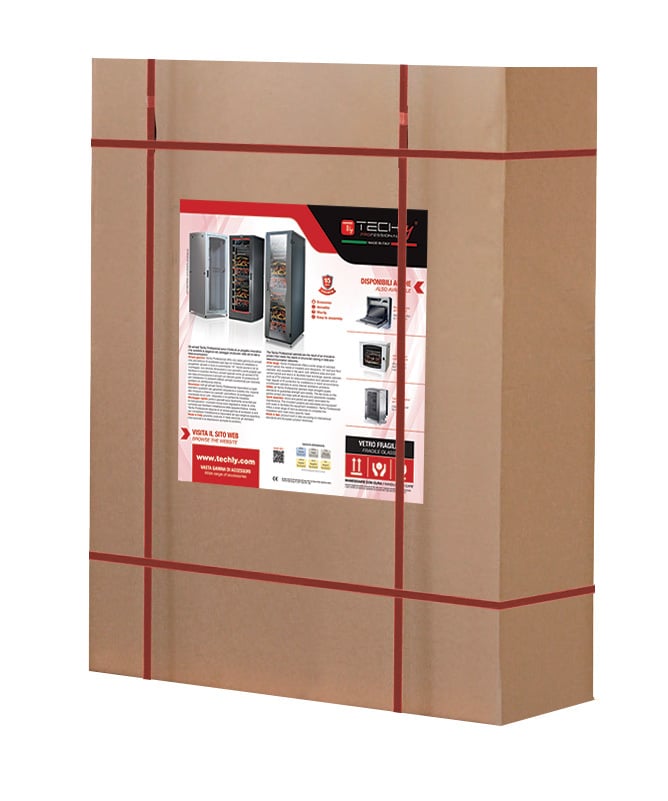

  • Shipped in assembly kit to save space and shipping costs

  • Easy to assemble



Standards and certifications

  • RoHS

  • ANSI/EIA RS-310-D

  • IEC297-2

  • DIN41494; PART1

  • DIN41494; PART7



General information

  • Dimensions (D x W x H): 450 x 570 x 502 mm; 9U

  • Package dimensions: 588 x 625 x 200 mm

  • Material: powder-coated steel

  • Color: black RAL 9004



Package contents

  • 19" wall mount rack flat pack 9U

  • 10 cage nuts

  • 22 self-tapping screws for assembly

  • 3 sets of 2 keys each

  • Assembly instructions

  • Brand
  • Reference
    I-CASE FP-4509BK
  • In stock
    79 Items
  • EAN13
    8059018367355
