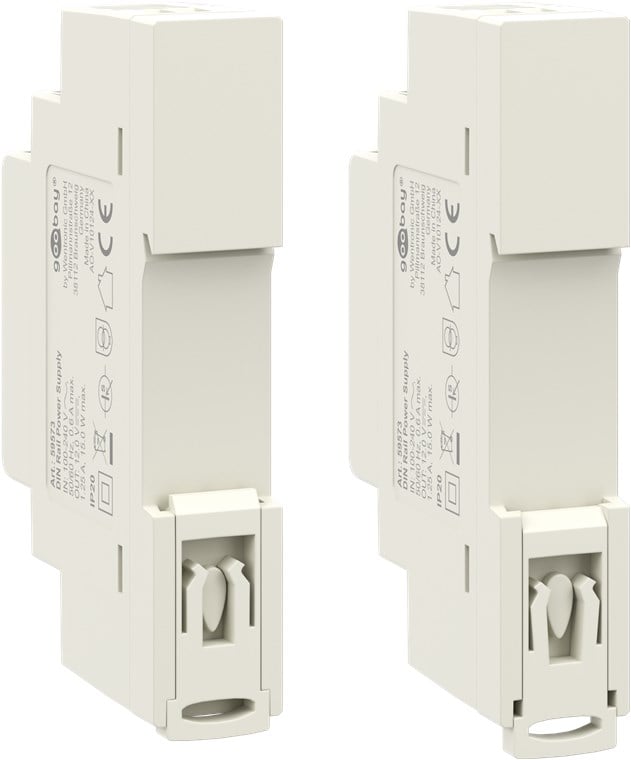

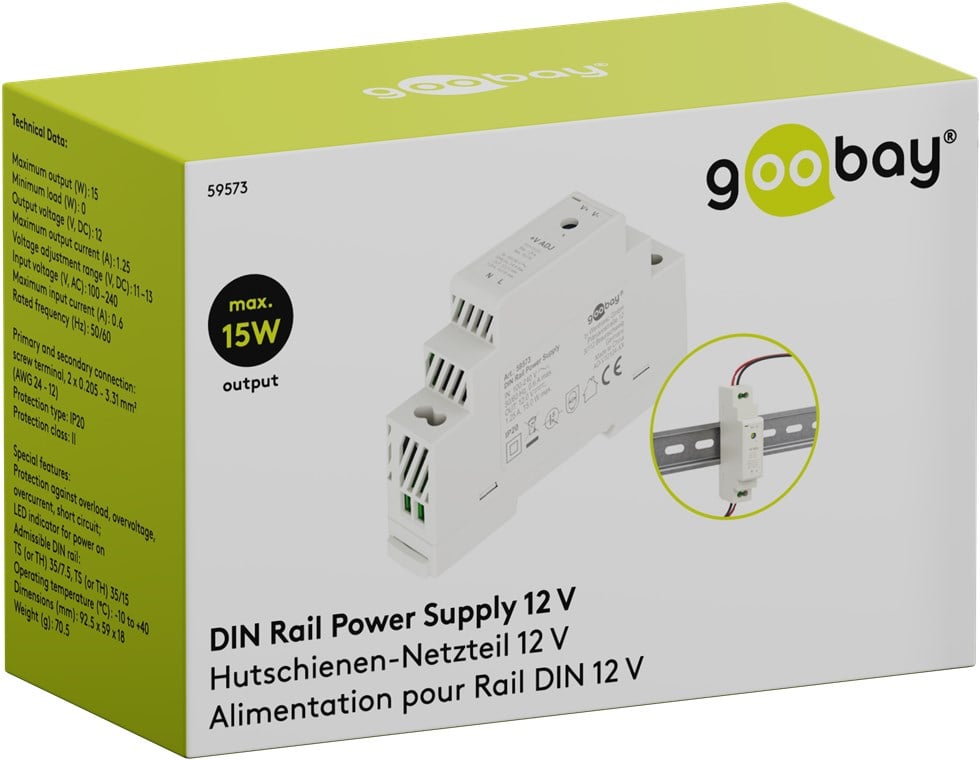

Power supply on DIN 12 V 1,25 A 15 W - Goobay IPW-ADP- 12 V- 15 W

€19.01
Tax included €15.60 excl. VAT

12 V LED power supply for DIN rail, width 18 mm. Input voltage 100 - 240 V AC, DC output variable 11 - 13 V. Overvoltage protection, overload and short circuit. IP protection class 20 .



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • The 12 V è LED power supply suitable as a bell transformer, for the operation of surveillance and access systems, door opener, intercoms, bells, etc.

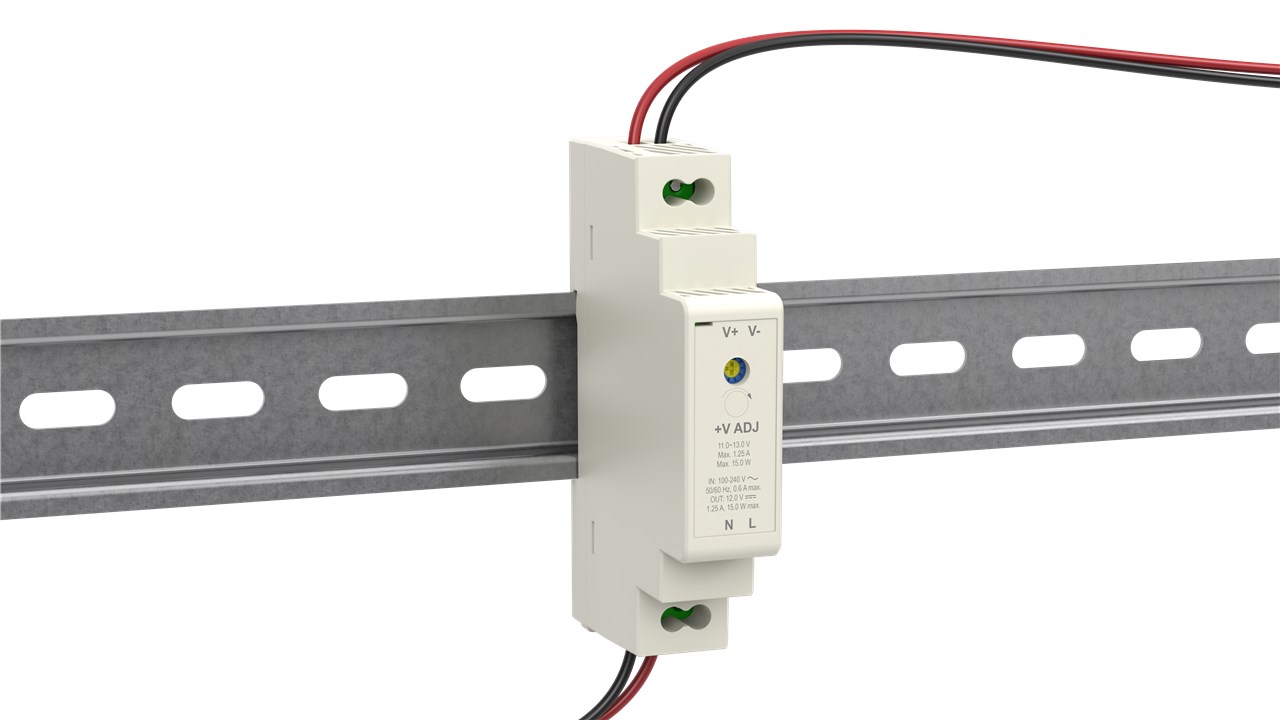

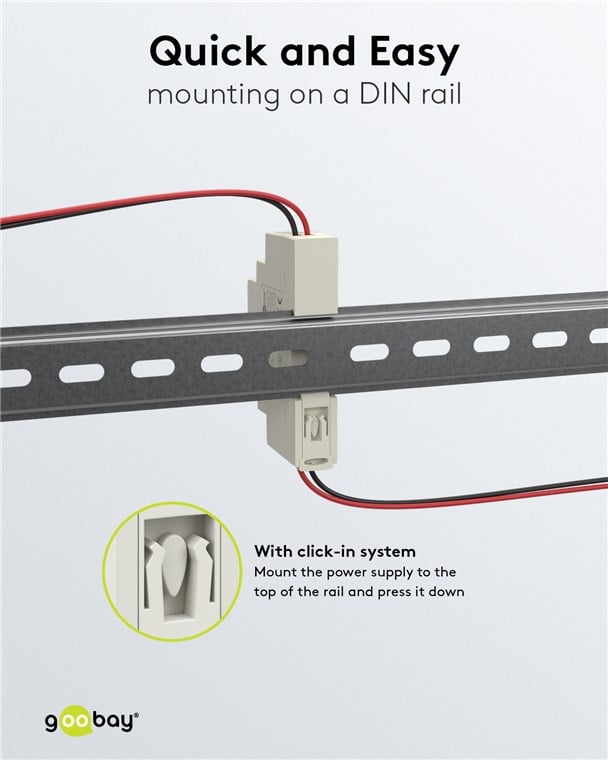

  • With a width of 18 mm, the LED è driver is particularly compact and can be mounted quickly and easily on a DIN guide with a hat profile by means of a snap system

  • Highly reliable and stable LED transformer from 12 V with input voltage range of 100 - 240 V AC to 50 / 60 Hz

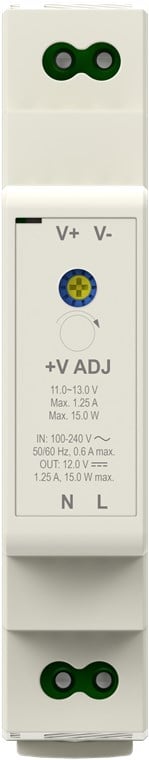

  • Highly efficient rectifier has a variable DC output voltage of 11 - 13 V and low vacuum power

  • Especially safe thanks to overvoltage, overload and short circuit protection, IP protection class 20 and safe electronic insulation according to the class of equipment II

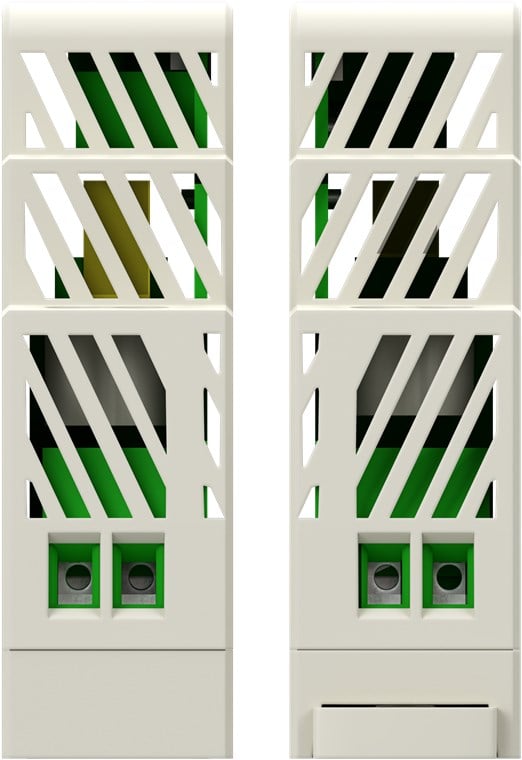

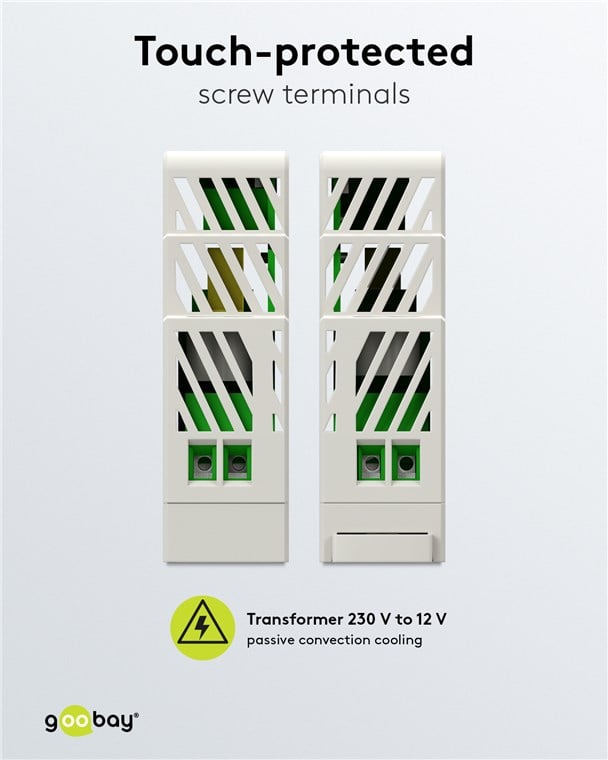

  • The transformer from 240 V AC to 12 V DC with passive convection cooling è connected via screw clamps protected by accidental contacts

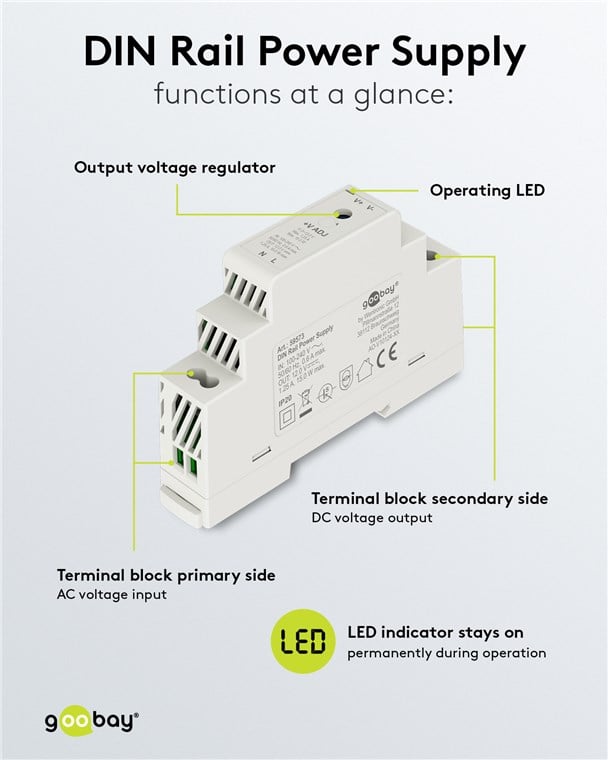

  • The LED indicator on the transformer for DIN guide (DR- 15 - 12) remains always on during operation



Technical specifications

  • Max. performance 15 W

  • Minimum load: 0

  • Number of LEDs: 1

  • Vacuum power consumption: 0,2 W

  • Max. power: 15,0 W

  • Input, type Screw clamp x in

  • Number of inputs: 2

  • Exit, screw terminal type

  • Output, voltage (DC) 12 V (DC)

  • Exit, max. amperage 1,25 A

  • Input, voltage range 100 - 240 V AC

  • Number of exits: 2 doors

  • Output, voltage range 11 - 13 V ADJ V

  • Output, voltage (DC) 12,0 V (DC)

  • Exit, max. amperage 1,3 A

  • Input current 0,6 A

  • Protection class IP20

  • Class II apparatus

  • Color: white



Protection

  • Overload protection

  • Short-circuit protection



Environmental features

  • Operating temperature from - 10 °C

  • Operating temperature up to 40 °C

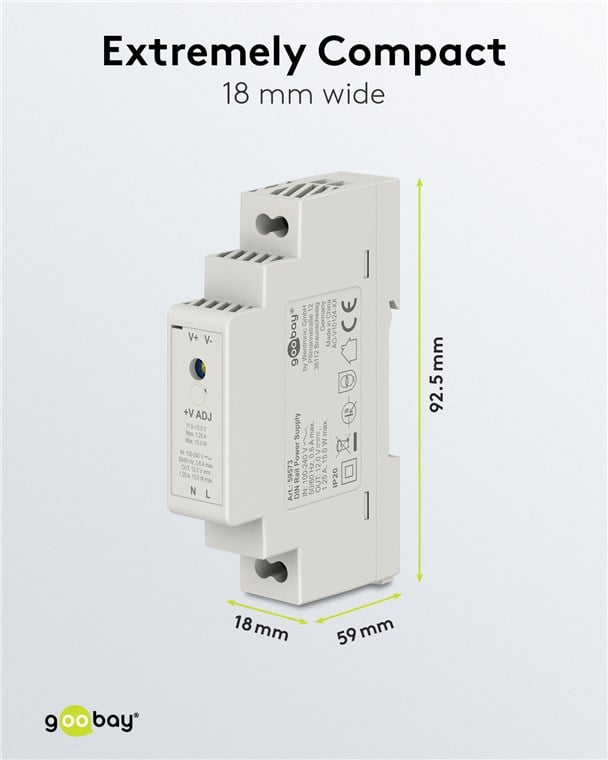

Dimensions

  • Width: 18 mm

  • Height: 92,5 mm

  • Depthà: 59 mm

  • Weight: 70,5 g



Package contents

  • 1 x DIN Guided Power Supply

  • 1x User manual

  • Brand
  • Reference
    IPW-ADP-12V-15W
  • In stock
    11 Items
  • EAN13
    4040849595738
