LED Electronic Transformer 12V 12W - Goobay I-LED-TR12V12W

€15.52
Tax included €12.70 excl. VAT

LED transformer 12V DC, 12W, with protection rating IP67. Suitable for indoor and outdoor use, with integrated protections and compact design.

Out of stock
  • Shipping €12.81 in Italy (islands €13.42) · delivery in 24/48 working hours after handover to the courier
  • Secure payments
    • Transfer
  • Returns within 14 days of delivery
  • Electronic invoice and prices also VAT excluded for companies and VAT holders
  • Phone support: 3206284308


Return policy



Delivery policy



Direct contact for info



Secure Payment

  • The electronic transformer powers devices such as LED luminaires with a maximum power of 12W at a voltage of 12V

  • The compact design and low weight make the LED driver the ideal power supply for light strips, LED lamps, LED strips, and under-cabinet luminaires

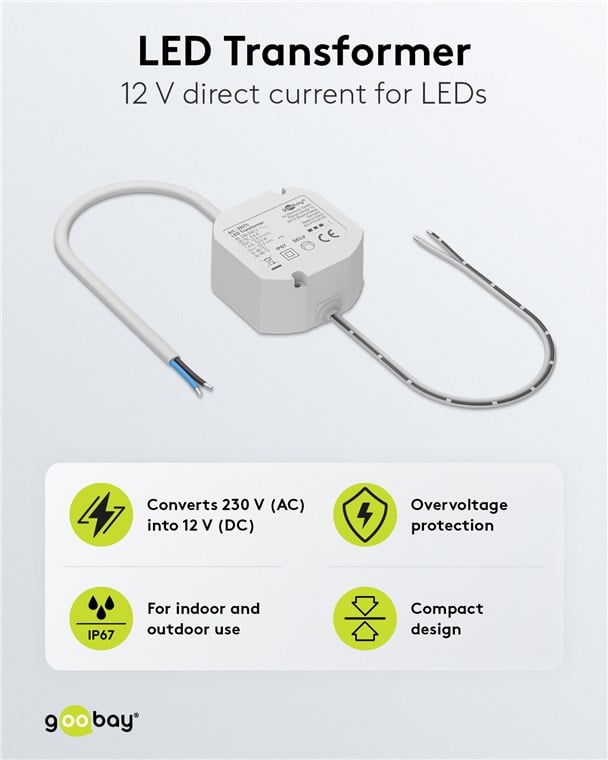

  • The LED power supply converts the input voltage from 230 V (AC) to an output voltage of 12 V (DC)

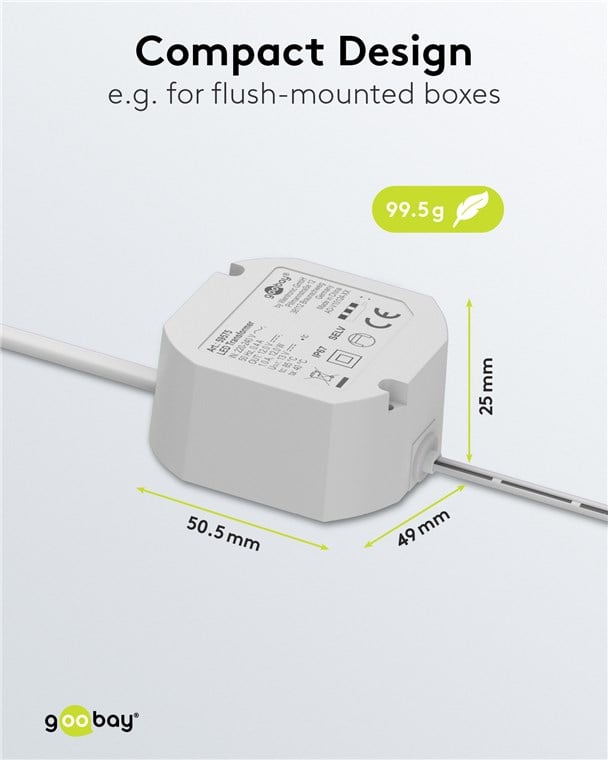

  • The DC transformer measures 49 x 56 x 25 mm and is suitable for round lamp bodies, flush-mounting boxes, and junction boxes

  • The LED power supply is particularly safe thanks to overvoltage, overload, and short-circuit protection, and safe electronic isolation according to appliance class II

  • The small transformer is suitable for indoor and outdoor use thanks to protection class IP67

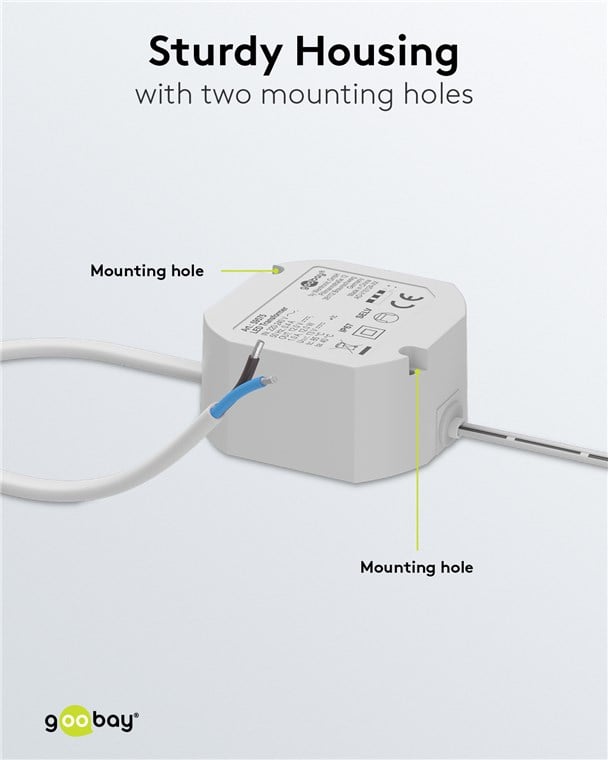

  • The robust plastic housing has two mounting holes



Technical specifications

  • Non-dimmable

  • No-load power consumption: 0,2W

  • Maximum power: 12,0W

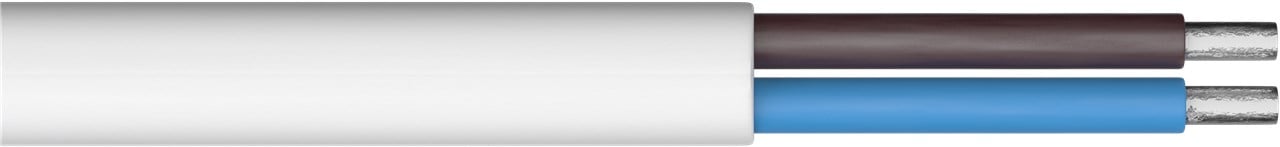

  • Input, type: loose cable ends 2 pin x in

  • Number of inputs: 2

  • Input cross-section 0,75 mm²

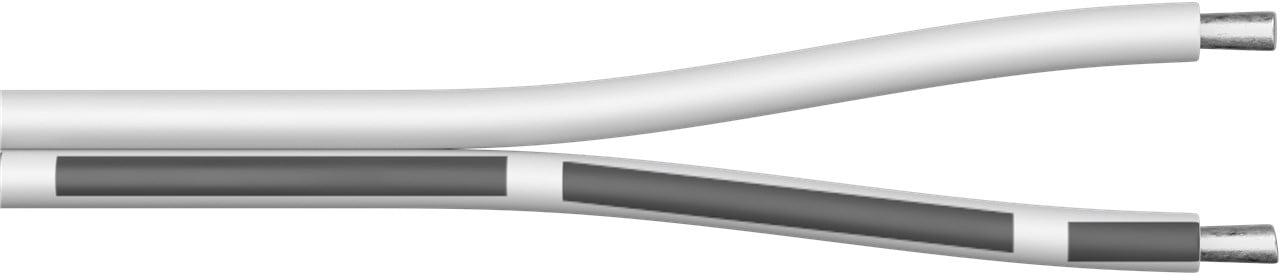

  • Output: loose cable terminals 2 pin

  • Output voltage: 12V DC

  • Max. output amperage: 1A

  • Input current 0,4 A

  • Output cross-section 0,324 mm²

  • Input: voltage range 220 - 240V AC

  • Number of outputs: 2 ports

  • Protection class: IP67

  • Appliance class: II

  • Average active efficiency: 73%

  • Supply frequency: 50 Hz

  • Color: white



Environmental features

  • Operating temperature: from -20 °C to 45 °C



Dimensions

  • Length 49 mm

  • Width 25 mm

  • Height 50,5 mm

  • Weight 99,5 g



Package contents

  • Transformer I-LED-TR12V12W

  • User manual

  • Brand
  • Reference
    I-LED-TR12V12W
  • EAN13
    4040849595752
