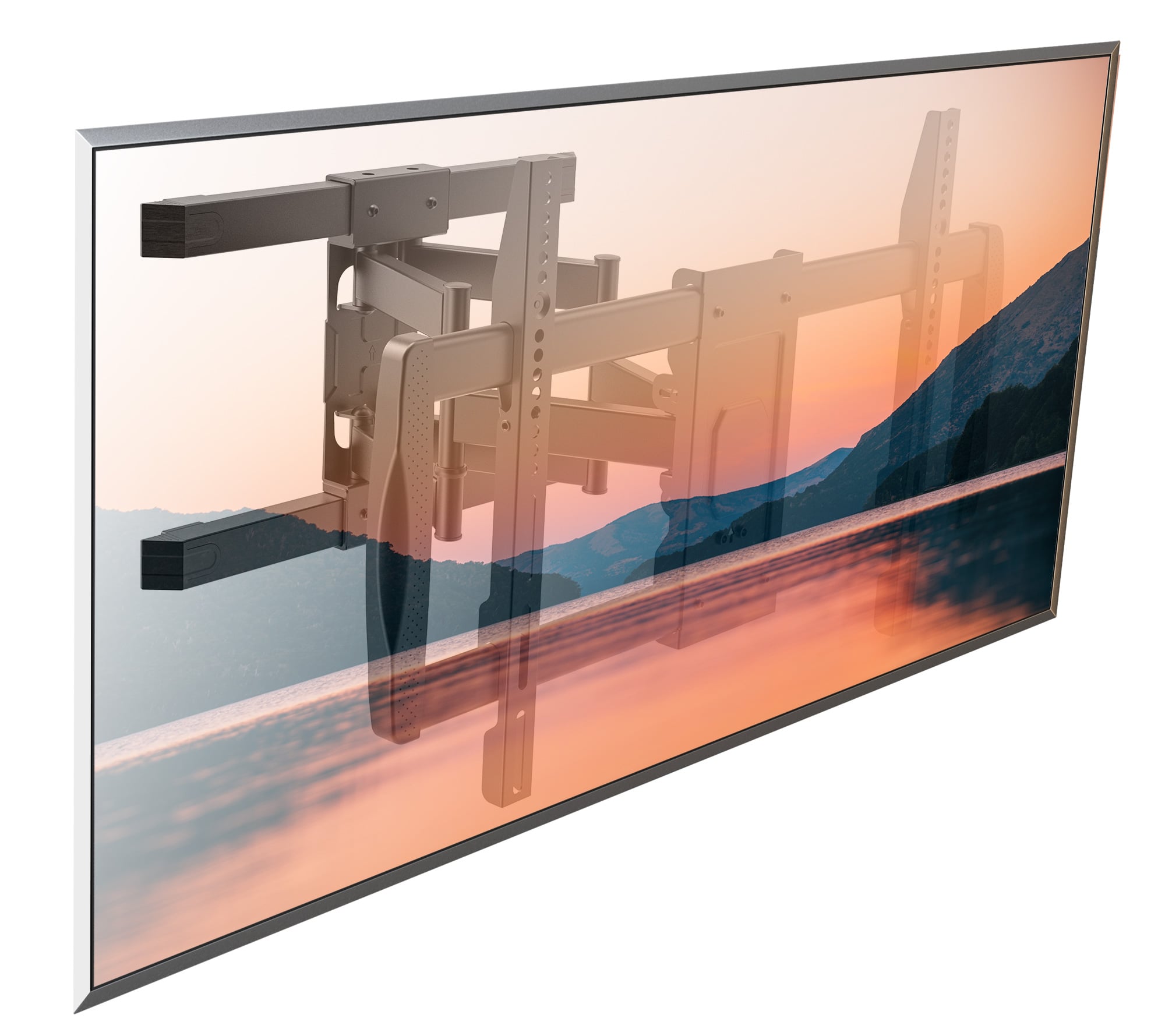

ICA-PLB 473 è a complete double arm wall mount for flat and curved TVs up to 75 and up to 60 kg weight. This support extends for 411 mm from the wall and allows the monitor to rotate 90 °. The fully closed arm is only 93 mm from the wall.
The complete movement allows maximum flexibility à: tilt and turn the TV for easy viewing from any point in a room. The adjustment of the post-installation level allows the TV to rotate up to 3 ° clockwise and counter-clockwise to ensure it is perfectly positioned. The integrated cable management system keeps the cables organized and protected. Wall plate with sliding trolley for a wider TV positioning area.
Features- Compact design bracket, ideal for large TV
- Optimized vision with + 5 ° to - 15 ° tilt adjustment and +/- 90 ° rotation
- It easily installs, ideal for home, office and commercial applications
- Slim design, the back of the TV is only 93 mm from the wall with the arm completely closed
- Integrated level bubble to ensure perfect TV mounting
Specifications- Material: steel
- Finishing: powder coating
- Color: black
- Supported monitor dimensions: 42 - 75
- Max VESA: 600 x 400
- Supported weight: 60 kg

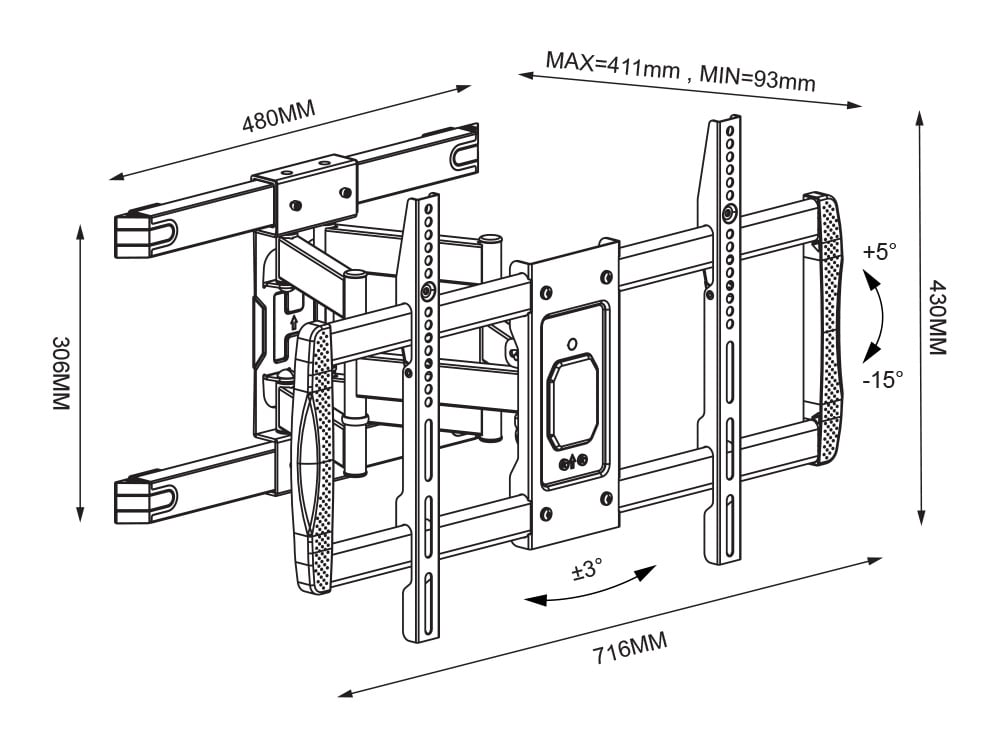

- Distance from the wall: min. 93 max 411 mm
- Tilt: + 5 ° - 15 °
- Rotation: + 90 ° - 90 °
- Screen Leveling: + 3 ° - 3 °
- Wall plate type: wall plate with slide track
- Integrated cable management
Package contents- Wall bracket with double arm for LED/LCD TV 42 - 75
- Fastening material
- Installation manual
