Universal AC charger for 65 W laptop - Manhattan IPW-NTS- 962

Universal AC charger for 65 W laptop - Manhattan IPW-NTS- 962

Name: Universal AC charger for 65 W laptop - Manhattan IPW-NTS- 962
Brand: MANHATTAN
SKU: IPW-NTS-962
Price: 28.26 EUR
Availability: InStock

€28.26

Tax included

Universal charger for 65 W notebooks with automatic selection between 6 voltages (15 - 20 V). Includes AC cable from 1,5 m, DC cable from 1,2 m with 9 connectors, protections and cable clamp.

Return policy

Delivery policy

Direct contact for info

Secure Payment

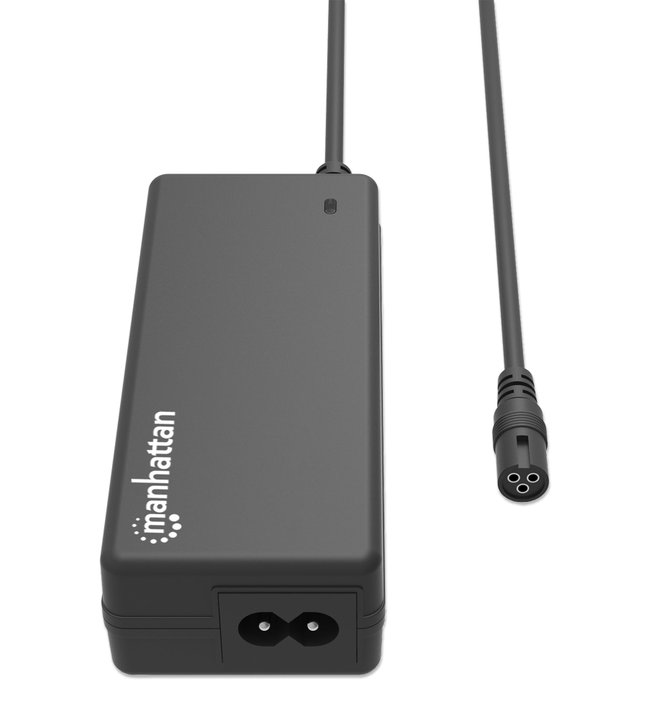

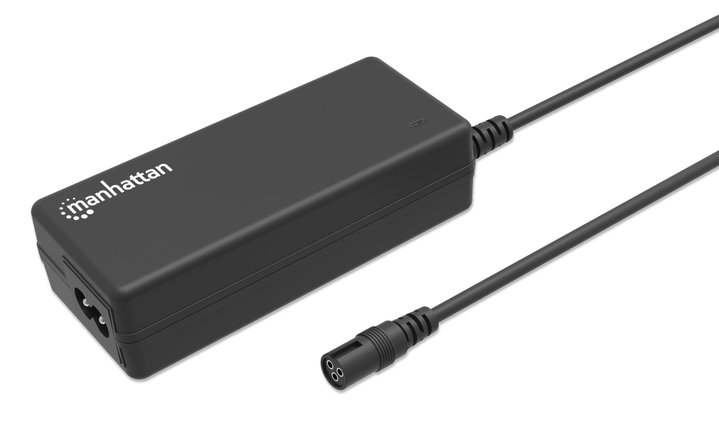

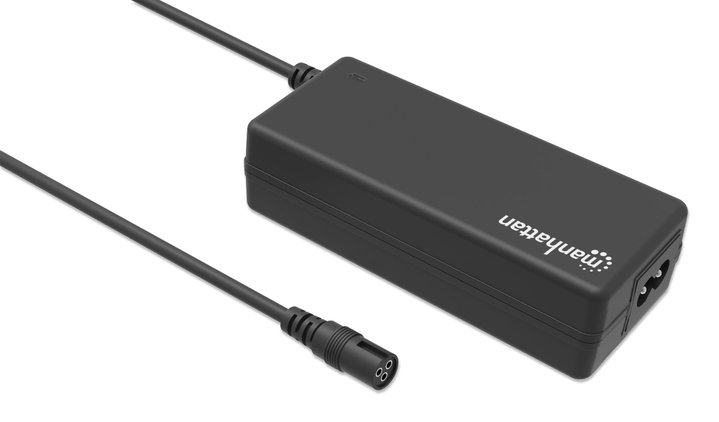

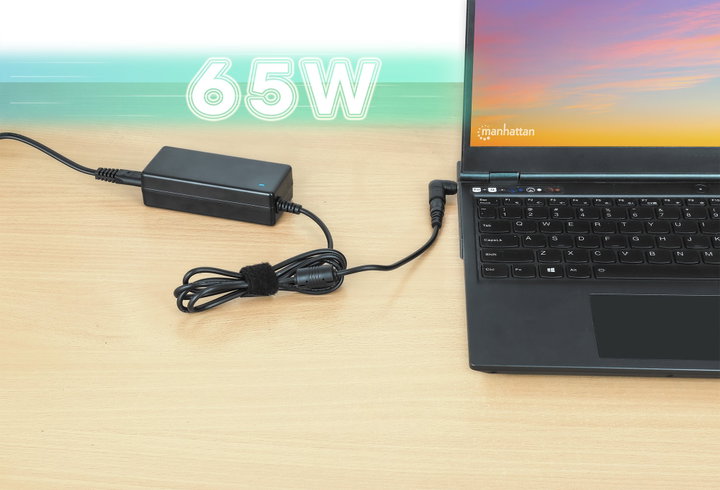

Pocket charger, ideal as a secondary or replacement power supply that provides up to 65 W for your AC powered notebook
Automatically select between six output voltage levels (15 , 16 , 18,5 , 19 , 19,5 and 20 V) for a large mobile power supply solution

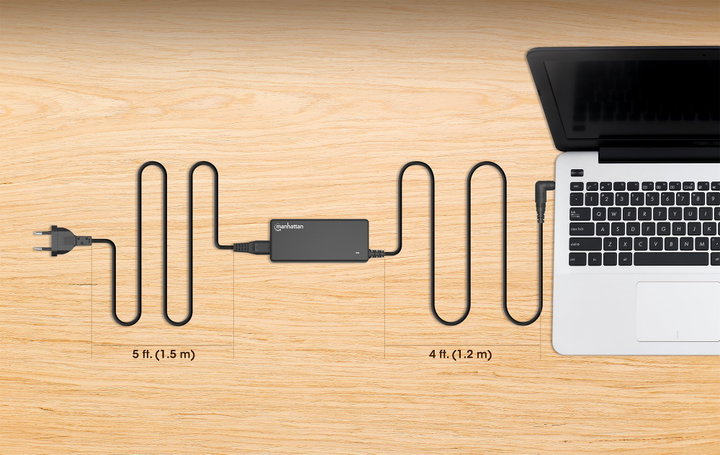

Detachable power cable from 1,5 m with wall socket from C 7 to AC

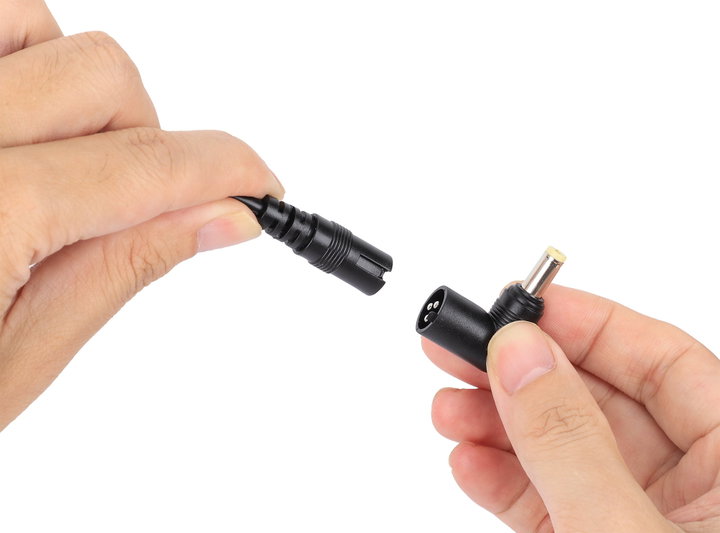

The 1,2 m integrated power cable with nine convertible connectors ensures correct polarization and adaptation
Overload, overcurrent and overheating protection
Compact, portable and lightweight design, comfortable to carry with s´

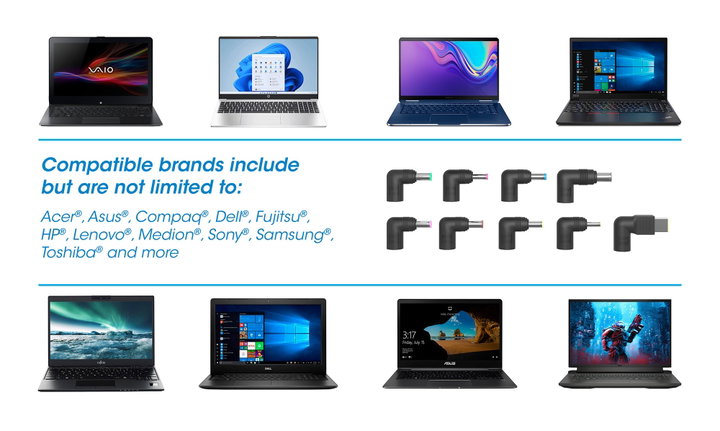

Compatible with most laptops, Chromebook™ and Ultrabook™ by Acer®, Asus®, Dell®, Fujitsu®, HP®, Lenovo®, Medion®, Sony®, Samsung®, Toshiba® and others
Built-in cable clamp to avoid tangles and keep cables in order

Standards and certifications

CE
RoHS
REACH
ETL
UKCA

Electrical information

AC input: 110 - 240 V; 50 - 60 Hz; 1,5 A (maximum)
Voltage/current settings (maximum):

- Power 65,0 W:

- 15,0 V / 4,0 A

- 16,0 V / 3,75 A

- 18,5 V / 3,51 A

- 19,0 V / 3,42 A

- 19,5 V / 3,33 A

- 20.0 V / 3.25 A

Overvoltage: ≤ 5 %
Modulation and noise: ≤ 200,0 mV

CC plug connectors included - formats

M 1: ∅ 6.0 x 3.0 x 10.7 mm (15.0 V)
M 2: ∅ 5.5 x 2.5 x 10.7 mm (16.0 V)
M 4: ∅ 4.8 x 1.7 x 10.7 mm (18.5 V)
M 5: ∅ 5.5 x 2.5 x 10.7 mm (19.0 V)
M 7: ∅ 5.5 x 2.1 x 10.7 mm (19.0 V)
M 8: ∅ 6.0 x 4.5 x 10.7 mm (19.5 V)
M 13: ∅ 5.5 x 1.7 x 10.7 mm (19.0 V)
M 20: ∅ 4.0 x 1.7 x 10.7 mm (19.0 V)
M 28: ∅ 11.0 x 4.6 x 12.0 mm (20.0 V)

Protection features

Short-circuit (SCP) with automatic recovery mode
Overvoltage (OVP) with automatic recovery mode
Overcurrent (OCP) — current limit: 150 % (max)
Overtemperature (OTP)

Physical information

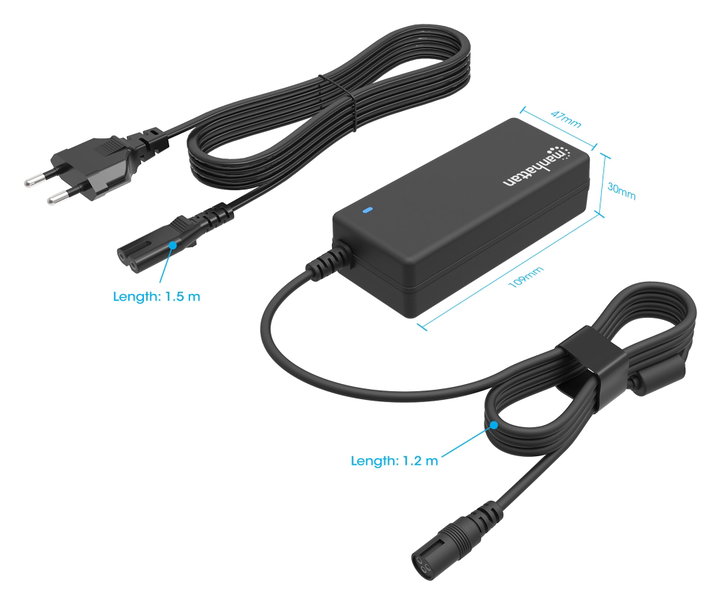

Dimensions (L x P x A): 110 x 48 x 30 mm
Net weight: 340 g
Gross weight: 400 g
Housing: plastic

Environmental information

Operating temperature: 0 - 30 °C
Storage temperature: - 20 - 65 °C
Operative (non-condensed) humidit&agrave: 20 - 80 %
Storage humidità (without condensation): 10 - 90 %

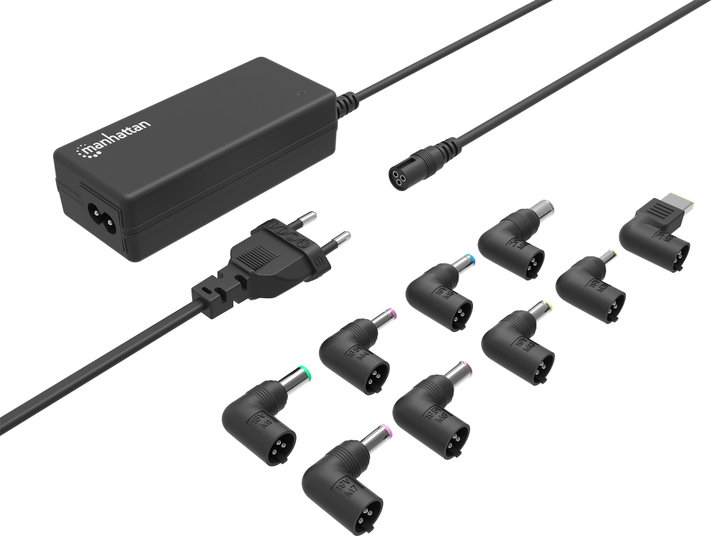

Package contents

USB-C™ Power Delivery for laptop - 65 W
Power cable C 7 to AC, 1,5 m (5 feet) Power cable detachable from 1,5 m (5 feet) with wall socket C 7 to AC
Integrated power cable, 1,2 m (4 feet) for DC tips
9 interchangeable DC tips
User manual

Compatibilityà

NOTES: Please check the output and voltage of the charger to be replaced to ensure compatibility with the above mentioned electrical requirements
Compatible devices include but are not limited to: Acer®, Asus®, Compaq®, Dell®, Fujitsu®, HP®, Lenovo®, Medion®, Sony®, Samsung®, Toshiba® and others
