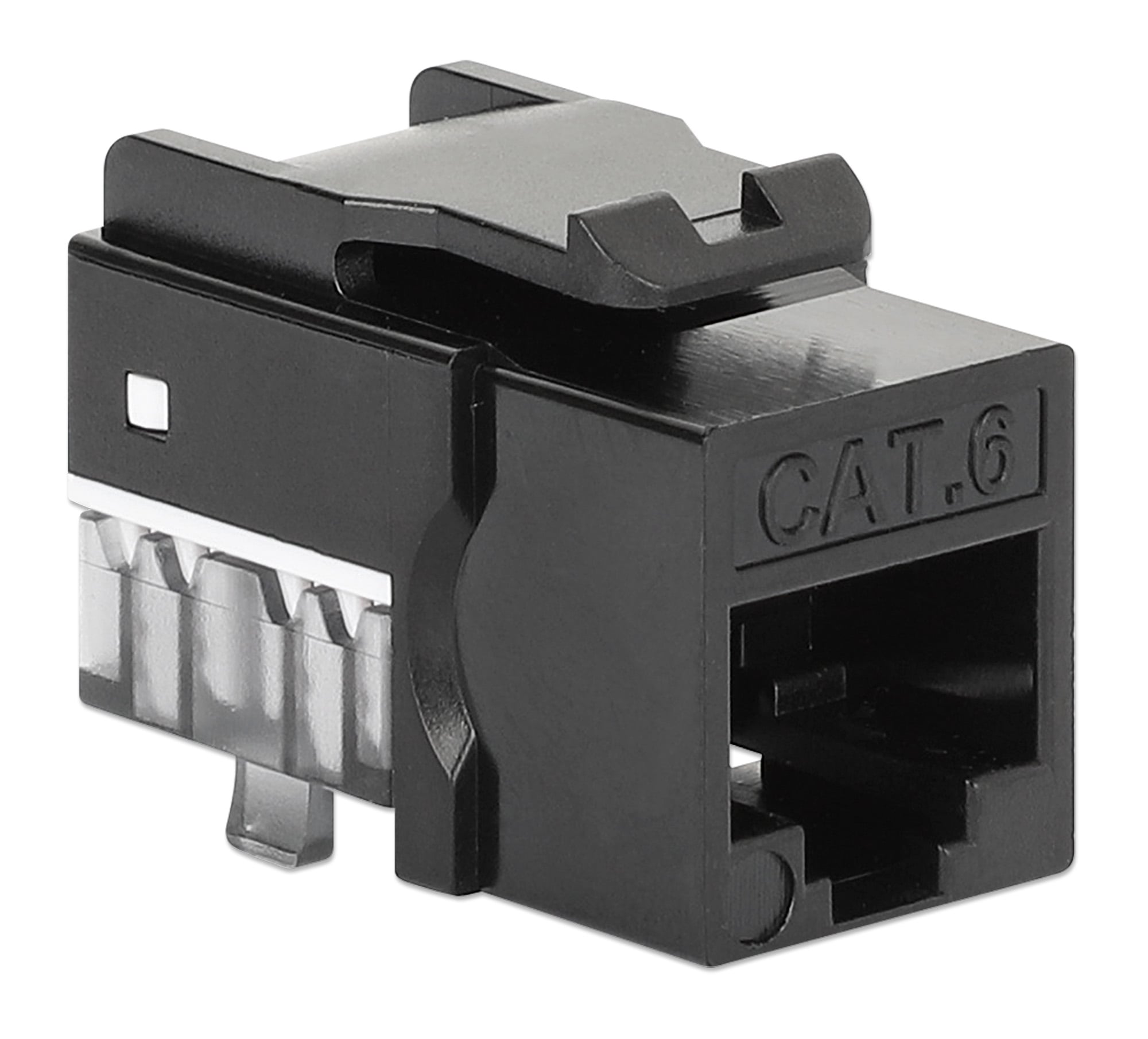

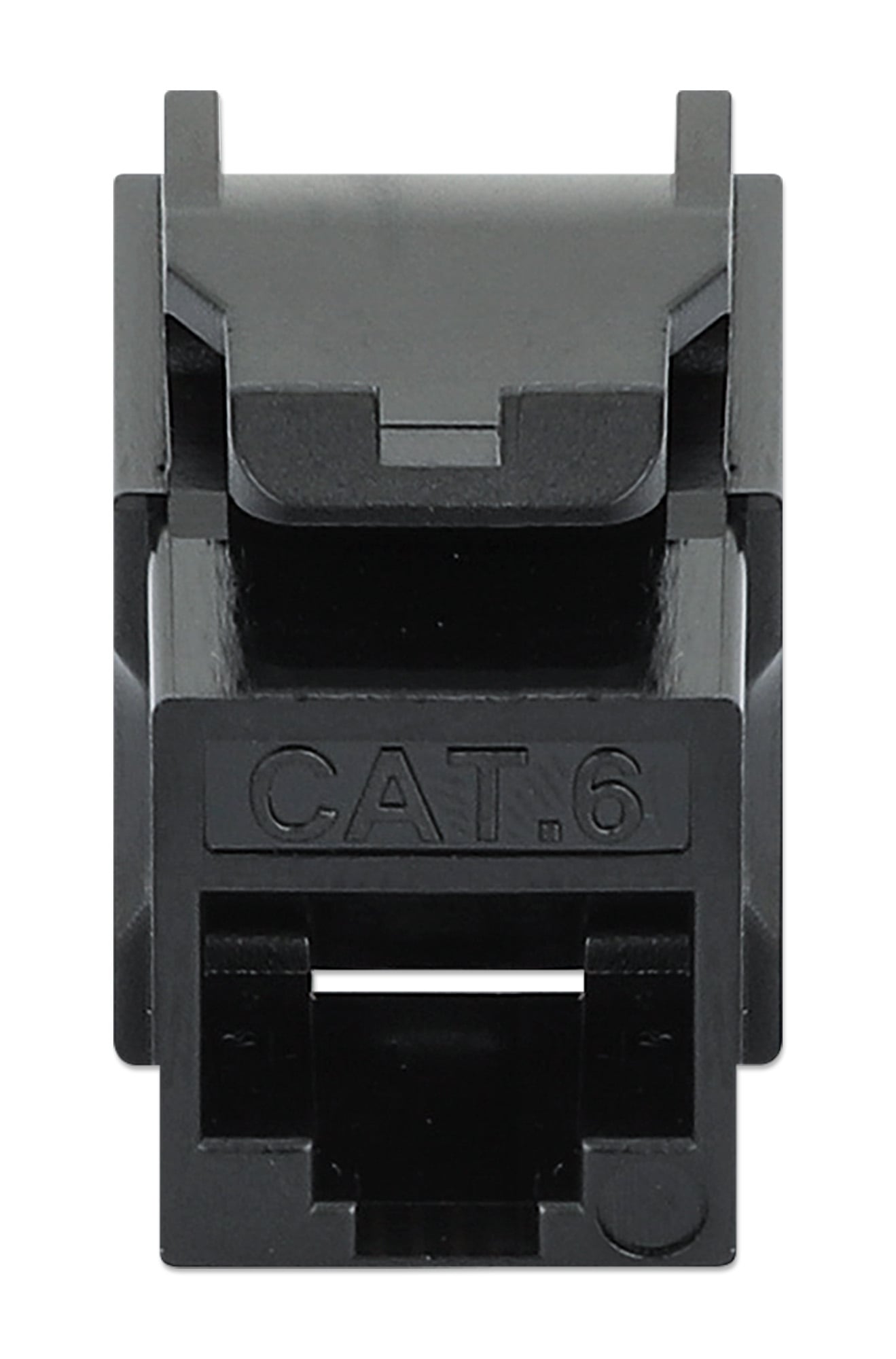

Fruit Keystone Slim Cat 6 for Cable Rigido Punch-Down 25 pcs Black - Intellinet IWP-JAR-C 6 BK

€38.87
Tax included €31.90 excl. VAT

Kit from 25 fruits Keystone Slim Cat 6 Intellinet for AWG 26 / 1 - 23 / 1 rigid cable. Supports 10 Gbps and 250 MHz, gold plated connectors. Includes dust covers and clamps.



Return policy



Delivery policy



Direct contact for info



Secure Payment

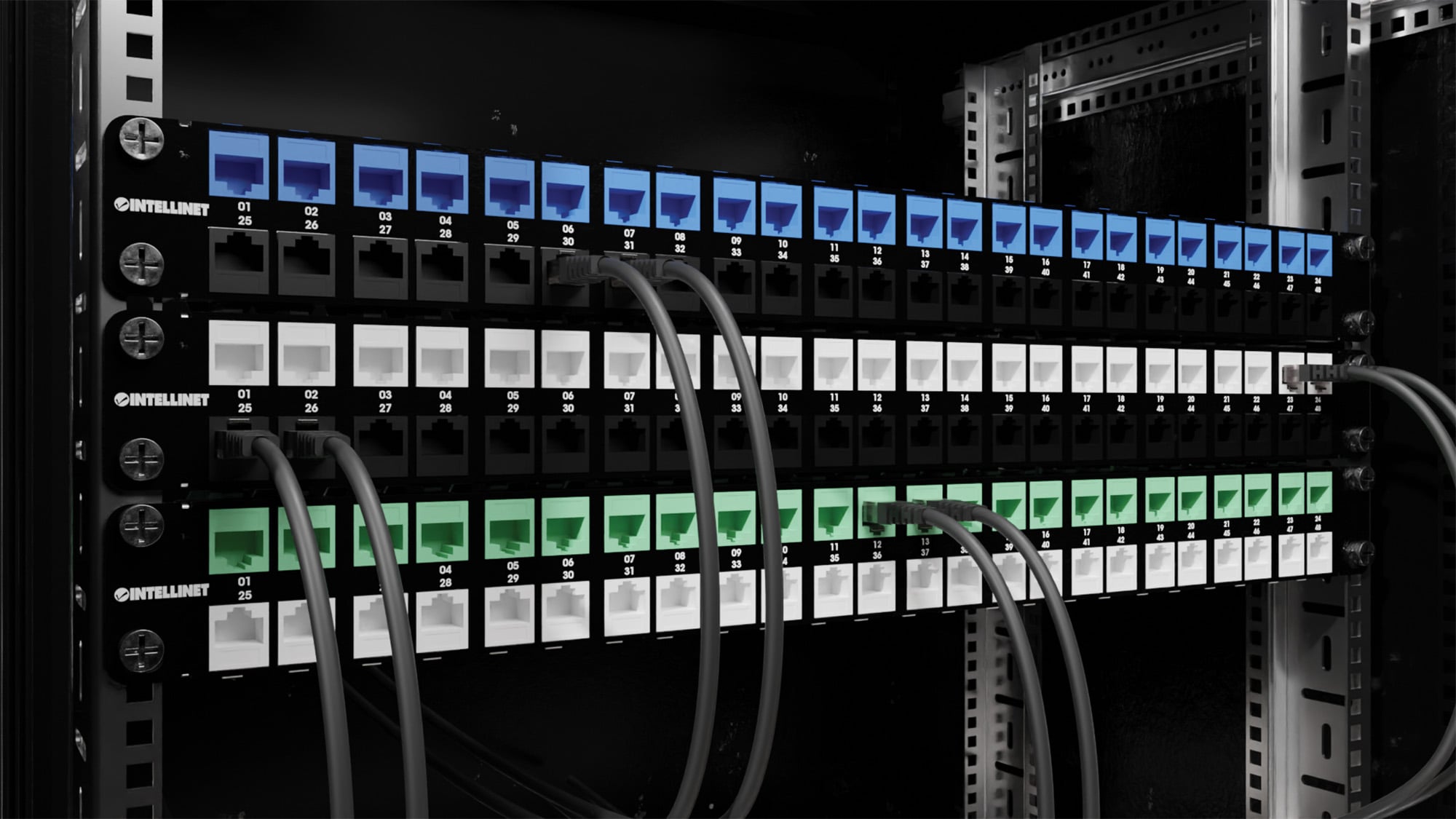

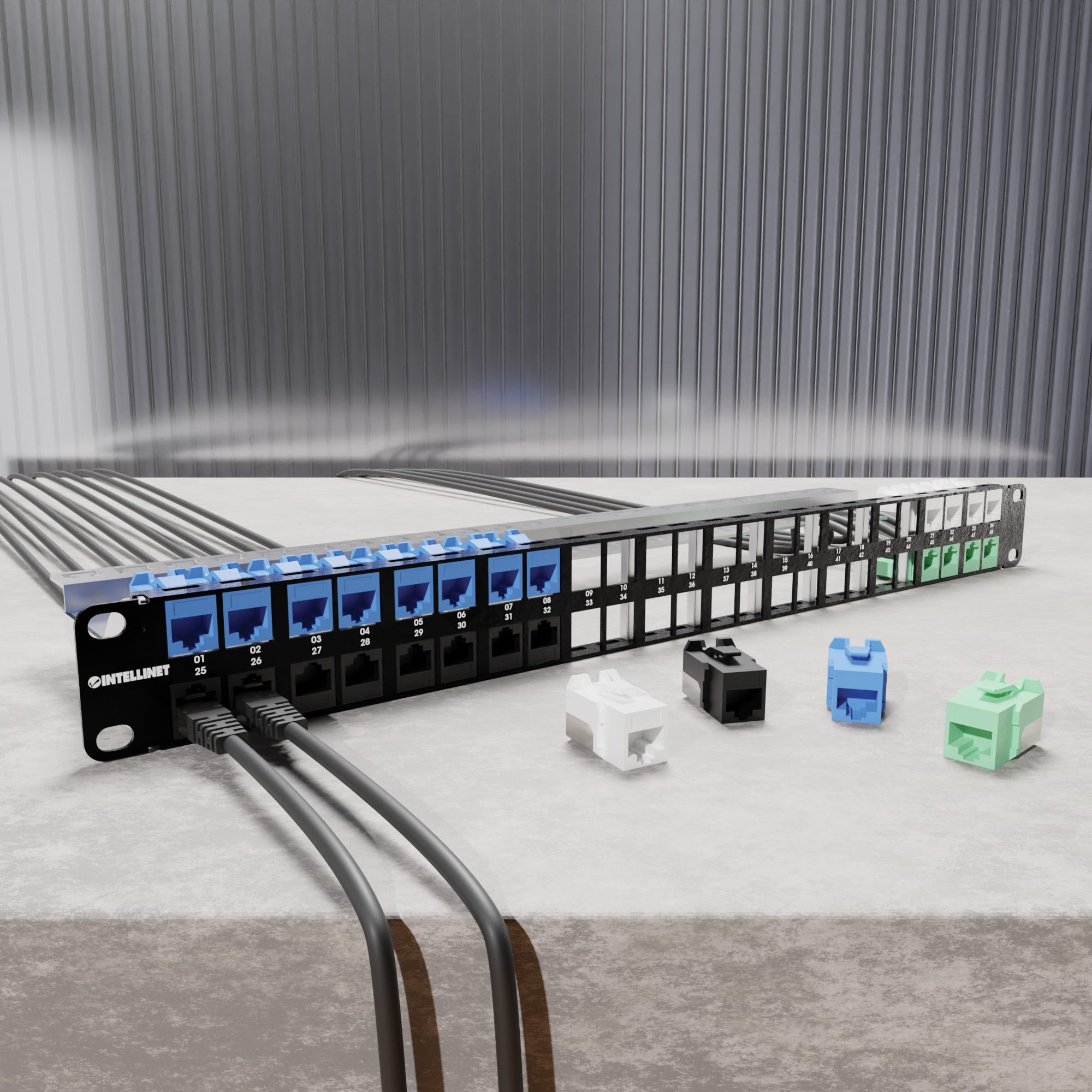

  • Slim design, only 16,2 mm (0,64 inch) width for a convenient implementation side by side in empty permutation panels, wall plates or surface connection boxes
  • Module RJ 45 Cat 6 with 10 G/ 1 G and 250 MHz in compliance with ISO/IEC 11801
  • 3 micro-inch gold plated contacts
  • Supports hard cable from AWG 26 / 1 to 23 / 1
  • Type of LSA drilling, compatible with 110 , Krone and other drilling tools
  • Ideal for HDBaseT and PoE applications up to IEEE 802.3 bt / PoE++ / 4 PPoE / Ultra PoE
  • Design 8 P 8 C standard, compatible with all network connections RJ 45

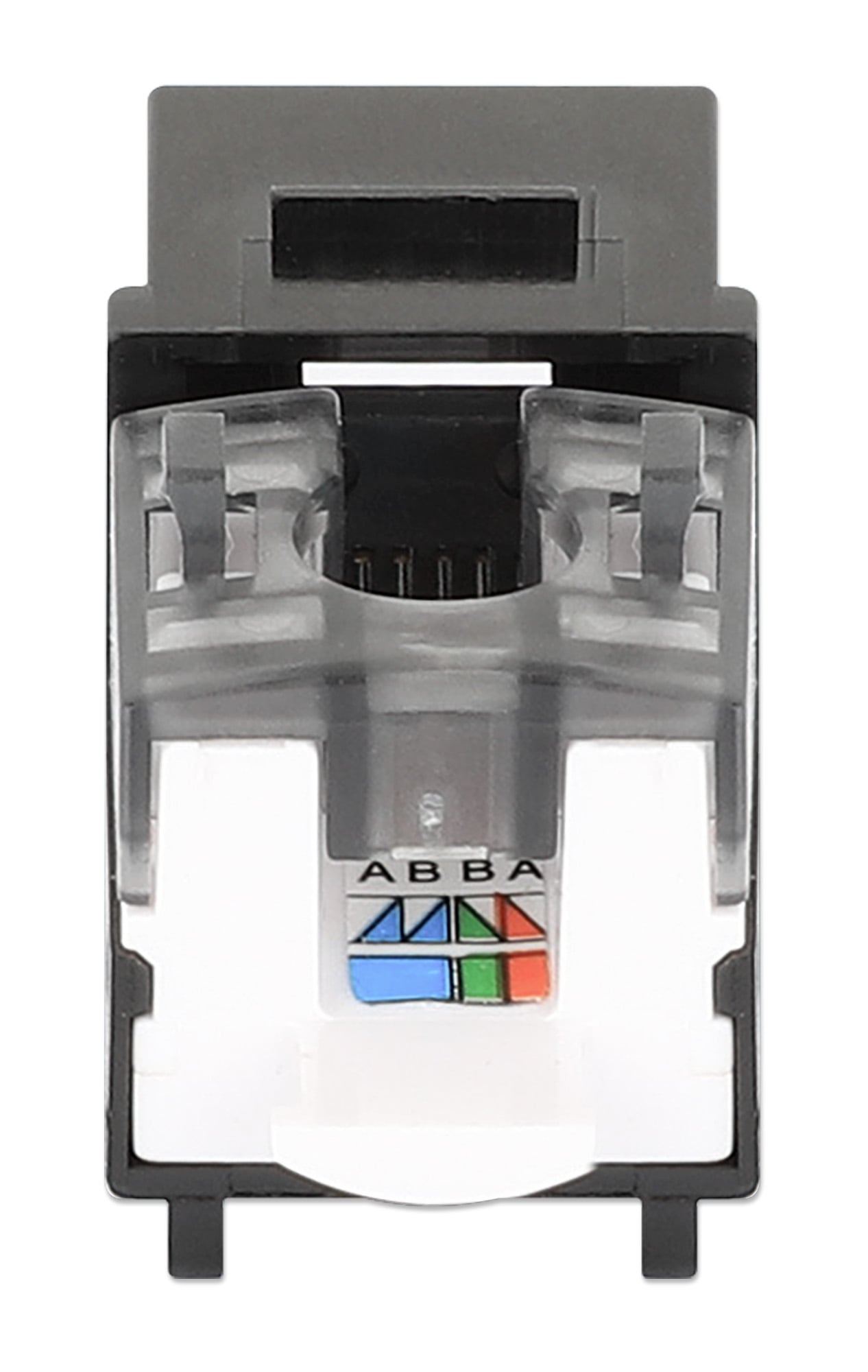

  • Compatible with color coding T 568 A and T 568 B
  • Durable and fire resistant housing

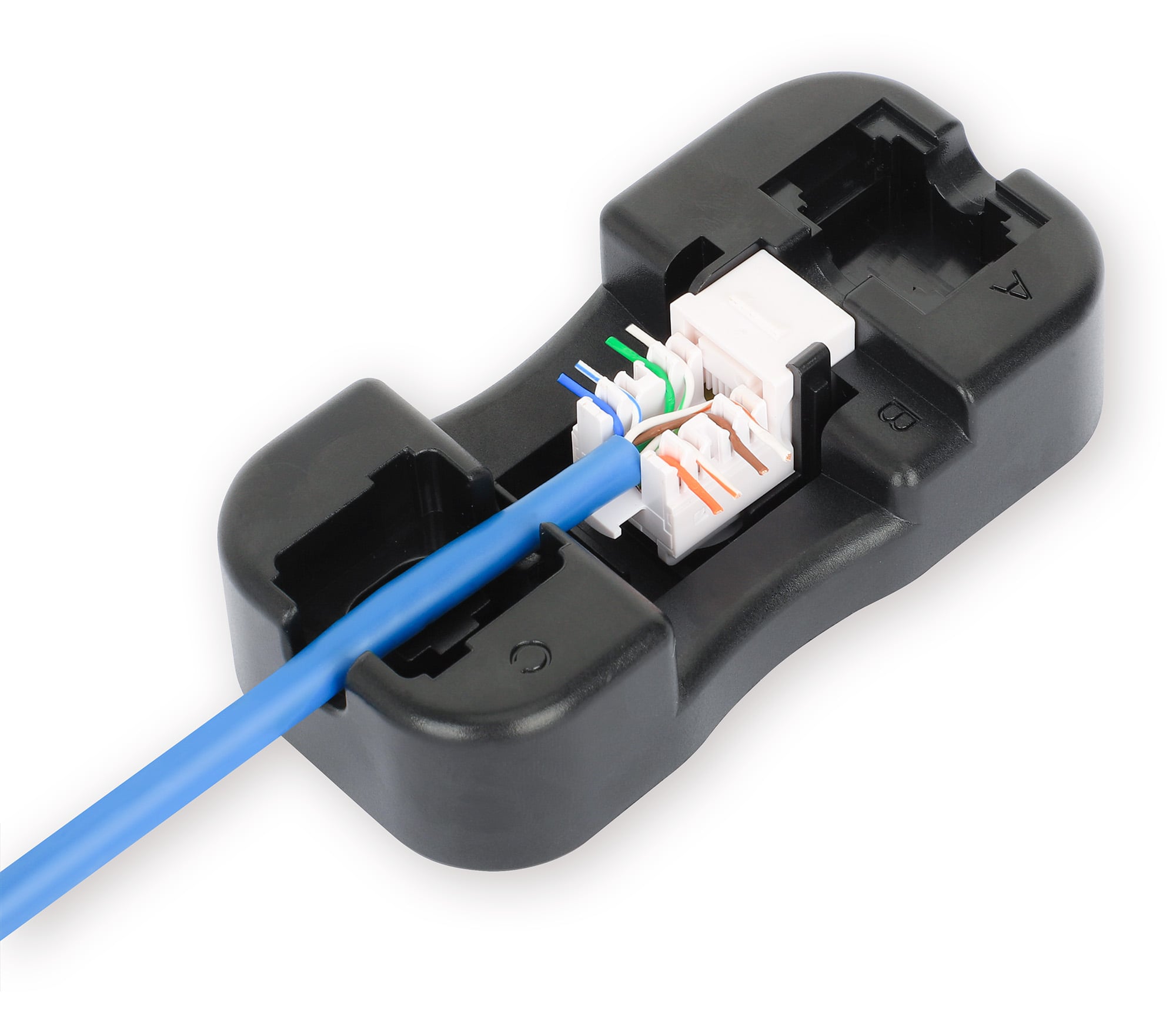

  • The included punch-down support provides a solid base for cutting and ending with sharp impact tool protection
  • 25 dust covers and cable ties included
  • UL approved


Standards and certifications

  • ISO/IEC 11801
  • UL
  • CE
  • RoHS
  • REACH


General information

  • Supports speed à transfer up to 10 Gbps
  • Maximum operating frequency: 250 MHz
  • Supports all PoE standards up to IEEE 802.3 bt / PoE++ / 4 PPoE / Ultra PoE
  • Coupling cycles: ≥ 750
  • Strength: 30 N max.
  • Retention force: 7,7 kg between jack and plug


Material

  • Contacts: phosphorous bronze
  • Contact plate: 3 micro-inch gold
  • IDC: phosphorous bronze
  • Housing: PC
  • Inflamicabilityà: tested and evaluated according to UL 94 V- 0


Electrical information

  • Insulation resistance: ≥ 500 MOhm
  • Dielectric sealing voltage: 1.000 V DC/ 750 V AC
  • Contact resistance: 20 MOhm
  • DC resistance: ≥ 0.3 Ohm
  • Rated current: 1.5 A


Physical information

  • Dimensions per module (L x P x A): 32,3 x 16,5 x 22 mm
  • Net weight per module: 7,5 g
  • Gross weight pack of 25: 270 grams


Environmental information

  • Operating temperature: - 10 to 60 oC
  • Storage temperature: - 40 to 70 °C
  • Operative (non-condensed) humidit&agrave: 10 - 90 % RH

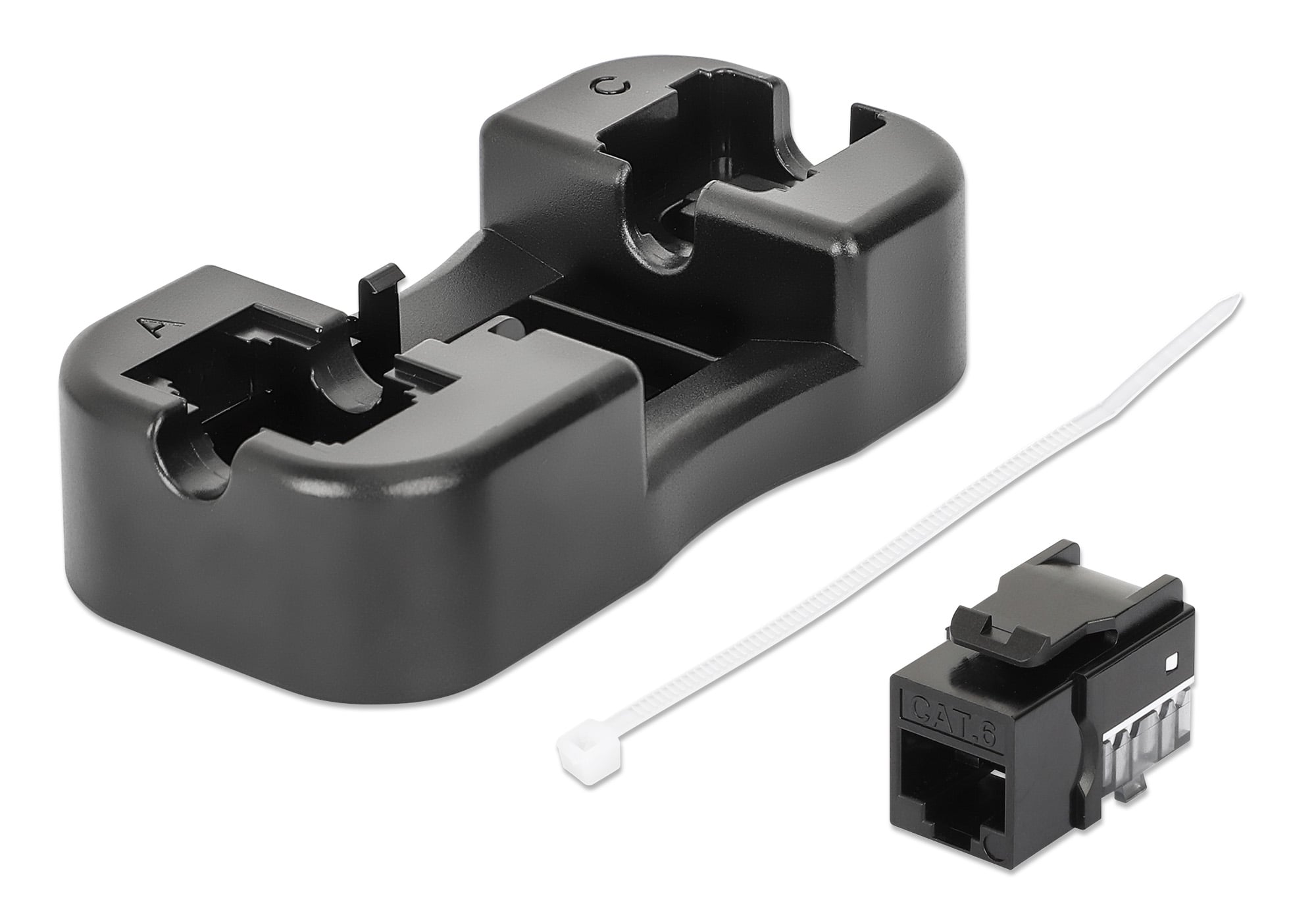

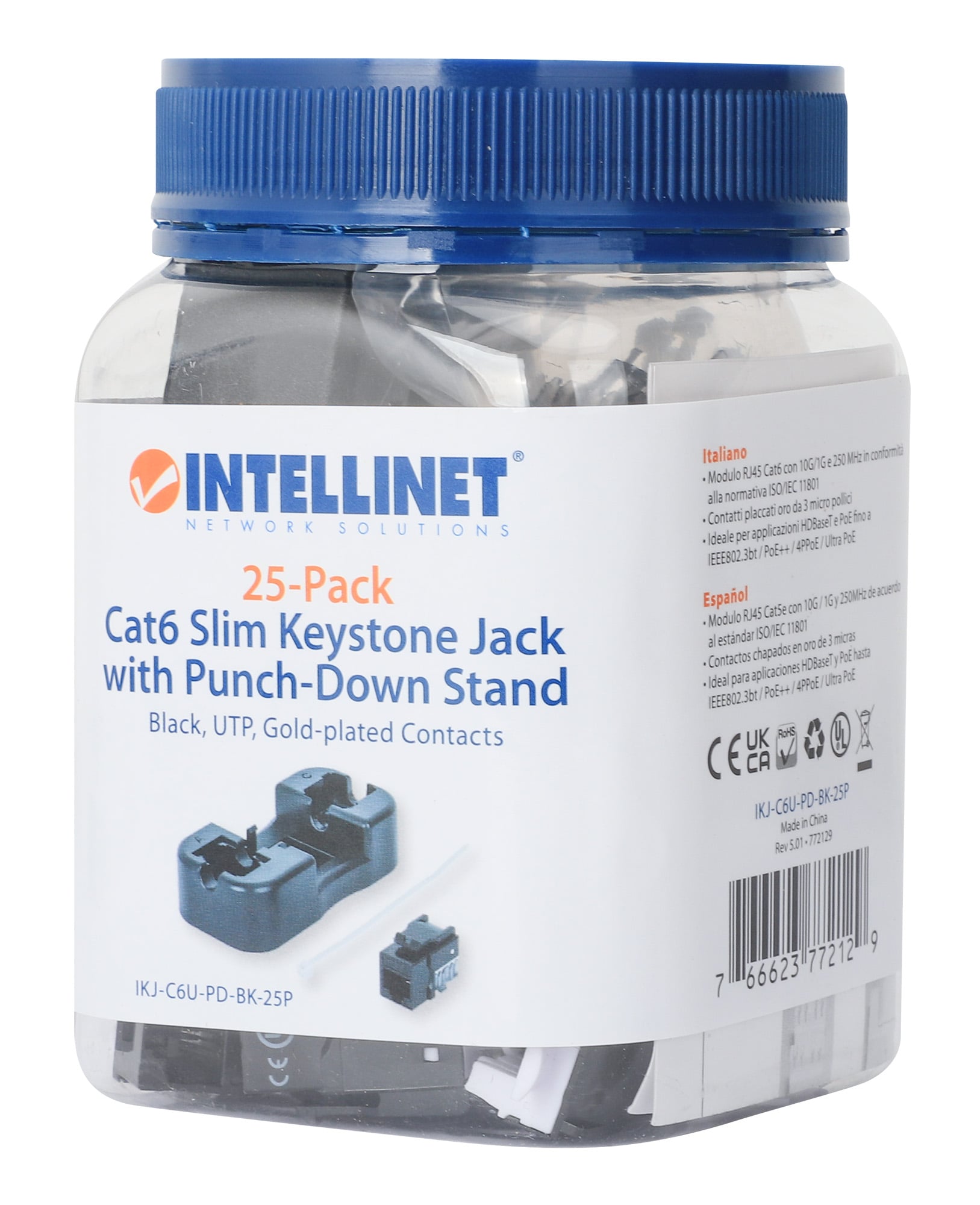

Package contents

  • 25 x Jack Keystone Punch-Down slim Cat 6

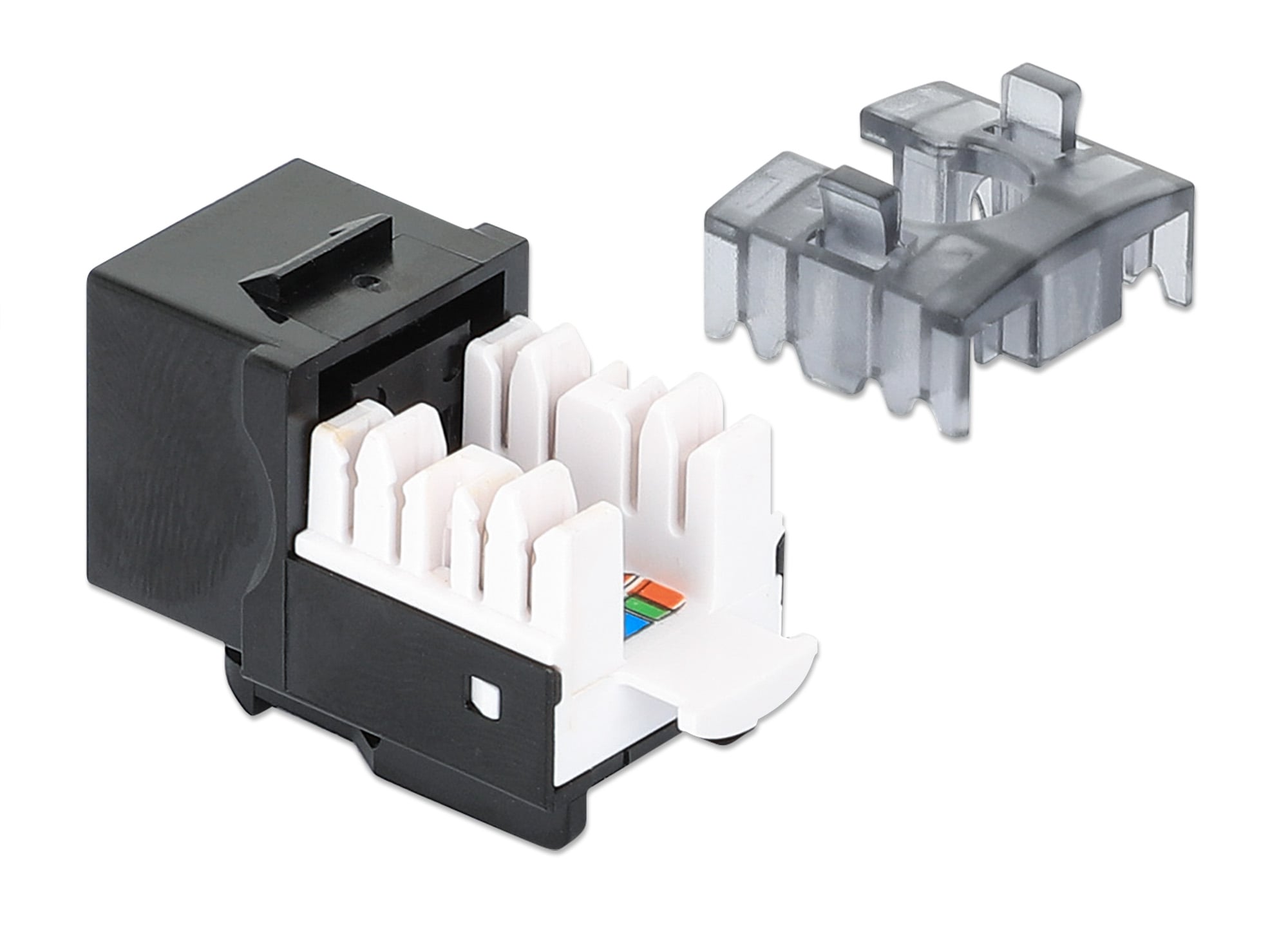

  • 25 x dust covers
  • 25 x cable ties
  • 1 x support for drilling
  • Instructions

  • Brand
  • Reference
    IWP-JAR-C6BK
  • In stock
    38 Items
  • EAN13
    0766623772129
