Cable Extension Patch Cat 6 S/FTP 5 m - Goobay ICOC SF 6 - 050 -EXT

€13.22
Tax included €10.80 excl. VAT

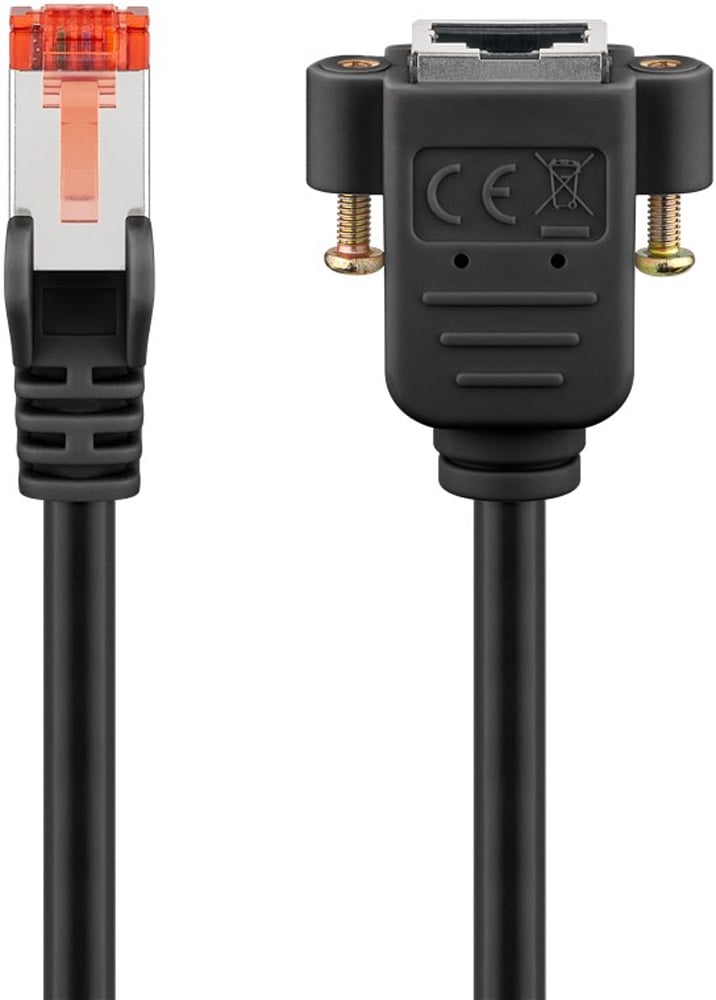

Extension cable LAN Cat 6 S/FTP from 5 meters with RJ 45 connectors and double protection shielding (aluminum sheet and braid). Gold plated contacts and mounting flange.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Our extended cables transmit high quality signals; high speed signals, always providing a stable connection. High quality internal conductors, robust cable sheath and custom connectors distinguish our range of connecting cables and connectors.

Goobay always provides the perfect products for your network needs, whether you want to create a home or business network.

Simply everything you need!



  • Double shielding LAN cable extension with RJ 45 connectors for connection of network components

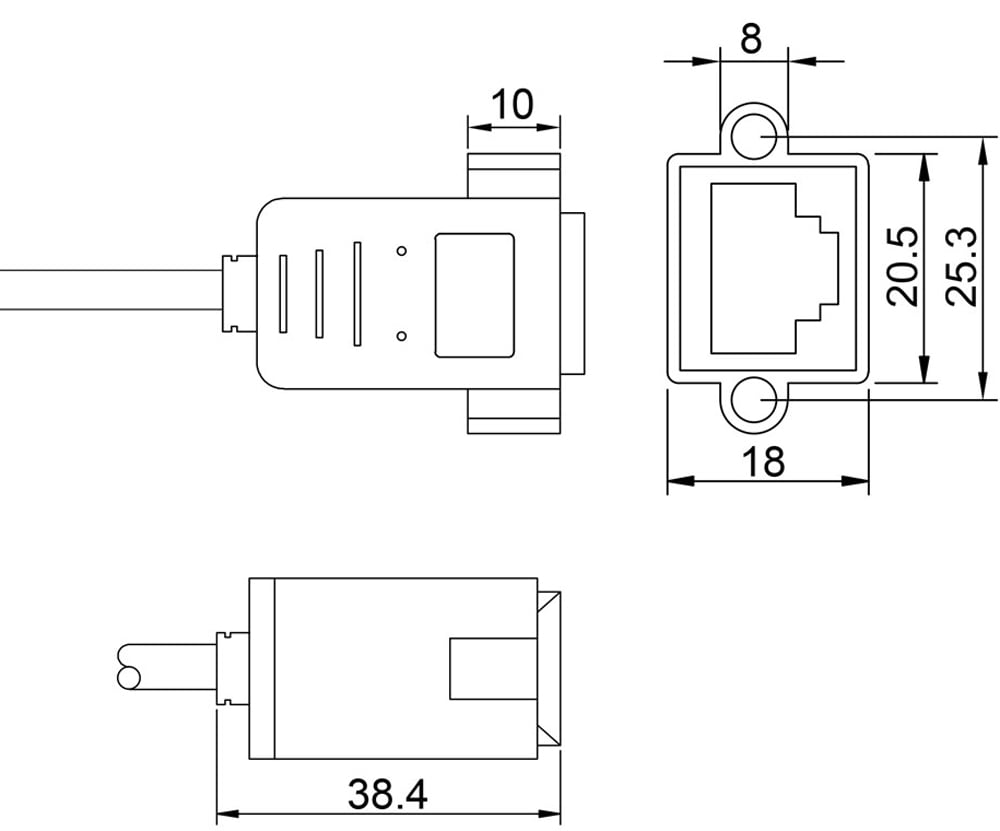

  • Mounting flange with distance between the holes of 25 mm for fixing e.g. on a slit bracket, a cable channel or a housing with the corresponding opening

  • High quality copper coated aluminium wire (CU) and gold plated contacts provide an excellent and powerful network connection

  • Overall S/FTP shielding: Aluminum foil shielding for individual pairs of wires (PiMF) and aluminum braid shielding for cable sheath

  • Folding protection and a sturdy sheath effectively protect the network cable from breakage

  • The lock protection on the RJ 45 connector prevents it from entangled or broken, helping to provide a reliable Internet connection

  • Network connector: sequence of pairs according to EIA/TIA 568 B, feet: 1 , 1 , suitable for 10 Gigabit Ethernet 10 GBASE-T < 55 m, 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s



Connections

  • Connection, contact material: gold plated 3 μm

  • With shielding

  • female RJ 45 connector (8 P 8 C)

  • RJ 45 male connector (8 P 8 C) with unilateral detention protection

  • EIA/TIA- 568 B

  • Folding protection on both sides



Cable features

  • Round type cable

  • Cable length: 5 meters

  • CAT 6 specification

  • Diameter of the cable sheath (approximately) 5,8 mm

  • Internal conductor material CU (copper)

  • AWG 27 / 7

  • Double shielding

  • First shielding: shielding sheet (aluminium) PiMF

  • Second shielding: general with shielded braid (aluminium)

  • S/FTP shielding class (PIMF)

  • LSZH cable sheath material

  • Maximum bandwidth: 250 MHz

  • Color: black



Environmental features

  • Operating temperature from - 20 °C

  • Operating temperature up to 75 °C



Certifications

  • CE

  • RAEE



Package contents

  • Network cable Cat. 6 male female 5 m

  • Brand
  • Reference
    ICOC SF6-050-EXT
  • In stock
    5 Items
  • EAN13
    4040849656408
