NextGen Rack Cabinet 19" 600x800 42U Black - Intellinet I-CASE EPP-4280BKT

The new NextGen cabinet line is ready to meet the latest cabling trends and new projects.

This floor-standing rack cabinet features an innovative two-tone design and is characterized by a front opening of 270°, a stylistic choice that combines practicality with an additional touch of elegance, allowing quick and complete access to all units in the cabinet.

It features a solid and robust structure with 19 uprights 2 mm thick and innovative corner brackets 3 mm thick, characterized by a snap-in attachment on the base for quick adjustment.

It can be assembled and disassembled using a simple key, thus allowing quick installation. This fast assembly is guaranteed by the quick-release hinges on the front door and the locks on the panels.

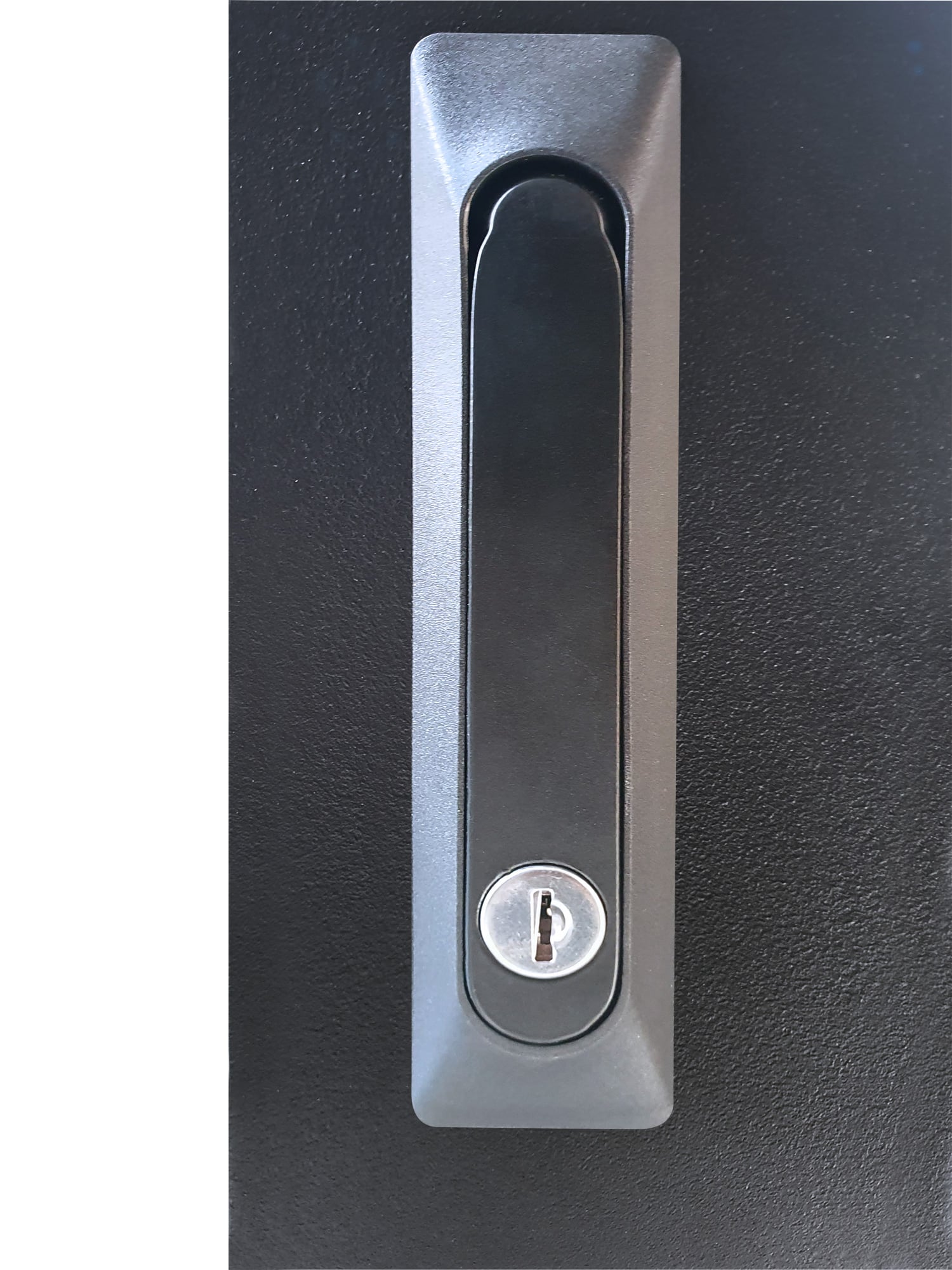

Features a new push-button handle and a new 3-way joint that increases the already exceptional robustness for its category. Additionally, the static load capacity of the rack has been increased to 1000 kg, making it even more solid, stable, and secure.

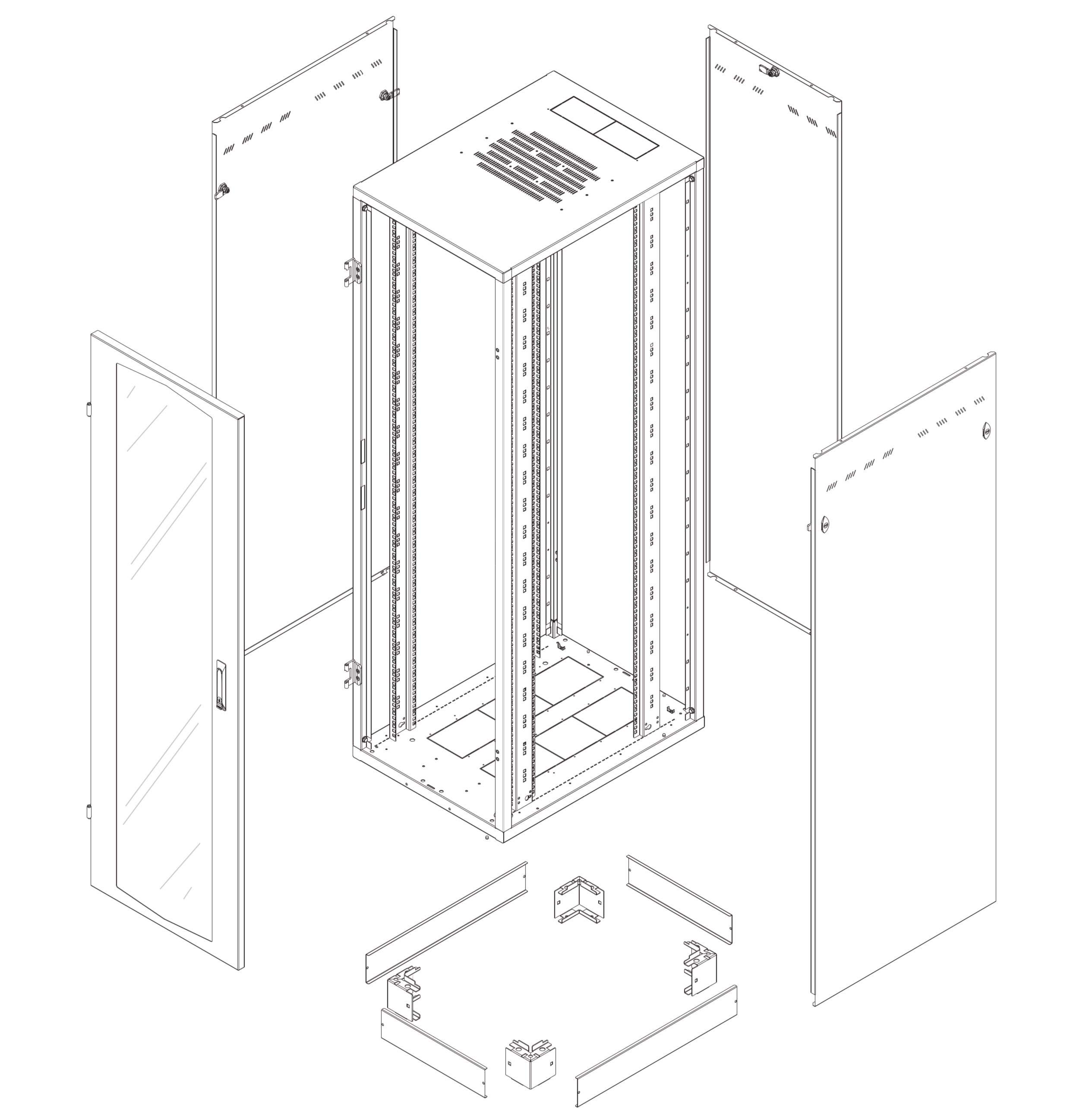

Key features continue to be present such as the reversible door, removable side and rear panels, the base with removable panels and the double pair of mounting rails with screen-printed units.



Features

• Panels and door easily removable to facilitate equipment installation

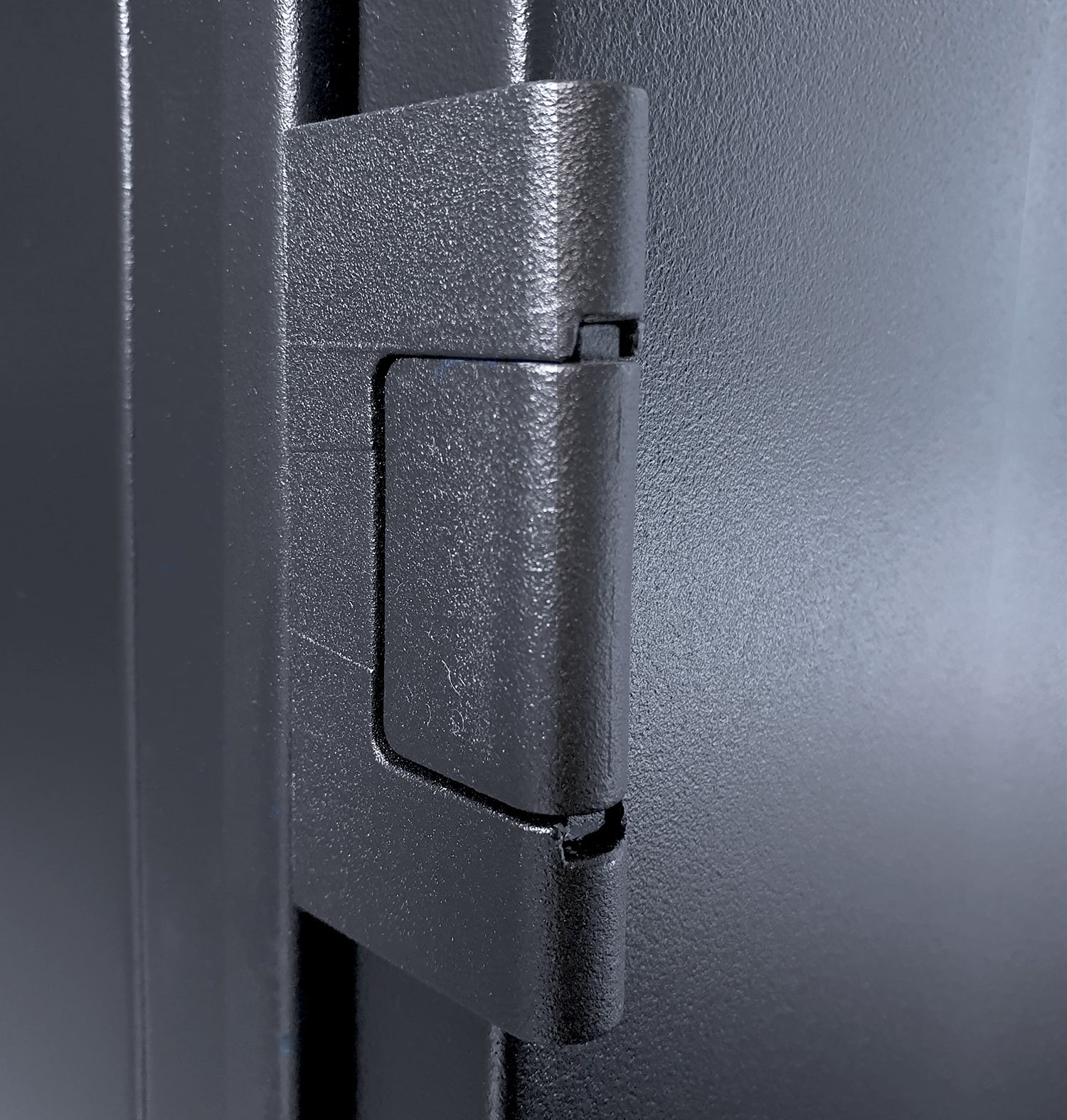

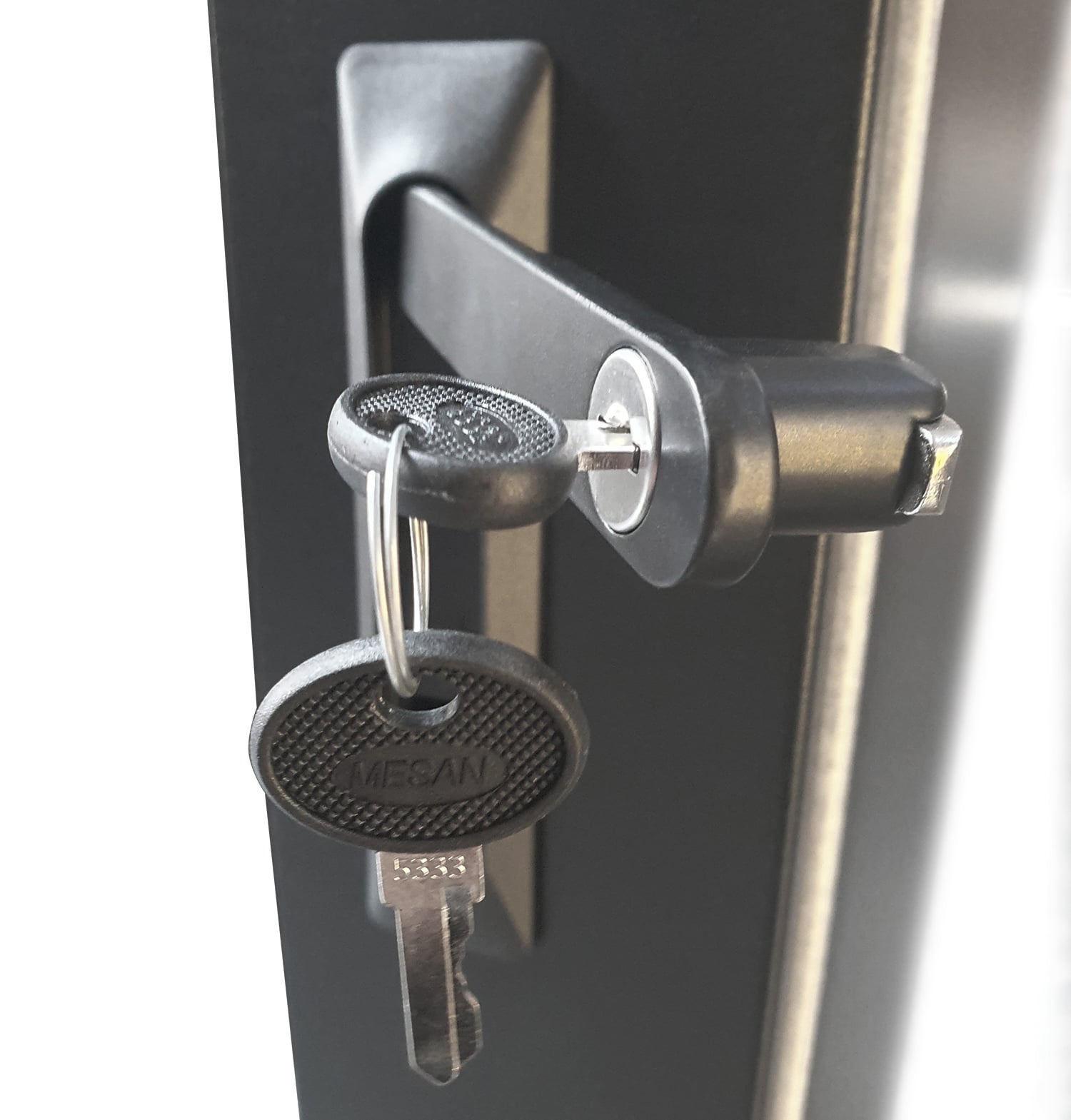

• Reversible front door with tempered glass conforming to EN UNI 12150-1, with opening of 270°, quick-release hinges and handle with key lock

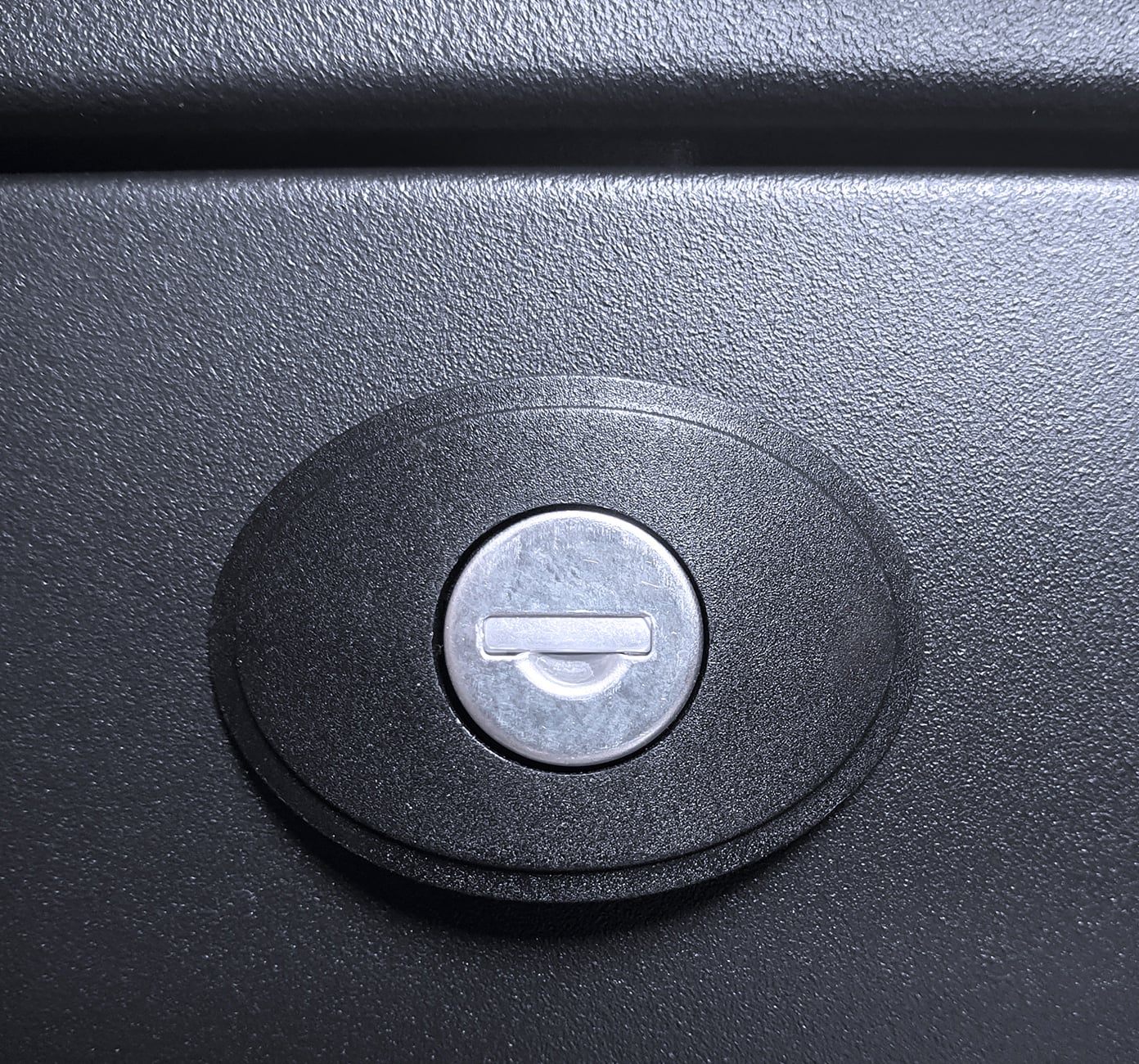

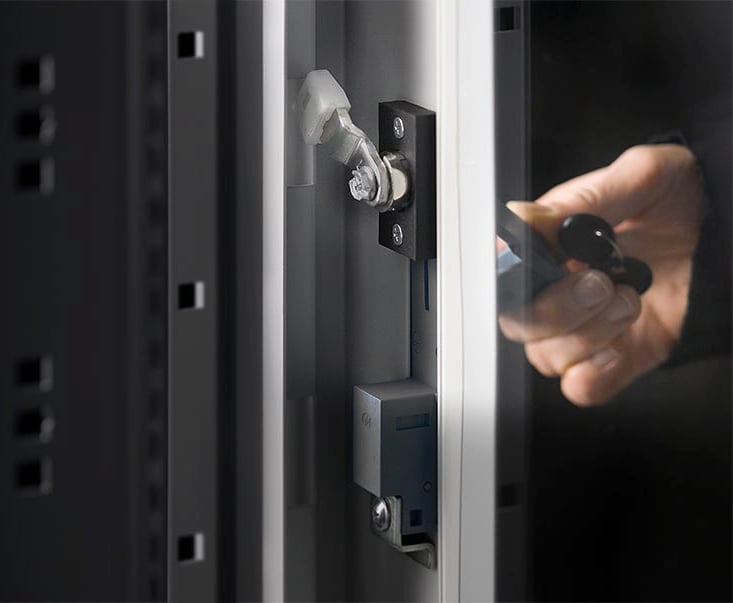

• Removable blank side and rear panels with key locks


• Roof pre-drilled for ventilation system and equipped with cable entry


• Bottom prepared for cable entry with pre-cut panels

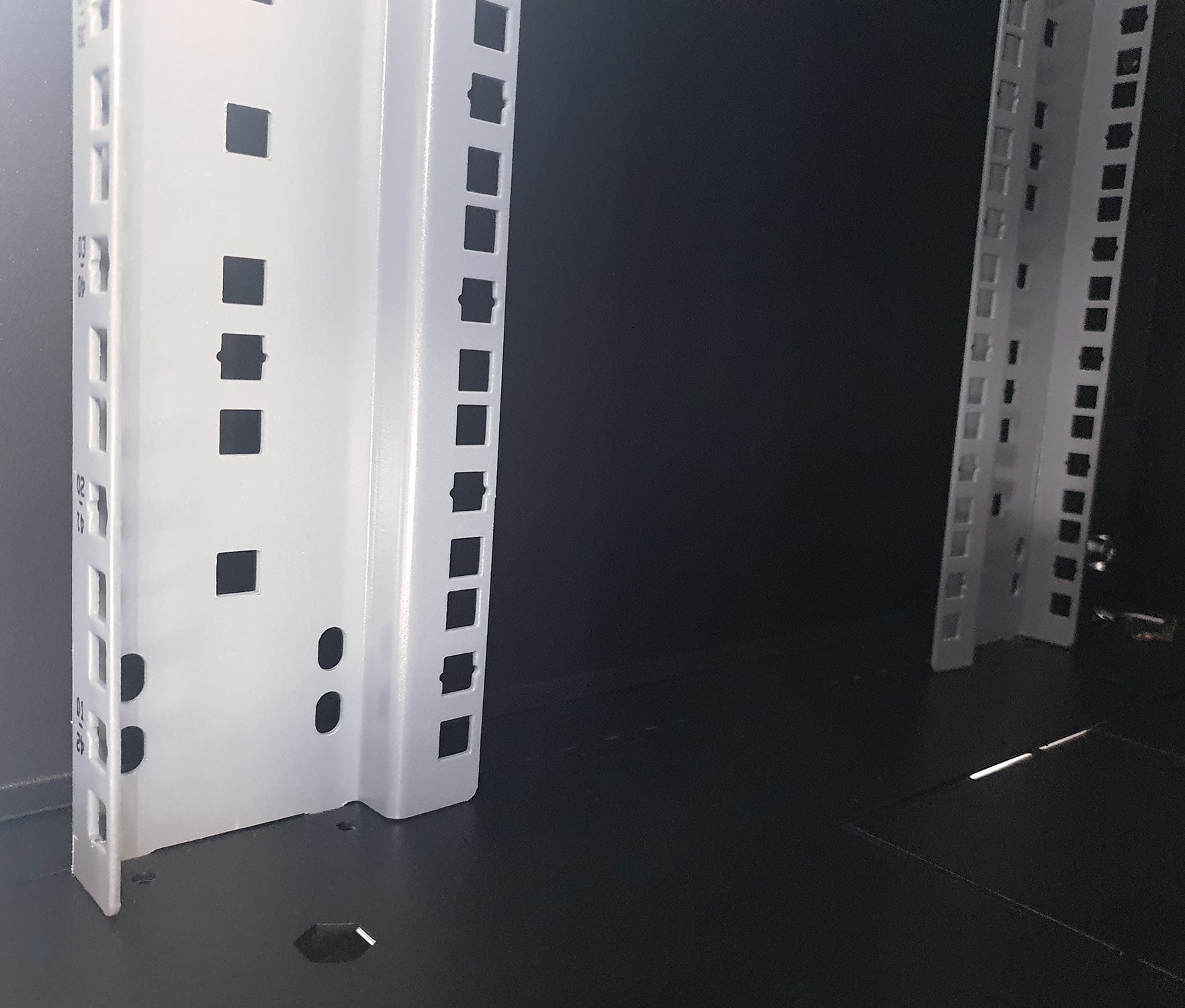

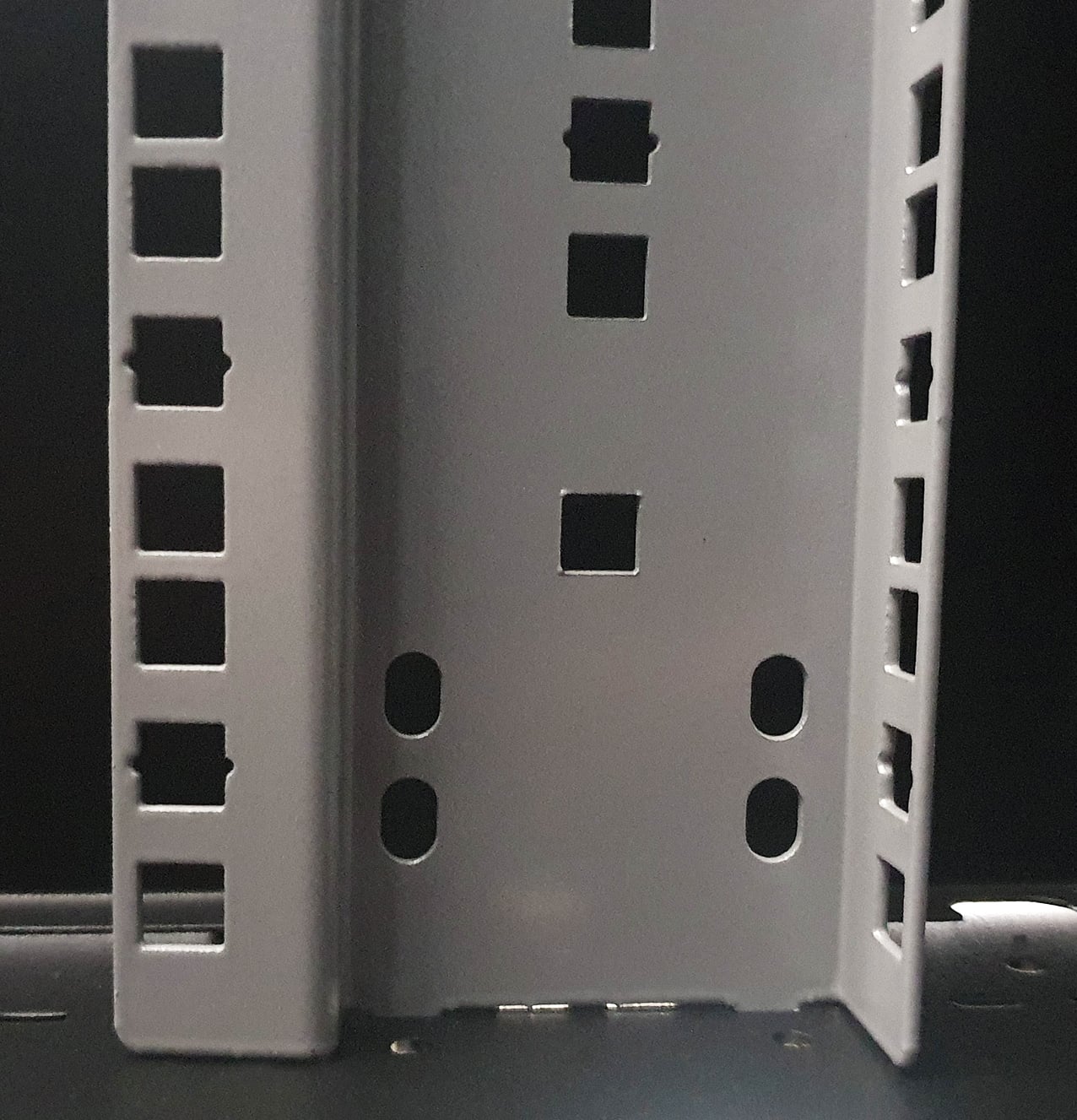

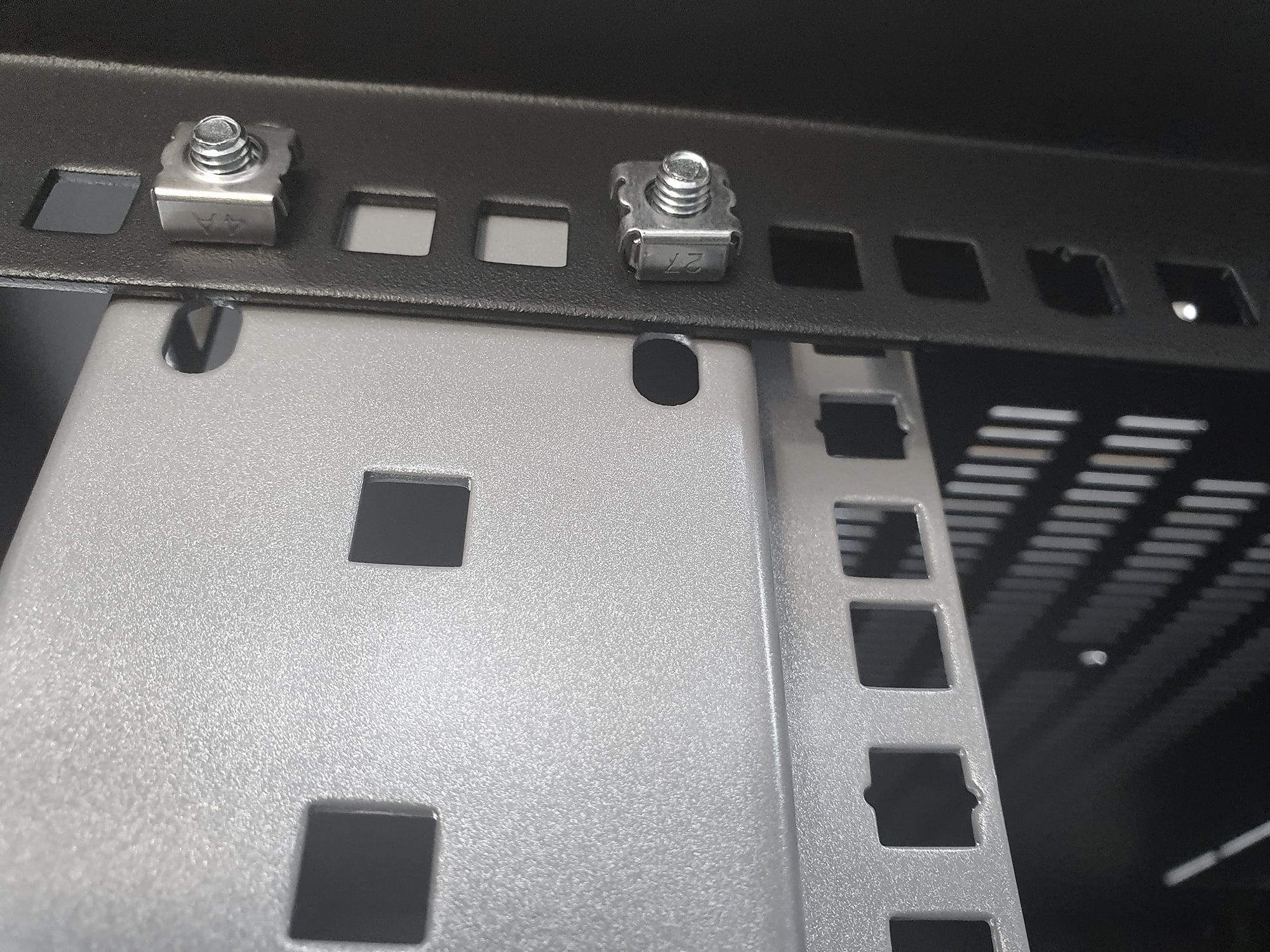

• Complete with a pair of uprights with silk-screened 19” units front and rear, quick snap-in on the base


• Complete with blank base (h. 100 mm) with removable panels


• Static load capacity 1000 kg, 225 kg on wheels


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)



Dimensions

• Width: 600 mm


• Usable width: 486 mm


• Depth: 800 mm


• Usable depth: 749 mm


• Height (with base): 2057 mm


• Usable height: 1887 mm



Certifications

• CE certification according to EN 62208


• Conformity to IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; EN60529; EN12150-1


• Conformity to UNI EN ISO 9001:2008
