Server Rack Cabinet NextGen 1000 19" 600x1000 33U Black - Intellinet I-CASE SVRP-33LTBL

The new line of NextGen 1000 cabinets with increased depth has been designed for housing and protecting all main types of servers on the market.

This floor-standing rack cabinet features an innovative two-tone design and is characterized by a front opening of 270°, a stylistic choice that combines practicality with an additional touch of elegance, allowing quick and complete access to all units in the cabinet.

It features a solid and robust structure with 19 uprights 2 mm thick and innovative corner brackets 3 mm thick, characterized by a snap-in attachment on the base for quick adjustment.

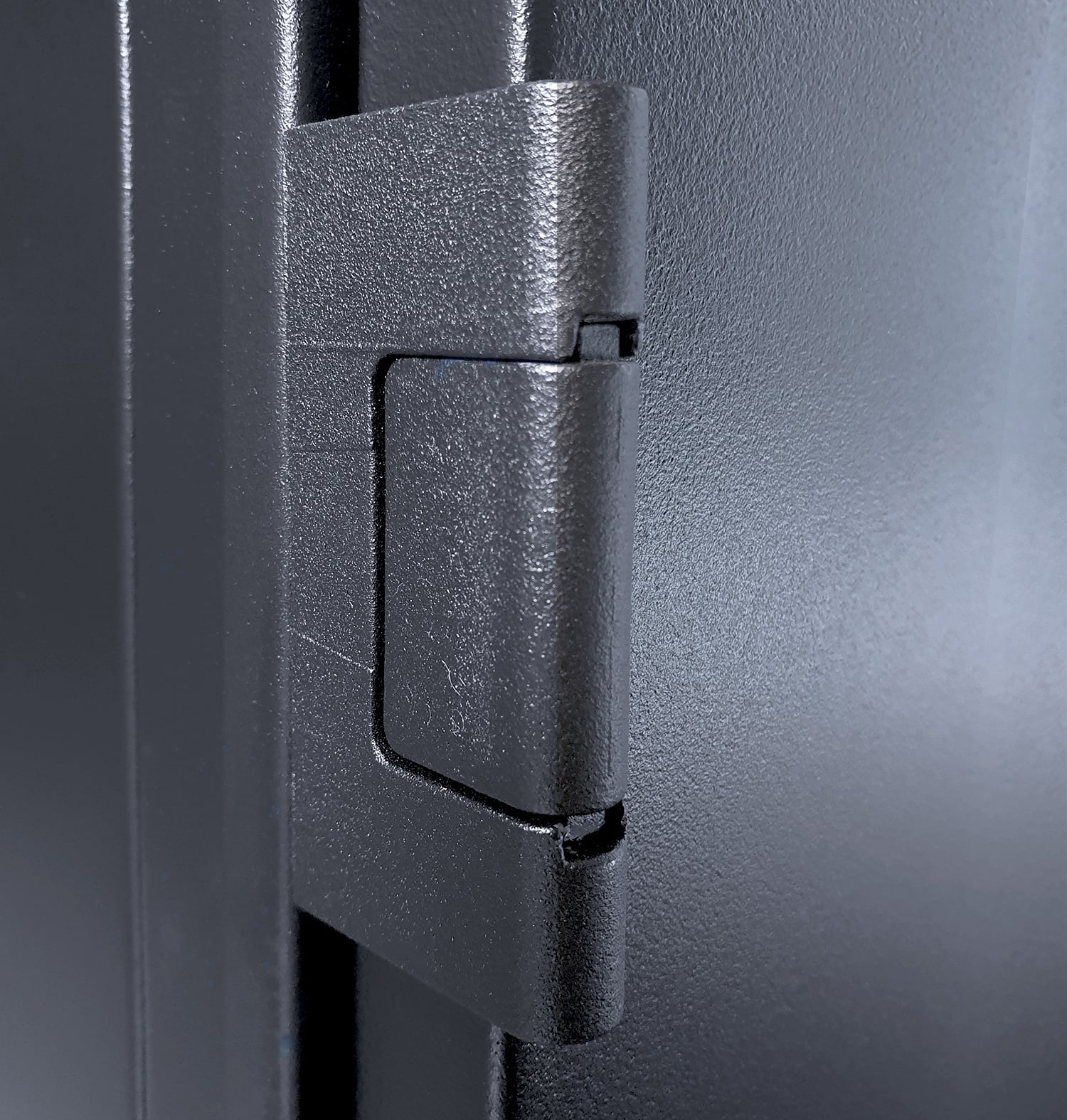

It can be assembled and disassembled using a simple key, thus allowing quick installation. This fast assembly is guaranteed by the quick-release hinges on the front door and the locks on the panels.

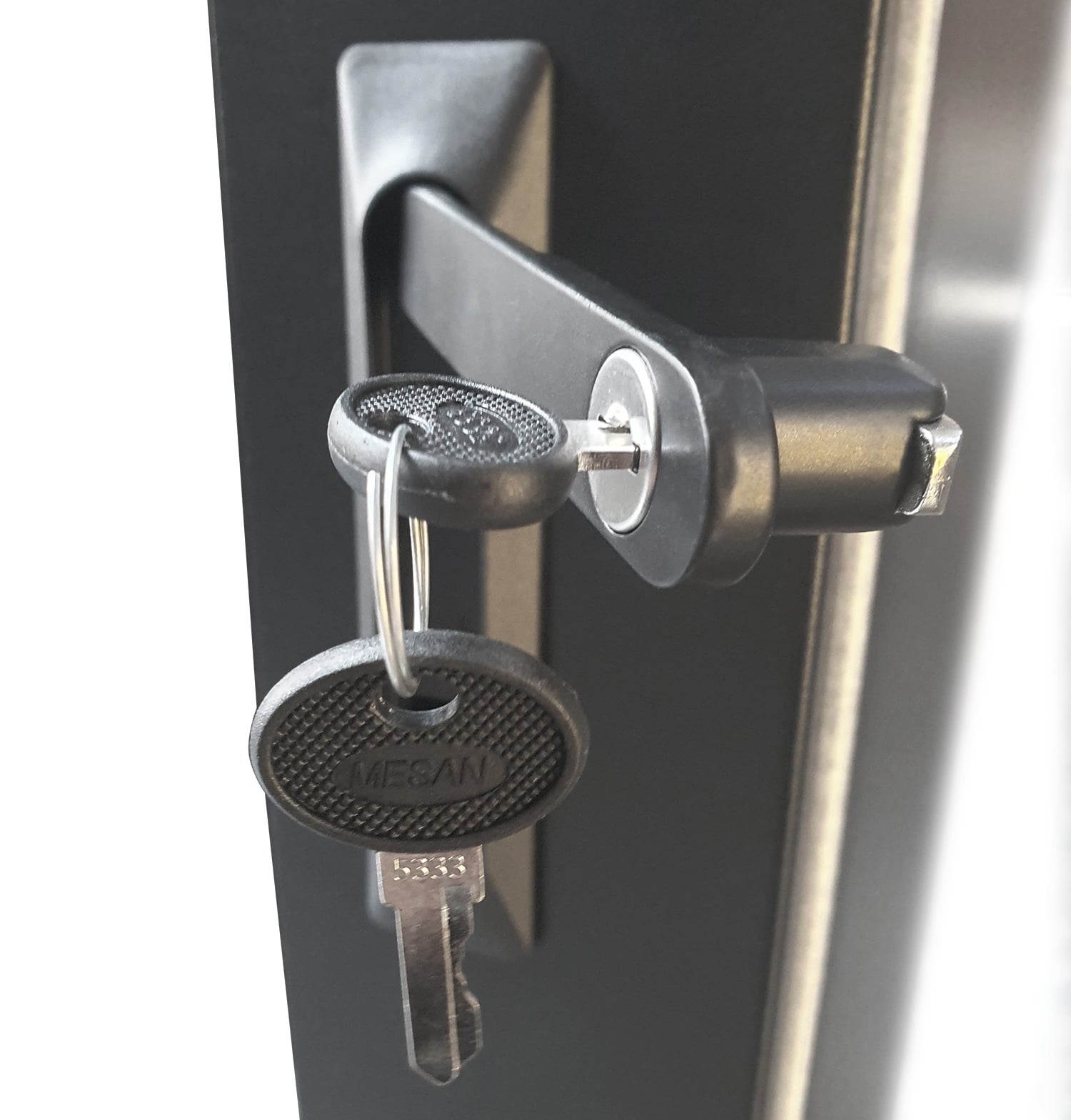

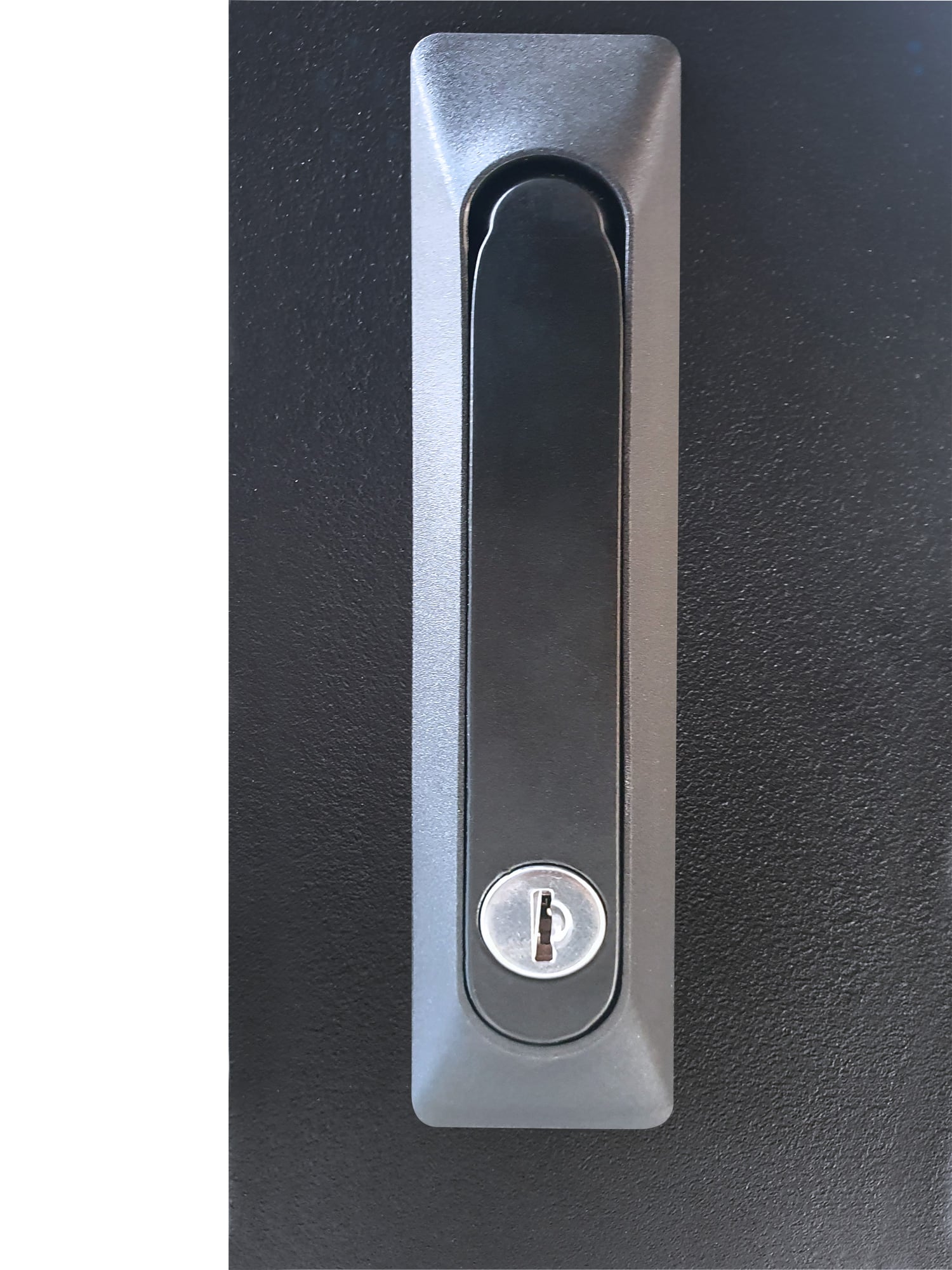

It features a new push-button handle with PVC insert for smoother operation and better alignment, and a new 3-way joint that increases the already exceptional robustness for its category. In addition, the static load capacity of the rack has been increased to 1000 kg, making it even more solid, stable and safe.

Fundamental features continue to be present such as the reversible door, removable side and rear panels, the base with removable panels and the double pair of uprights with silkscreened units. Furthermore, thanks to the increased depth, it allows the housing and protection of all main types of servers on the market.



Features

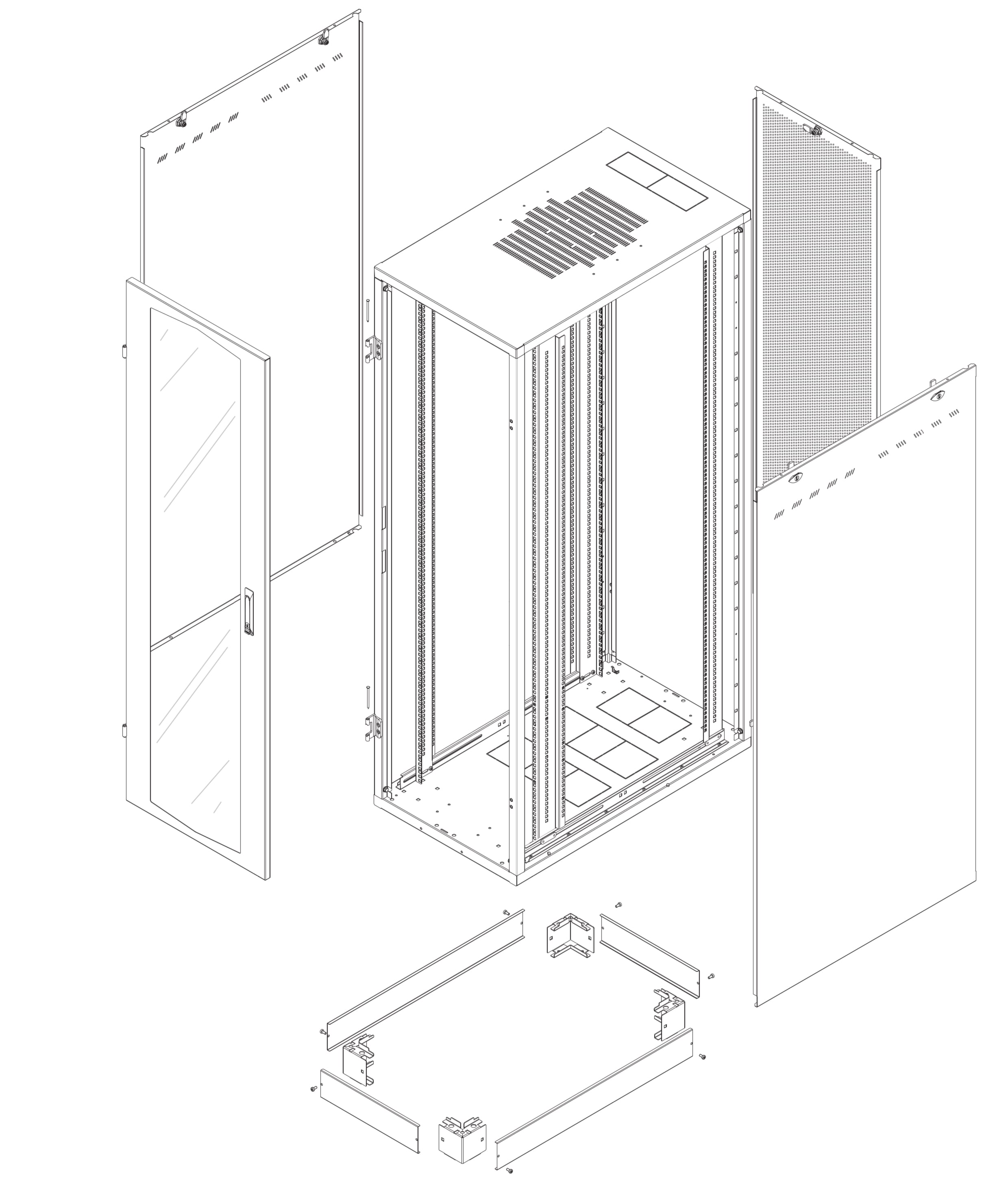

• Panels and door easily removable to facilitate equipment installation


• Reversible front door with tempered glass conforming to EN UNI 12150-1, with opening of 270°, quick-release hinges and handle with key lock

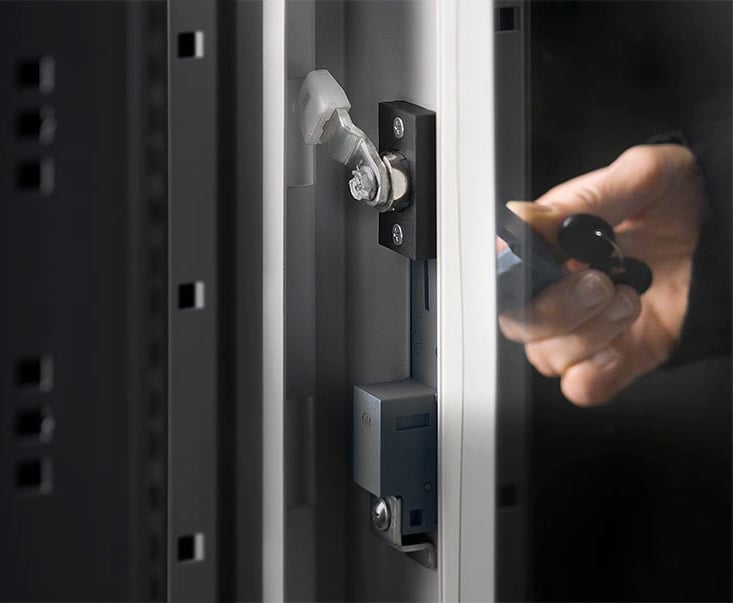

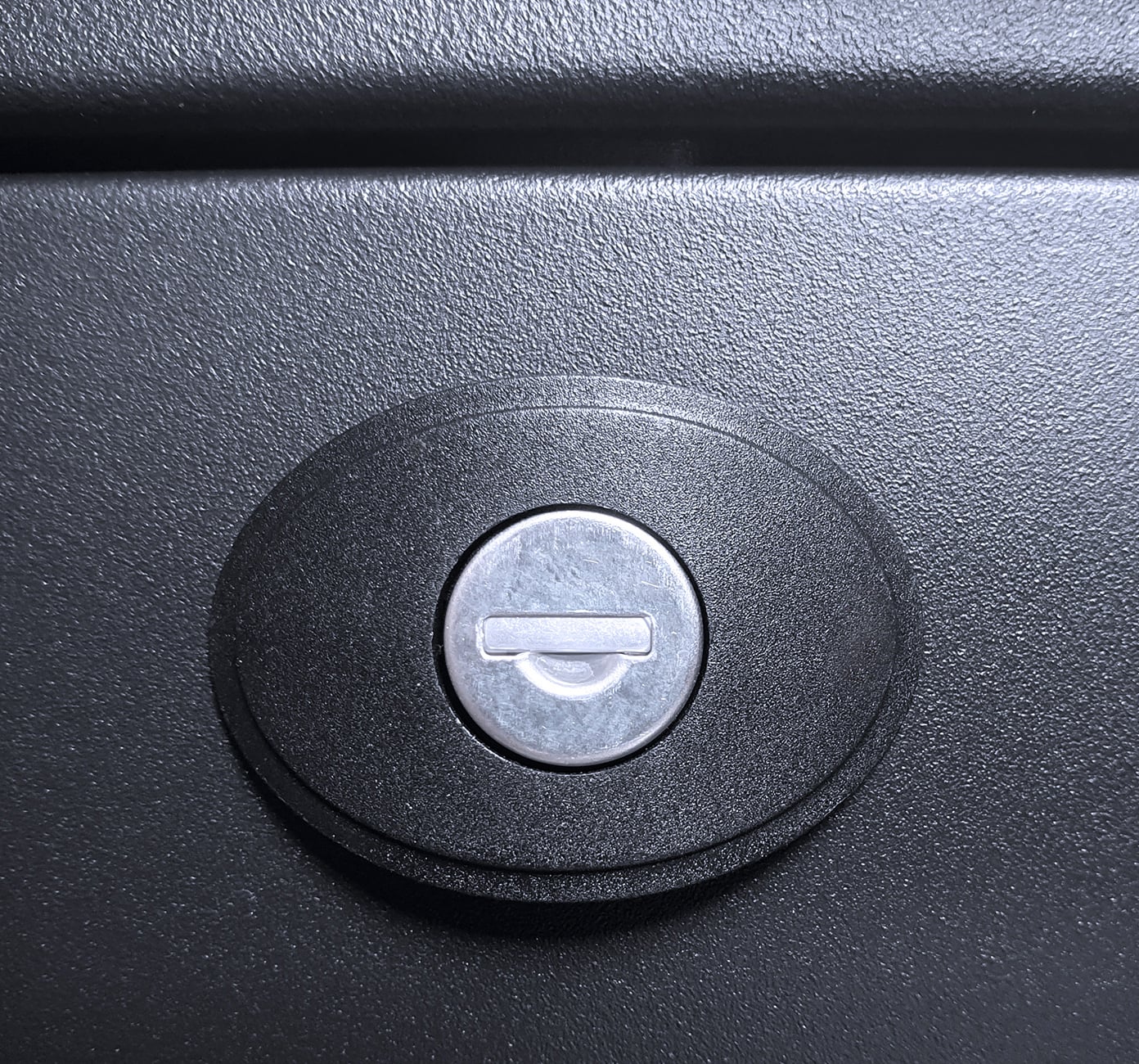

• Removable blind side panels with key lock


• Rear panel grille at 40%


• Roof pre-drilled for ventilation system and equipped with cable entry


• Bottom prepared for cable entry with pre-cut panels

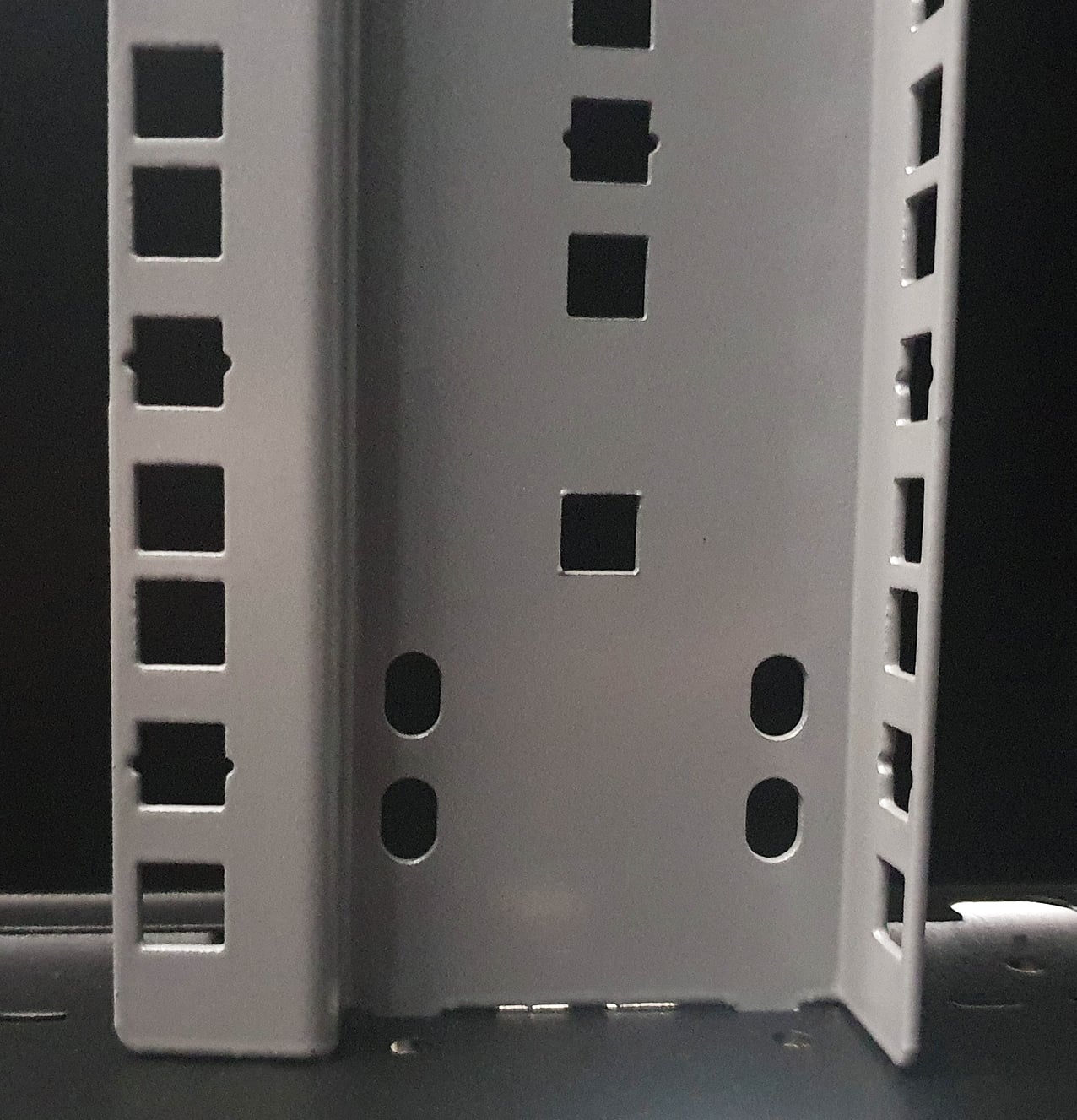

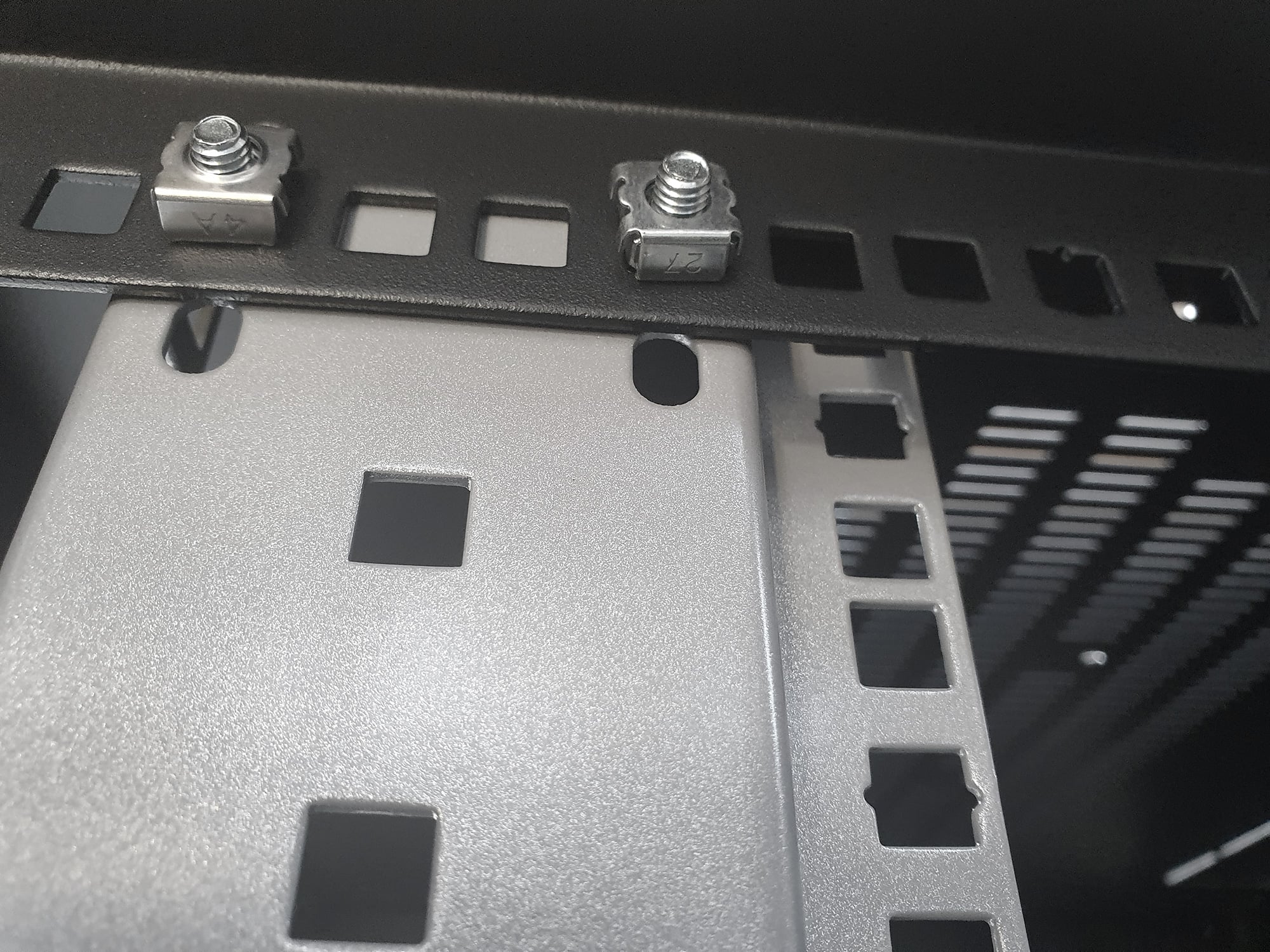

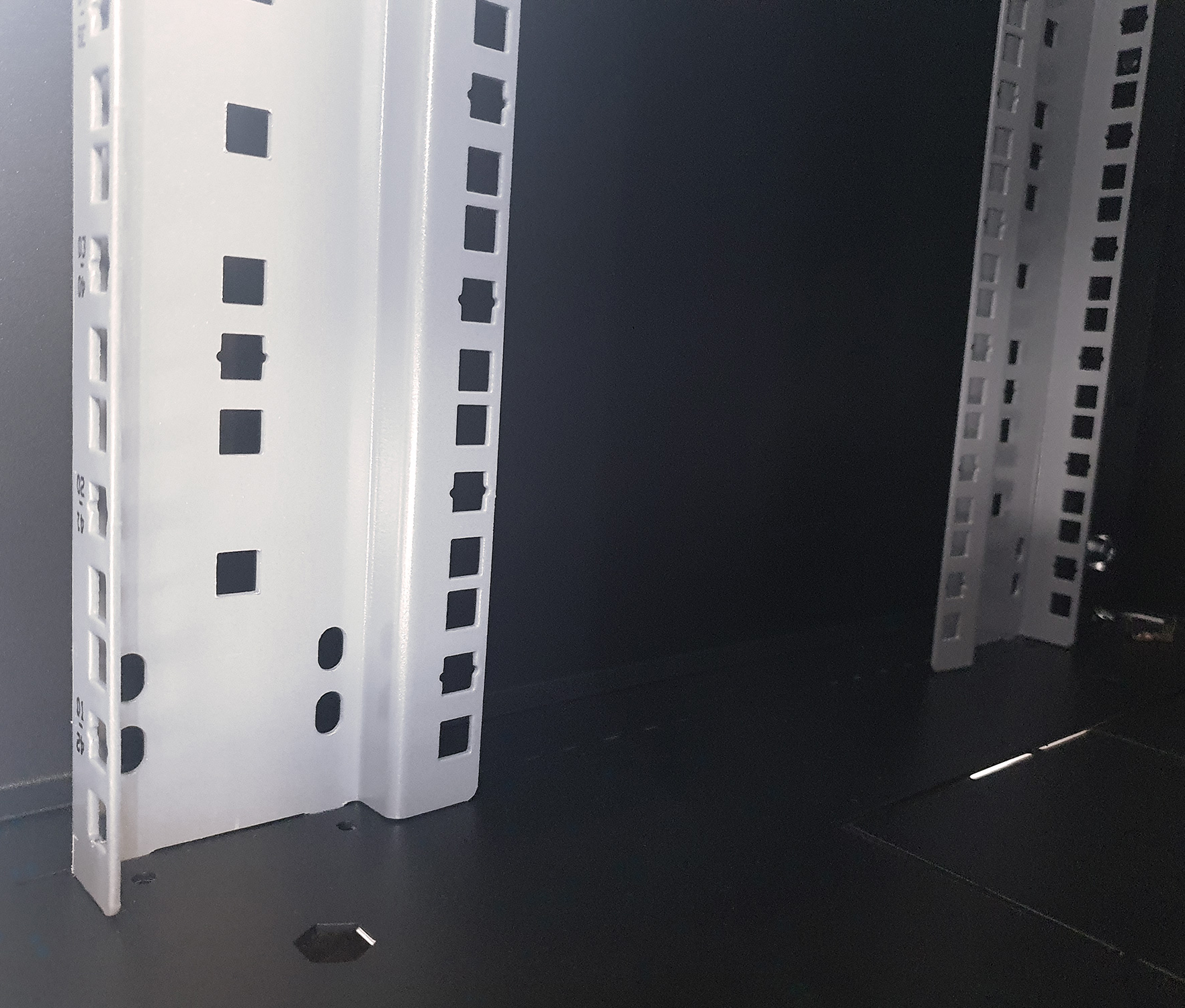

• Complete with a pair of uprights with silk-screened 19” units front and rear, quick snap-in on the base


• Complete with blank base (h. 100 mm) with removable panels


• Static load capacity 1000 kg


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 1656 x 600 x 1000 mm


• Usable effective depth: 962 mm



Certifications

• CE certification according to EN 62208


• Conformity to IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; EN60529; EN12150-1


• Conformity to UNI EN ISO 9001:2008
